MARKETING INFORMATION

This PCIe USB 3.2 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C™ (10Gbps) ports.

Faster USB Performance

Also known as USB 3.1 Gen 2, this USB 3.2 Gen 2 card adds two 10Gbps USB Type-C™ ports to your computer.

Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.2 Gen 2. With higher data throughput support, this USB 3.2 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.2 Gen 2 peripherals and includes an optional SATA power connector for high power devices.

The card is backward compatible with USB 3.2 Gen 1 (5Gbps) and USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. See our Accessories Tab for supported options.

Easy Installation

The USB 3.2 card is compatible with Windows®, Linux® and macOS® operating systems. The card includes both standard-profile and low-profile brackets to install in various form-factor PCs and servers.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

The PEXUSB312C3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

DETAILS

• Host Interface : PCI Express x4
• UASP Support : Yes
• Total Number of USB Ports : 2
• Number of USB 3.2 Ports : 2
• Number of SATA Ports : 1
• Operating System Supported : Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2008 R2,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 3.5
• Color Family : Black
• Product Color : Black
• Form Factor : Plug-in Card
• Height : 0.70" (17.78 mm)
• Width : 3.10" (78.74 mm)
• Length : 4.80" (121.92 mm)
• Weight (Approximate) : 1.60 oz (45.36 g)
• Package Contents :
  • 2-Port PCIe USB 3.1 Card - 2x USB-C - USB 3.1 Gen 2 Up to 10Gbps

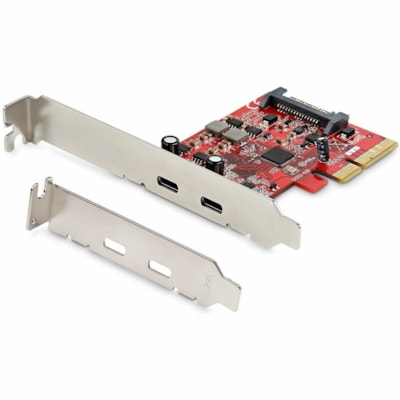

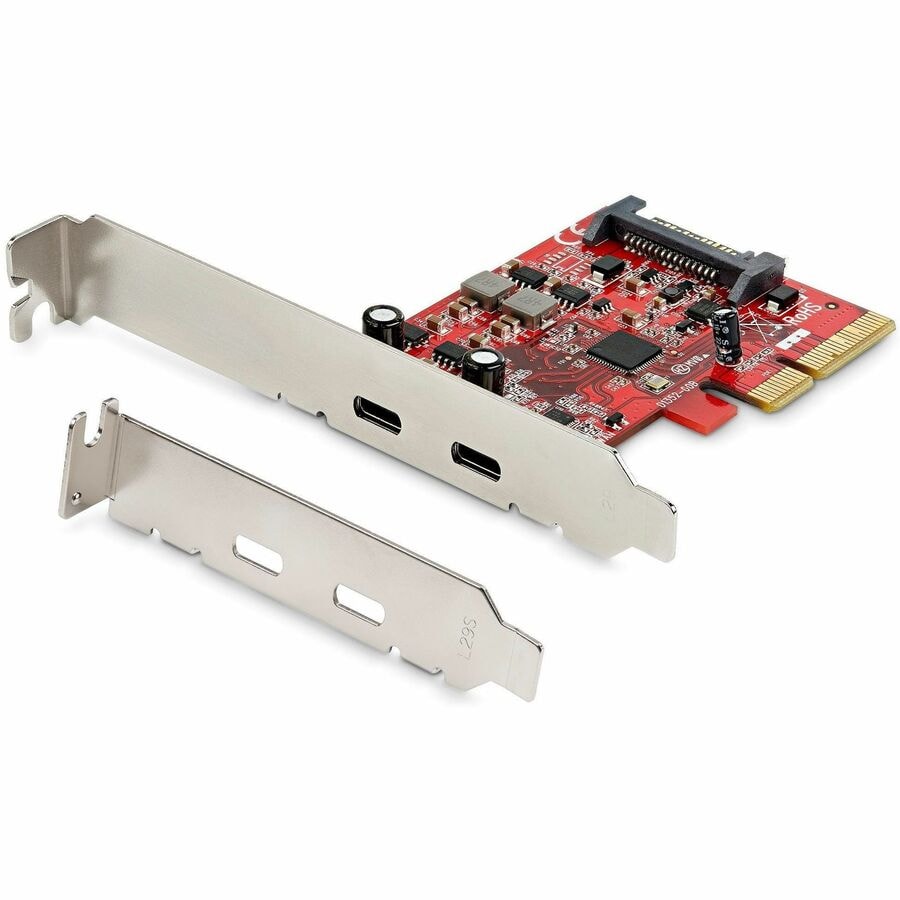

  • 1 x Low Profile Bracket
  • 1 x Quick Start Guide
• Platform Supported : Linux,PC,Mac
• Country of Origin : Taiwan
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Limited Warranty : 2 Year

• HIGH PERFORMANCE: Add 2x USB-C SuperSpeed 10Gbps ports to your desktop PC with this USB 3.2 Gen 2x1 PCIe Card; Expansion card provides up to 5V 3A (15W) via the USB-C ports
• USB 3.2 GEN 2X1 SPEEDS: PCI Express card features the ASMedia ASM3142 host controller using x4 lanes of PCIe 3.0; Capable of speeds up to 10Gbps enabling fast access to high-performance devices like NVMe drives and SSDs
• MAXIMIZED USB PERFORMANCE: 2-port USB-C PCIe Card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance; Installs in full/low-profile PCIe 3.0 x4 desktop / server slot (lower performance with PCI-e 2.0)
• COMPATIBILITY: Add-on card installs in full or low-profile (bracket included) PCIe 3.0 x4 slot (Backward compatible with PCIe 2.0); Windows/Linux/macOS with auto-install drivers Win 8 and up; Works with USB 3.2 Gen 2/3.0/2.0 devices
• COMPATIBILITY NOTICE: This dual port USB-C 10Gbps PCIe card supports data transfer only; It does not support DisplayPort Alt Mode for video output, USB Power Delivery, or Thunderbolt devices
