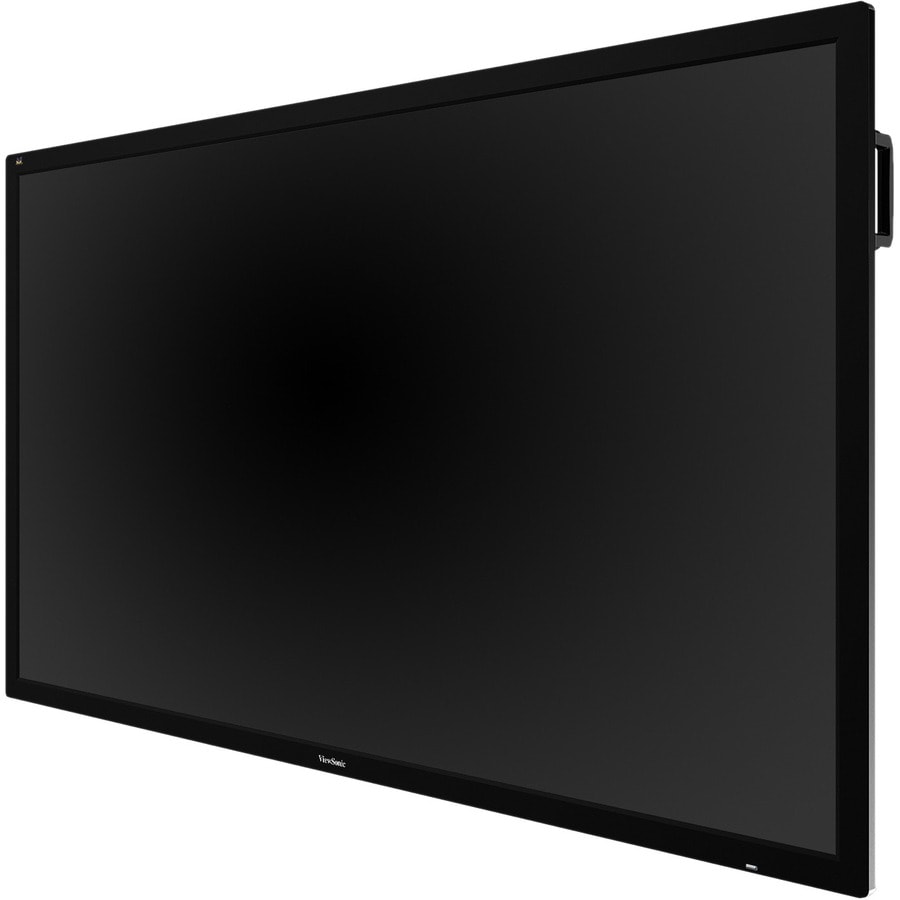

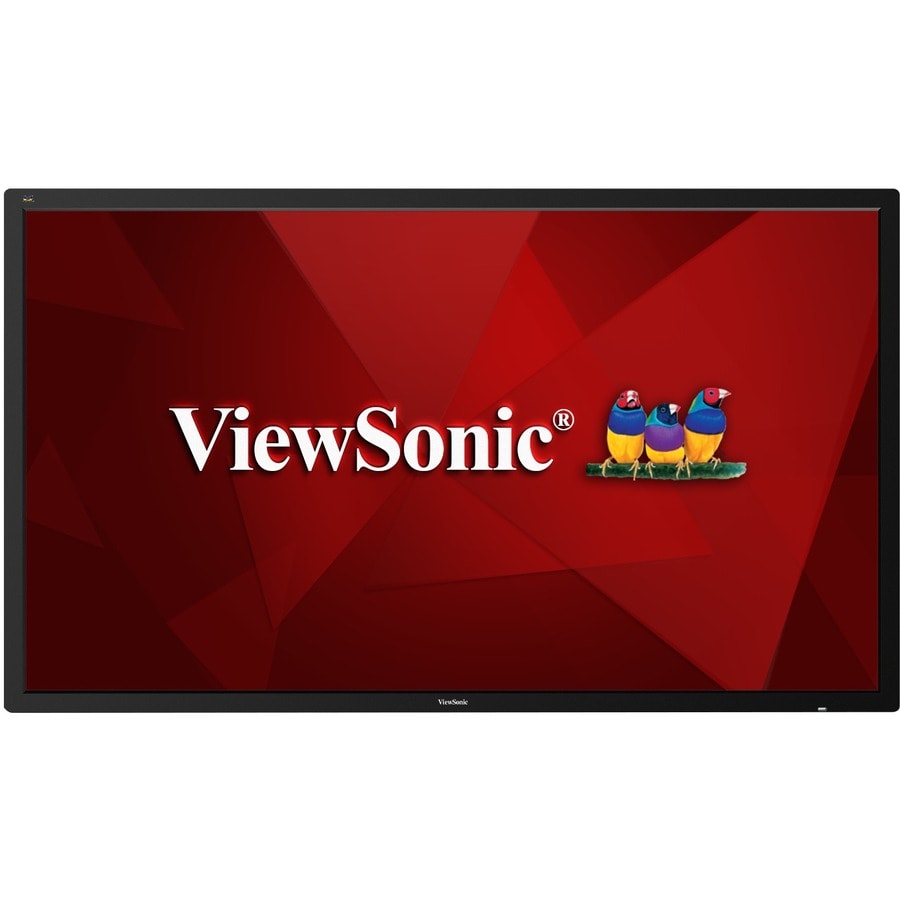

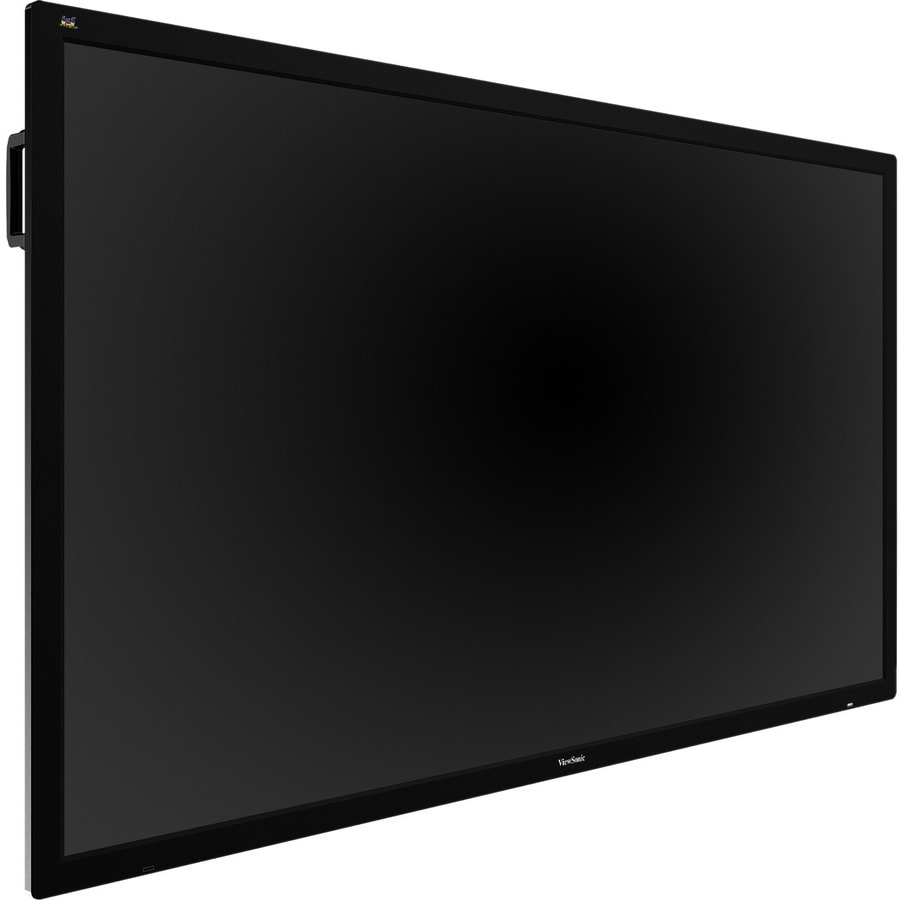

ViewSonic CDE8600 Digital Signage Display - 85.60" (2174.24 mm) LCD 1.40 GHz - 2 GB - 3840 x 2160 - Direct LED - 400 cd/m² - 2160p - HDMI - USB - Serial - Wireless LAN - Ethernet - Android - Black - Energy Star

CDE8600
Also known as IM3631ZA

New! Log in or create an account to see price and availability


MARKETING INFORMATION

The ViewSonic® CDE8600 is an 86" (85.6''viewable) 4K Ultra HD commercial display that delivers high reliability at a great value, 16 hours a day, 7 days a week. An embedded Android SOC allows you to install Android apps for rich content broadcasting, while a convenient built-in browser displays internet content without the need for a PC. Bundled ViewBoard® Cast software enables content streaming from mobile devices onto the display over wireless or cable networks. In addition to HDMI, DisplayPort, VGA, USB, IR, and RJ45 inputs, this display utilizes an integrated multi-core processor and 16GB of internal memory, allowing customers to playback multimedia content via USB without the need for a PC. With stunning 3840x2160 resolution, 350-nit high brightness, wide viewing angles, and dual 20W speakers, this display provides immersive, high-impact messaging wherever needed. To make life even easier, the bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop, and its flicker-free and blue light filter technologies help provide a comfortable viewing environment.

DETAILS

  • Processor Speed : 1.40 GHz
  • Processor Core : Dual-core (2 Core)
  • Standard Memory : 2 GB
  • Viewable Screen Size : 85.60" (2174.24 mm)
  • Display Screen Type : LCD
  • Display Resolution : 3840 x 2160
  • Backlight Technology : Direct LED
  • Scan Format : 2160p
  • Brightness : 400 cd/m²
  • Ethernet : Yes
  • Wireless LAN : Yes
  • USB : Yes
  • HDMI : Yes
  • Serial : Yes
  • Number of USB 2.0 Ports : 3
  • Number of HDMI Outputs : 1
  • Number of DisplayPorts : 1
  • Operating System : Android
  • Input Voltage : 120 V AC,230 V AC
  • Color Family : Black
  • Product Color : Black
  • Height : 44.60" (1132.84 mm)
  • Width : 77.20" (1960.88 mm)
  • Depth : 4.04" (102.60 mm)
  • Weight (Approximate) : 142.86 lb (64800 g)
  • Energy Star : Yes
  • Country of Origin : China
  • Limited Warranty : 3 Year
  • Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
  • Experience luminescent visual images with LCD display
  • 3840x2160 Display - Delivers a breathtaking ultra HD viewing experience with immersive pictures that are dynamic, clear, and as expansive as life
  • Engages your customers and makes their viewing experience breathtaking with its 2160p content
  • Direct LED backlighting technology enabled for a bright and sharp display

SPECIFICATIONS

Manufacturer ViewSonic Corporation
Manufacturer Part Number CDE8600
Manufacturer Website Address http://www.viewsonic.com
Brand Name ViewSonic
Product Model CDE8600
Product Name CDE8600 Digital Signage Display
Product Type Digital Signage Display
Processor Speed 1.40 GHz
Processor Core Dual-core (2 Core)
Standard Memory 2 GB
Viewable Screen Size 85.60" (2174.24 mm)
Display Screen Type LCD
Display Resolution 3840 x 2160
Backlight Technology Direct LED
Scan Format 2160p
Brightness 400 cd/m²
Ethernet Yes
Wireless LAN Yes
USB Yes
HDMI Yes
Serial Yes
Number of USB 2.0 Ports 3
Number of HDMI Outputs 1
Number of DisplayPorts 1
Operating System Android
Input Voltage 120 V AC
Input Voltage 230 V AC
Color Family Black
Product Color Black
Height 44.60" (1132.84 mm)
Width 77.20" (1960.88 mm)
Depth 4.04" (102.60 mm)
Weight (Approximate) 142.86 lb (64800 g)
Package Contents
  • CDE8600 Digital Signage Display
  • Remote control
  • CD User Manual
  • Quick Start Guide
  • Power cables
  • VGA cable
  • RS232 cable
  • IR sensor cable
  • RS232 daisy chain cable
Energy Star Yes
Country of Origin China
Limited Warranty 3 Year
