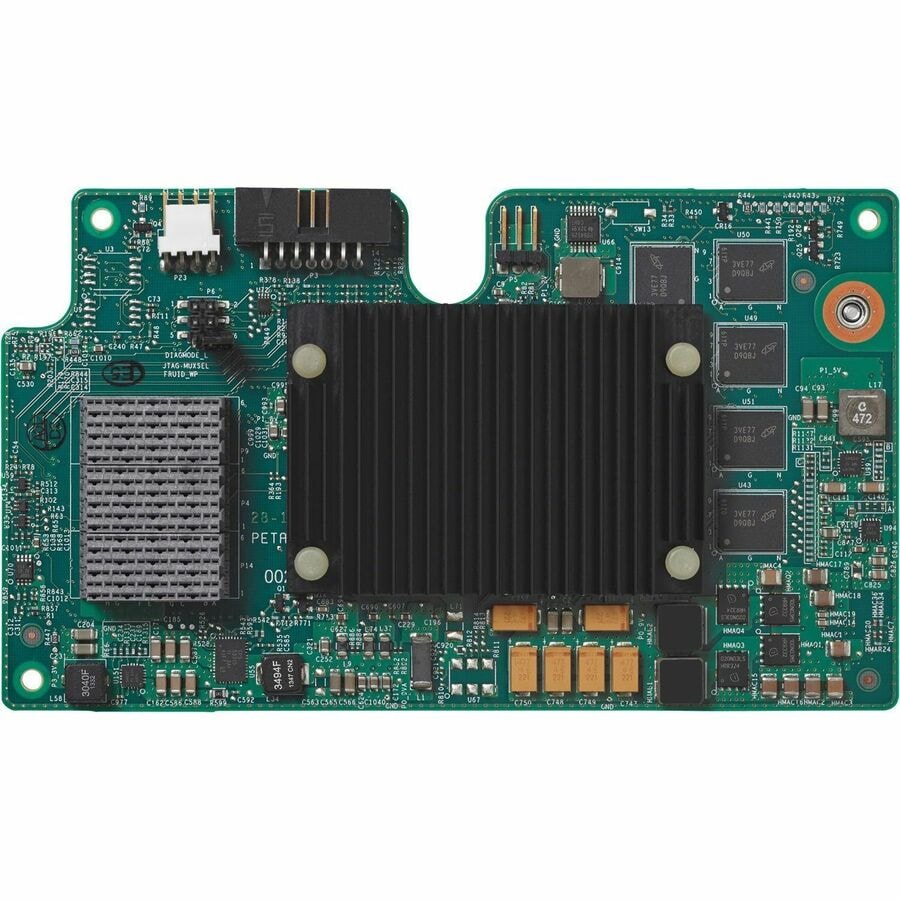

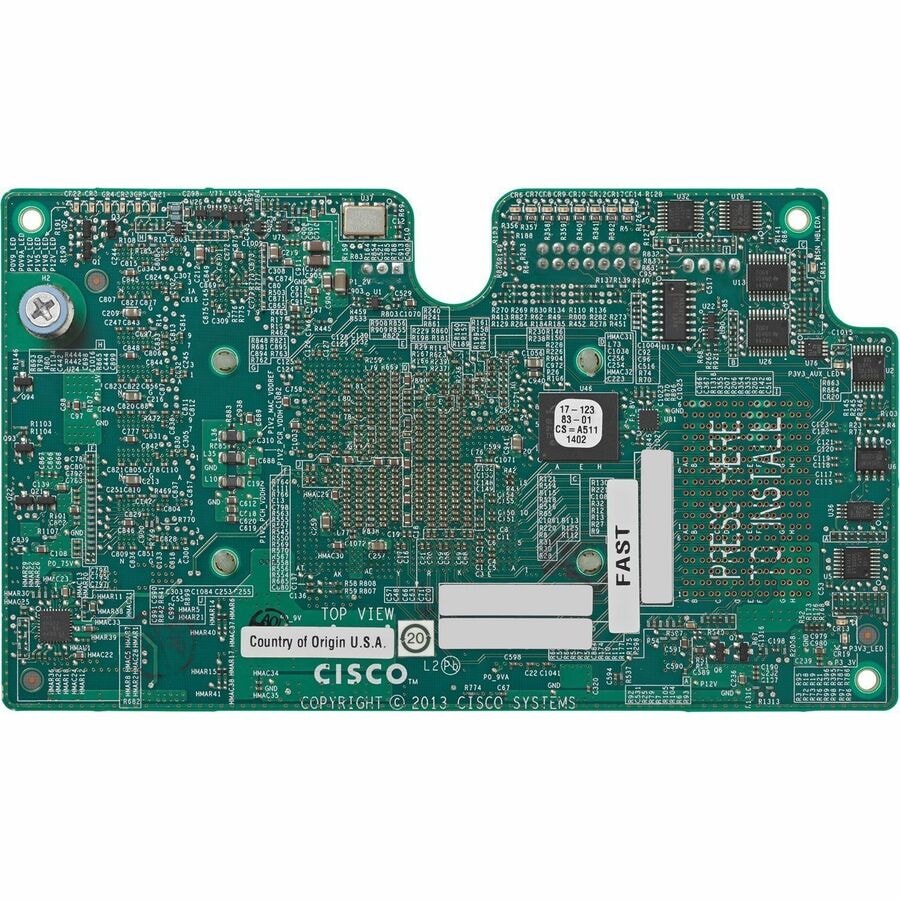

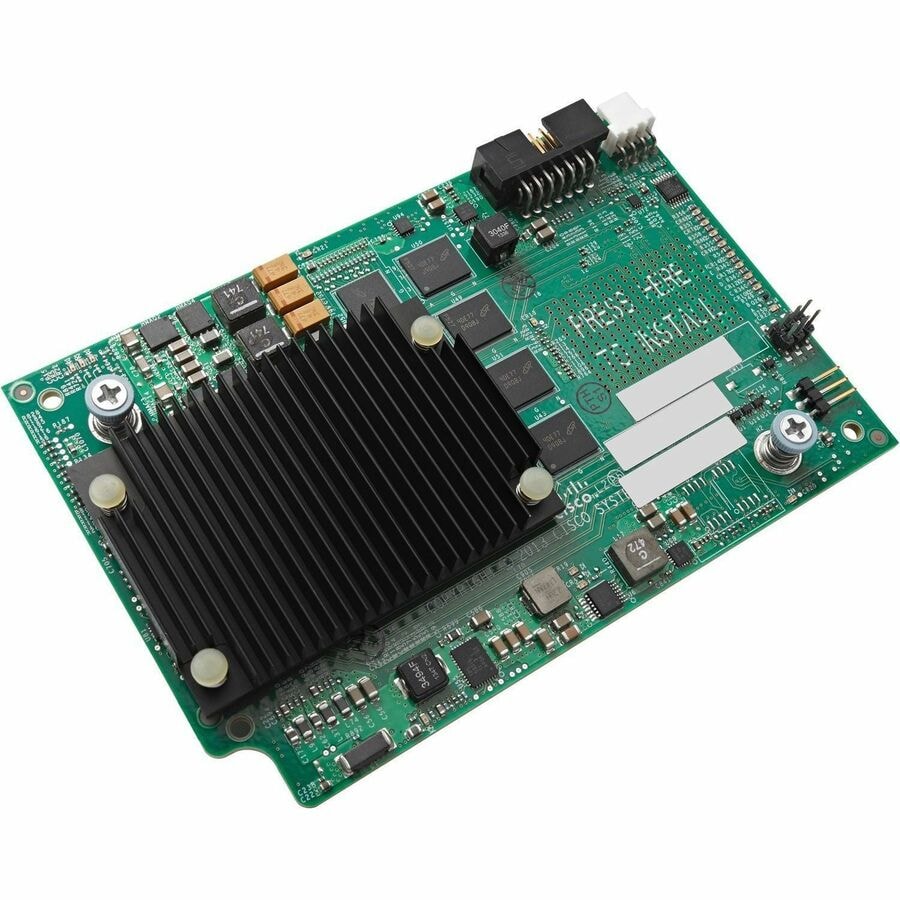

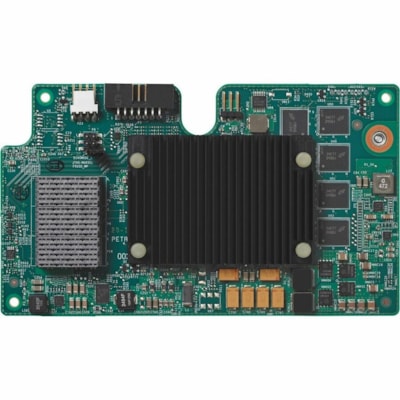

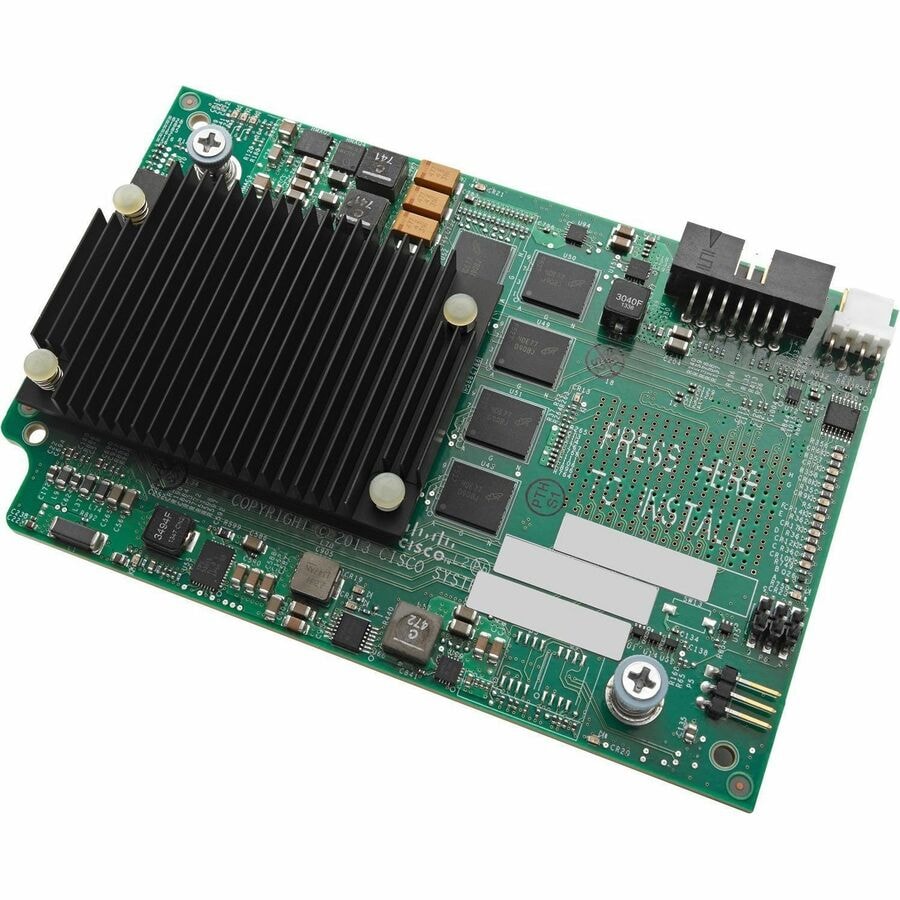

Cisco UCS Virtual Interface Card 1340 - PCI Express 3.0 x16 - 2 Port(s) - 40GBase-X - Mezzanine
HX-B-MLOM-40G-03
Also known as IM347A1S
MARKETING INFORMATION
The Cisco UCS Virtual Interface Card (VIC) 1340 is a 2-port 40-Gbps Ethernet or dual 4 x 10-Gbps Ethernet, Fibre Channel over Ethernet (FCoE)-capable modular LAN on motherboard (mLOM) designed exclusively for the M4 generation of Cisco UCS B-Series Blade Servers. When used in combination with an optional port expander, the Cisco UCS VIC 1340 capabilities is enabled for two ports of 40-Gbps Ethernet.
The Cisco UCS VIC 1340 enables a policy-based, stateless, agile server infrastructure that can present over 256 PCIe standards-compliant interfaces to the host that can be dynamically configured as either network interface cards (NICs) or host bus adapters (HBAs). In addition, the Cisco UCS VIC 1340 supports Cisco® Data Center Virtual Machine Fabric Extender (VM-FEX) technology, which extends the Cisco UCS fabric interconnect ports to virtual machines, simplifying server virtualization deployment and management.
DETAILS
- Host Interface : PCI Express 3.0 x16
- Total Number of Ports : 2
- Network Technology : 40GBase-X
- Form Factor : Mezzanine
- Width : 3.65" (92.71 mm)
- Depth : 7.25" (184.15 mm)
- Device Supported : Blade Server
- Limited Warranty : 5 Year
- The 40Gigabit Ethernet card will provide high-performance Ethernet for servers and high-end appliances while minimizing the usage of both power and CPU cycles
- This 16000MB/s bandwidth adapter is ideal for PCs with PCI Express 3.0 x16 slots, ensuring top level network connectivity for your desktops
- For high bandwidth connectivity, add this efficient dual port 40gigabit ethernet card to your server or workstation
- With the 40GBase-X technology get up to 40Gbps data transfer rate over the supported network cable
SPECIFICATIONS
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | HXBMLOM40G03 |
Manufacturer Website Address | http://www.cisco.com |
Brand Name | Cisco |
Product Model | 1340 |
Product Name | UCS Virtual Interface Card 1340 |
Product Type | 40Gigabit Ethernet Card |
Host Interface | PCI Express 3.0 x16 |
Total Number of Ports | 2 |
Network Technology | 40GBase-X |
Form Factor | Mezzanine |
Width | 3.65" (92.71 mm) |
Depth | 7.25" (184.15 mm) |
Application/Usage | Network |
Application/Usage | Data Center |
Application/Usage | Enterprise |
Device Supported | Blade Server |
Limited Warranty | 5 Year |
