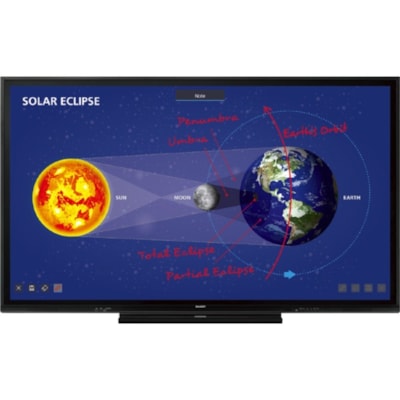

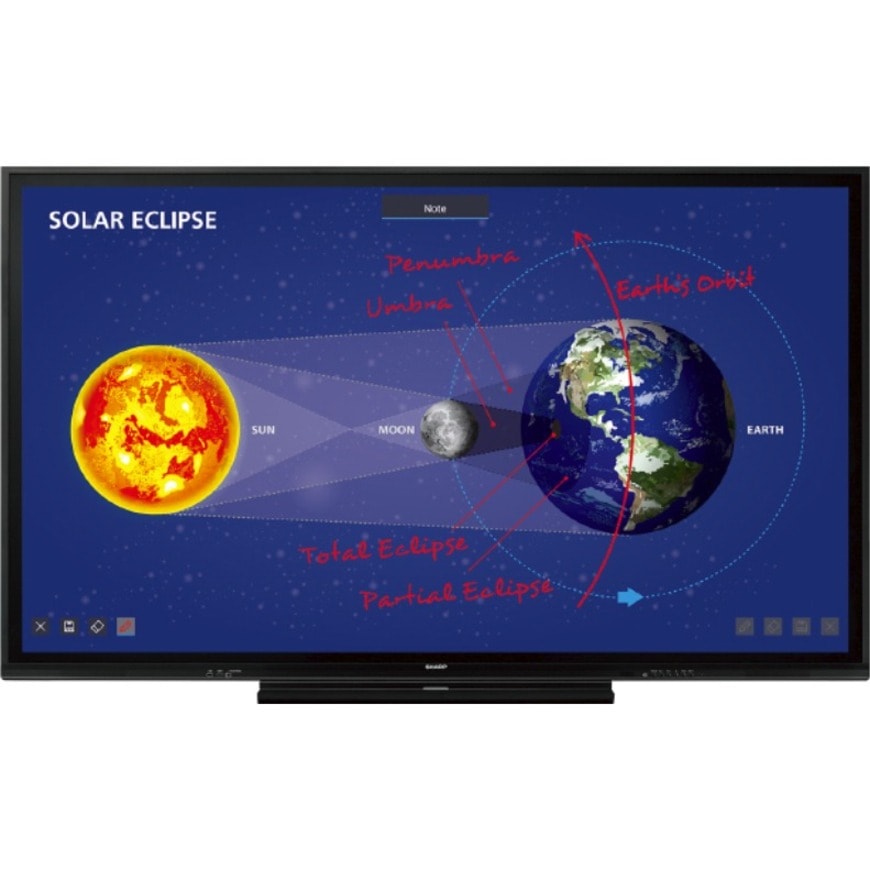

Sharp AQUOS BOARD PN-C861H Interactive Whiteboard - 86" - Touch-on - Infrared - 4 Users Supported - 74.63" (1895.48 mm) x 41.94" (1065.21 mm) Active Area - Multi-touch Screen - Wireless - Serial - HDMI - 2 x Number of USB 2.0 Ports - Windows, Mac, ChromeOS, Android
PNC861H
Also known as IM334GGA
MARKETING INFORMATION
Looking for a smart, interactive display for your office or classroom? Meet the all-in-one Sharp PN-C861H, PN-C751H and PN-CE701H AQUOS BOARD interactive display systems that make all your visual communications more lively and productive. Available in three sizes-86" Class (85 9/16" diagonal), 75" Class (74 1/2" diagonal) and 70" Class (69 1/2" diagonal), respectively-this series opens up an affordable path to pristine 4K Ultra HD resolution. A pre-installed launcher makes it quick and easy to start up and use the interactive whiteboard. Your lecture, presentation, or lesson can now be more creative and involving.
DETAILS
- Screen Size : 86"
- Resolution (DPI) : 3840 x 2160
- Surface Type : Touch-on
- Movement Detection Technology : Infrared
- Number of Users Supported : 4
- Active Area : 74.63" (1895.48 mm) x 41.94" (1065.21 mm)
- Multi-touch Screen : Yes
- Connectivity Technology : Wireless
- Serial : Yes
- HDMI : Yes
- Number of USB 2.0 Ports : 2
- Platform Supported : Windows,Mac,ChromeOS,Android
- Height : 46.25" (1174.75 mm)
- Width : 78.25" (1987.55 mm)
- Depth : 4.44" (112.71 mm)
- Weight (Approximate) : 176.40 lb (80013.69 g)
- Package Contents :
- AQUOS BOARD PN-C751H Interactive Whiteboard
- Passive Pen
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Country of Origin : China
- Limited Warranty : 3 Year
- Affect learning in several ways, including raising the level of student engagement, motivation, and enthusiasm for learning
- Touch the board with a pen or your finger to write or perform mouse functions
SPECIFICATIONS
| Manufacturer | Sharp Electronics |
| Manufacturer Part Number | PNC861H |
| Manufacturer Website Address | http://www.sharpusa.com |
| Brand Name | Sharp |
| Product Line | AQUOS BOARD |
| Product Model | PN-C861H |
| Product Name | AQUOS BOARD PN-C861H Interactive Whiteboard |
| Product Type | Interactive Whiteboard |
| Screen Size | 86" |
| Resolution (DPI) | 3840 x 2160 |
| Surface Type | Touch-on |
| Movement Detection Technology | Infrared |
| Number of Users Supported | 4 |
| Active Area | 74.63" (1895.48 mm) x 41.94" (1065.21 mm) |
| Multi-touch Screen | Yes |
| Connectivity Technology | Wireless |
| Serial | Yes |
| HDMI | Yes |
| Number of USB 2.0 Ports | 2 |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Platform Supported | Mac |
| Platform Supported | ChromeOS |
| Platform Supported | Android |
| Platform Supported | Windows |
| Height | 46.25" (1174.75 mm) |
| Width | 78.25" (1987.55 mm) |
| Depth | 4.44" (112.71 mm) |
| Weight (Approximate) | 176.40 lb (80013.69 g) |
| Package Contents |
|
| Additional Information | Main Accessories:
Operating Temperature: 5°C to 35°C Operating Humidity: 20% to 80% RH (no condensation) Mounting:
Expansion Slot:
CPU: Arm® Cortex®-A53 processor (quad core) Memory: 1 GB Internal Storage: 8 GB External Interface Front:
Video Color System: NTSC (3.58 MHz)/NTSC (4.43 MHz)/PAL/PAL60 /SECAM Input Terminal Front:
Video:
Plug & Play: VESA DDC2B Touch Pen Function Button: N/A (passive pen) Touchscreen PC Connection Port: USB (2.0 compliant) (Type B) × 2 (Front × 1, Rear × 1) Power Supply for Touch Panel: Supplied from main unit Multi Touch: 20 points Protection Glass/Thickness: Approx. 4.0 mm Shock resistance: 130 cm LCD Panel Max. Display Colors (approx.): 1.07 billion colors Pixel Pitch (H × V): 0.4935 × 0.4935 mm Max. Brightness (average): 400 cd/m2 Contrast Ratio:
Response Time: 8 ms (gray to gray, avg.) Backlight:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Limited Warranty | 3 Year |
