StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot - pcie rs485 - pci express rs485 - pcie rs485 - pci express rs422 - pcie rs422

PEX4S232485
Also known as IM31770T,SY4936627

New! Log in or create an account to see price and availability


MARKETING INFORMATION

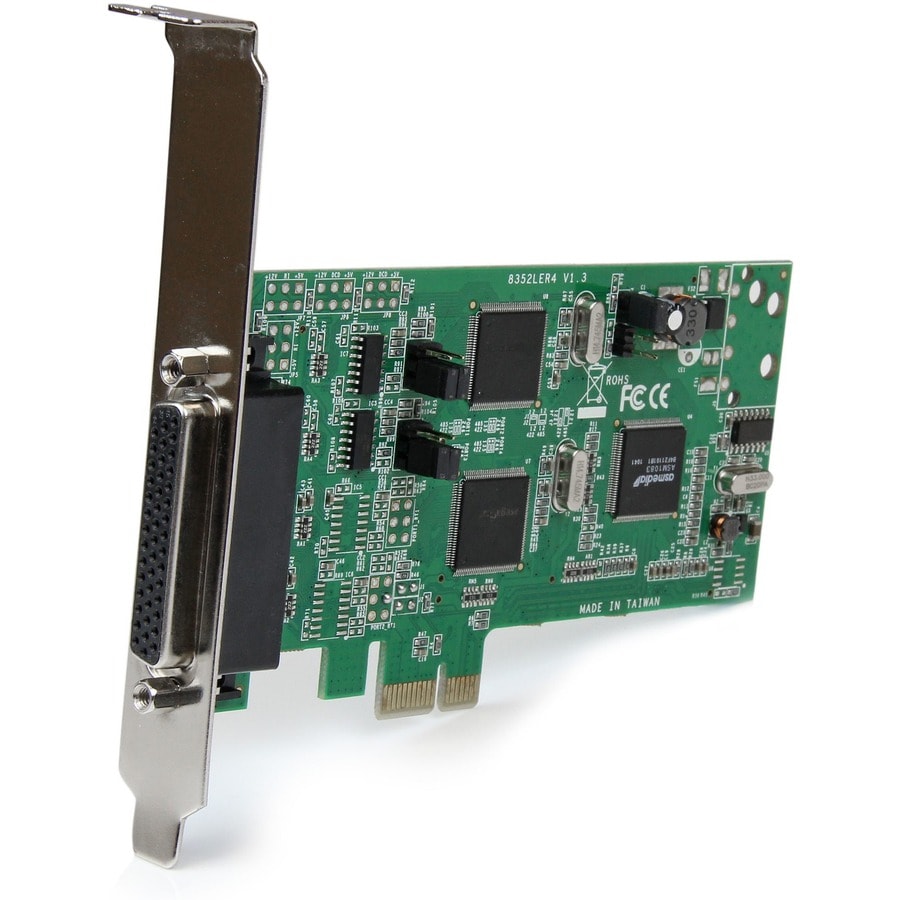

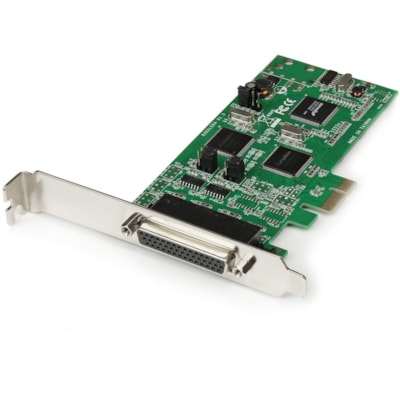

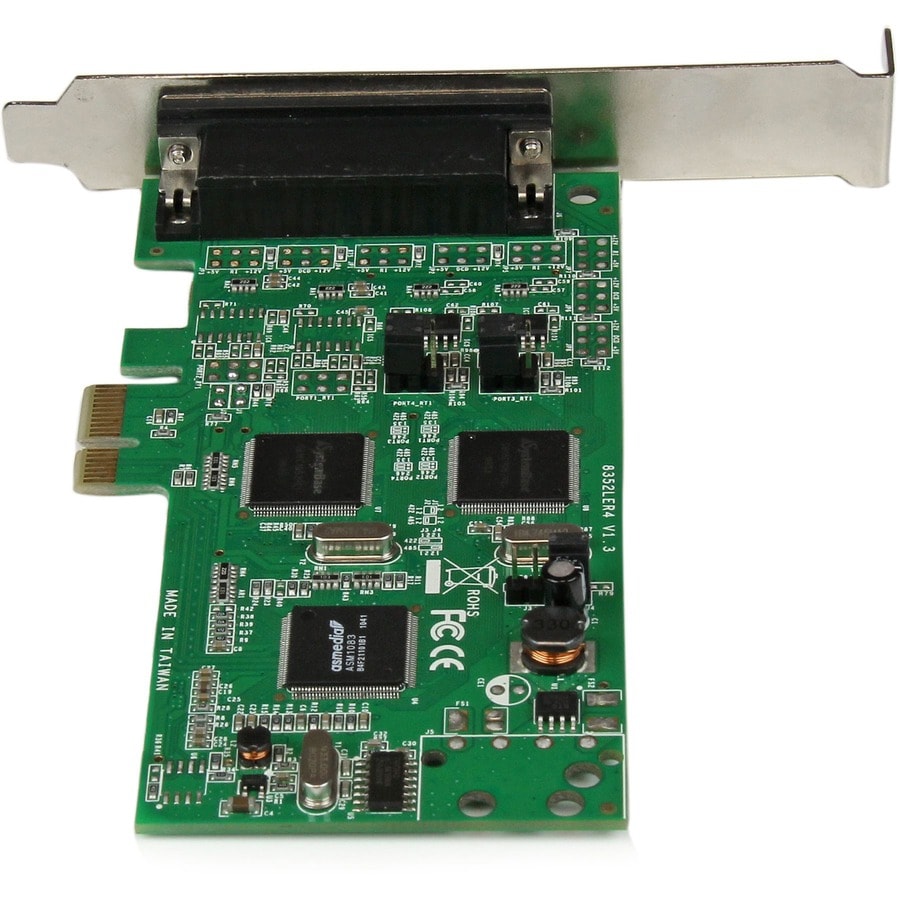

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.

This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

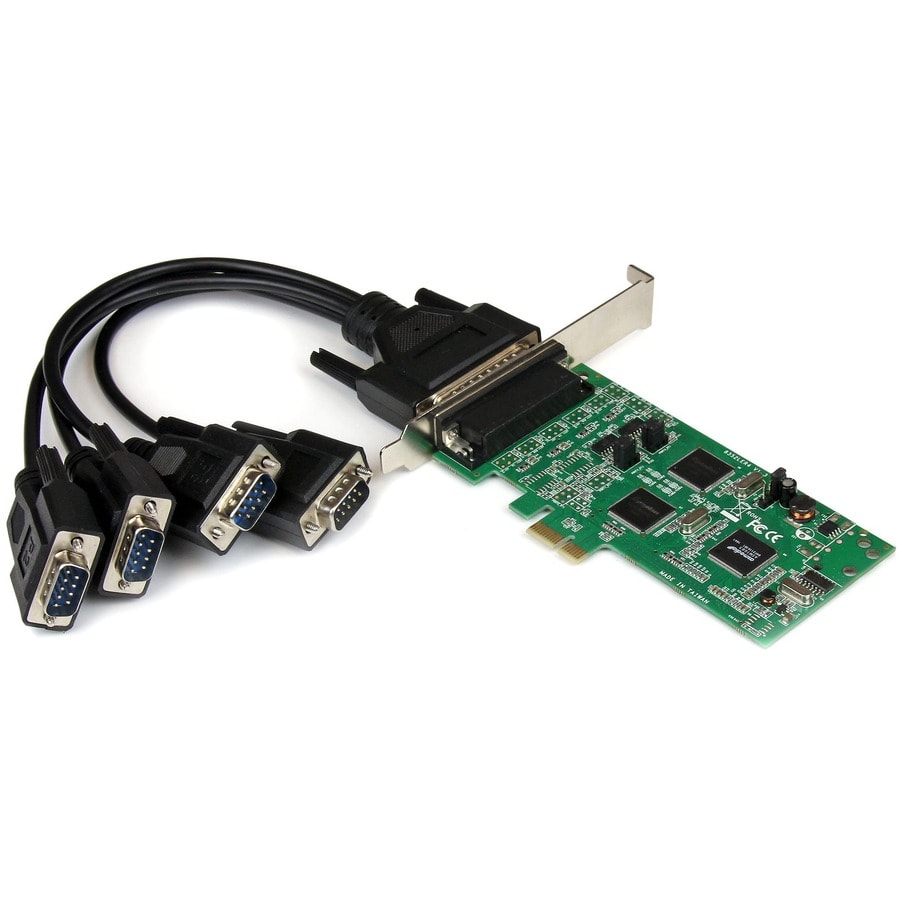

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

DETAILS

  • Host Interface : PCI Express x1
  • Maximum Data Transfer Rate : 3.59 Mbit/s
  • Ports Expandability : 4 x DB-9 RS-232/422/485 - Serie, vía cable
  • Form Factor : Plug-in Card
  • Height : 2.70" (68.58 mm)
  • Width : 0.60" (15.24 mm)
  • Weight (Approximate) : 2.40 oz (68.04 g)
  • TAA Compliant : Yes
  • Country of Origin : Taiwan
  • Environmentally Friendly : Yes
  • Environmental Certification : RoHS,WEEE,REACH
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Limited Warranty : Lifetime
  • 4 port (2 x RS232, 2 x RS422/485) serial combo card
  • RS232 data transfer rates up to 460 Kbps
  • Supports 2-Wire / 4-Wire RS485 modes
  • 256-byte deep FIFO per transmitter and receiver

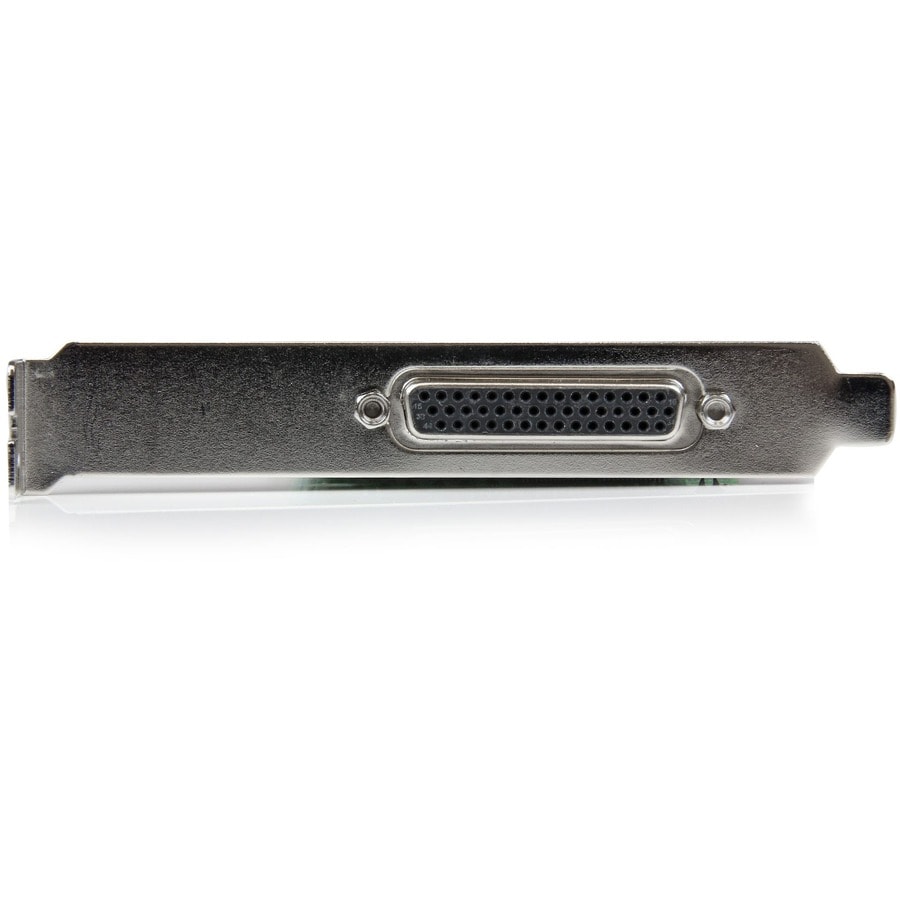

  • Standard and low-profile bracket included
  • Compliant with PCI-Express Specification 1.0a
  • Supports PCI Power Management 1.1

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number PEX4S232485
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485
Packaged Quantity 1 Each
Product Type Multiport Serial Adapter
Host Interface PCI Express x1
Maximum Data Transfer Rate 3.59 Mbit/s
Platform Supported PC
Ports Expandability 4 x DB-9 RS-232/422/485 - Serie, vía cable
Form Factor Plug-in Card
Height 2.70" (68.58 mm)
Width 0.60" (15.24 mm)
Weight (Approximate) 2.40 oz (68.04 g)
Package Contents
  • 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485

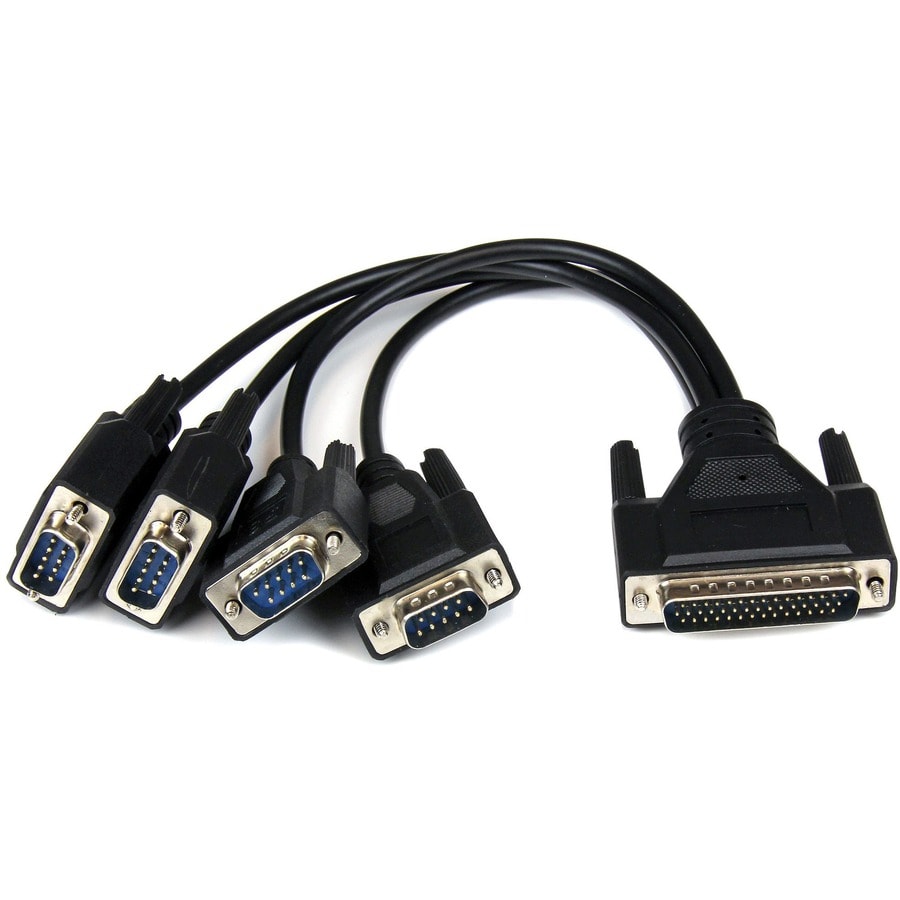

  • 1 x Breakout Cable
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Certification REACH
Environmental Certification WEEE
Environmental Certification RoHS
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty Lifetime
