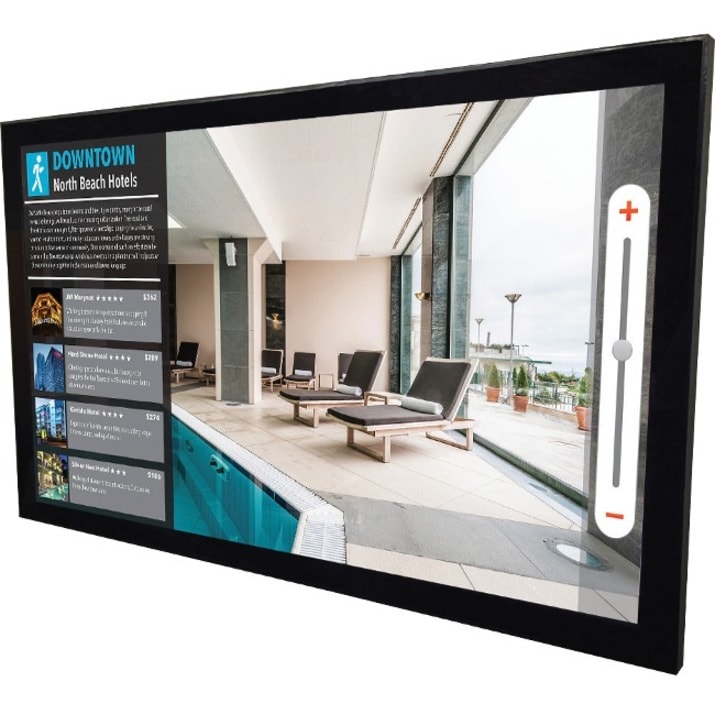

NEC Display OLP-404 Touchscreen Overlay - LCD Display Type Supported - 40" Capacitive Technology - 80-point - Anti-glare - 16 ms Response Time - USB Interface

OLP-404
Also known as IM3116DQ

New! Log in or create an account to see price and availability


MARKETING INFORMATION

NEC's line of projected capacitive (PCAP) touch add-ons are engineered specifically for our high quality commercial grade displays. PCAP technology allows for a seamless flat front bezel, creating a sleek design that does not sacrifice on durability. The flat front bezel design can easily be wiped clean, eliminating dust and dirt collection, which helps extend the use of the display and enhances the touch experience. The thermoplastic seal between bezel and glass eliminates the possibility of any bacterial harborage on the unit. Our PCAP overlay's high performance touch technology and sleek, sanitary design, make it our top-tier solution.

  • Up to 80 simultaneous touch points
  • HID Compliant
  • Thermoplastic seal makes the front water and dust resistant, allowing for easy cleaning
  • Tempered protective glass
  • Fit is close enough to the glass so that it appear as if the touch is integrated into the display

DETAILS

  • Display Type Supported : LCD
  • Maximum Screen Size Supported : 40"
  • Sensor Type : Capacitive
  • Touch Response Time : 16 ms
  • Screen Surface : Anti-glare
  • Number of Touch Points : 80-point
  • Host Interface : USB
  • Product Material : Tempered Glass,Thermoplastic
  • Height : 22.50" (571.50 mm)
  • Width : 37.30" (947.42 mm)
  • Depth : 2.40" (60.96 mm)
  • Weight (Approximate) : 22.27 lb (10101.50 g)
  • Country of Origin : China
  • Limited Warranty : 3 Year

SPECIFICATIONS

Manufacturer Sharp
Manufacturer Part Number OLP-404
Manufacturer Website Address http://www.sharp-nec-displays.com/
Brand Name NEC Display
Product Model OLP-404
Product Name OLP-404 Touchscreen Overlay
Product Type Touchscreen Overlay
Display Type Supported LCD
Maximum Screen Size Supported 40"
Sensor Type Capacitive
Touch Response Time 16 ms
Screen Surface Anti-glare
Number of Touch Points 80-point
Features Portrait
Features Landscape
Host Interface USB
Product Material Tempered Glass
Product Material Thermoplastic
Height 22.50" (571.50 mm)
Width 37.30" (947.42 mm)
Depth 2.40" (60.96 mm)
Weight (Approximate) 22.27 lb (10101.50 g)
Compatibility NEC Digital Signage Displays:
  • P404
  • P404-AVT2
  • P404-AVT2-R
  • P404-R
  • V404
  • V404-AVT2
  • V404-AVT2-R
  • V404-R
Country of Origin China
Limited Warranty 3 Year
