MARKETING INFORMATION

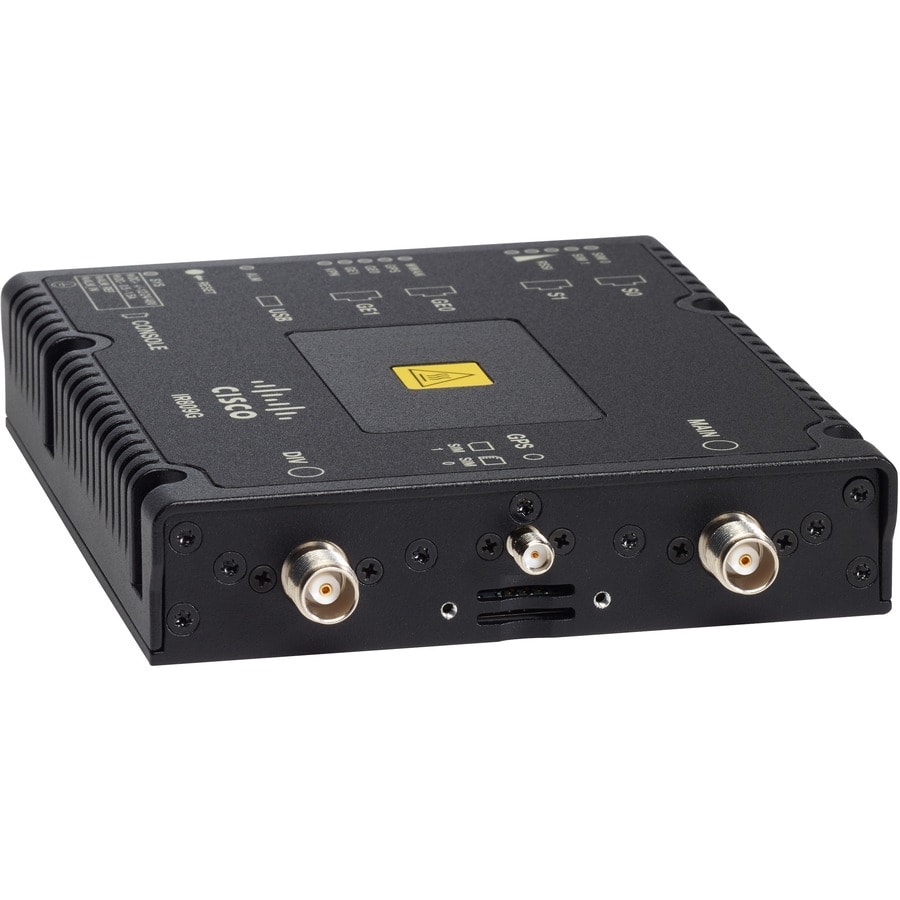

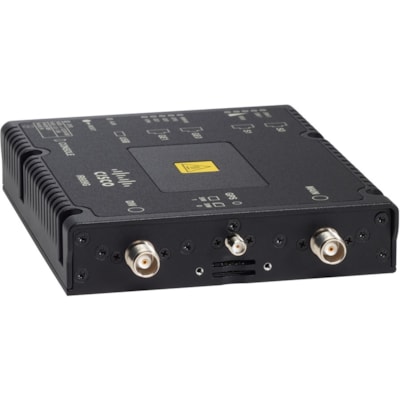

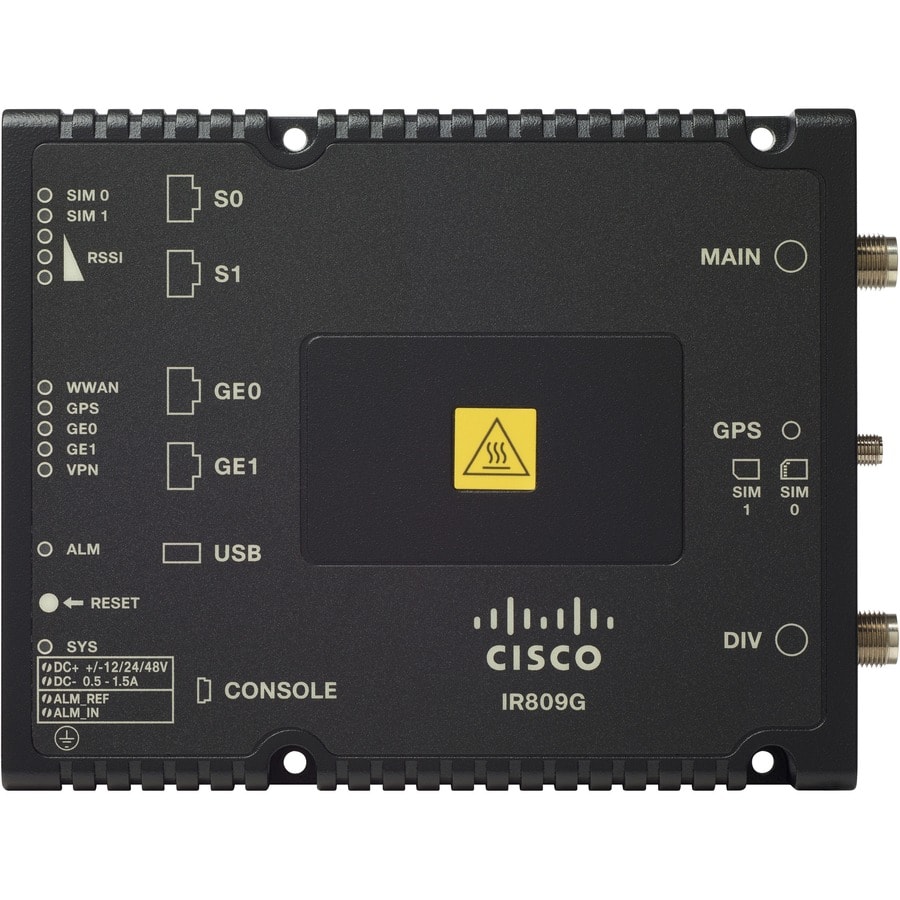

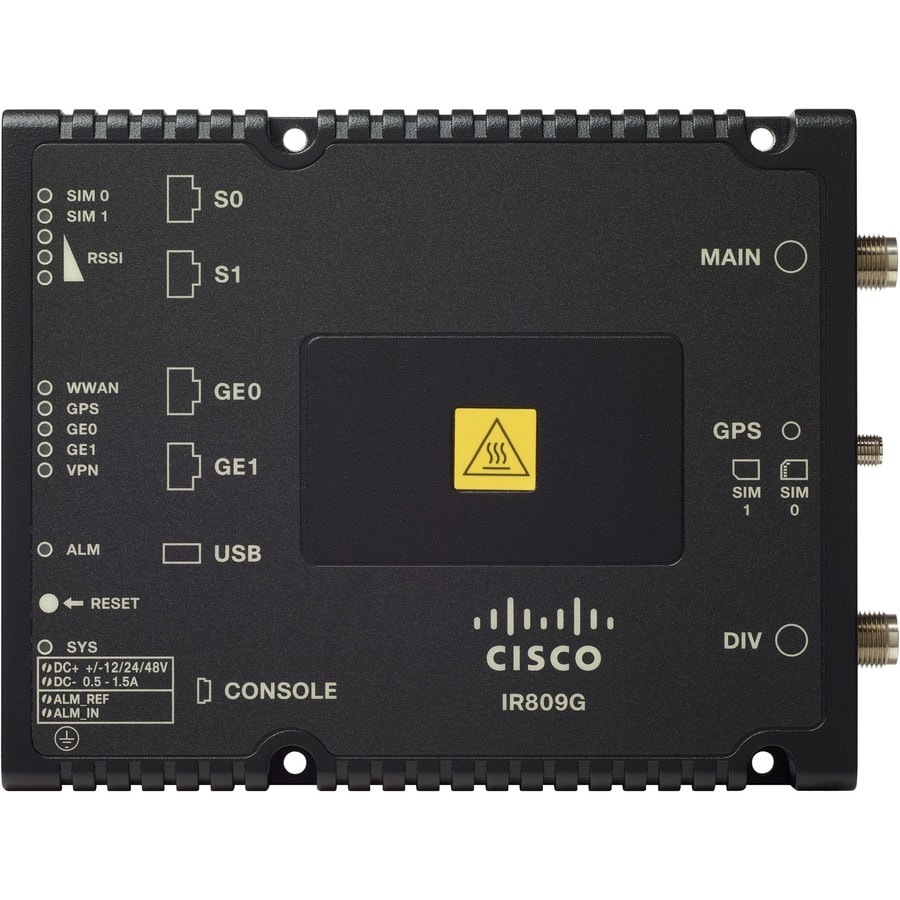

The Cisco® 809 Industrial Integrated Services Routers is a compact ruggedized router designed for deployment in harsh industrial environments. The 809 is Cisco's smallest multimode 3G and 4G LTE wireless router, making it an ideal solution for distribution automation and remote asset management across multiple industrial verticals. The 809 has an integrated 9.6-60 VDC power input and is designed to withstand hostile environments, including shock, vibration, dust, and humidity, and supports a wide temperature range (-40°C to +60°C and type-tested at +85°C for 16 hours). The IR809 brings together enterprise-grade wireline-like services, such as quality of service (QoS), Cisco advanced VPN technologies (i.e. Dynamic Multipoint VPN - DMVPN -, Flexible VPN - FlexVPN), and Multi-VRF for cellular, highly secure data, voice, and video communications and Cisco IOx, an open, extensible environment for hosting applications at the network edge.

DETAILS

• Broadband Transmission Technology : Cellular
• Cellular Generation : 4G
• Cellular Network Supported : LTE 700
• Cellular Data Connectivity Technology : LTE,EVDO
• Total Wireless Transmission Speed : 12.50 MB/s

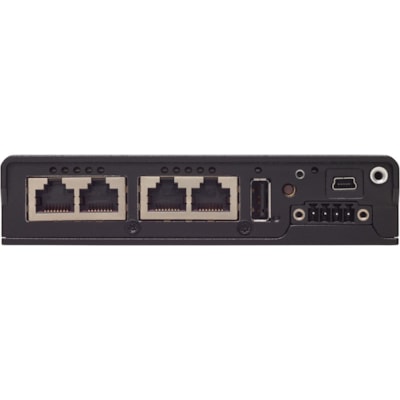

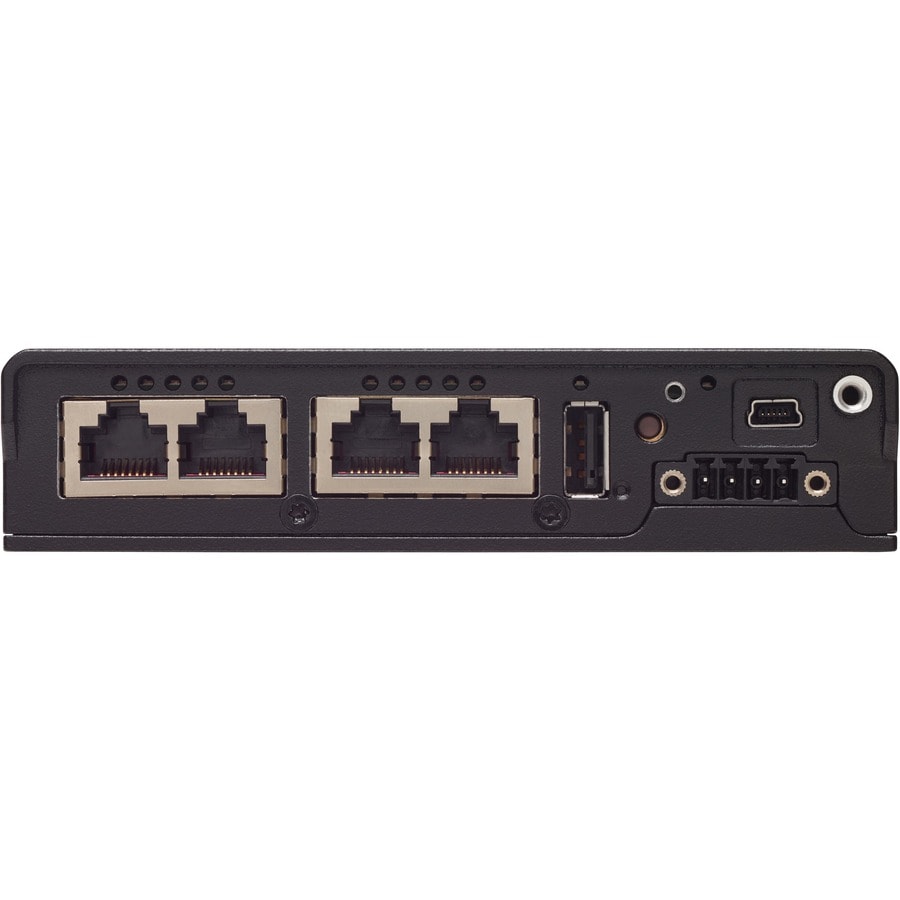

• Number of Network (RJ-45) Ports : 2
• USB : Yes
• PoE (RJ-45) Port : No
• Number of Broadband (RJ-45) Ports : 2
• Ethernet Technology : Gigabit Ethernet
• VPN Supported : Yes
• Form Factor : Panel-mountable,Door Mount
• Height : 1.15" (29.21 mm)
• Width : 5.05" (128.27 mm)
• Depth : 6.27" (159.26 mm)
• Weight (Approximate) : 11 oz (311.84 g)
• Limited Warranty : 5 Year

• Cost-effective, rapidly deployable, and secure backup solution is how you can describe the Integrated Services Router with wireless 3G
• Gigabit Ethernet port for ultra-fast wired network speeds
• Access USB-compatible peripherals accross the wireless network via built-in USB port
• Mounted easily on a door
