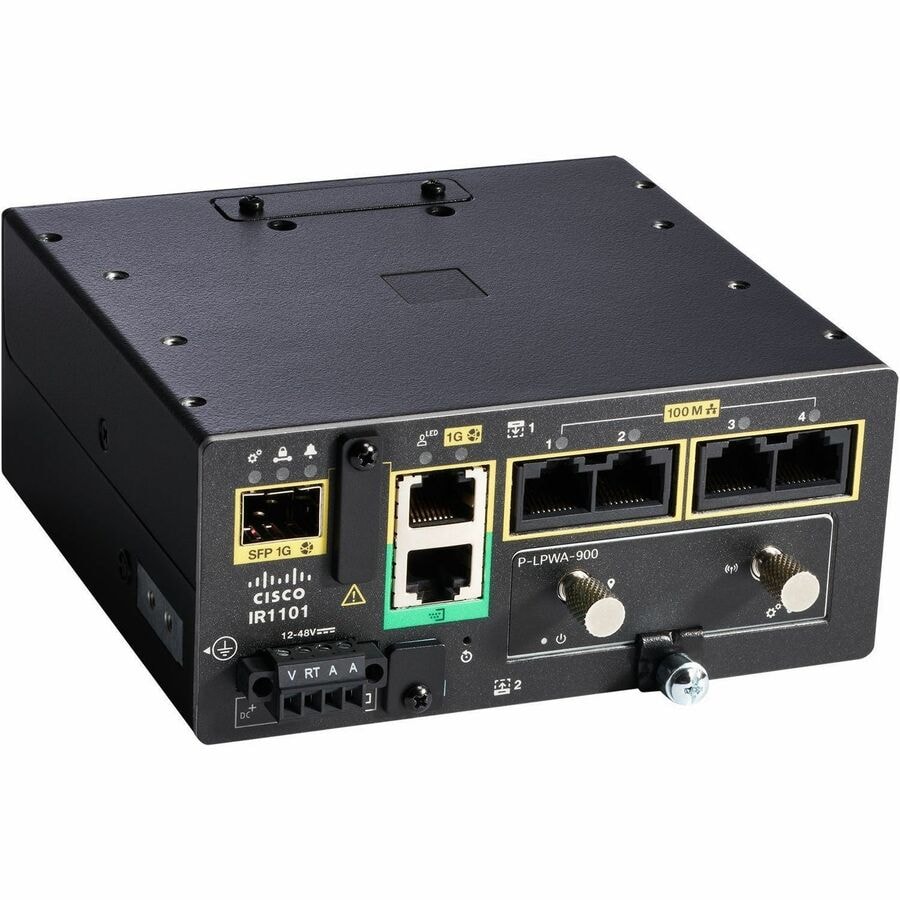

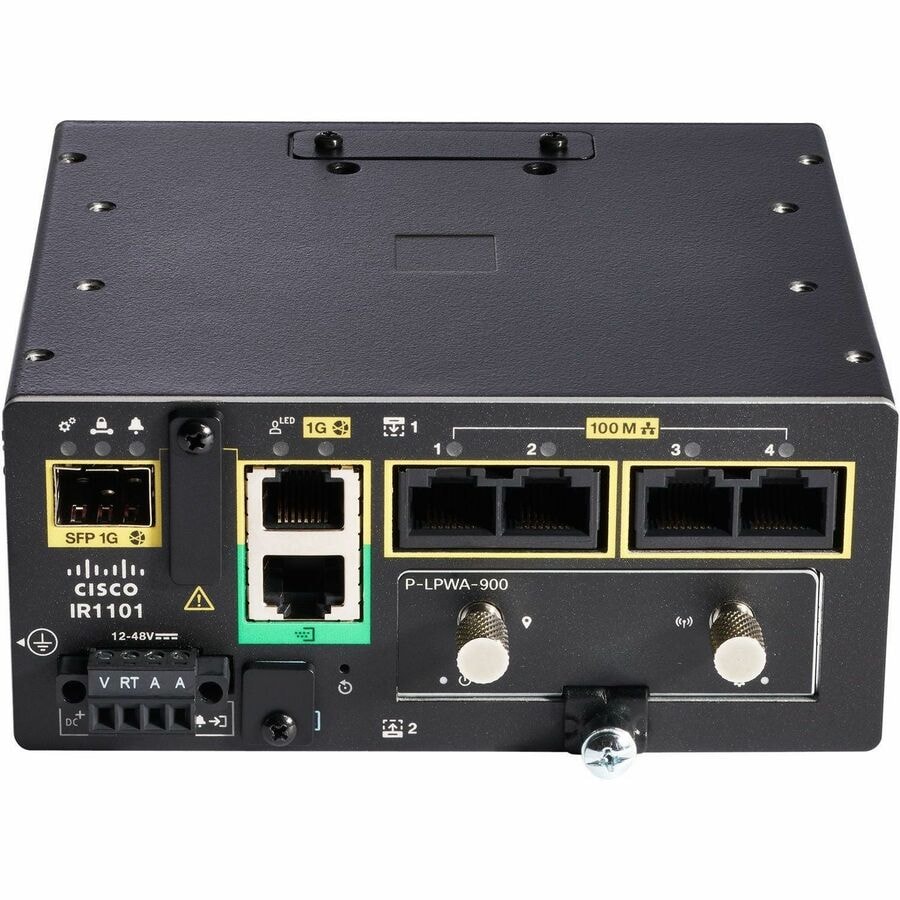

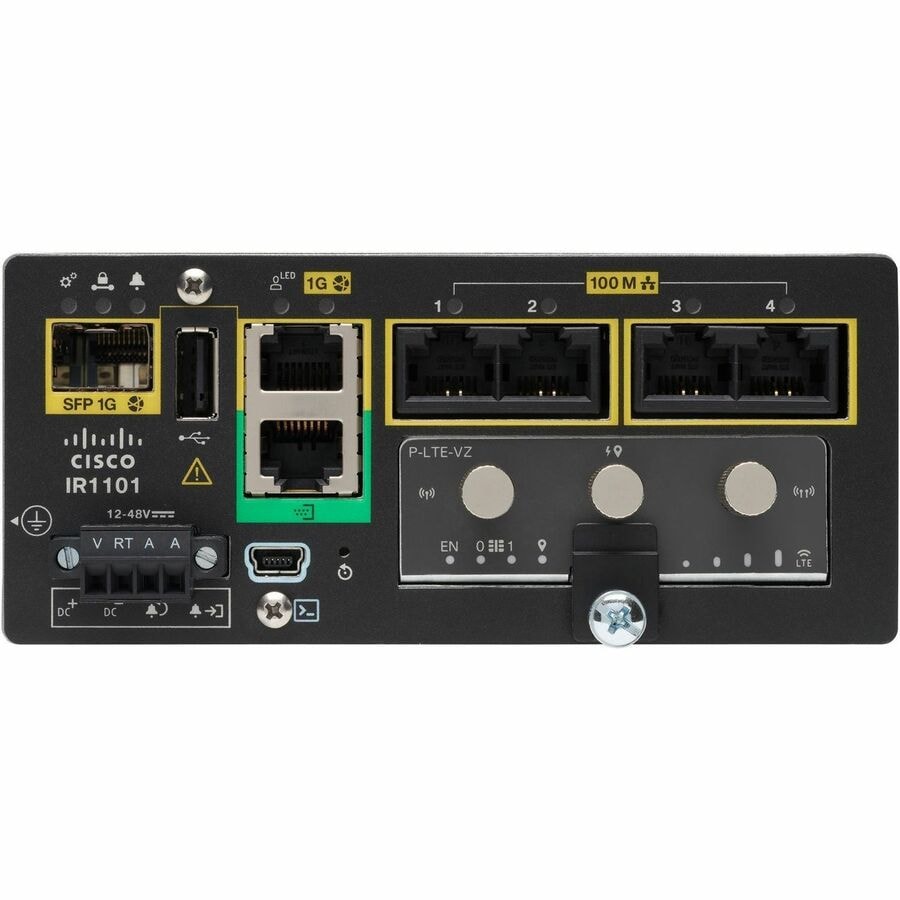

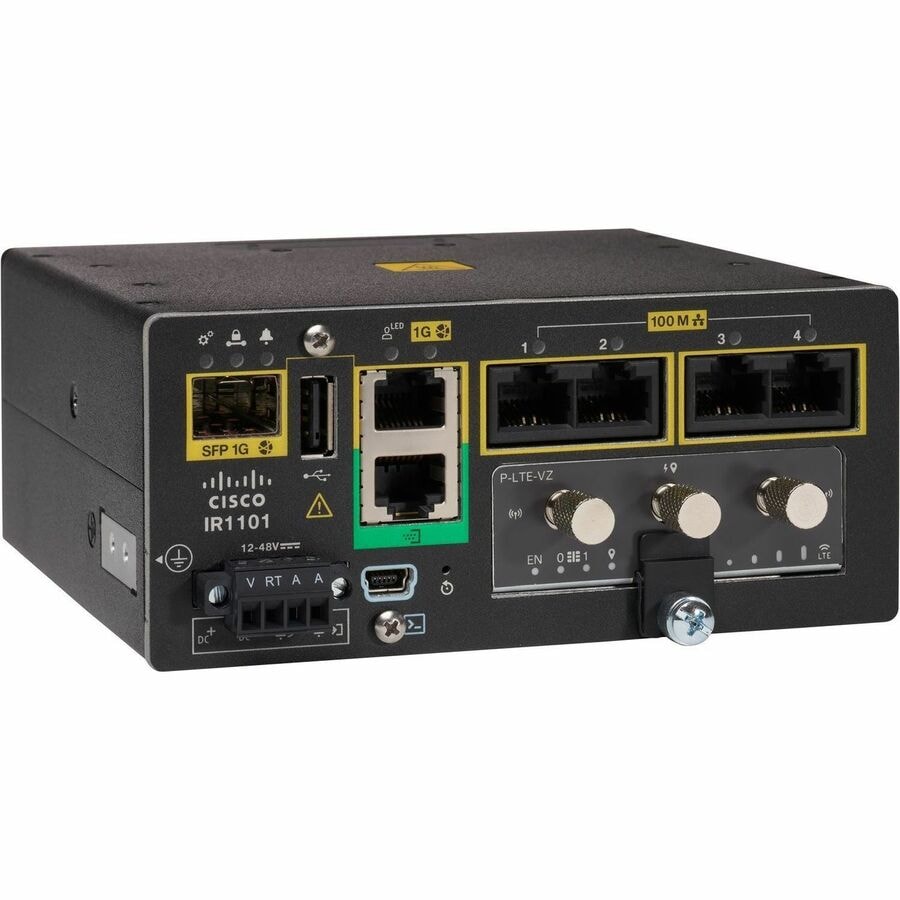

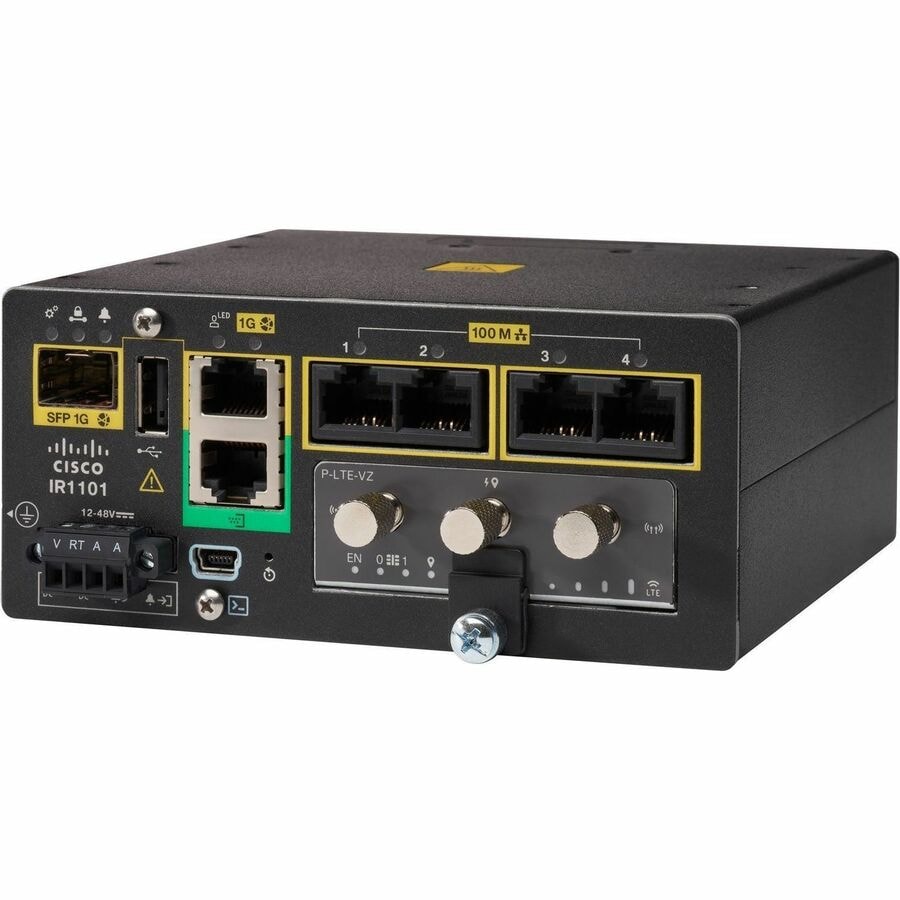

Cisco IR1101 Router - 5 Ports - 4 RJ-45 Port(s) - 1 WAN Port(s) - Management Port - 2 - 4 GB - Gigabit Ethernet - IEEE 802.1Q, IEEE 802.1D - Desktop, Panel Mount, Wall Mountable, DIN Rail - 5 Year

IR1101-A-K9-DNA
Also known as IM307PPJ

New! Log in or create an account to see price and availability


MARKETING INFORMATION

The Cisco®Catalyst IR1101 Rugged Series Router or IR1101, is Cisco's most compact, FirstNet Readyindustrial router. Designed in a highly modular form factor makes it an ideal solution for remote asset management across multiple industrial vertical markets.

The IR1101 has an integrated 9.6 to 60V DC power input and is designed to withstand hostile environments, including shock, vibration, dust, humidity and Electrostatic Discharge (ESD). The IR1101 also supports a wide temperature range: -40 to 60°C standard operation, -40 to 75°C in a forced air enclosure with 200 LFM of air, and type-tested at 85°C for 16 hours. This durability makes it ideal for harsh industrial and distributed IoT deployments such as transportation, oil and gas, distribution substations, industrial automation, and financial institutions.

DETAILS

  • Total Number of Ports : 5
  • Management Port : Yes
  • Number of Network (RJ-45) Ports : 4
  • Number of WAN Ports : 1
  • Total Number of Expansion Slots : 2
  • Ethernet Technology : Gigabit Ethernet
  • Network Technology : 1000Base-T,100Base-T
  • Networking Standards : IEEE 802.1Q,IEEE 802.1D
  • Standard Memory : 4 GB
  • Power Consumption : 12 W
  • Form Factor : Desktop,Panel Mount,Wall Mountable,DIN Rail
  • Height : 2.36" (59.94 mm)
  • Width : 5.22" (132.59 mm)
  • Depth : 4.92" (124.97 mm)
  • Weight (Approximate) : 2.25 lb (1020.58 g)
  • Limited Warranty : 5 Year
  • With 1000Base-T technology, get up to 1000 mbps data transfer rate over twisted pair cable
  • Features management port for a reliable networking
  • Gigabit Ethernet port for ultra-fast network speeds

SPECIFICATIONS

Manufacturer Cisco Systems, Inc
Manufacturer Part Number IR1101AK9DNA
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Series IR1101
Product Name IR1101 Router
Product Type Router
Total Number of Ports 5
Management Port Yes
Number of Network (RJ-45) Ports 4
Number of WAN Ports 1
Total Number of Expansion Slots 2
Ethernet Technology Gigabit Ethernet
Network Technology 100Base-T
Network Technology 1000Base-T
Networking Standards IEEE 802.1Q
Networking Standards IEEE 802.1D
Standard Memory 4 GB
Power Consumption 12 W
Power Source DC
Form Factor Wall Mountable
Form Factor Desktop
Form Factor Panel Mount
Form Factor DIN Rail
Height 2.36" (59.94 mm)
Width 5.22" (132.59 mm)
Depth 4.92" (124.97 mm)
Weight (Approximate) 2.25 lb (1020.58 g)
Certifications & Standards
  • UL 60950-1, 2 nd edition
  • CAN/CSA C22.2 No. 60950-1, 2 nd edition
  • EN 60950-1, 2 nd edition
  • CB to IEC 60950-1, 2 nd edition with all group differences and national deviations
  • ANSI/ISA 12.12.01 (Class 1, Div 2 A-D)
  • CSA 213 (Class 1, Div 2 A-D)
  • IEC 60079-0 and -15 IECEx test report (Class I, Zone 2, gas groups IIC)
  • EN 60079-0 and -15 ATEX certification (Class I, Zone 2, gas groups IIC)
  • 47 CFR Part 15 B
  • EN 55032:2015
  • CISPR 32 Edition 2
  • CNS13438: 2006
  • EN 300 386 V1.6.1
  • ICES-003 Issue 6: 2016
  • KN 32: 2015
  • TCVN 7189: 2009
  • V-2/2015.04
  • V-3/2015.04
  • AS/NZ CISPR32
  • EN 61000-4-2, 3, 4, 5, 6, 8, 9, 16, 17, 18, and 29
  • CISPR24: 2010 + A1: 2015
  • EN 300 386 V1.6.1
  • EN 55024: 2010 + A1: 2015
  • EN 55035:2017
  • KN35: 2015
  • TCVN 7317:2003
  • QCVN 18:2014
Limited Warranty 5 Year
