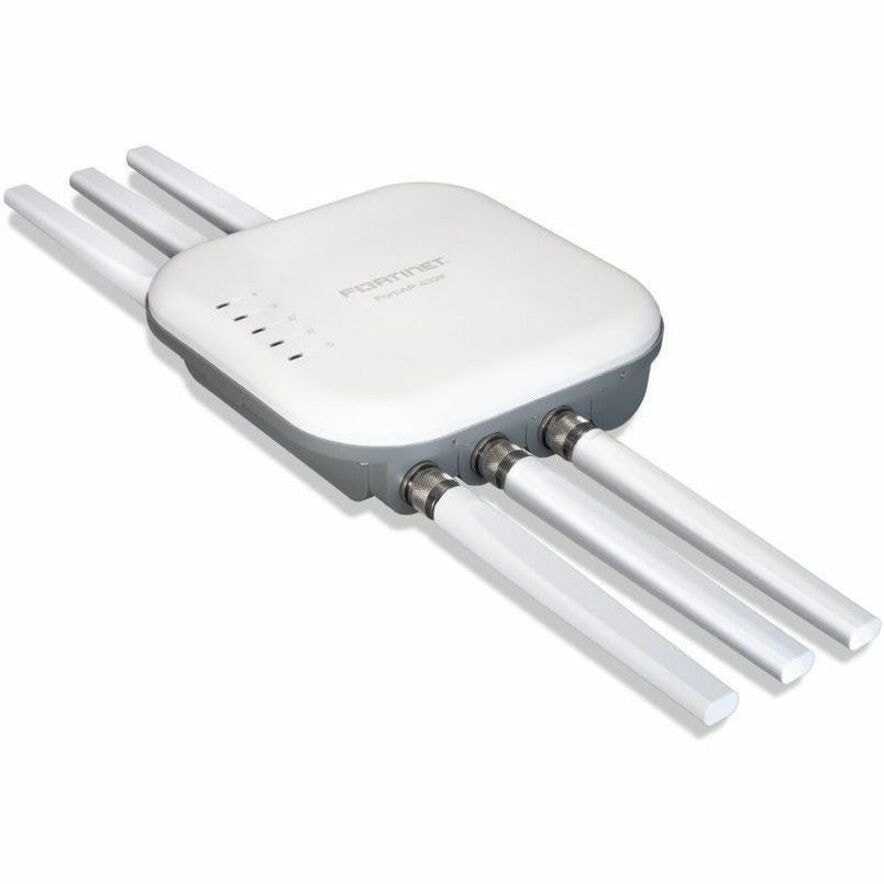

Fortinet FortiAP 432F Dual Band Wi-Fi 6 802.11ax 3.47 Gbit/s Wireless Access Point - Indoor/Outdoor - 2.40 GHz, 5 GHz - 6 x External Antenna(s) - External - MIMO Technology - 2 x Network (RJ-45) - Gigabit Ethernet, 2.5 Gigabit Ethernet - PoE Ports - 25 W - Pole-mountable, Wall Mountable, Desktop - I

FAP-432F-A
Also known as IM280A1F,SY6884801

New! Log in or create an account to see price and availability


MARKETING INFORMATION

This enterprise class 802.11ax ruggedized indoor/outdoor AP provides three radios and four spacial streams. As a top-of-the-line Wi-Fi 6 access point it provides OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port with PoE out. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 GHz and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.

DETAILS

  • Wireless LAN Standard : 802.11ax
  • Network Band : Dual Band
  • Frequency Band : 2.40 GHz,5 GHz
  • Total Number of Antennas : 6
  • Number of External Antennas : 6
  • Indoor/Outdoor : Indoor/Outdoor
  • Wireless Transmission Speed : 3.47 Gbit/s
  • MIMO Technology : Yes
  • Data Encryption : Yes
  • Encryption Standard : WPA,WPA2,WPA3,WEP,WPA-PSK,WPA2-PSK,WPA3-PSK
  • Ingress Protection (IP) Rating : IP67
  • Ethernet Technology : Gigabit Ethernet,2.5 Gigabit Ethernet
  • Number of Network (RJ-45) Ports : 2
  • PoE (RJ-45) Port : Yes
  • PoE PD Port : Yes
  • USB : Yes
  • Management Port : Yes
  • Wi-Fi Generation : Wi-Fi 6
  • Power Consumption : 25 W
  • Form Factor : Pole-mountable,Wall Mountable,Desktop
  • Antenna Form Factor : External
  • Height : 2.38" (60.45 mm)
  • Width : 8.23" (209.04 mm)
  • Weight (Approximate) : 5.12 lb (2322.39 g)
  • Package Contents :
    • FortiAP 432F Wireless Access Point
    • Wall and Pole Mounting Kit
    • Passive PoE Injector
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : Lifetime
  • Provide your business with a wireless solution that ensures a speedy and steady data transfer rate
  • Its management capability provides efficient control over setup and configuration of your network

SPECIFICATIONS

Manufacturer Fortinet, Inc
Manufacturer Part Number FAP432FA
Manufacturer Website Address http://www.fortinet.com
Brand Name Fortinet
Product Line FortiAP
Product Model 432F
Product Name FortiAP 432F Wireless Access Point
Product Type Wireless Access Point
Wireless LAN Standard 802.11ax
Network Band Dual Band
Frequency Band 5 GHz
Frequency Band 2.40 GHz
Total Number of Antennas 6
Number of External Antennas 6
Indoor/Outdoor Indoor/Outdoor
Wireless Transmission Speed 3.47 Gbit/s
MIMO Technology Yes
Data Encryption Yes
Encryption Standard WEP
Encryption Standard WPA-PSK
Encryption Standard WPA3
Encryption Standard WPA2
Encryption Standard WPA
Encryption Standard WPA2-PSK
Encryption Standard WPA3-PSK
Ingress Protection (IP) Rating IP67
Ethernet Technology 2.5 Gigabit Ethernet
Ethernet Technology Gigabit Ethernet
Number of Network (RJ-45) Ports 2
PoE (RJ-45) Port Yes
PoE PD Port Yes
USB Yes
Management Port Yes
Wi-Fi Generation Wi-Fi 6
Power Consumption 25 W
Form Factor Wall Mountable
Form Factor Pole-mountable
Form Factor Desktop
Antenna Form Factor External
Height 2.38" (60.45 mm)
Width 8.23" (209.04 mm)
Weight (Approximate) 5.12 lb (2322.39 g)
Package Contents
  • FortiAP 432F Wireless Access Point
  • Wall and Pole Mounting Kit
  • Passive PoE Injector
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty Lifetime
