MARKETING INFORMATION

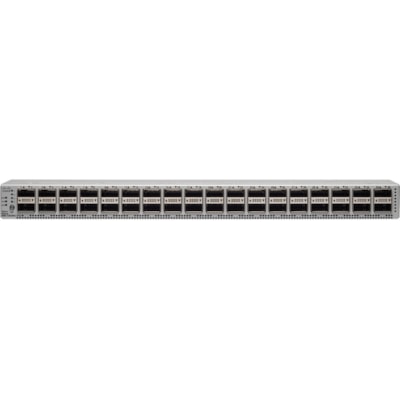

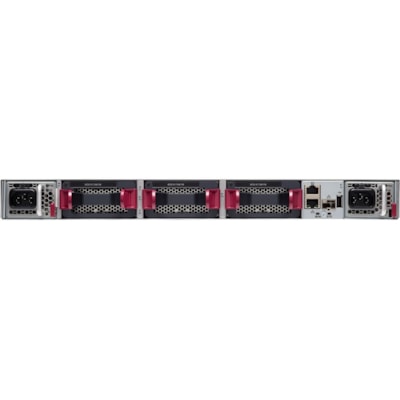

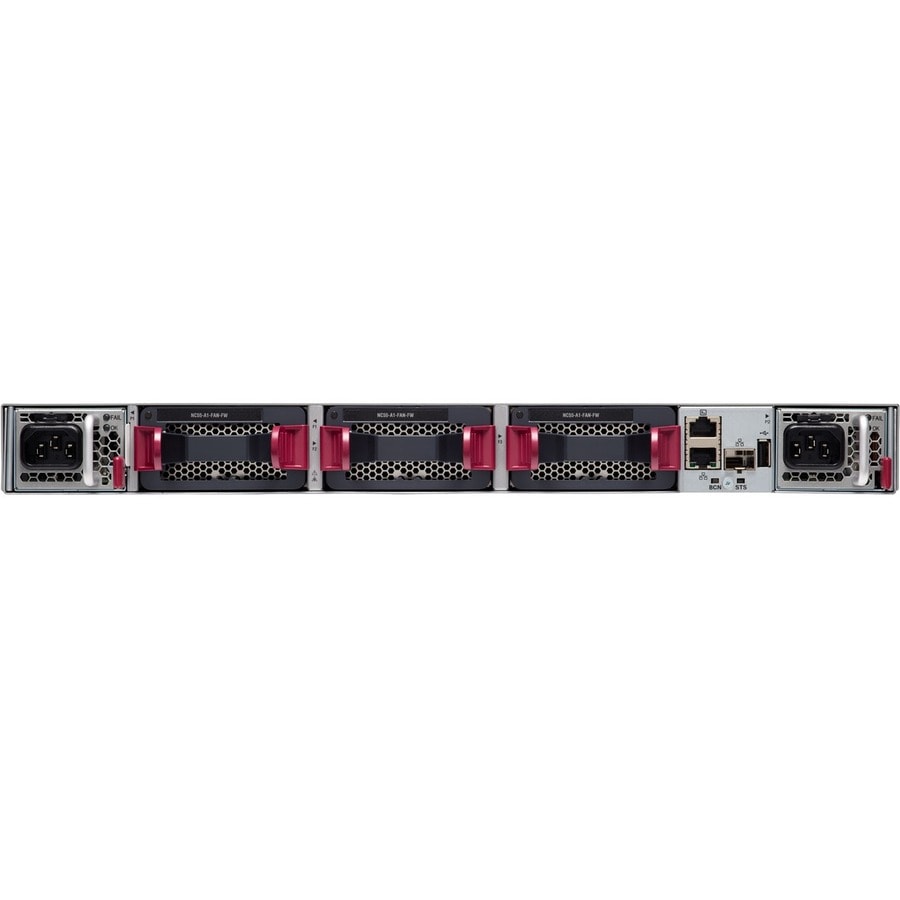

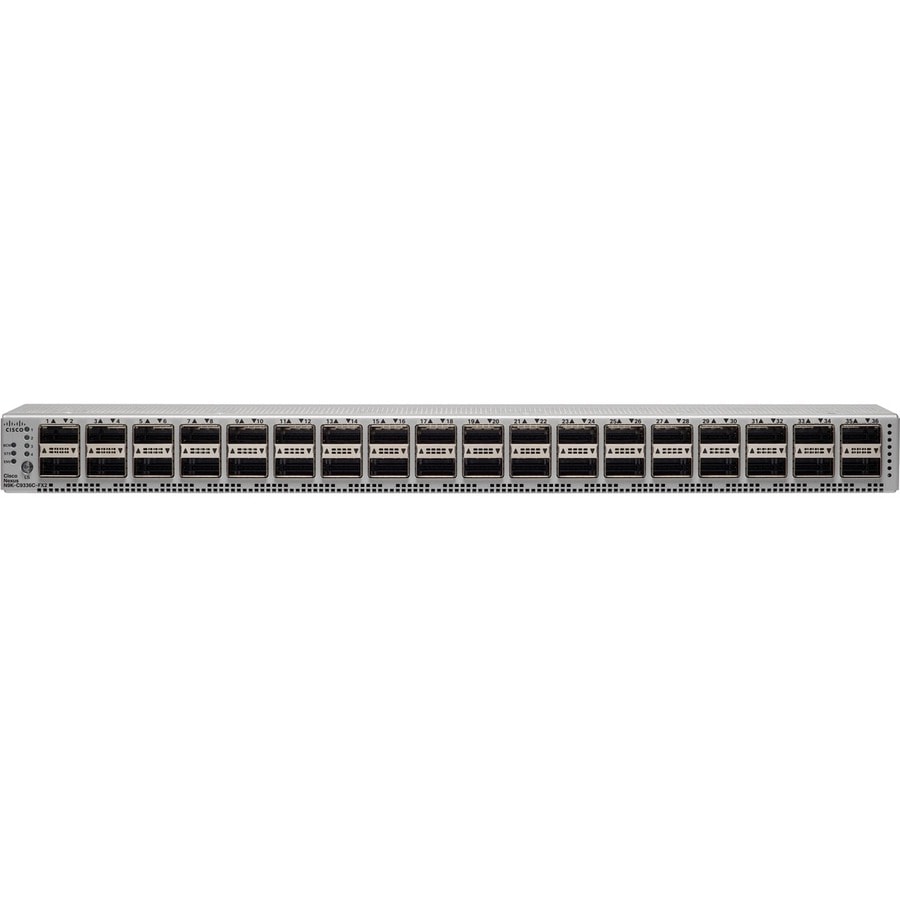

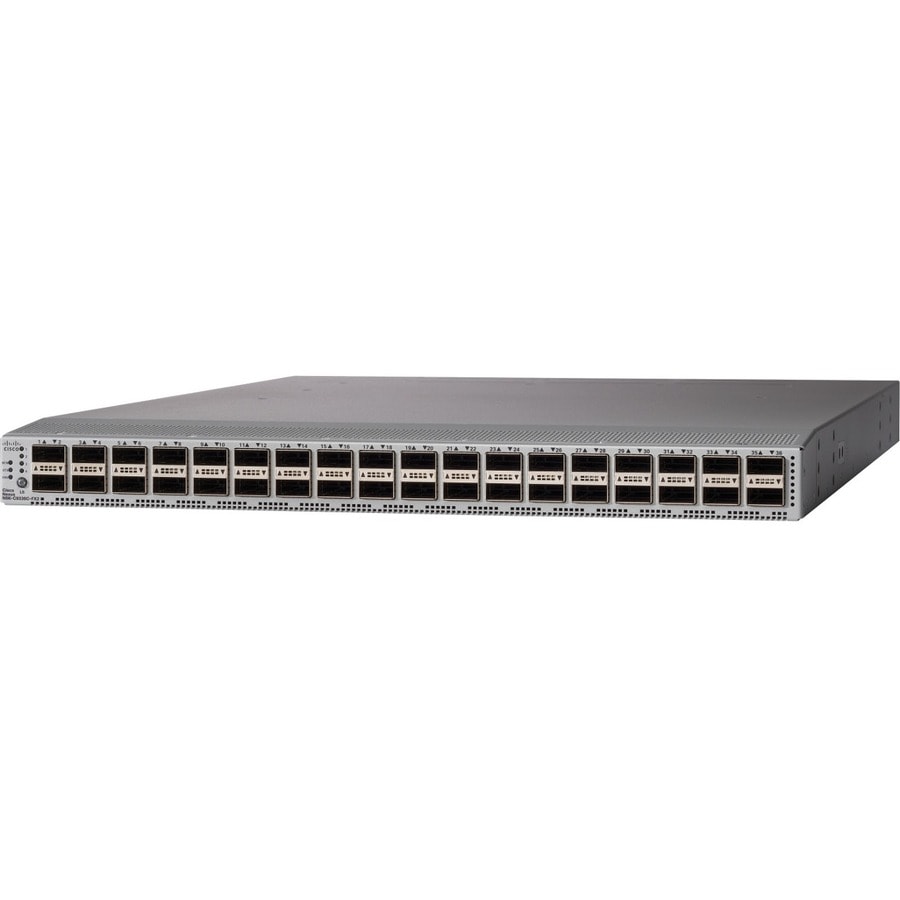

The Cisco Nexus 9336C-FX2 Switch is a 1RU switch that supports 7.2 Tbps of bandwidth and over 2.8 bpps. The switch can be configured to work as 1/10/25/40/100-Gbps offering flexible options in a compact form factor. All ports support wire-rate MACsec encryption. Breakout is supported on all ports.

DETAILS

• Uplink Port : No
• Modular : Yes
• Stack Port : No
• Port/Expansion Slot Details : 36 x 100 Gigabit Ethernet Expansion Slot
• Media Type Supported : Optical Fiber
• Ethernet Technology : 100 Gigabit Ethernet
• Network Technology : 100GBase-X
• Total Number of Expansion Slots : 36
• Expansion Slot Type : QSFP28
• Shared SFP Slot : No
• Layer Supported : 3
• Manageable : Yes
• Power Source : Power Supply
• Redundant Power Supply Supported : Yes
• Power Consumption : 777 W
• Compatible Rack Unit : 1U
• Form Factor : Rack-mountable
• Height : 1.72" (43.69 mm)
• Width : 17.30" (439.42 mm)
• Depth : 24.50" (622.30 mm)
• Weight (Approximate) : 18.80 lb (8527.54 g)
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 1 Year

• Built-in power supply to ensure all components are being supplied with accurate voltage
• Supports layer 3 switching for enhanced performance and usability
• Rack mounting enables you to organize wires & secure cables for professional installation
• 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
• Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
