Tripp Lite series Line-interactive UPS Power Supply - 2U Rack/Tower - 6.40 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 6 x NEMA 5-15R Receptacle(s)
SMC10002URM
Also known as IM26021Y,SY5429547
MARKETING INFORMATION
Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 95 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions.DETAILS
- Plug/Connector Type : NEMA 5-15P
- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 6 x NEMA 5-15R

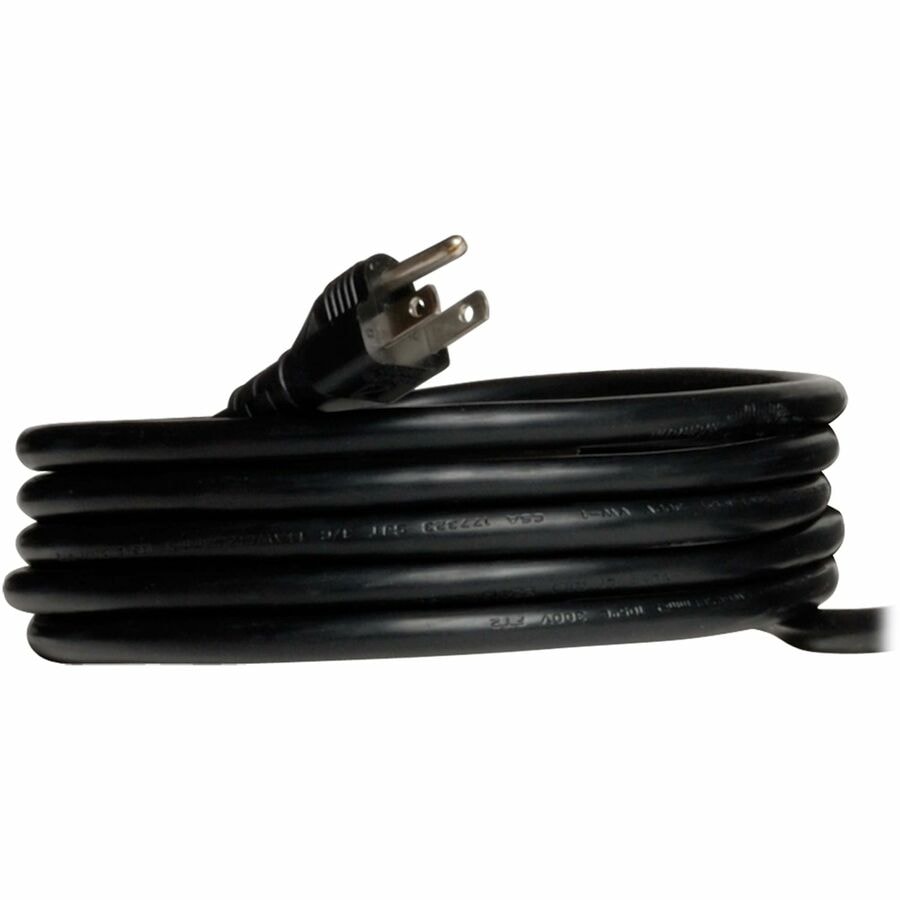

- Cord Length : 9.8 ft (3 m)
- Load Capacity (VA) : 1 kVA
- Load Capacity (Watt) : 700 W
- Input Voltage : 120 V AC
- Input Current : 9.20 A
- Output Voltage : 120 V AC
- Waveform Type : Sine Wave,Pure Sine Wave
- Surge Energy Rating : 570 J
- Circuit Breaker : Yes
- Alarm : UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown
- Status Indicators : LEDs
- Serial Port : Yes
- USB : Yes
- Backup/Run Time (Full Load) : 6.40 Minute
- Backup/Run Time (Half Load) : 15.60 Minute
- Hot Swappable : Yes
- Maximum Operating Temperature : 104°F (40°C)
- Sound Emission : 45 dB
- Thermal Dissipation : 122 BTU/h
- Height : 3.45" (87.63 mm)
- Width : 17.35" (440.69 mm)
- Depth : 12.50" (317.50 mm)
- Rack Height : 2U
- Form Factor : Rack/Tower
- Weight (Approximate) : 35.40 lb (16057.17 g)

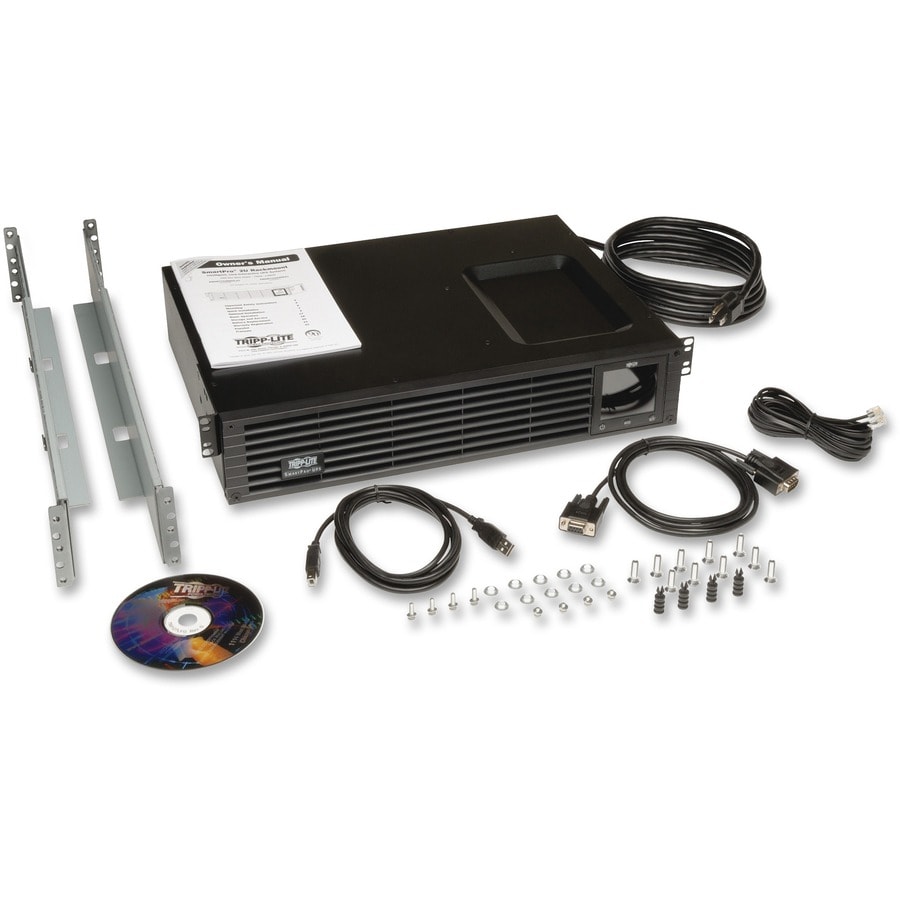

- Package Contents :
- SMC10002URM UPS System
- USB Cable
- 2 & 4 Post Rackmount Installation Hardware
- Instruction Manual
- Country of Origin : Taiwan
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 2 Year
- Corrects under- and overvoltages from 83V to 147V

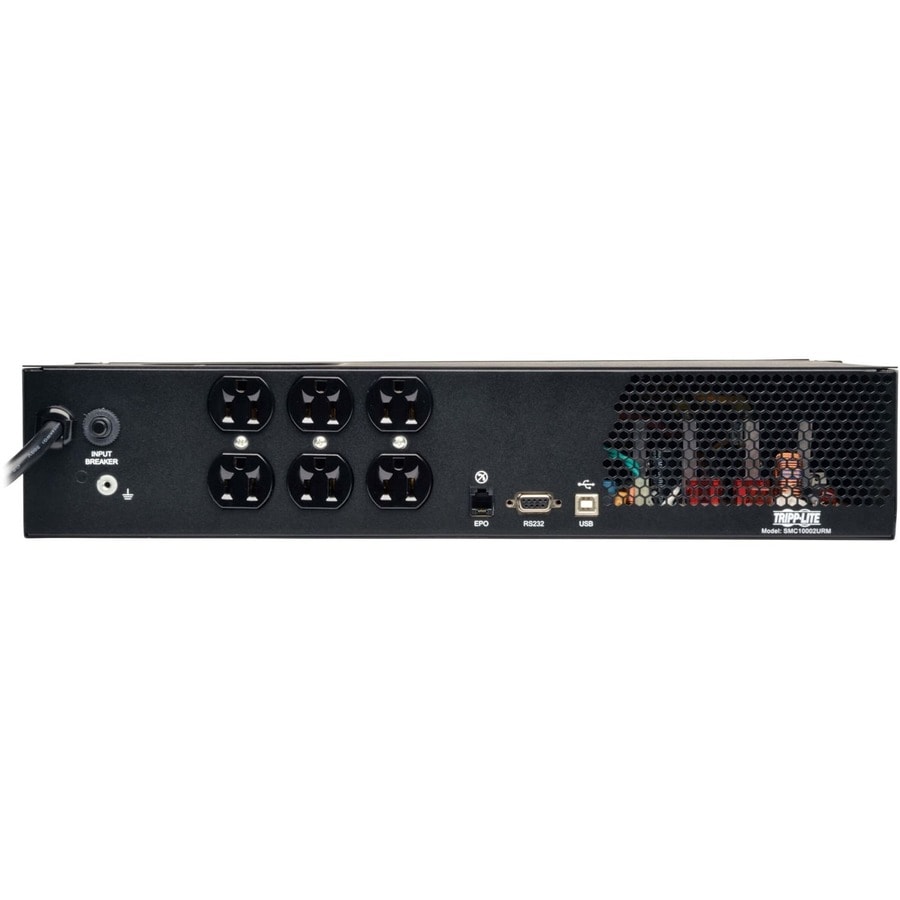

- 6 NEMA 5-15R outlets
- Monitoring of power conditions via POWERALERT12

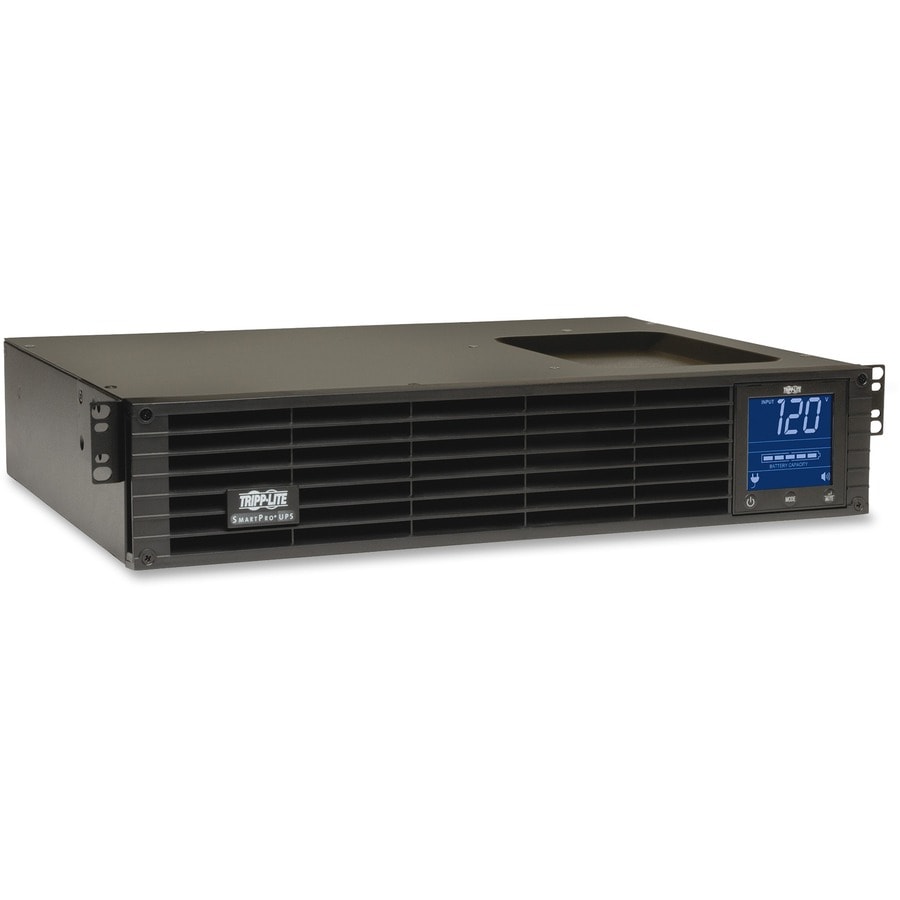

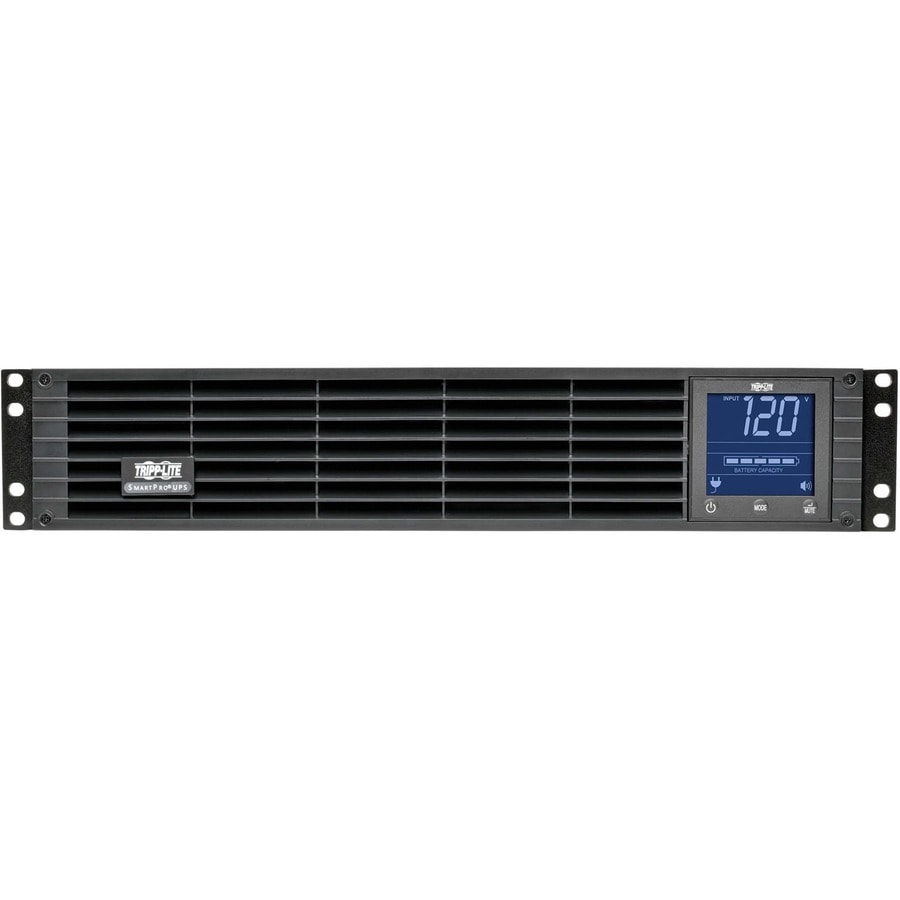

- Interactive LCD monitoring screen
- 15.6 min. runtime at half load; 6.4 min. at full load
SPECIFICATIONS
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMC10002URM |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMC10002URM |
| Product Name | Line-interactive UPS Power Supply |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Protection Type | EMI / RFI |
| Protection Type | Over Voltage |
| Protection Type | Under Voltage |
| Protection Type | Black Out |
| Protection Type | Surge |
| Protection Type | Brownout |
| Emergency Power OFF | Yes |
| Cord Length | 9.8 ft (3 m) |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 700 W |
| Input Voltage | 120 V AC |
| Input Current | 9.20 A |
| Output Voltage | 120 V AC |
| Waveform Type | Pure Sine Wave |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 570 J |
| Circuit Breaker | Yes |
| Alarm | Low Battery |
| Alarm | Power Failure |
| Alarm | UPS StartUp |
| Alarm | Overload |
| Alarm | Remote Shutdown |
| Alarm | UPS Fault |
| Battery Management | user-replaceable |
| Status Indicators | LEDs |
| Serial Port | Yes |
| USB | Yes |
| Backup/Run Time (Full Load) | 6.40 Minute |
| Backup/Run Time (Half Load) | 15.60 Minute |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 45 dB |
| Thermal Dissipation | 122 BTU/h |
| Height | 3.45" (87.63 mm) |
| Width | 17.35" (440.69 mm) |
| Depth | 12.50" (317.50 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 35.40 lb (16057.17 g) |
| Package Contents |
|
| Certifications & Standards | UL Listed Certification |
| Recycled | No |
| Assembly Required | No |
| Country of Origin | Taiwan |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
