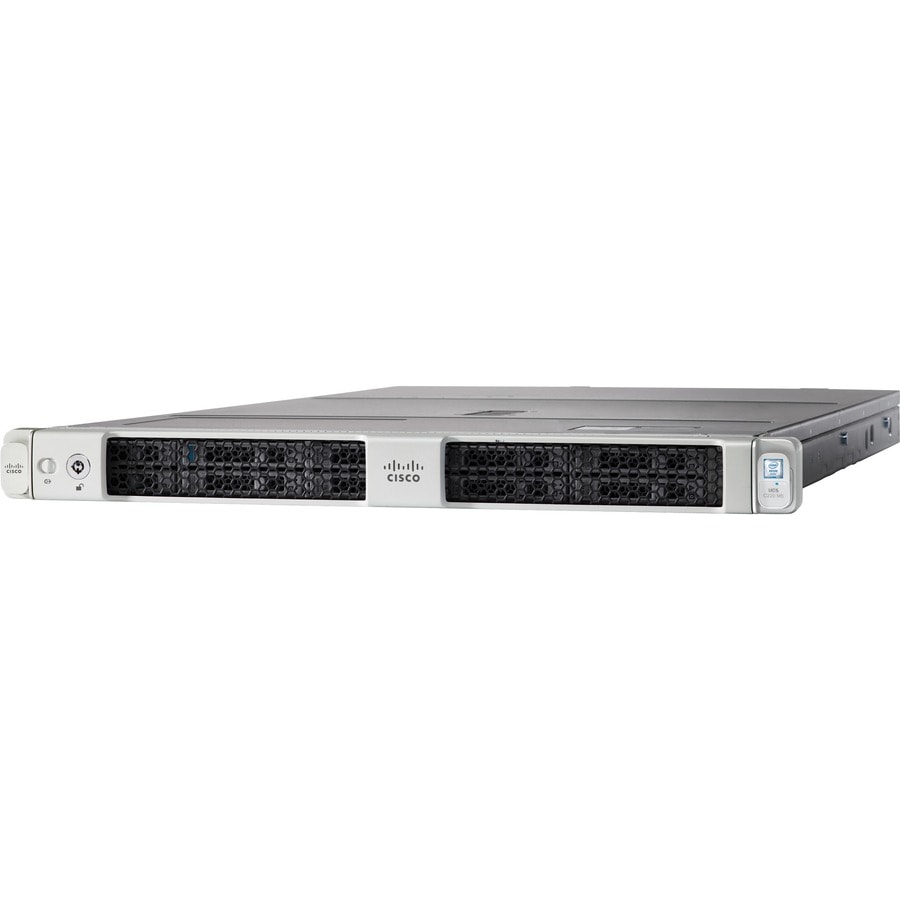

Cisco C220 M5 1U Rack Server - 2 Xeon Silver 4110 2.10 GHz - 32 GB RAM - 12Gb/s SAS Controller - Refurbished - Intel C620 Chip - 2 Processor Support - 9 TB RAM Support - DDR4 SDRAM - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - G200e Up to 16 MB Graphic Card - Gigabit Ethernet, 10 Gigabit Ethernet - 1
UCS-SPRC220M5S4-RF
Also known as IM249B8W
MARKETING INFORMATION
The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the 2nd Generation Intel® Xeon® Scalable Processors, DDR4-3200MHz memory, and the new 512GB Intel® Optane™ Persistent Memory Modules (PMem). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
DETAILS
- Number of Processors Supported : 2
- Number of Processors Installed : 2
- Processor Type : Xeon Silver
- Processor Model : 4110
- Processor Core : Octa-core (8 Core)
- Processor Speed : 2.10 GHz
- Cache : 11 MB
- Chipset Manufacturer : Intel
- Chipset Model : C620
- Standard Memory : 32 GB
- Maximum Memory Supported : 9 TB
- Memory Technology : DDR4 SDRAM
- Memory Clock Speed : 2.67 GHz
- Total Number of Memory Slots : 24
- Intel Optane Memory Ready : Yes
- Error Checking : ECC
- Signal Processing : Registered (Buffered)
- Controller Type : 12Gb/s SAS
- RAID Supported : Yes
- RAID Levels : 0, 1, 5, 6, 10, 50, 60, JBOD
- Number of Total Expansion Bays : 10
- Number of Internal 2.5" Bays : 10
- Hot Swappable Bays : Yes
- Graphics Controller Model : G200e
- Graphics Memory Capacity : 16 MB
- Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
- Total Number of USB Ports : 2
- Number of USB 3.0 Ports : 2
- Network (RJ-45) : Yes
- Number of Network (RJ-45) Ports : 2
- VGA : Yes
- Number of Power Supplies Supported : 2
- Number of Power Supplies Installed : 2
- Redundant Power Supply : Yes
- Form Factor : Rack
- Rack Height : 1U
- Height : 1.70" (43.18 mm)
- Width : 18.98" (482.09 mm)
- Depth : 30.98" (786.89 mm)
- Weight (Approximate) : 59.97 lb (27200 g)
- 32 GB powerful memory for any computational task
- RAID provides data reliability, fault tolerance and improves overall performance
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCSSPRC220M5S4RF |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Series | C220 M5 |
| Product Name | UCS C220 M5 Server |
| Product Condition | Refurbished |
| Product Type | Server |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Silver |
| Processor Model | 4110 |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 2.10 GHz |
| Cache | 11 MB |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 9 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Clock Speed | 2.67 GHz |
| Error Checking | ECC |
| Total Number of Memory Slots | 24 |
| Intel Optane Memory Ready | Yes |
| Signal Processing | Registered (Buffered) |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Number of Total Expansion Bays | 10 |
| Number of Internal 2.5" Bays | 10 |
| Hot Swappable Bays | Yes |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Power Source | Power Supply |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.98" (482.09 mm) |
| Depth | 30.98" (786.89 mm) |
| Weight (Approximate) | 59.97 lb (27200 g) |
