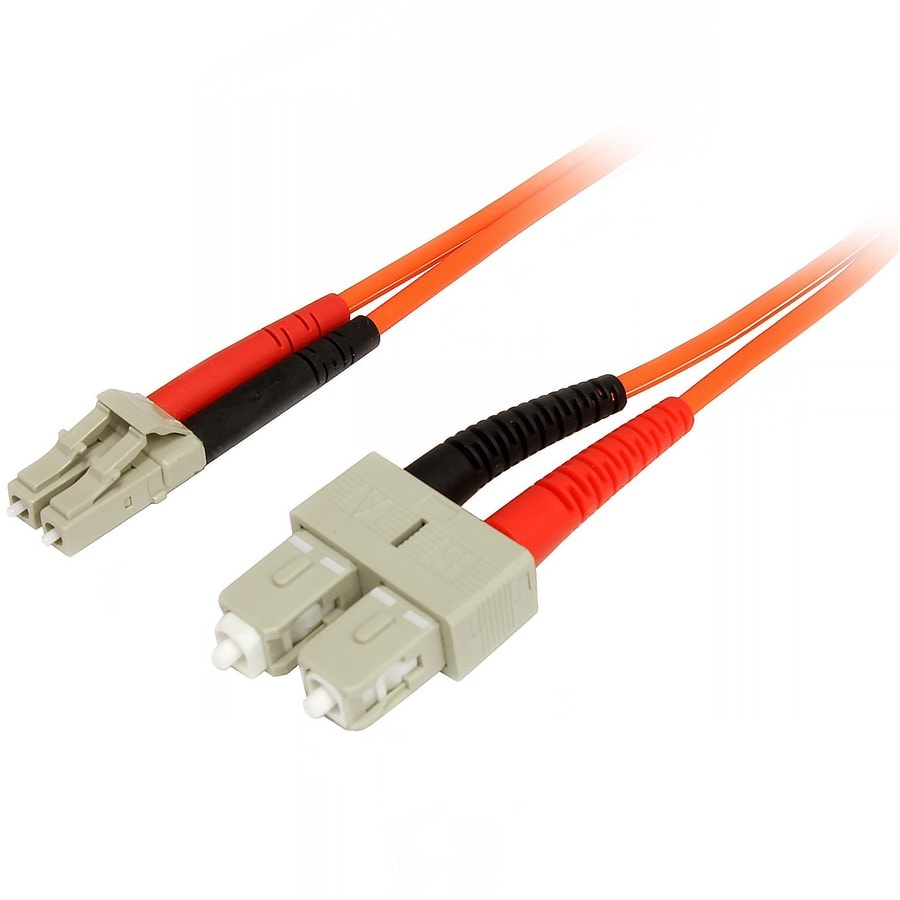

StarTech.com 1m Fiber Optic Cable - Multimode Duplex 50/125 - LSZH Fiber Jumper Cord - LC/SC - Connect fiber network devices for high-speed transfers with LSZH rated cable - LC/SC Fiber Optic Cable - 1 m LC to SC Fiber Patch Cable - 1 meter LC-SC Fiber Cable - Multimode Duplex 50/125 - LSZH - LC/SC
50FIBLCSC1
Also known as IM24426L
MARKETING INFORMATION
Connect fiber network devices for high-speed transfers using this Duplex 50/125 (OM2) Multimode Fiber Patch Cable. It features 50/125 micron fiber for high-speed, high-bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks with support for duplex multimode applications. Maximum data-transfer rate is 10Gbps. This LC to SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Patch cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100 reliability.
More from the Manufacturer
DETAILS
- Cable Type : Fiber Optic
- Cable Characteristic : Patch Cable
- Fiber Optic Mode : Multi-mode
- Fiber Optic Cable Core/Cladding Specification : 50/125 µm
- Cable Length : 3.2 ft (0.98 m)

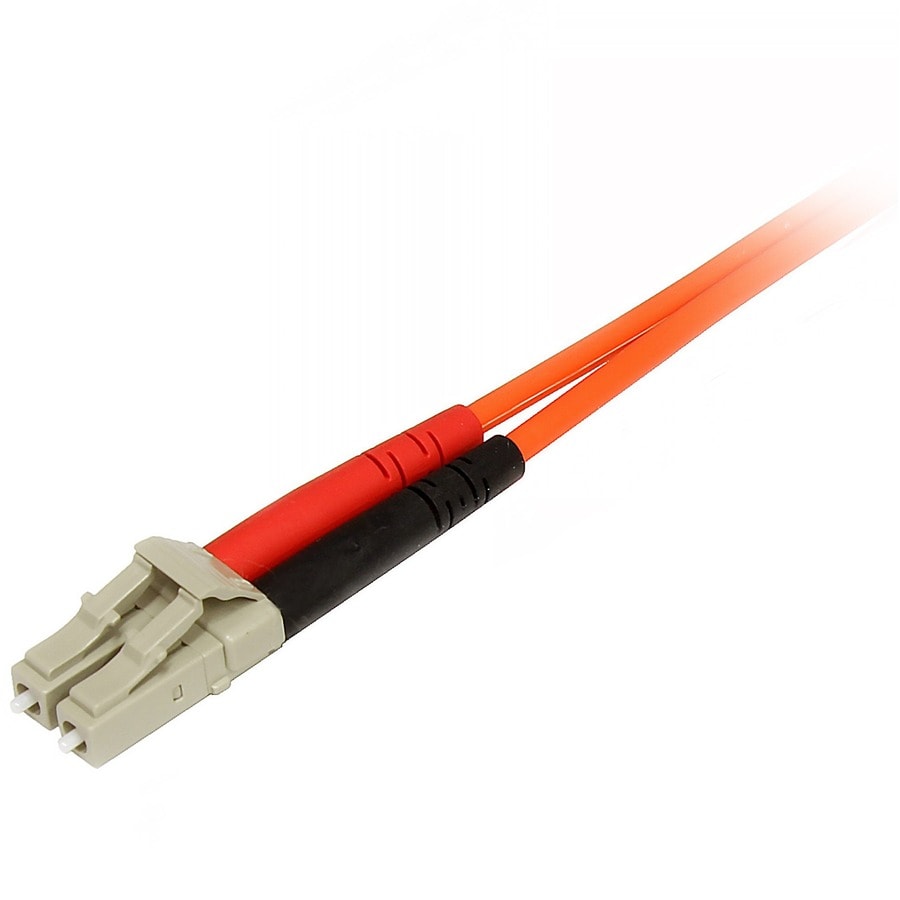

- Connector Type on First End : LC Network - Male
- Connector Gender on First End : Male
- Connector on First End Details : 2 x LC Network - Male

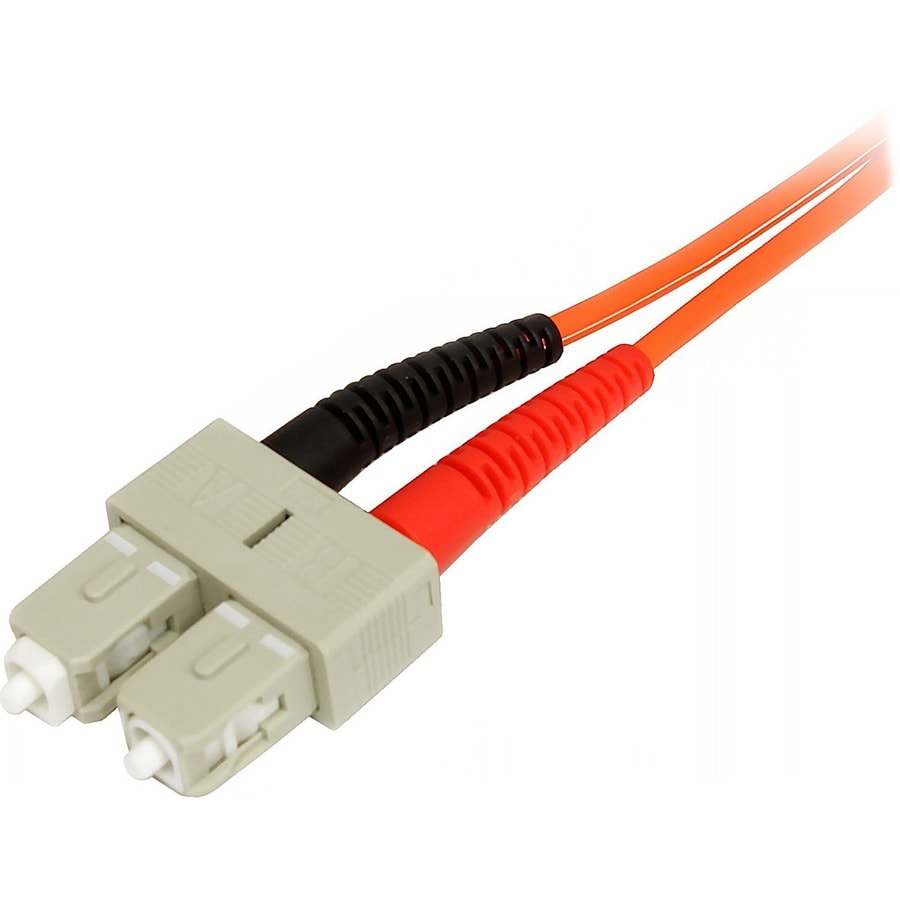

- Connector Type on Second End : SC Network - Male
- Connector Gender on Second End : Male
- Connector on Second End Details : 2 x SC Network - Male
- Jacket Type : LSZH
- Device Supported : Network Device
- Data Transfer Rate : 10 Gbit/s
- Features : Halogen Free,Flame Retardant,Corrosion Resistant
- Color Family : Orange
- Product Color : Orange
- Weight (Approximate) : 0.92 oz (26 g)
- Country of Origin : China
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : Lifetime
- Immune to electrical interference
- OM2 (50/125) 500MHz multimode fiber
- LSZH (Low-Smoke, Zero-Halogen) cable jacket
- Attenuation loss meets or exceeds industry standards
SPECIFICATIONS
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 50FIBLCSC1 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 1m Multimode 50/125 Duplex Fiber Patch Cable LC - SC |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Cable Length | 3.2 ft (0.98 m) |
| Connector Type on First End | LC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| Data Transfer Rate | 10 Gbit/s |
| Features | Corrosion Resistant |
| Features | Halogen Free |
| Features | Flame Retardant |
| Color Family | Orange |
| Product Color | Orange |
| Weight (Approximate) | 0.92 oz (26 g) |
| Shipping Height | 1.02" (25.91 mm) |
| Shipping Width | 7.87" (199.90 mm) |
| Shipping Weight (Approximate) | 1.28 oz (36.29 g) |
| Additional Information | Applications/Solutions:
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Limited Warranty | Lifetime |
