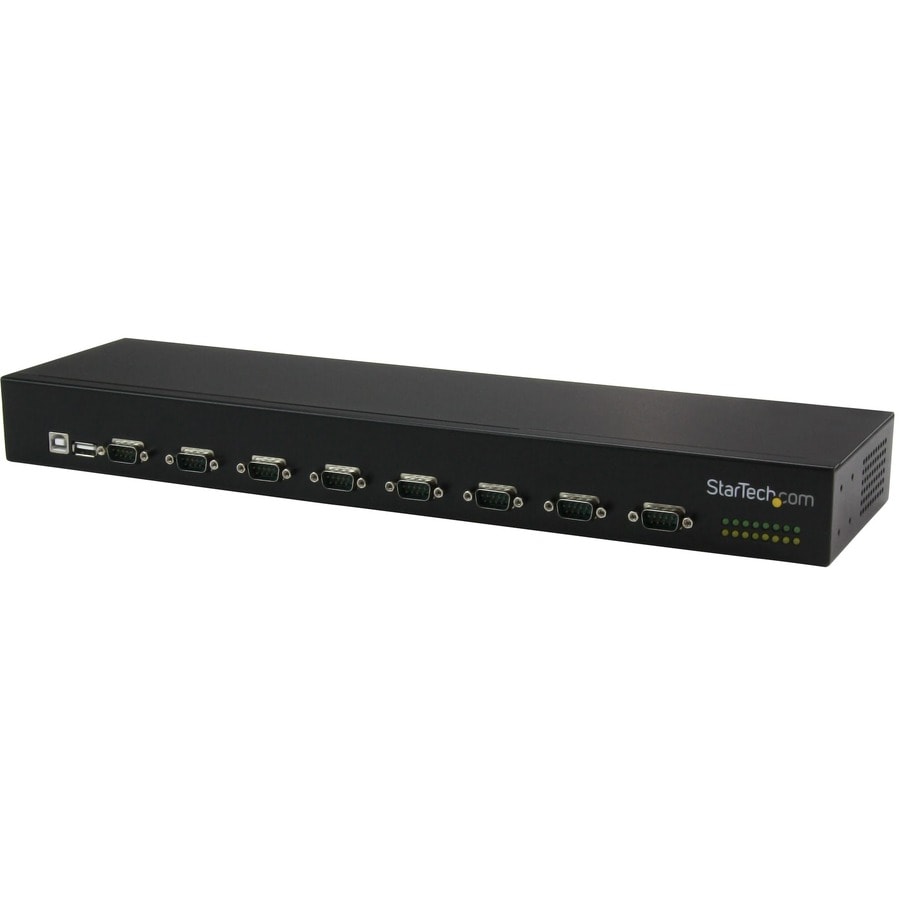

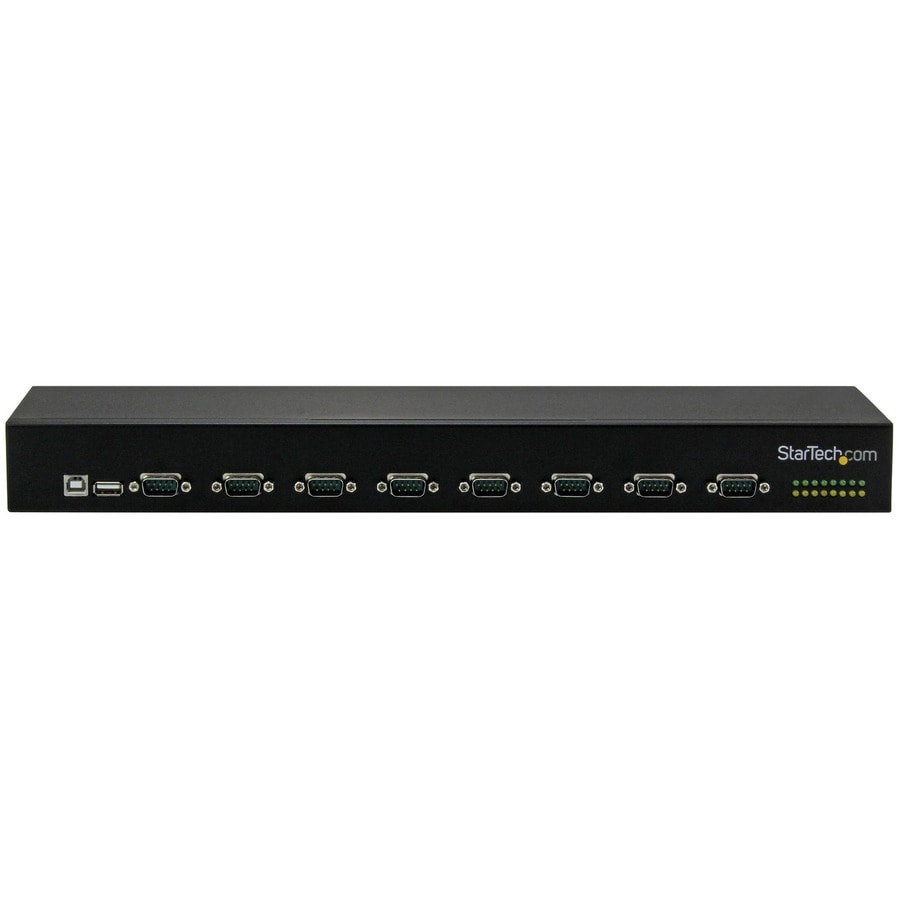

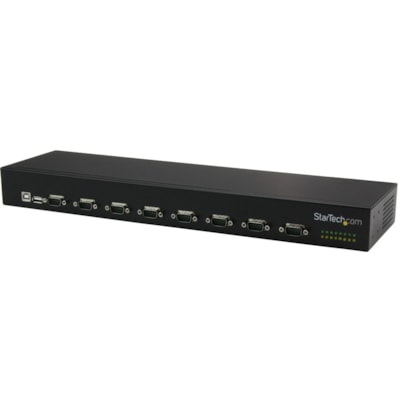

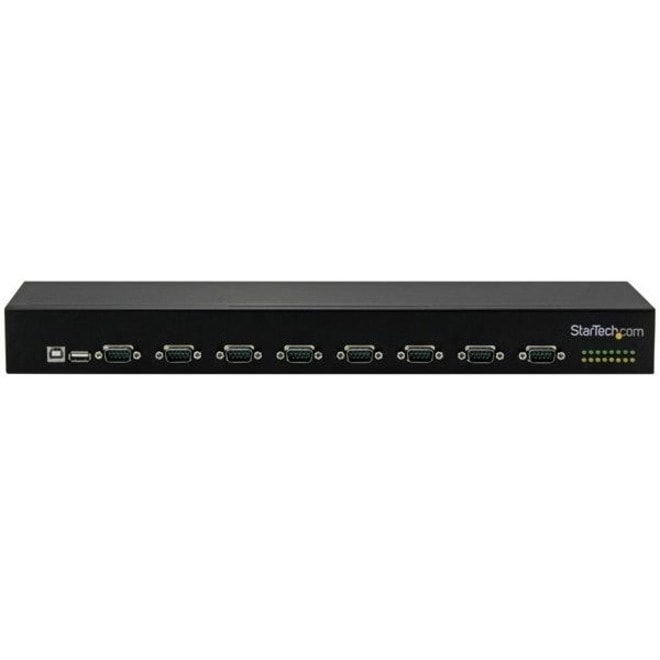

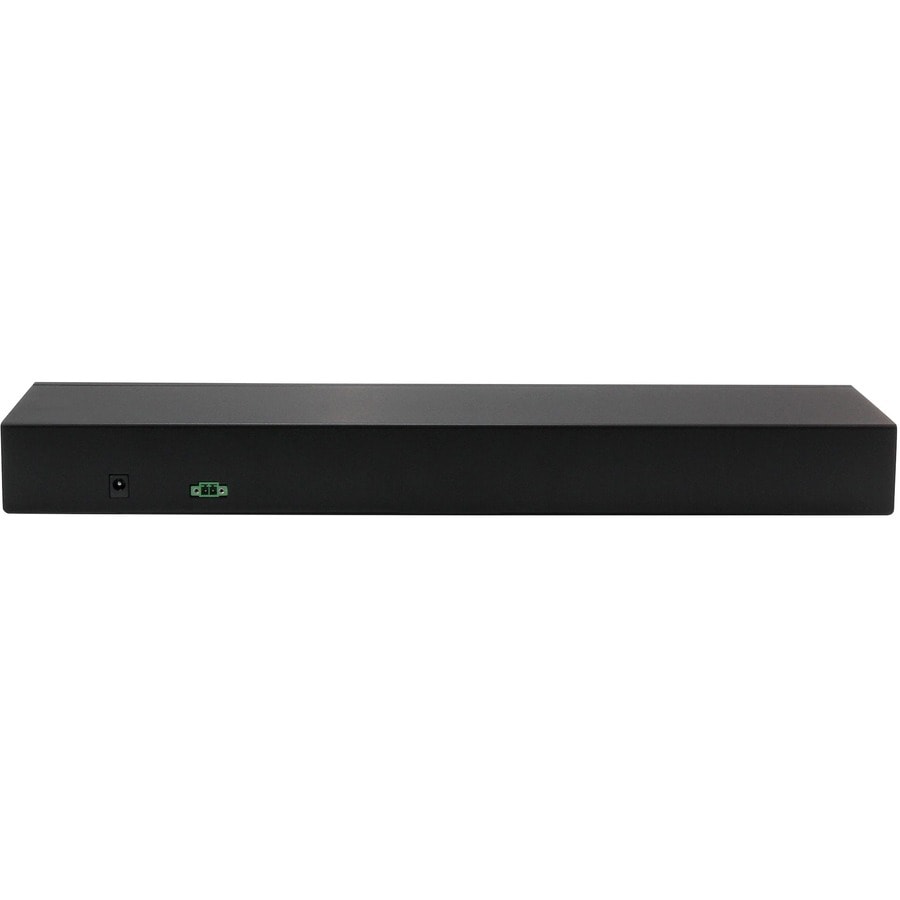

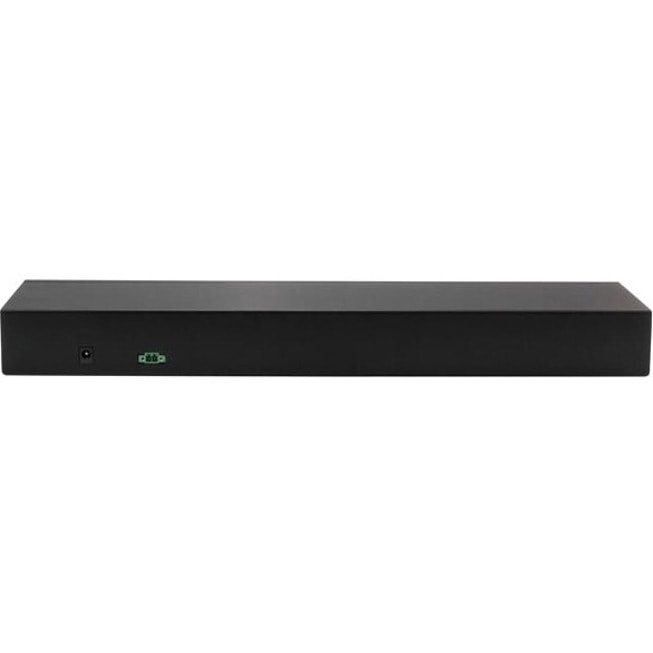

StarTech.com USB to Serial Hub - 8 Port - COM Port Retention - Rack Mount and Daisy Chainable - FTDI USB to RS232 Hub - Convert a USB port into 8 RS232 serial ports in an industrial rack-mountable chassis, and daisy chain multiple hubs for a scalable solution - 8-Port USB-to-Serial Adapter Hub - USB

ICUSB23208FD
Also known as IM2089CT,SY5712083

New! Log in or create an account to see price and availability


MARKETING INFORMATION

This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.

A scalable solution for changing needs

This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.

Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.

Built-in convenience

The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.

The hub features a reliable FTDI USB-to-serial chipset, which provideseasy installation into a broad range of operating systems.

Meets the demands of industrial environments

With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.

The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

DETAILS

  • Host Interface : USB 2.0
  • Platform Supported : Mac,Linux,PC
  • Number of Serial Ports (External) : 8
  • Form Factor : External
  • Height : 1.80" (45.72 mm)
  • Width : 4.70" (119.38 mm)
  • Weight (Approximate) : 3.09 lb (1400 g)
  • Environmentally Friendly : Yes
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Limited Warranty : 2 Year
  • Gain eight RS232 serial port interfaces through a single USB port
  • Connect multiple hubs together through daisy chain functionality
  • 921.6Kbps baud rate per port
  • Rack-mountable design with durable all-metal chassis
  • Extended operating temperature range: -40°C to 85°C (-40°F to 185°F)
  • 256-byte transmit, 128-byte receive FIFO
  • COM port retention

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number ICUSB23208FD
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name 8-Port USB-to-Serial Adapter Hub
Packaged Quantity 1
Product Type Serial Hub
Host Interface USB 2.0
Platform Supported PC
Platform Supported Linux
Platform Supported Mac
Number of Serial Ports (External) 8
Form Factor External
Height 1.80" (45.72 mm)
Width 4.70" (119.38 mm)
Weight (Approximate) 3.09 lb (1400 g)
Package Contents
  • 8-Port USB-to-Serial Adapter Hub
  • 1 x USB 2.0 Cable
  • 2 x Rack-mounting Brackets
  • 8 x Rack-mounting Screws
  • 2 x Din-rail Mounting Brackets
  • 4 x Din-rail Mounting Screws
  • 4 x Washers
  • 4 x Nuts
  • 1 x Universal Power Adapter (NA/JP, UK, EU, AU)
  • 1 x Driver CD
  • 1 x Terminal Block Plug
  • 1 x Quick Start Guide
Additional Information

OS Compatibility:

  • Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
  • macOS 10.6 to 10.15, 11.0, 12.0, 13.0
  • Linux 2.4.x and up - LTS Versions only
Environmentally Friendly Yes
Country of Origin Taiwan
TAA Compliant Yes
Limited Warranty 2 Year
