Product overview

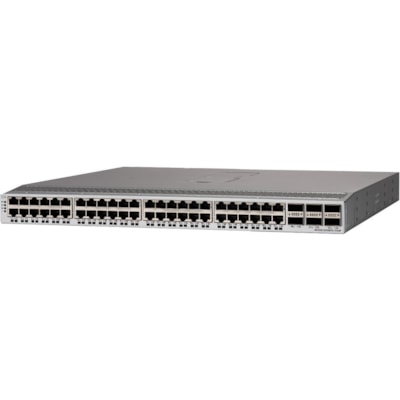

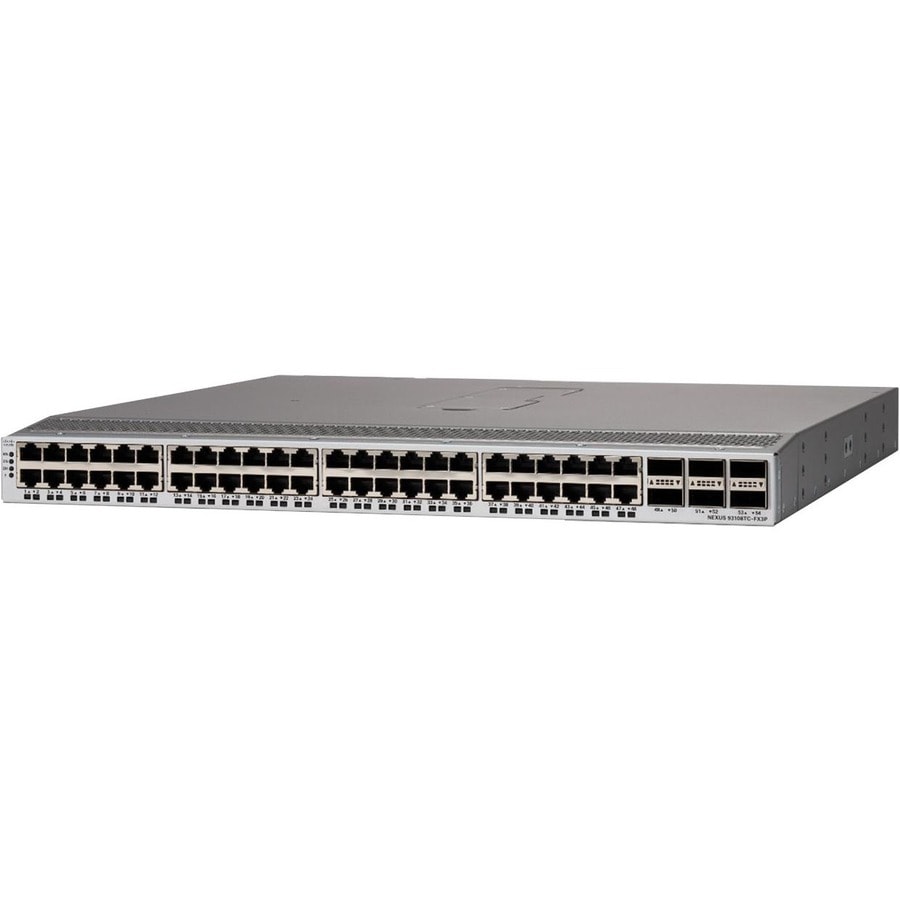

Based on Cisco® Cloud Scale technology, the Cisco Nexus® 93108TC-FX3P Switch is a multigigabit-capable, fixed switch in the next-generation Cisco Nexus 9300 platform. Cisco Multigigabit Ethernet technology supports bandwidth speeds from 100Mbps to 10 Gbps over traditional Category 5e/6 cabling. This addresses the need for the exponential increases in bandwidth being driven by the enormous growth of 802.11ac Wave 2 and Wi-Fi 6 without having to replace current cabling infrastructure. The switch is built on modern-system architecture designed to provide high performance, support cost-effective deployments, and meet the evolving needs of growing mid-size to large enterprise customers.

Cisco provides two modes of operation for Cisco Nexus 9000 Series Switches. Organizations can deploy Cisco Application Centric Infrastructure (Cisco ACI® ) or Cisco NX-OS mode. Cisco ACI is a holistic, intent-driven architecture with centralized automation and policy-based application profiles. It provides a robust transport network for dynamic workloads and is built on a network fabric that combines time-tested protocols with new innovations to create a highly flexible, scalable, and resilient architecture of low-latency, high-bandwidth links. This fabric delivers a network that can support the most demanding and flexible data center environments. Designed for the programmable network, the Cisco NX-OS operating system automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.

With optimized efficiency, simplified operation and installation, and a wide array of device versatility, the Cisco Nexus 93108TC-FX3P Switch provides investment protection for customers in an ever-changing data-centric and increasingly connected market. The expansive feature set includes 40MB of intelligent buffering, support for voice VLANs, and a full-featured Layer 2 and Layer 3 Application-Specific Integrated Circuit (ASIC).

DETAILS

• Total Number of Network Ports : 48
• Network (RJ-45) : Yes
• Uplink Port : Yes
• Modular : Yes
• Port/Expansion Slot Details : 48 x 10 Gigabit Ethernet Network,6 x 100 Gigabit Ethernet Expansion Slot
• Media Type Supported : Optical Fiber,Twisted Pair
• Ethernet Technology : 10 Gigabit Ethernet,100 Gigabit Ethernet
• Network Technology : 10GBase-T,100GBase-X
• Total Number of Expansion Slots : 6.0
• Expansion Slot Type : QSFP28
• Layer Supported : 3
• Networking Standards : IEEE 802.11ac
• Manageable : Yes
• Power Source : Power Supply
• Redundant Power Supply Supported : Yes
• Number of Power Supplies Supported : 2
• Compatible Rack Unit : 1U
• Form Factor : Rack-mountable
• Height : 1.72" (43.69 mm)
• Width : 17.20" (436.88 mm)
• Depth : 18" (457.20 mm)
• Weight (Approximate) : 16 lb (7257.48 g)

• Cascade to other network devices through the uplink port to expand your local area network
• Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
• Built-in power supply to ensure all components are being supplied with accurate voltage
• Supports layer 3 switching for enhanced performance and usability
• Rack mounting enables you to organize wires & secure cables for professional installation
• Managed switch provides a reliable foundation for your network
• 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
