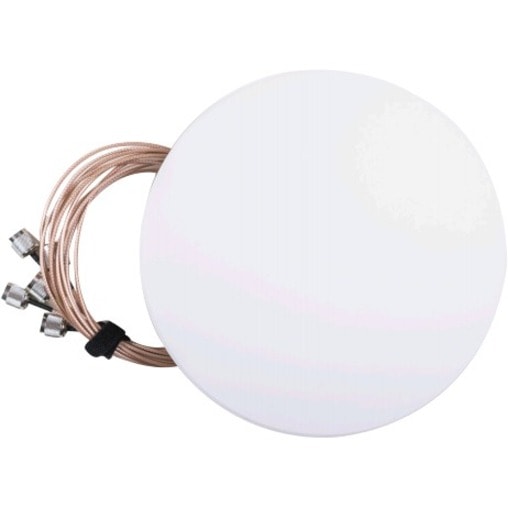

Meraki Downtilt Panel Omni - 2.400 GHz to 2.500 GHz, 5.150 GHz to 5.875 GHz - 3.7 dBi - Wireless Access Point, IndoorWall/Pole/Ceiling/Flush/Surface/Pipe - Omni-directional - RP-TNC Connector
MA-ANT-3-D6
Also known as IM1794FC
MARKETING INFORMATION
The Downtilt Panel Omnidirectional antenna is ideal for medium ceiling (8-25ft) aesthetic consensus installations. Some example uses are medium-density deployments like cube office space and vestibules.DETAILS
- Directivity : Omni-directional
- Operating Frequency Range : 2.400 GHz to 2.500 GHz,5.150 GHz to 5.875 GHz
- Antenna Gain (Isotropic) : 3.7 dBi
- Connector Type : RP-TNC
- Height : 1.46" (37 mm)
- Diameter : 8.86" (225 mm)
- Form Factor : Wall/Pole/Ceiling/Flush/Surface/Pipe
- Weight (Approximate) : 1.30 lb (590 g)
- Application/Usage : Wireless Access Point,Indoor
- Package Contents :
- Downtilt Panel Omni
- Flush-mount solution
- Compatibility : Cisco Meraki MR53E Access Point
- Country of Origin : China
- Limited Warranty : 1 Year
- Provides connectivity to your wireless access point, making it perfect for usage
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Can be mounted as wall/pole/ceiling/flush/surface/pipe
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | MA-ANT-3-D6 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Meraki |
| Product Name | Downtilt Panel Omni |
| Product Type | Antenna |
| Directivity | Omni-directional |
| Operating Frequency Range | 2.400 GHz to 2.500 GHz |
| Operating Frequency Range | 5.150 GHz to 5.875 GHz |
| Antenna Gain (Isotropic) | 3.7 dBi |
| Connector Type | RP-TNC |
| Height | 1.46" (37 mm) |
| Diameter | 8.86" (225 mm) |
| Form Factor | Wall/Pole/Ceiling/Flush/Surface/Pipe |
| Weight (Approximate) | 1.30 lb (590 g) |
| Application/Usage | Wireless Access Point |
| Application/Usage | Indoor |
| Package Contents |
|
| Compatibility | Cisco Meraki MR53E Access Point |
| Country of Origin | China |
| Limited Warranty | 1 Year |
