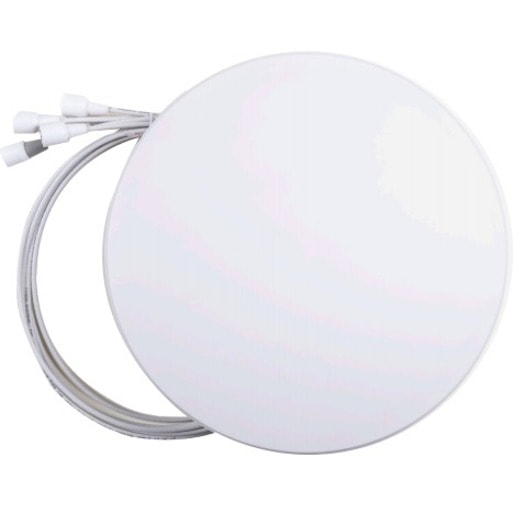

Meraki Panel Omni - 2.400 GHz to 2.500 GHz, 5.150 GHz to 5.875 GHz - 4.9 dBi - Indoor, Wireless Access PointWall/Ceiling/Pole, Panel - Omni-directional - RP-TNC Connector
MA-ANT-3-C5
Also known as IM1791FC
MARKETING INFORMATION
The Panel Omni antenna is ideal for low ceiling aesthetic consensus installations where wall penetration or extended reach are important. Some example uses are low-density deployments like schools and hotels to provide basic low-performance connectivity. These types of best-effort deployments usually have APs installed in the hallway to cover adjacent rooms.DETAILS
- Directivity : Omni-directional
- Operating Frequency Range : 2.400 GHz to 2.500 GHz,5.150 GHz to 5.875 GHz
- Antenna Gain (Isotropic) : 4.9 dBi
- Connector Type : RP-TNC
- Height : 1.38" (35 mm)
- Diameter : 11.81" (300 mm)
- Form Factor : Wall/Ceiling/Pole,Panel
- Weight (Approximate) : 2.16 lb (980 g)
- Application/Usage : Indoor,Wireless Access Point
- Compatibility :
Cisco Meraki MR53E Access Point
- Country of Origin : Taiwan
- Limited Warranty : 1 Year
- Get improved signals for your indoor with this antenna
- Provides ease of management and installation thanks to its omni-direction feature
- Antenna can be mounted as wall/ceiling/pole
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | MA-ANT-3-C5 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Meraki |
| Product Name | Panel Omni |
| Product Type | Antenna |
| Directivity | Omni-directional |
| Operating Frequency Range | 2.400 GHz to 2.500 GHz |
| Operating Frequency Range | 5.150 GHz to 5.875 GHz |
| Antenna Gain (Isotropic) | 4.9 dBi |
| Connector Type | RP-TNC |
| Height | 1.38" (35 mm) |
| Diameter | 11.81" (300 mm) |
| Form Factor | Wall/Ceiling/Pole |
| Form Factor | Panel |
| Weight (Approximate) | 2.16 lb (980 g) |
| Application/Usage | Indoor |
| Application/Usage | Wireless Access Point |
| Compatibility | Cisco Meraki MR53E Access Point |
| Country of Origin | Taiwan |
| Limited Warranty | 1 Year |
