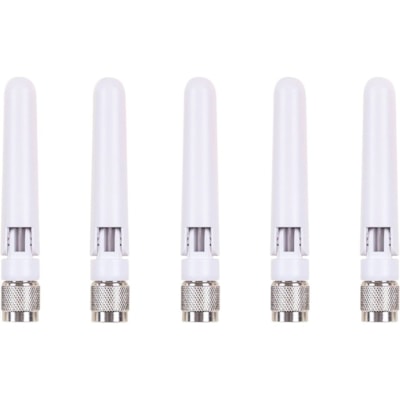

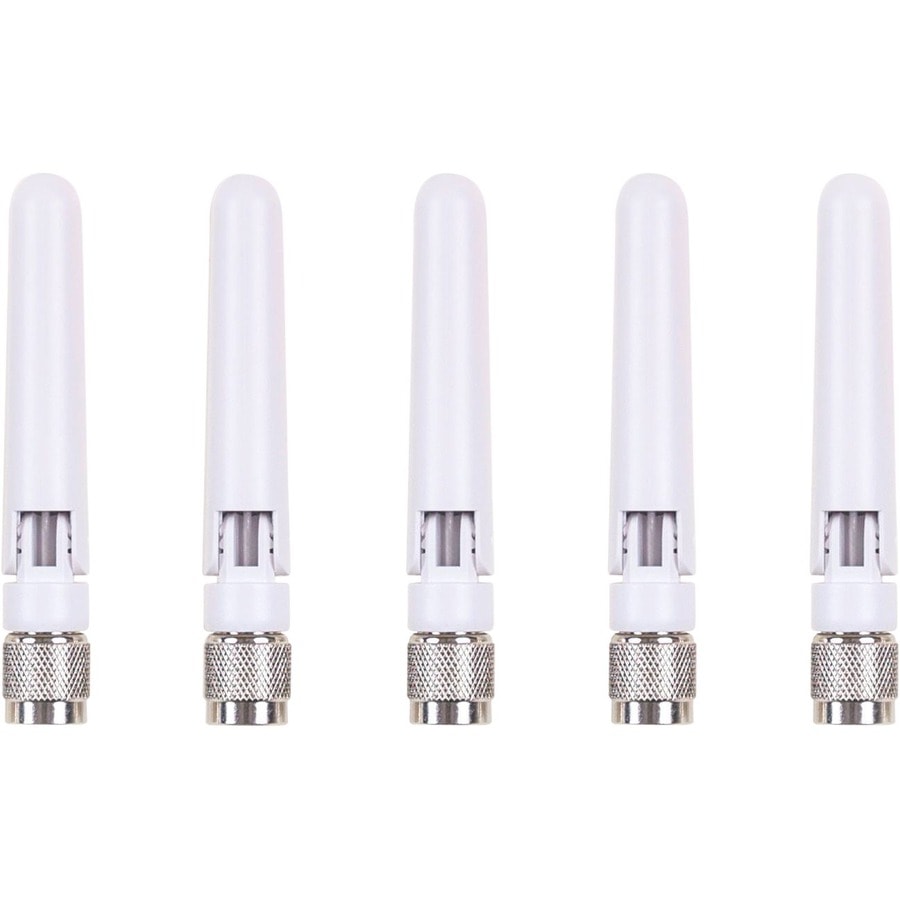

Meraki Antenna - 2.4 GHz to 2.5 GHz, 5.150 GHz to 5.875 GHz - 5.7 dBi - Indoor, Wireless Access PointDipole - Omni-directional - RP-TNC Connector
MA-ANT-3-B6
Also known as IM1790FC
MARKETING INFORMATION
The Dipole antenna is ideal for low ceiling installations where wall penetration or extended reach are important. Some example use cases are low-density deployments like schools and hotels to provide basic connectivity. These types of best-effort deployments usually have APs installed on walls or uneven surfaces. This antenna is bendable.DETAILS
- Directivity : Omni-directional
- Operating Frequency Range : 2.4 GHz to 2.5 GHz,5.150 GHz to 5.875 GHz
- Antenna Gain (Isotropic) : 5.7 dBi
- Connector Type : RP-TNC
- Height : 3.52" (89.30 mm)
- Diameter : 0.57" (14.50 mm)
- Form Factor : Dipole
- Weight (Approximate) : 0.71 oz (20.19 g)
- Application/Usage : Indoor,Wireless Access Point
- Compatibility :
Cisco Meraki MR42E Wireless Access Point
- Limited Warranty : 1 Year
- Provides connectivity to your indoor, making it perfect for usage
- Easy to install, upright and provides the best performance
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | MA-ANT-3-B6 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Meraki |
| Product Name | Antenna |
| Packaged Quantity | 6 |
| Product Type | Antenna |
| Directivity | Omni-directional |
| Operating Frequency Range | 2.4 GHz to 2.5 GHz |
| Operating Frequency Range | 5.150 GHz to 5.875 GHz |
| Antenna Gain (Isotropic) | 5.7 dBi |
| Connector Type | RP-TNC |
| Height | 3.52" (89.30 mm) |
| Diameter | 0.57" (14.50 mm) |
| Form Factor | Dipole |
| Weight (Approximate) | 0.71 oz (20.19 g) |
| Application/Usage | Wireless Access Point |
| Application/Usage | Indoor |
| Compatibility | Cisco Meraki MR42E Wireless Access Point |
| Limited Warranty | 1 Year |
