MARKETING INFORMATION

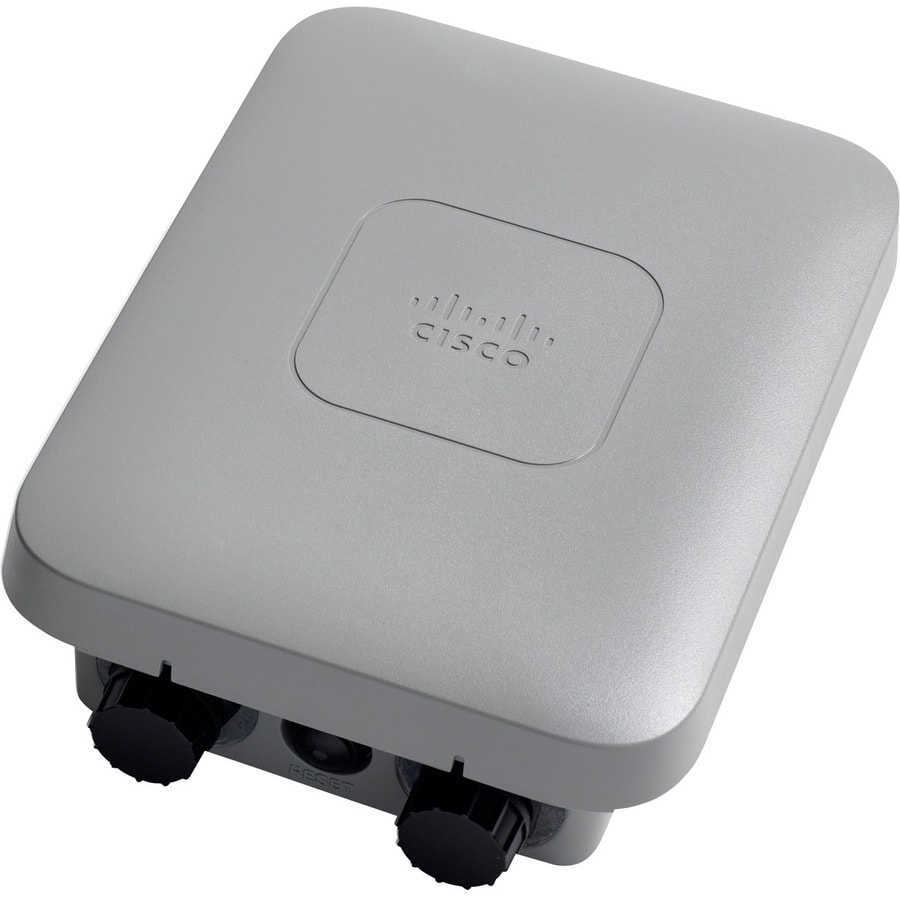

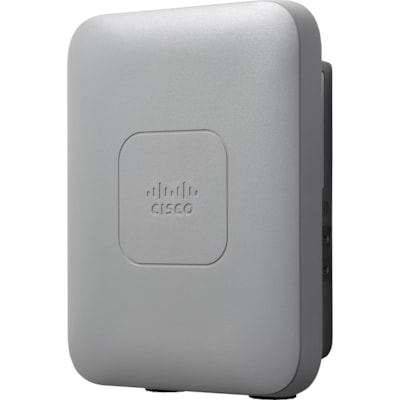

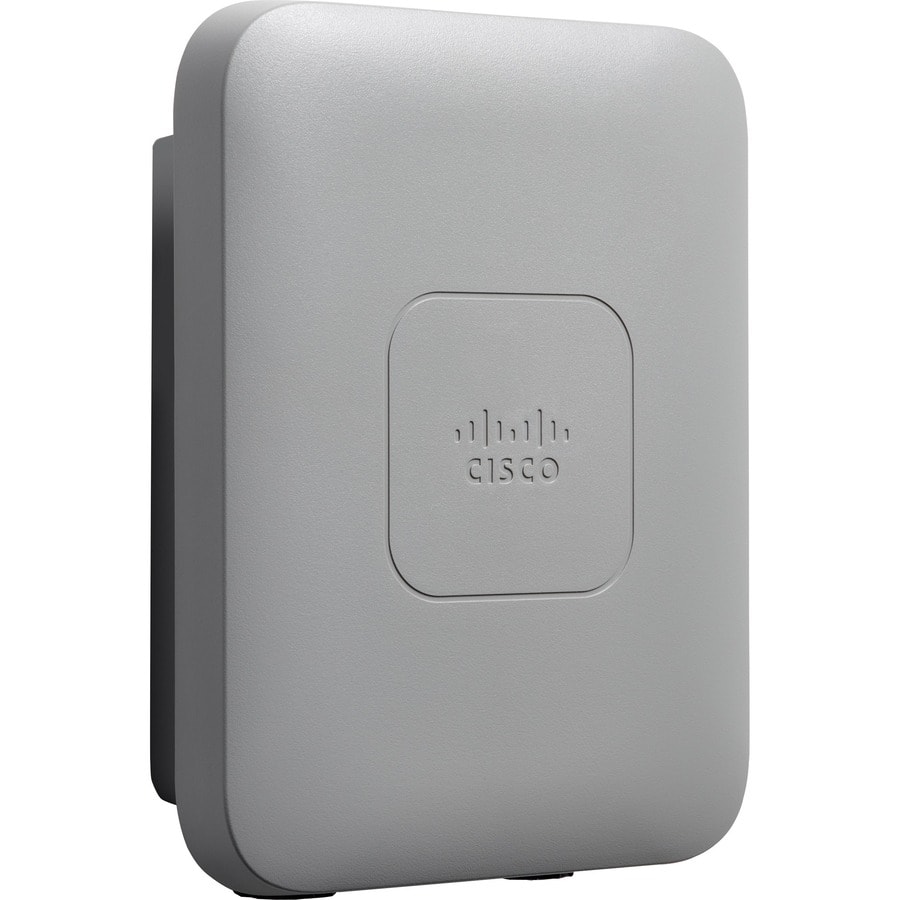

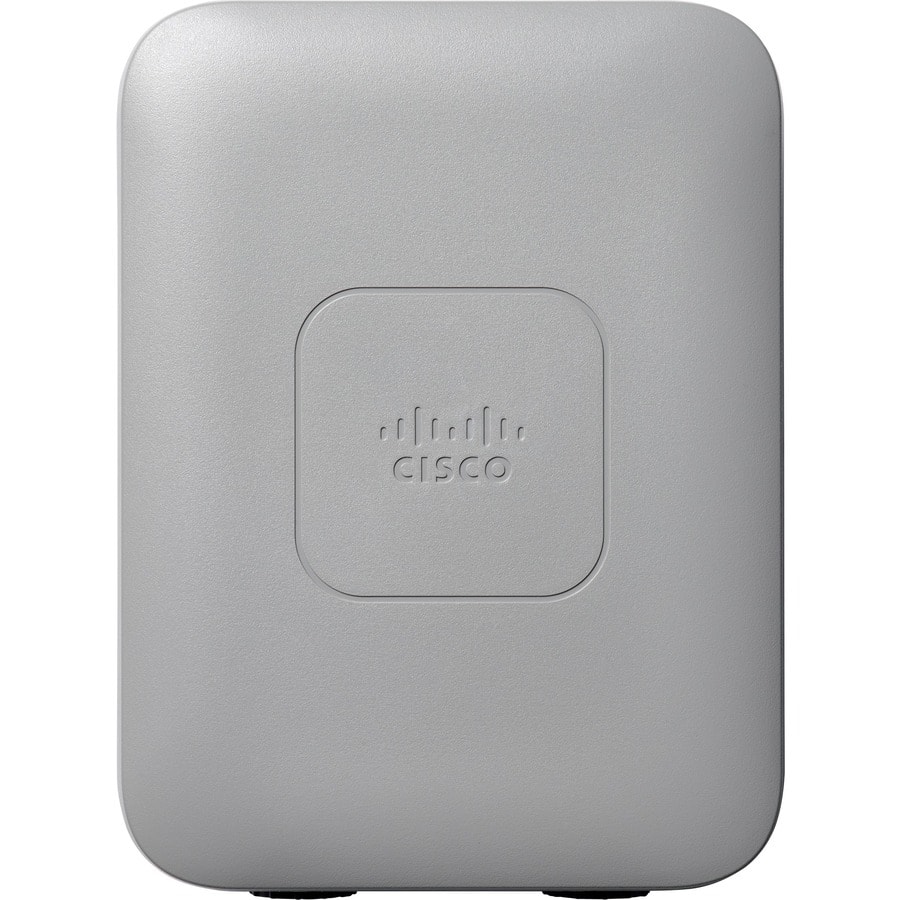

Cisco® Aironet® 1540 Series outdoor access points offer the latest 802.11ac Wave 2 functions in a rugged, ultra-low-profile housing that service providers and enterprises can deploy easily.

The Cisco Aironet 1540 Series is ideal for applications requiring rugged outdoor Wi-Fi coverage and supports the latest 802.11ac Wave 2 radio standard. Housed in a compact, aesthetically pleasing, easy-to-deploy package, the 1540 Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul. The 1540 Series access points give network operators the flexibility to balance their desired wireless coverage with their need for easy deployment.

Whether deployed as a traditional access point or a wireless mesh access point, the 1540 Series provides the throughput capacity needed for today's bandwidth-hungry devices.

Features and Benefits

By adhering to the 802.11ac Wave 2 standard, the 1540 Series provides a data rate of up to 867 Mbps on the 5- GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1.1 Gbps. This provides the necessary foundation for enterprise and service provider networks to stay ahead of the performance expectations and needs of their wireless users.

In recent years corporate users have increasingly preferred wireless access as the form of network connectivity due to its convenience. With this shift, there is an expectation that wireless should not slow down users' day-to-day work, but should enable a high-performance experience. The 1540 Series delivers this performance with highly secure and reliable wireless connections for mobile end users.

DETAILS

• Wireless LAN Standard : IEEE 802.11ac
• Frequency Band : 2.40 GHz,5 GHz
• Wireless Transmission Speed : 1.10 Gbit/s
• MIMO Technology : Yes
• Beamforming Technology : Yes
• Ethernet Technology : Gigabit Ethernet
• Number of Network (RJ-45) Ports : 1
• PoE PD Port : Yes
• Management Port : Yes
• Form Factor : Wall Mountable,Pole-mountable
• Height : 2.40" (60.96 mm)
• Width : 5.90" (149.86 mm)
• Depth : 7.90" (200.66 mm)
• Weight (Approximate) : 2.75 lb (1247.38 g)
• Country of Origin : China

• Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
• With IEEE 802.11ac network technology and data transfer rate of up to 1.10 Gbit/s, enjoy superior HD media playback and lag-free gaming
• Up to 10x faster than standard Ethernet connectivity for your wired network
• Its management capability provides efficient control over setup and configuration of your network
