Tripp Lite series SmartPro SM2200RMXL2UPN 2200VA Rack/Tower UPS - 2U Rack/Tower - AVR - 4.50 Hour Recharge - 4.50 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC Output - Single Phase - Pure Sine Wave - Serial Port - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R Receptacle(s) - 8 x Battery/Surge

SM2200RMXL2UPN
Also known as IM148VVG,DHSM2200RMXL2UP,SY6574158

New! Log in or create an account to see price and availability


MARKETING INFORMATION

2.2kVA/1.92kW/120V Battery Backup for PC Networks, Security Systems or Digital Signage

The SmartPro® line-interactive SM2200RMXL2UPN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup with 0.9 power factor is ideal protection for small networks, wiring closets, security systems, telecom, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the field-replaceable, hot-swappable internal battery should keep a half load (960W) powered as long as 12 minutes and a full load (1920W) up to 4.5 minutes. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lite's BP48V27-2US (sold separately).

Pre-Installed WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control

The Java-free HTML5-based WEBCARDLX enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. WEBCARDLX allows you to use the Auto Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network devices.

8 NEMA Outlets Protect Your Connected Components

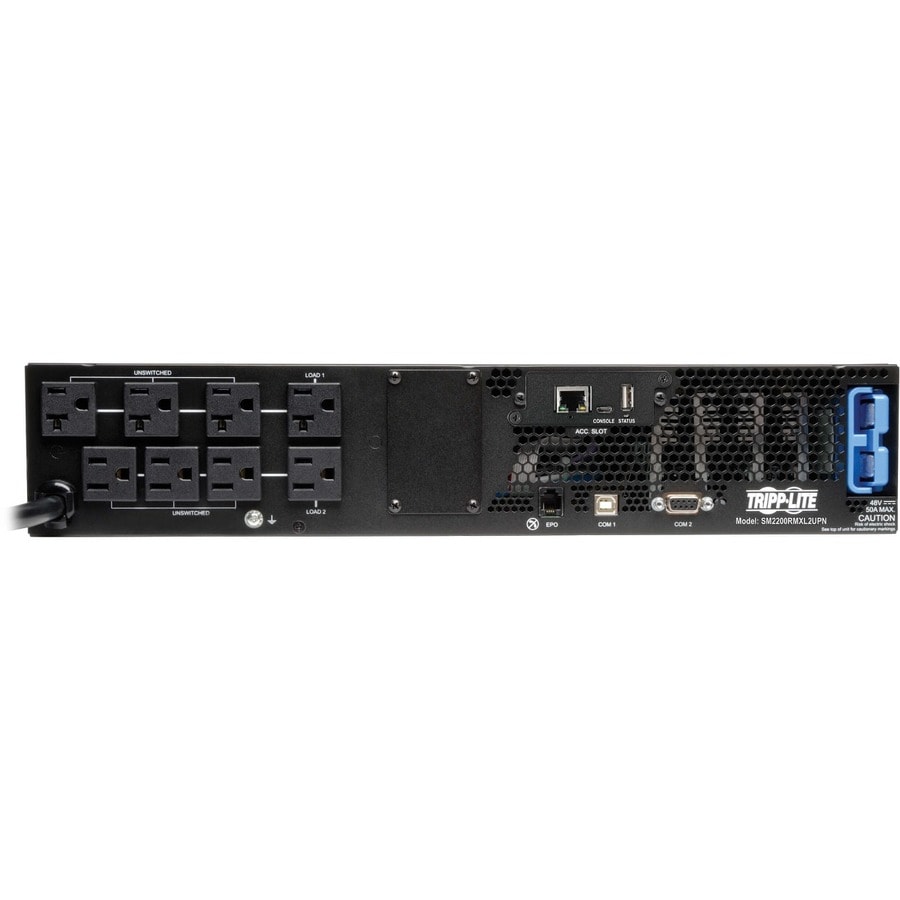

Four 5-15R and four 5-15/20R outlets provide battery backup, 570 joules of surge protection and voltage regulation for your crucial components. Two independently switched two-outlet load banks enable both scheduled and real-time remote rebooting and load shedding.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SM2200RMXL2UPN can correct brownouts as low as 83V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Designed for High Efficiency to Help You Save Money and Protect the Environment

A 96% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.

Silenceable Alarm and Easy-to-Read LCD Keep You Informed Around the Clock

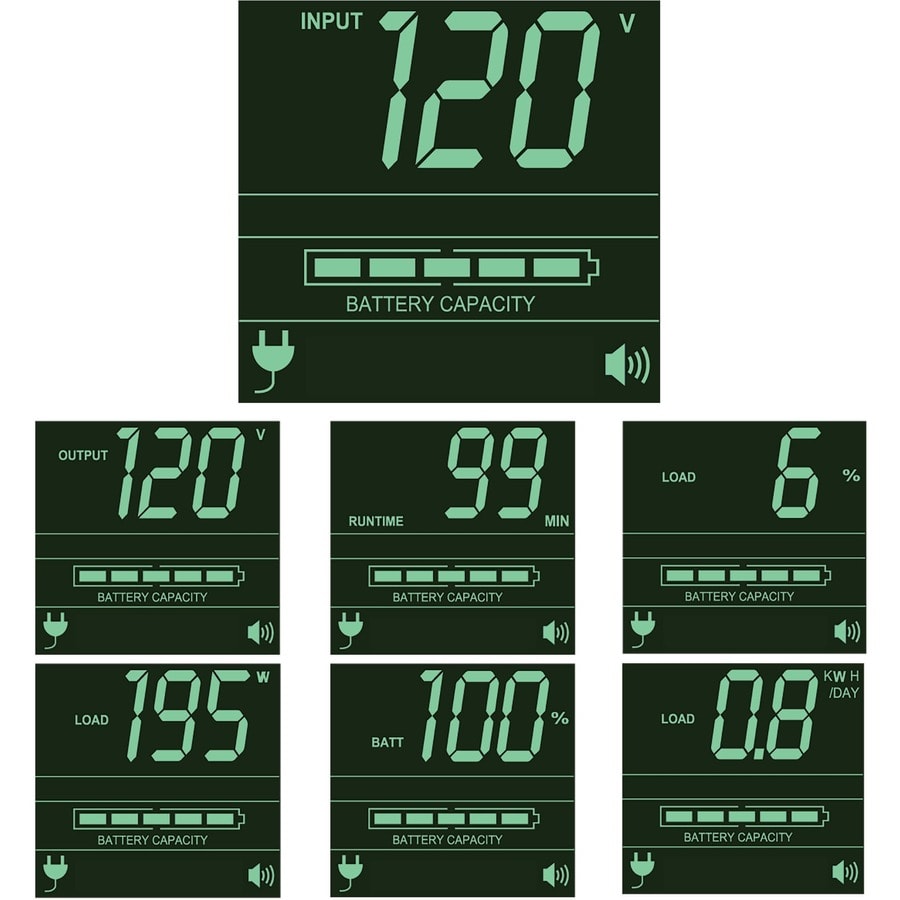

The front-panel LCD lets you monitor important data, such as load level, power factor, voltage, battery charge and estimated runtimes. It rotates for comfortable viewing in both rack and tower configurations. The audible alarm sounds for power failure, low battery and overloads. You may silence it using the built-in switch or disable it.

DETAILS

  • AVR : Yes

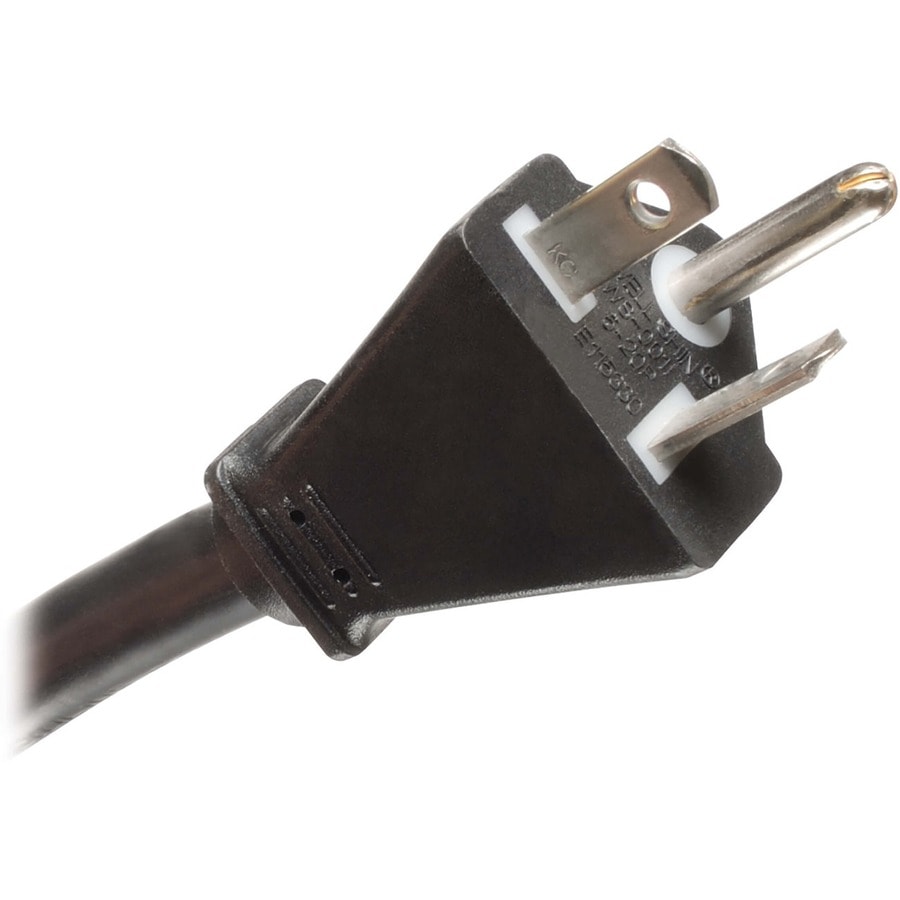

  • Plug/Connector Type : NEMA 5-20P
  • Receptacle Type : NEMA 5-15R,NEMA 5-15/20R
  • Receptacle Detail : 4 x NEMA 5-15R,4 x NEMA 5-15/20R
  • Number of Battery & Surge Outlets : 8
  • Overload Protection : Yes
  • Transfer Time : 5 ms
  • EMI/RFI Noise Filter : Yes
  • Phase : Single Phase
  • Energy Saving : Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
  • Application/Usage : Digital Signage,Security System,Network Device,Electronic,Wiring Closet,Telecommunication,Gaming Console,Retail and Wholesale,Casino,Hotel/Motel Management,Mission Critical Equipment,Computer
  • Load Capacity (VA) : 2.20 kVA
  • Load Capacity (Watt) : 1.92 kW
  • Input Voltage : 120 V AC
  • Output Voltage : 110 V AC,115 V AC,120 V AC
  • Waveform Type : Pure Sine Wave
  • Surge Energy Rating : 570 J
  • Network Management : SNMP/Telnet/SSH
  • Alarm : Power Failure,Overload,Low Battery
  • Serial Port : Yes
  • EPO Port : Yes
  • USB (HID Compliant) Port : Yes
  • DC System Voltage : 48 V DC
  • Backup/Run Time (Full Load) : 4.50 Minute
  • Backup/Run Time (Half Load) : 12 Minute
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 4.50 Hour
  • Replaceable Battery : Yes
  • Storage Temperature : 5°F (-15°C) - 122°F (50°C)
  • Maximum Operating Temperature : 104°F (40°C)
  • Sound Emission (A-Weighted) : 45 dB(A)
  • Thermal Dissipation : 980 BTU/h
  • Height : 3.50" (89 mm)
  • Width : 17.52" (445 mm)
  • Depth : 19.02" (483 mm)
  • Rack Height : 2U
  • Form Factor : Rack/Tower
  • Weight (Approximate) : 64 lb (29030 g)
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 2 Year
  • Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
  • Keeps AC power running during blackouts to allow time for file saves and safe shutdown
  • Maintains continuous 120V nominal output during brownouts and overvoltages
  • Pre-installed WEBCARDLX network interface supports Auto Probe feature
  • Easy-to-read LCD allows real-time monitoring of voltage, battery status and other data
  • 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
  • $250,000 Ultimate Lifetime Insurance

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number SM2200RMXL2UPN
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Line SmartPro
Product Model SM2200RMXL2UPN
Product Name SmartPro SM2200RMXL2UPN 2200VA Rack/Tower UPS
Product Type Line-interactive UPS
AVR Yes
Plug/Connector Type NEMA 5-20P
Receptacle Type NEMA 5-15R
Receptacle Type NEMA 5-15/20R
Receptacle Detail 4 x NEMA 5-15R
Receptacle Detail 4 x NEMA 5-15/20R
Number of Battery & Surge Outlets 8
Overload Protection Yes
Transfer Time 5 ms
EMI/RFI Noise Filter Yes
Phase Single Phase
Energy Saving Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
Application/Usage Computer
Application/Usage Mission Critical Equipment
Application/Usage Hotel/Motel Management
Application/Usage Casino
Application/Usage Retail and Wholesale
Application/Usage Gaming Console
Application/Usage Telecommunication
Application/Usage Wiring Closet
Application/Usage Electronic
Application/Usage Network Device
Application/Usage Digital Signage
Application/Usage Security System
Load Capacity (VA) 2.20 kVA
Load Capacity (Watt) 1.92 kW
Input Voltage 120 V AC
Output Voltage 110 V AC
Output Voltage 120 V AC
Output Voltage 115 V AC
Waveform Type Pure Sine Wave
Surge Energy Rating 570 J
Network Management SNMP/Telnet/SSH
Alarm Overload
Alarm Power Failure
Alarm Low Battery
Status Indicators

Front Panel LCD Information and Configuration Screen:

  • UPS and Site Power Status and Operating Data
  • Plus Configuration Of Voltage
  • Operating Mode
  • Alarm Function and A Variety Of Additional Options
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
DC System Voltage 48 V DC
Backup/Run Time (Full Load) 4.50 Minute
Backup/Run Time (Half Load) 12 Minute
Typical Battery Recharge Time 4.50 Hour
Hot Swappable Yes
Replaceable Battery Yes
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 122°F (50°C)
Sound Emission (A-Weighted) 45 dB(A)
Thermal Dissipation 980 BTU/h
Height 3.50" (89 mm)
Width 17.52" (445 mm)
Depth 19.02" (483 mm)
Rack Height 2U
Form Factor Rack/Tower
Weight (Approximate) 64 lb (29030 g)

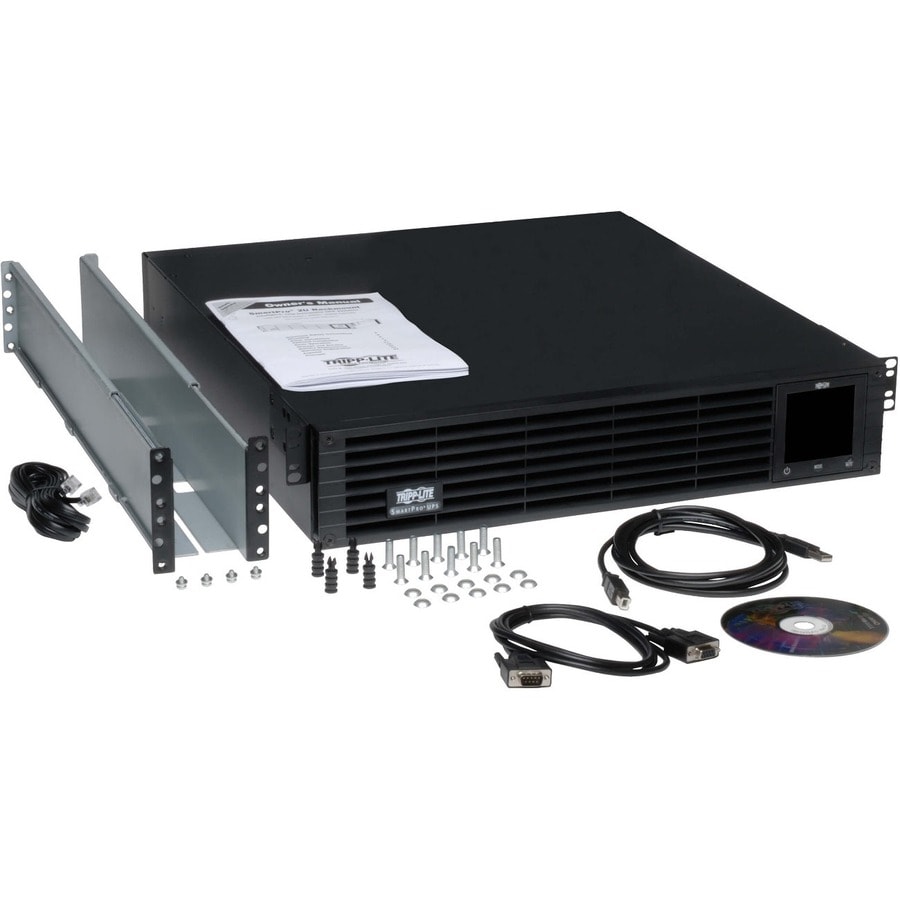

Package Contents
  • SmartPro SM2200RMXL2UPN 2200VA Rack/Tower UPS
  • Pre-installed WEBCARDLX Network Management Card
  • USB Cable
  • DB9 Cable
  • EPO Cable
  • Rack-Mounting Hardware
  • Owner's Manual
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 2 Year
