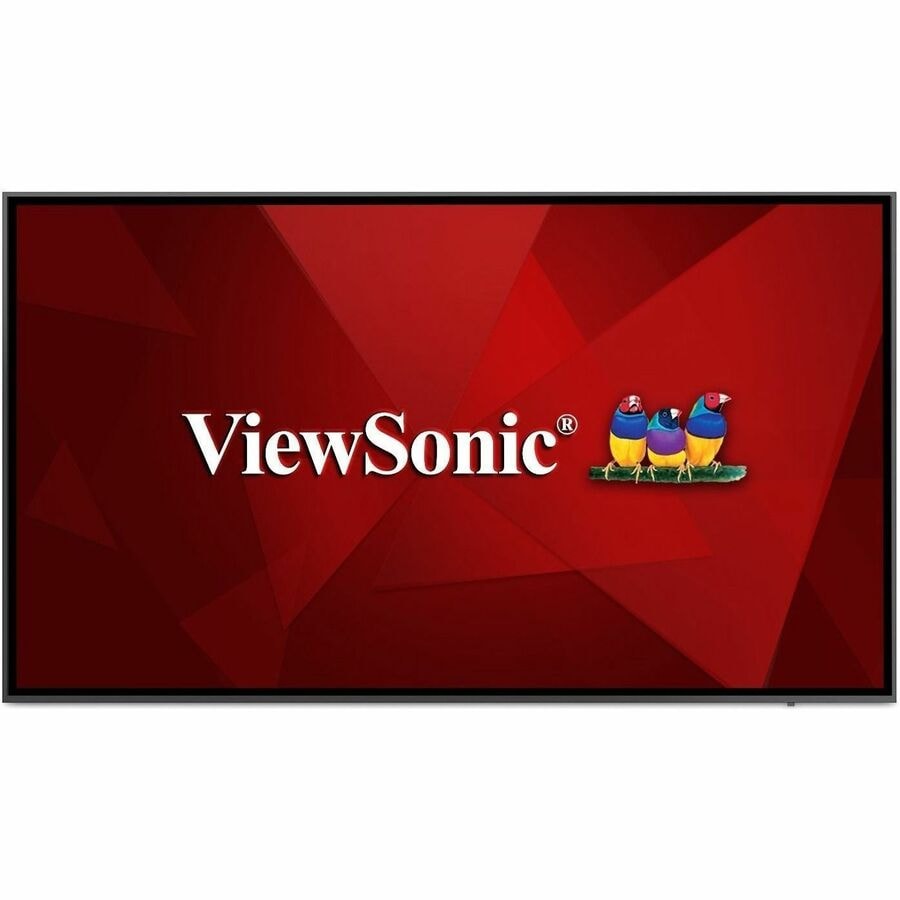

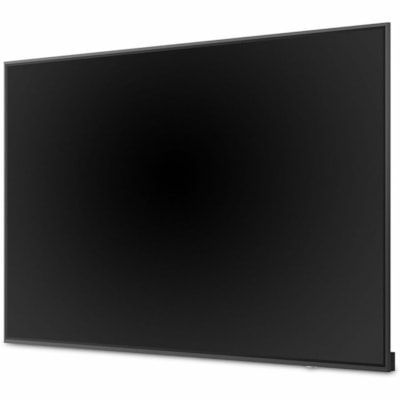

ViewSonic CDE7520-W Digital Signage Display - 75" (1905 mm) LCD Cortex A73 1.40 GHz - 3 GB - 3840 x 2160 - Direct LED - 450 cd/m² - 2160p - HDMI - USB - Serial - Wireless LAN - Ethernet - Energy Star
CDE7520-W
Also known as IM138A1B,SY6565733
MARKETING INFORMATION
The ViewSonic® CDE7520-W is a 75" premium 4K large format presentation display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 16W speakers, and wireless screen sharing, the CDE7520-W transforms meeting rooms into a dynamic communications hub. The built-in ViewBoard® screen sharing software*, ViewBoard® Cast (along with the optional ViewSonic® vCastSender app), enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE7520-W can play multimedia from internal storage or a USB flash drive 24 hours a day, seven days a week. And with remote configuration and content management system support, the ViewSonic® CDE7520-W is also suitable for a wide array of diverse signage applications.
*Chrome, Android, Windows, Mac OS, and iOS compliant
DETAILS
- Processor Type : Cortex A73
- Processor Speed : 1.40 GHz
- Processor Core : Dual-core (2 Core)
- Standard Memory : 3 GB
- Viewable Screen Size : 75" (1905 mm)
- Display Screen Type : LCD
- Display Resolution : 3840 x 2160
- Backlight Technology : Direct LED
- Scan Format : 2160p
- Brightness : 450 cd/m²
- Ethernet : Yes
- Wireless LAN : Yes
- USB : Yes
- HDMI : Yes
- Serial : Yes
- Number of USB 2.0 Ports : 2
- Number of USB 3.0 Ports : 1

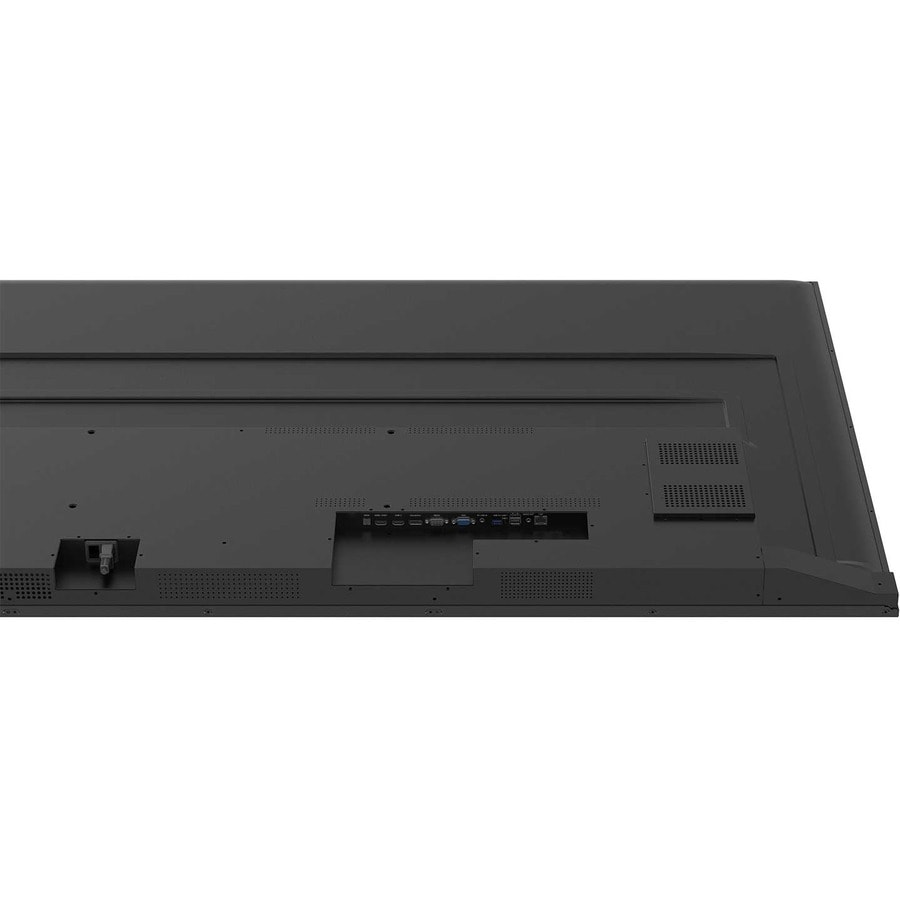

- Number of HDMI Inputs : 2
- Number of HDMI Outputs : 1
- Number of DisplayPorts : 1
- Input Voltage : 120 V AC,230 V AC

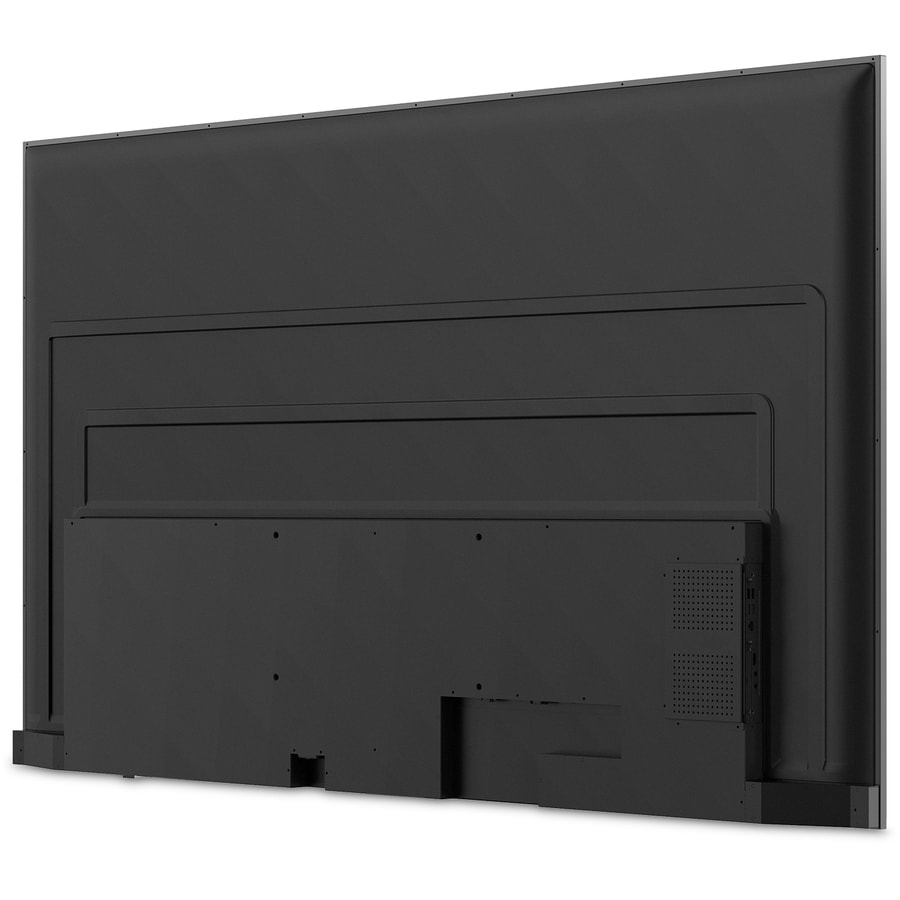

- VESA Mount Standard : 400 x 200
- Height : 37.60" (955 mm)
- Width : 65.83" (1672 mm)

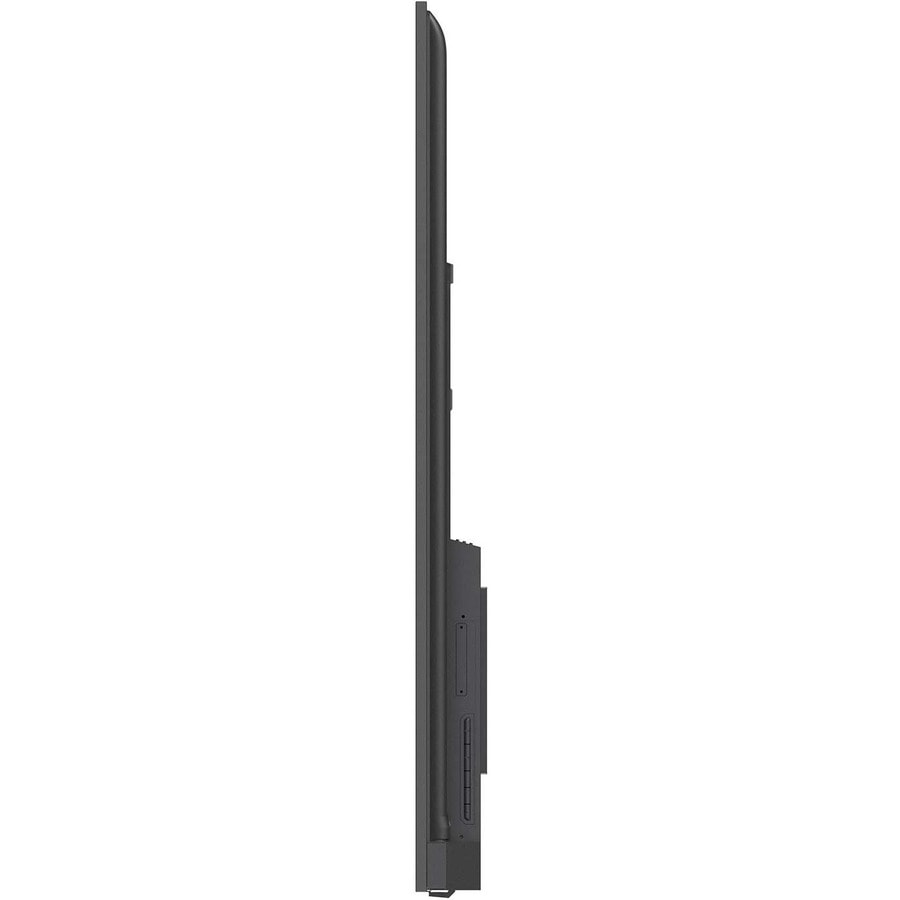

- Depth : 2.76" (70 mm)
- Weight (Approximate) : 64.60 lb (29300 g)
- Package Contents :
- Remote Control with Batteries
- Quick Start Guide
- Power Cable (1.5m)
- HDMI Cable (3m)
- Wall Mount Screws
- RS232 Adapter
- Energy Star : Yes
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Country of Origin : Switzerland
- Limited Warranty : 3 Year
- Ultra HD Resolution
- Powerful All-in-One SoC Platform
- Free ViewBoard Cast Content Sharing Software

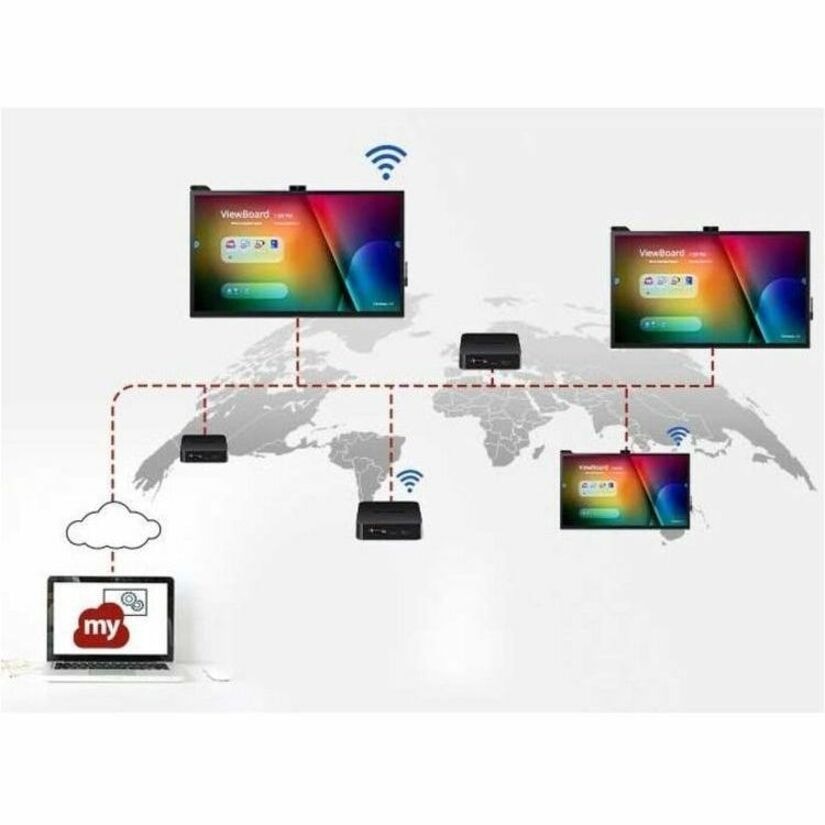

- Integrated Content Management System
- AV Control System Certified
SPECIFICATIONS
| Manufacturer | ViewSonic Corporation |
| Manufacturer Part Number | CDE7520-W |
| Manufacturer Website Address | http://www.viewsonic.com |
| Brand Name | ViewSonic |
| Product Model | CDE7520-W |
| Product Name | CDE7520-W Digital Signage Display |
| Product Type | Digital Signage Display |
| Processor Type | Cortex A73 |
| Processor Speed | 1.40 GHz |
| Processor Core | Dual-core (2 Core) |
| Standard Memory | 3 GB |
| Viewable Screen Size | 75" (1905 mm) |
| Display Screen Type | LCD |
| Display Resolution | 3840 x 2160 |
| Backlight Technology | Direct LED |
| Scan Format | 2160p |
| Brightness | 450 cd/m² |
| Ethernet | Yes |
| Wireless LAN | Yes |
| USB | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 1 |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 1 |
| Number of DisplayPorts | 1 |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| VESA Mount Standard | 400 x 200 |
| Height | 37.60" (955 mm) |
| Width | 65.83" (1672 mm) |
| Depth | 2.76" (70 mm) |
| Weight (Approximate) | 64.60 lb (29300 g) |
| Package Contents |
|
| Certifications & Standards | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Switzerland |
| Limited Warranty | 3 Year |
