MARKETING INFORMATION

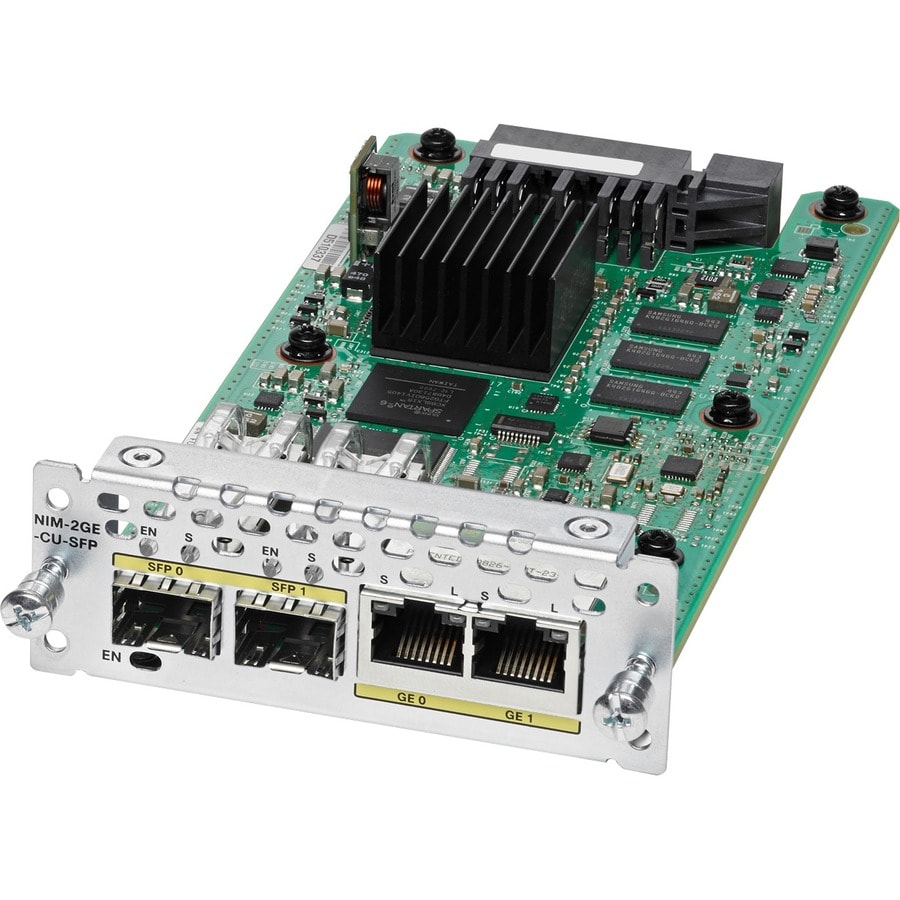

Cisco® Gigabit Ethernet WAN Modules bring high-density Small Form-Factor Pluggable (SFP) and copper (RJ-45) 1 Gigabit and 10 Gigabit Ethernet (GE) connectivity to the Cisco 4000 Series Integrated Services Routers (ISRs). Providing maximum flexibility, the modules accelerate applications such as Ethernet WAN access, inter-VLAN routing, and high-speed connectivity to LAN switches and servers.

The ports on these modules work as routed Layer 3 ports. Layer 2 switching between local ports on the module or between ports on the module and other ports within the router system is not supported. The port terminates Layer 2 trunks from externally connected switches, and Layer 2 trunk and VLAN information is not switched onto other ports in the system. The host router routes all traffic entering these modules.

Cisco Gigabit Ethernet WAN Modules do not support Power over Ethernet (PoE).

DETAILS

• Application/Usage : Wide Area Network
• Total Number of Ports : 2
• Connector Type : RJ-45
• Interfaces/Ports Details : 2 x RJ-45 1000Base-T WAN
• Media Type Supported : Twisted Pair,Optical Fiber
• Ethernet Technology : Gigabit Ethernet
• Network Technology : 1000Base-T,1000Base-X
• Maximum Data Transfer Rate : 1 Gbit/s
• Total Number of Expansion Slots : 2
• Expansion Slot Type : SFP (mini-GBIC)
• Height : 1.25" (31.75 mm)
• Width : 3.50" (88.90 mm)
• Depth : 7.24" (183.90 mm)
• Weight (Approximate) : 8.47 oz (240 g)
• Compatibility : Cisco 4000 Series Integrated Services Routers

• With 1000Base-T technology, get up to 1000Mbps data transfer rate over twisted pair cable
• Gigabit Ethernet port for ultra-fast network speeds
• Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
