MARKETING INFORMATION

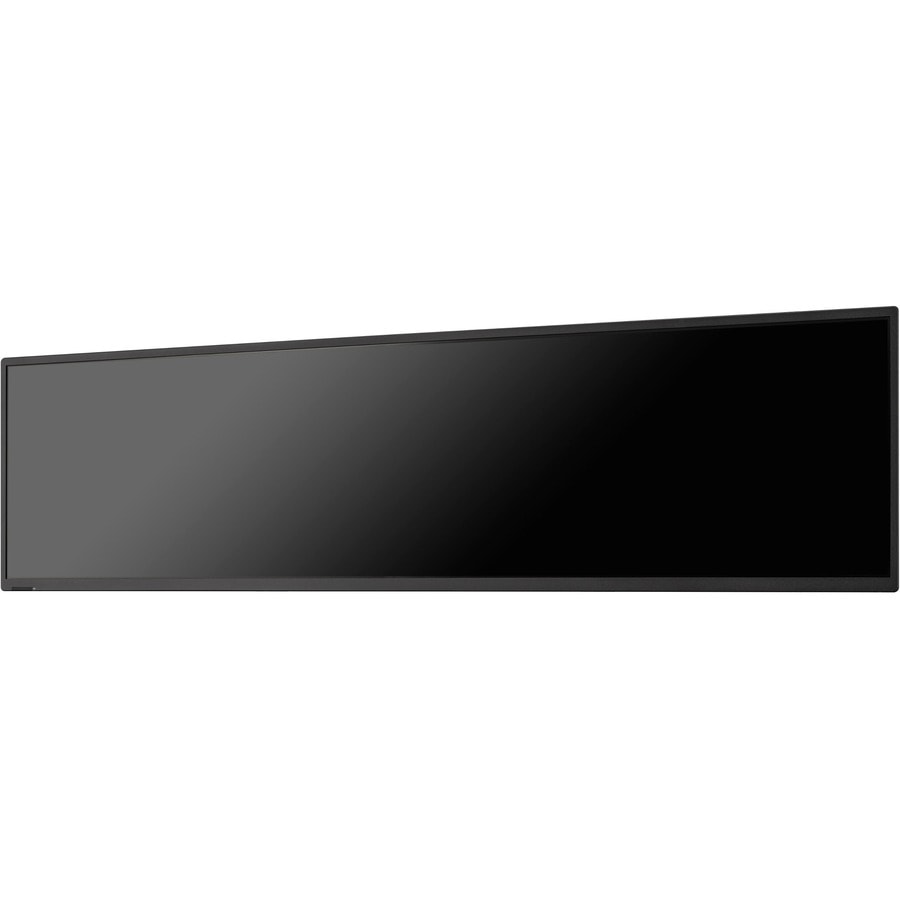

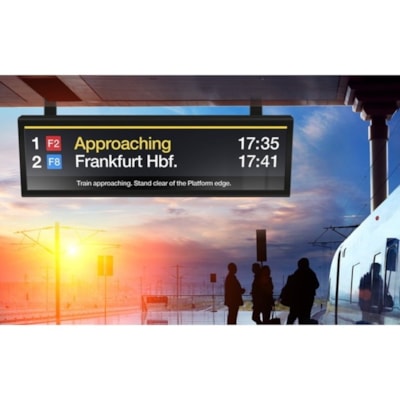

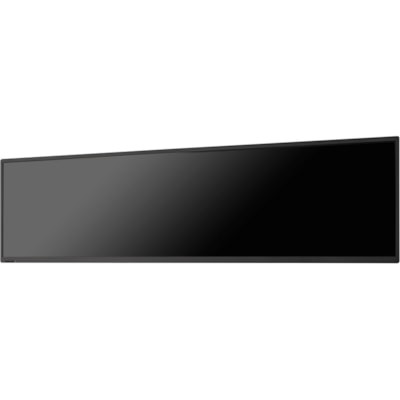

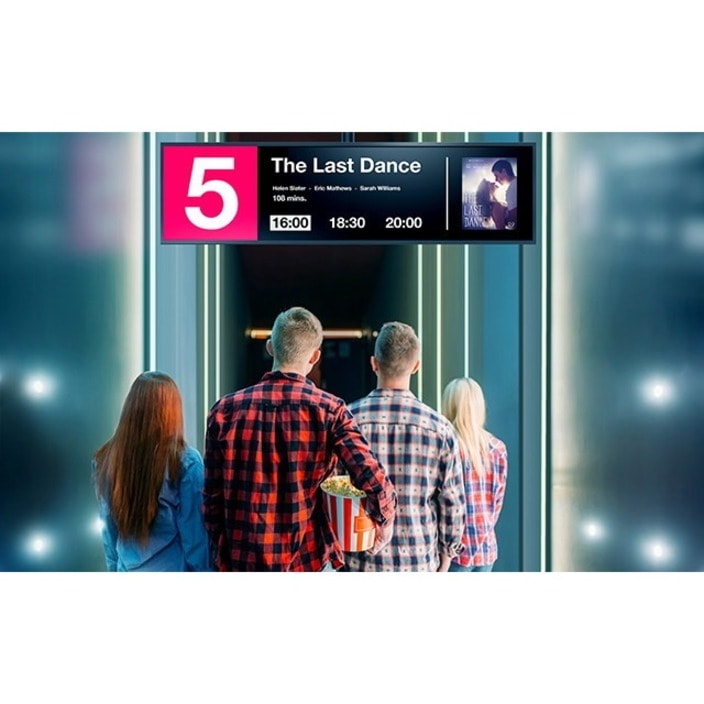

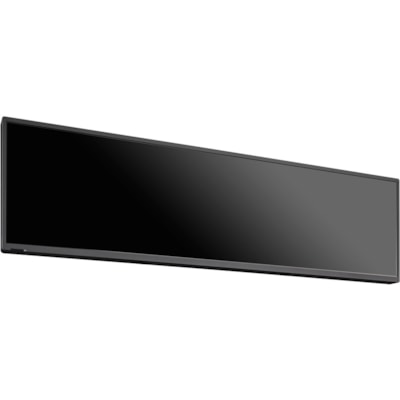

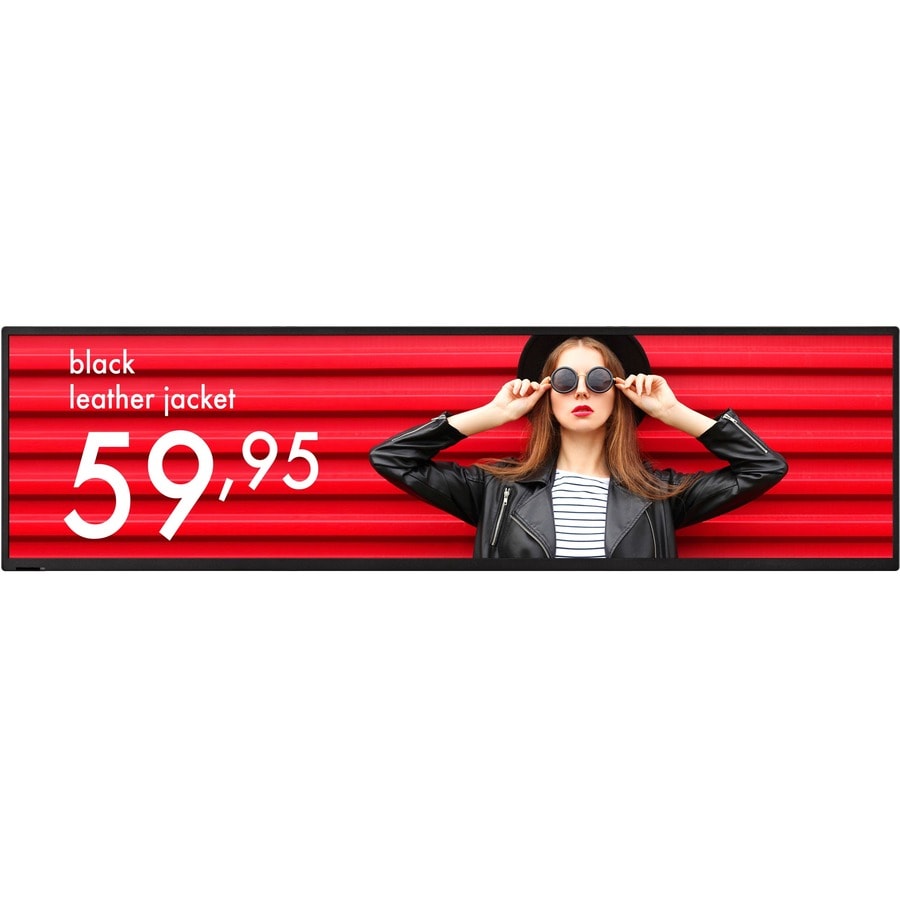

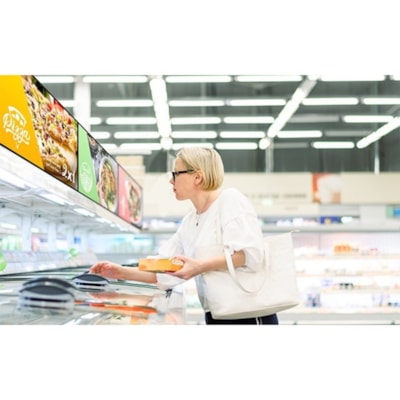

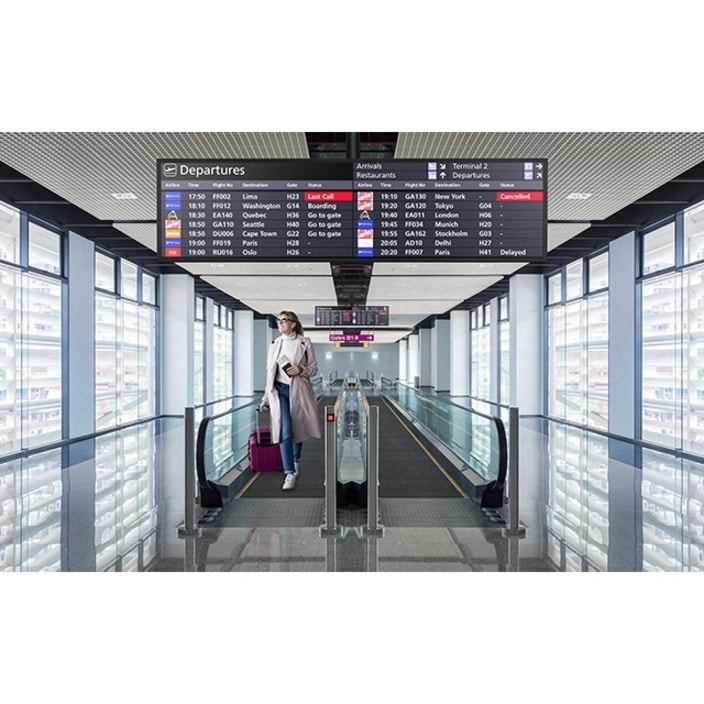

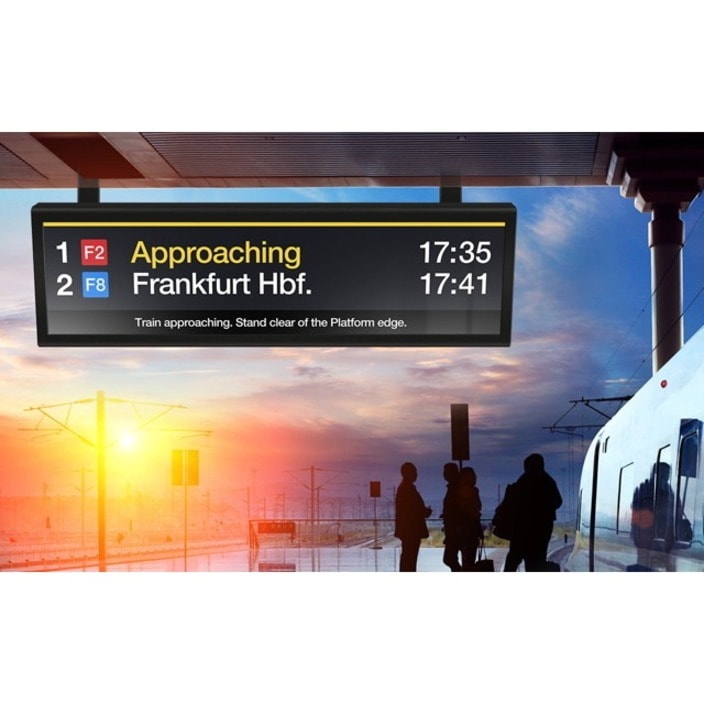

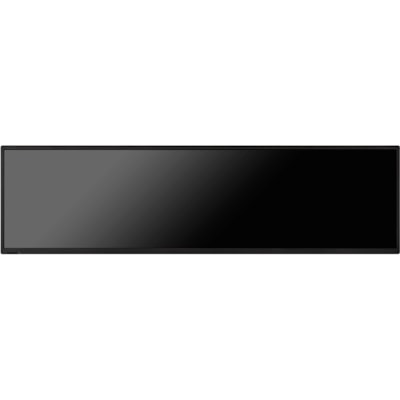

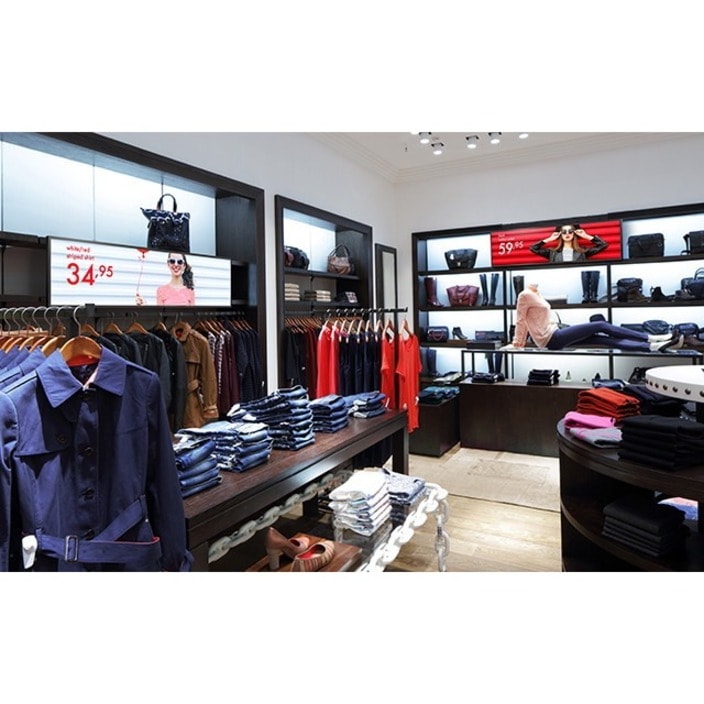

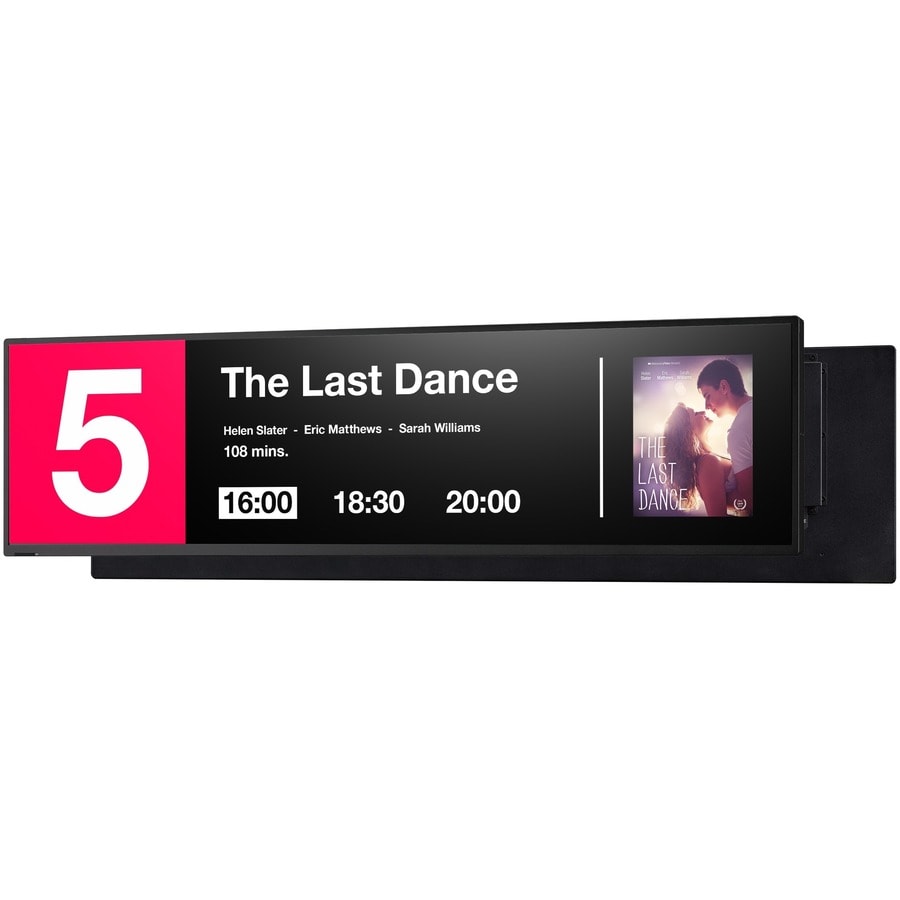

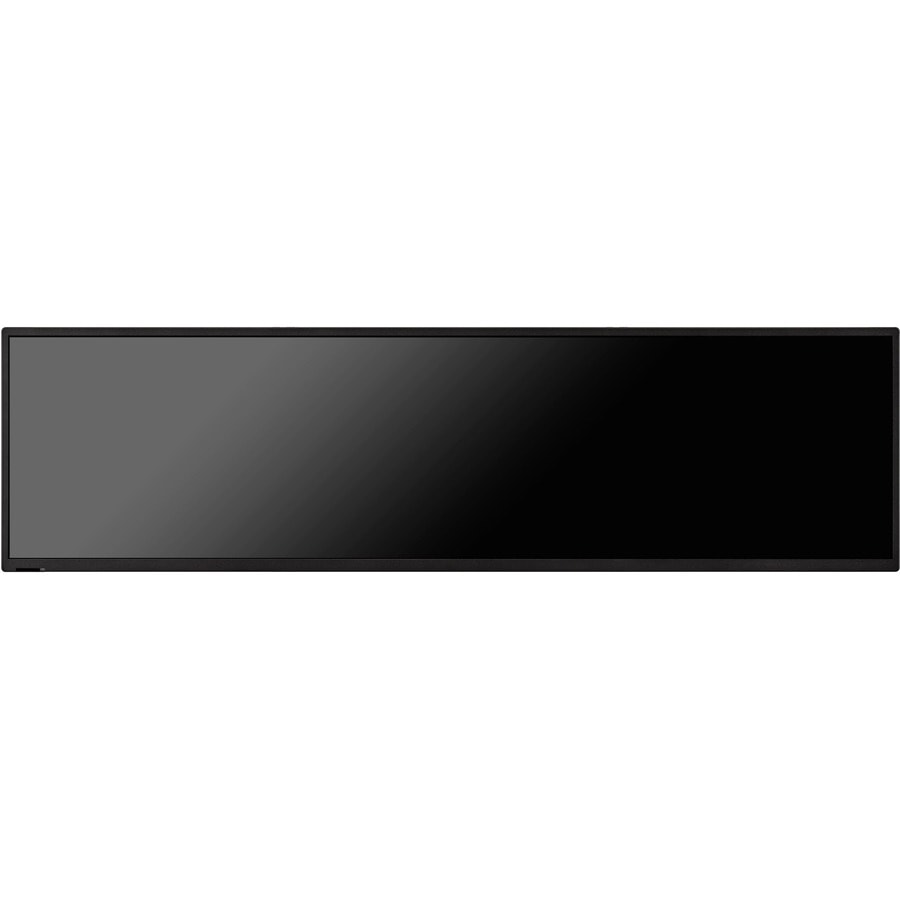

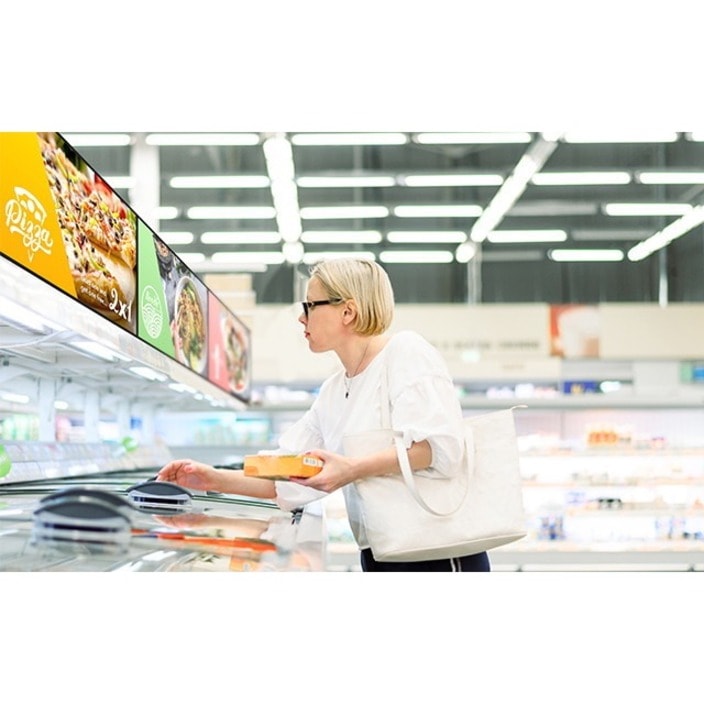

When space is limited, your message doesn't have to be. This 42" diagonal bartype stretch display offers a unique ultra-wide 16:4 aspect ratio allowing it to fit into areas that would not otherwise fit traditional 16:9 signage displays. Supporting both landscape and portrait orientations allows for a multitude of possible applications including digital signage in the retail, transportation and entertainment segments. This display contain a high native brightness of 700 cd/m2 and this combined with an anti-reflective front panel surface allows for easy readibility in high ambient light situations. Its modern, slim mechanical design forms an elegant digital surface which perfectly complements the surrounding architecture and integrates seemlessly into any environment.

• Space Efficient Display Solution with an ultra-wide 16:4 aspect ratio that allows easier installation into otherwise constricted spaces
• Reliability through all-day operation and a wide active temperature range of 0 - 50°C due to meticulously selected industrial grade components and efficient mechanical design
• Easy content adaptation through an integrated trim function that enables the user to automatically display either the top or bottom 1920 x 480 portions of native 16:9 content

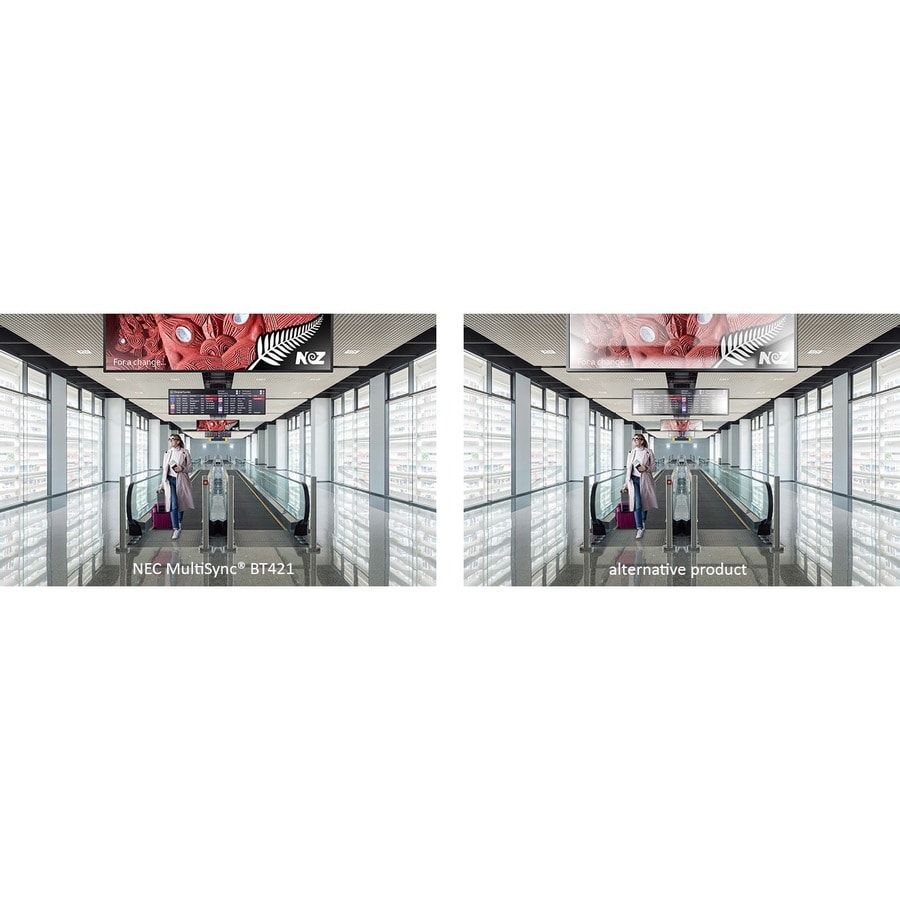

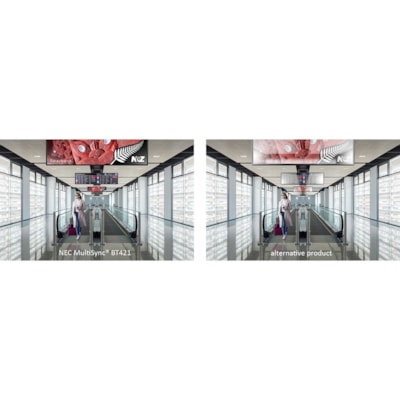

• Superb readiability for brighter ambient light areas with a highly anti-reflective panel and 700cd/m2 native brightness

DETAILS

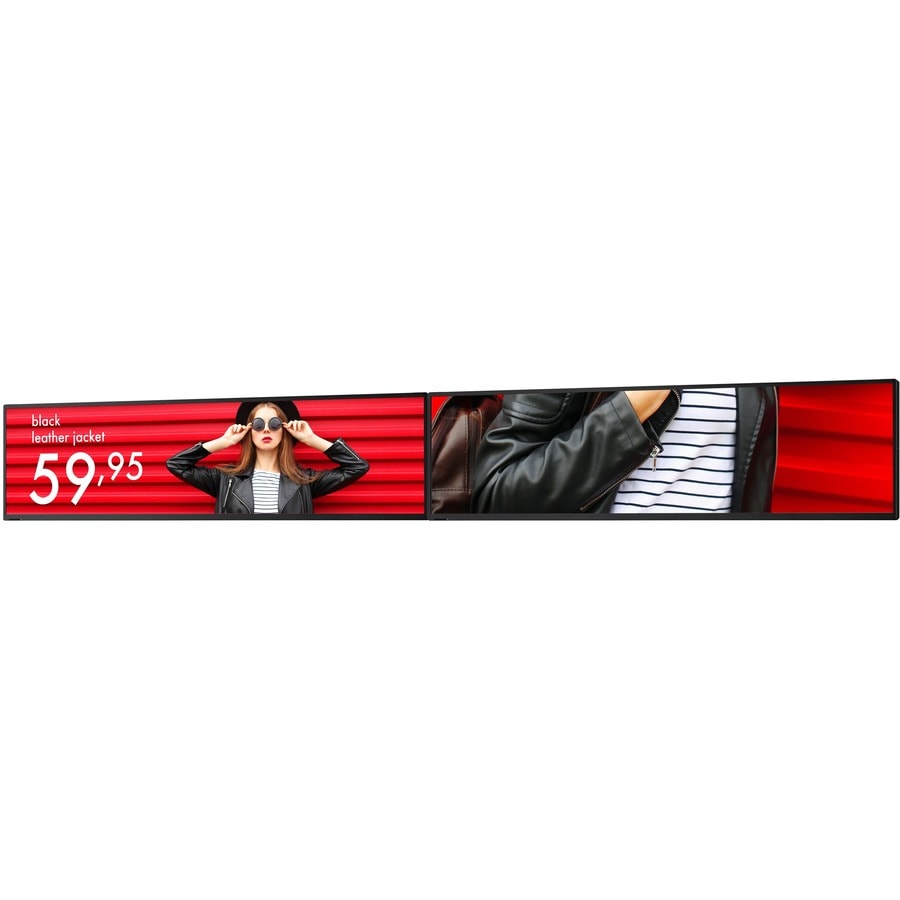

• Video Wall Compatible : Yes
• Bezel Width (Top) : 0.39" (9.80 mm)
• Bezel Width (Bottom) : 0.58" (14.71 mm)
• Viewable Screen Size : 42" (1066.80 mm)
• Display Screen Type : LCD
• Touchscreen : No
• Display Resolution : 1920 x 480
• Backlight Technology : Edge LED
• Scan Format : 480p
• Brightness : 700 cd/m²
• Ethernet : Yes
• Wireless LAN : No
• USB : No
• DVI : Yes
• Serial : Yes
• Number of DVI Ports : 2
• Color Family : Black
• Product Color : Black

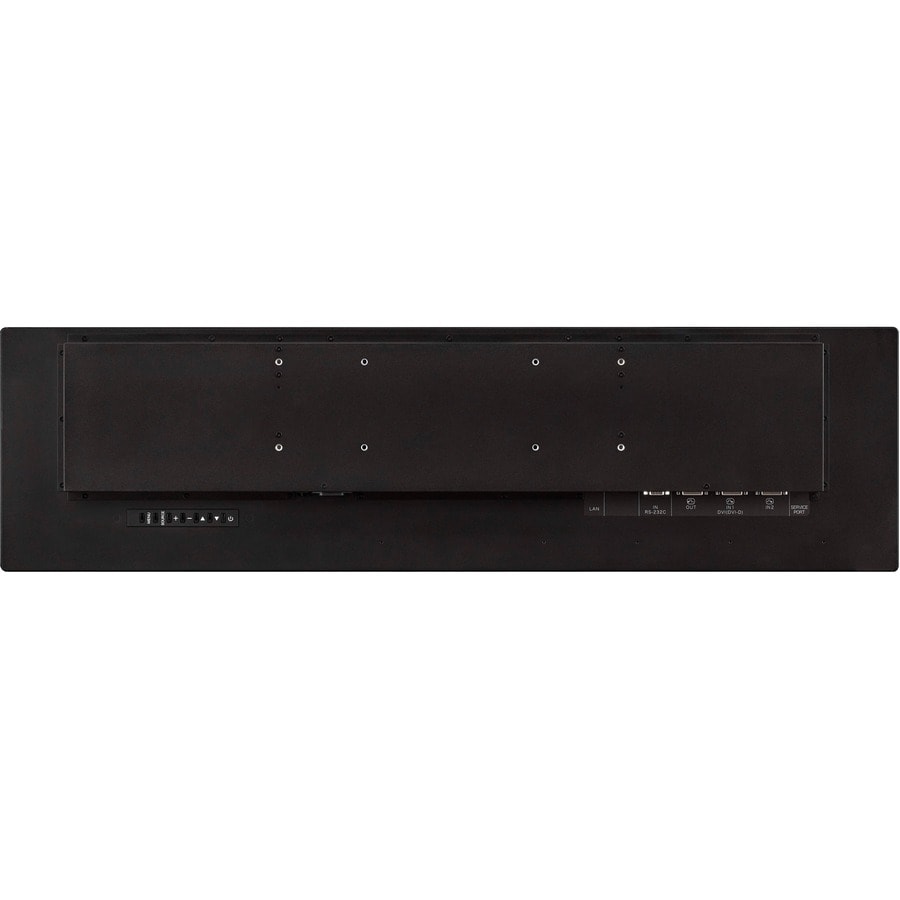

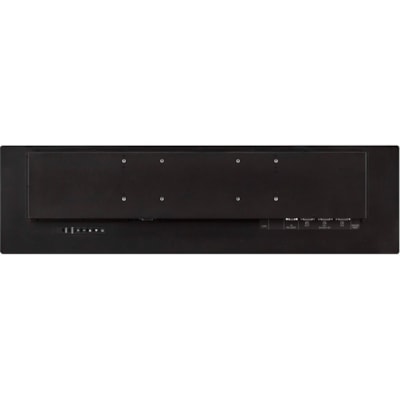

• VESA Mount Standard : 400 x 100
• Height : 11.37" (288.80 mm)
• Width : 41.73" (1059.94 mm)

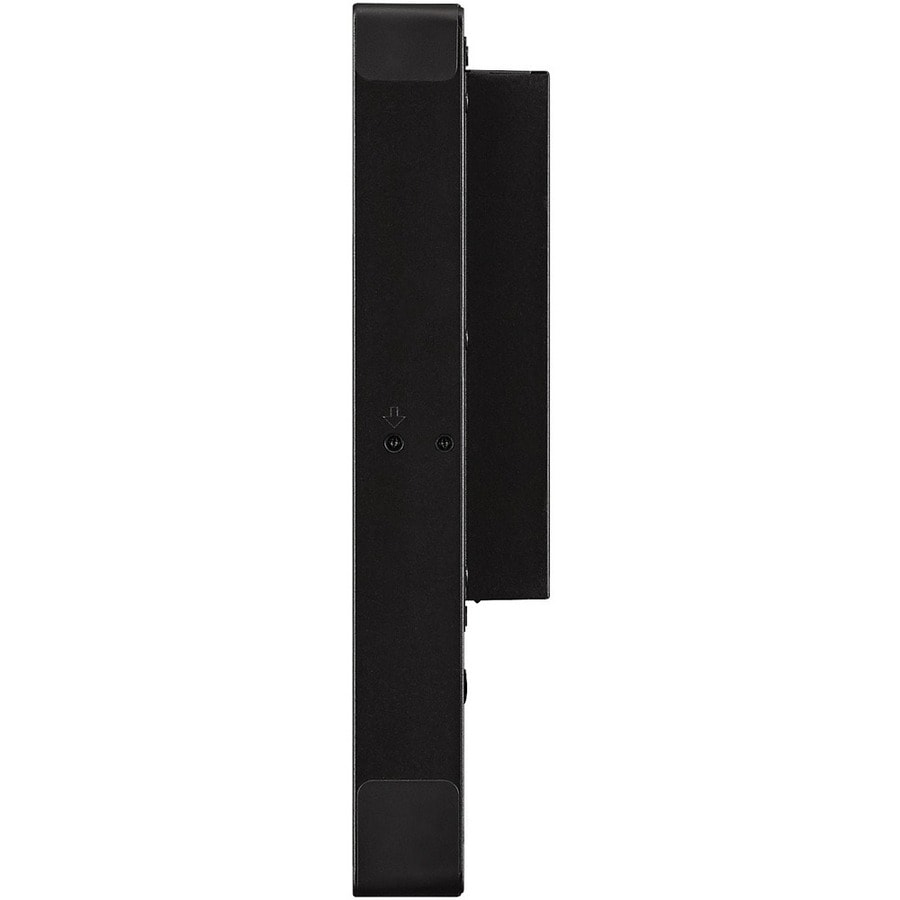

• Depth : 2.55" (64.77 mm)
• Weight (Approximate) : 20.50 lb (9298.64 g)
• Package Contents :
  • 42" Stretch Signage Display
  • 3m Power cord
  • 1.8m DVI cable
  • Wireless remote control
  • Batteries
  • CD-ROM (User Manual)
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Country of Origin : China
• Limited Warranty : 3 Year

• Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
• Experience luminescent visual images with LCD display
• Edge LED backlight technology offers elegant low profile frame and transmits light from sides to generate a brighter content
