StarTech.com USB-C Speakerphone Docking Station, Mini Portable Conference Speaker/Audio Dock, VGA/4K HDMI, USB Hub, Teams/Zoom/Softphone - USB-C speakerphone mini dock; HDMI 4K 60Hz/1080p VGA video - 2x USB-A 3.2/3.1 5Gbps Hub - USB Type-C power/5Gbps data port/100W PD Pass-Through - 22in (56cm) wra

DKTBRSPMPD
Also known as IM116B8H,SY7079871

New! Log in or create an account to see price and availability


MARKETING INFORMATION

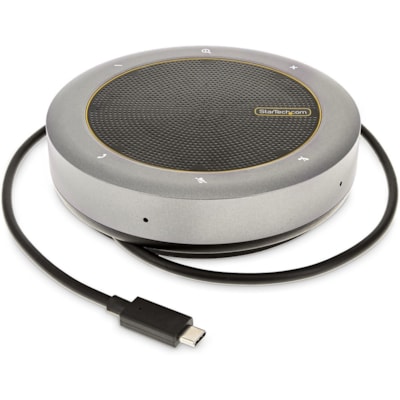

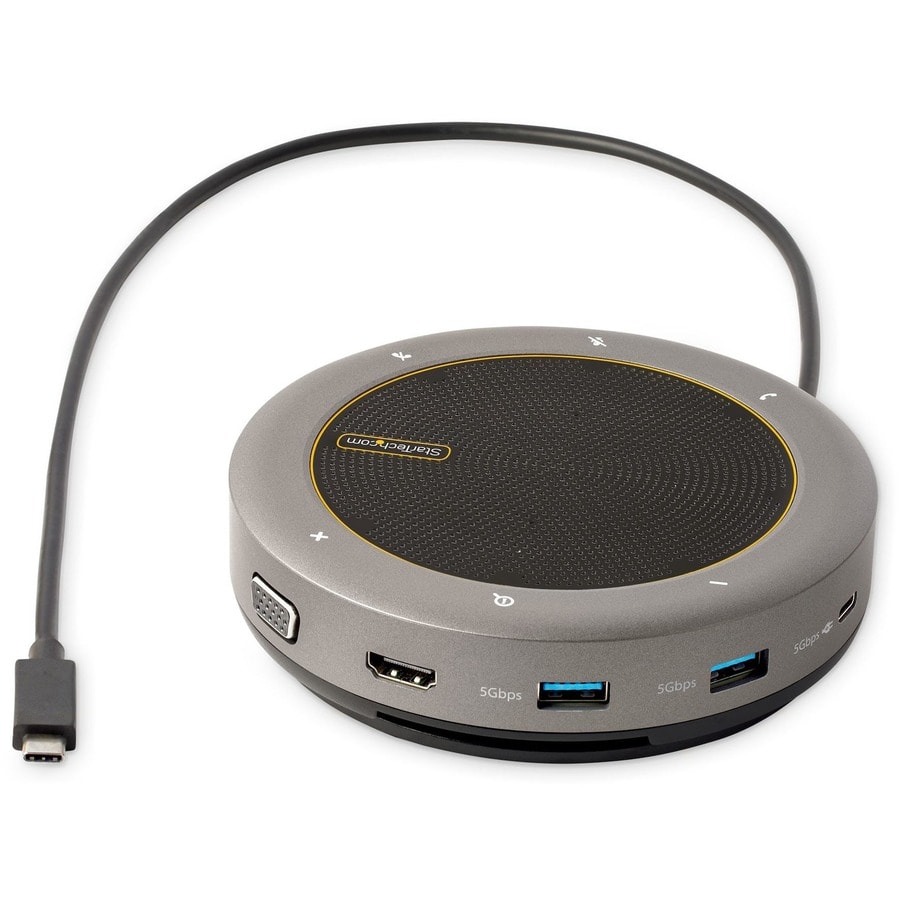

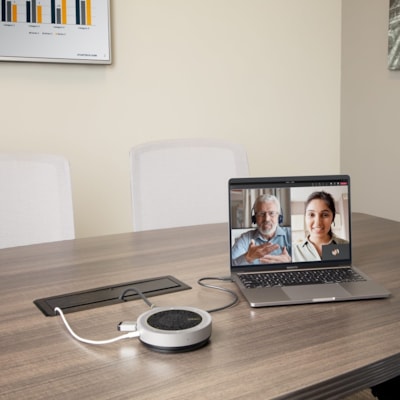

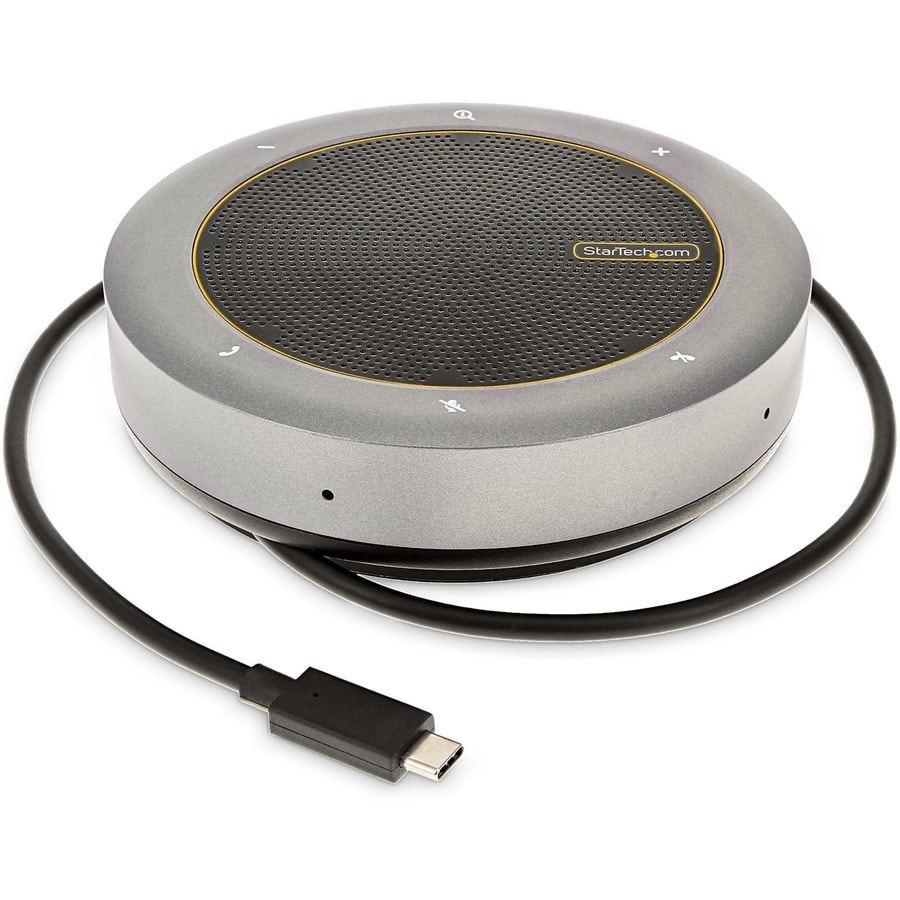

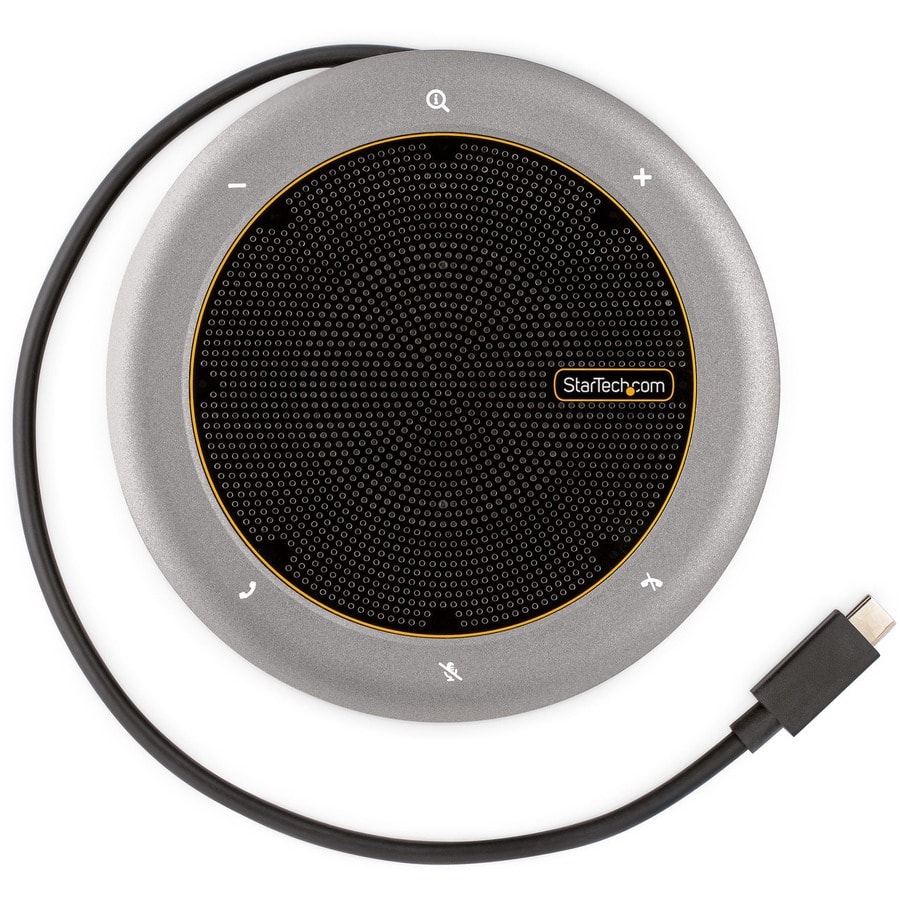

This USB Type-C Conference Speaker Mini Dock features a speakerphone, HDMI/VGA video output, USB-C PD pass-through/data, a USB-A x2 hub, a built-in USB-C host cable, and tap/touch buttons with LED indicators. It simplifies a workstation setup, converting any desk into a teleconferencing space. The dock features HDMI or VGA single-video output. It has 2 USB-A ports and a USB-C port with the option for Power Delivery (PD) pass-though.. The Conference Speaker Dock connects to the host device, using a built-in wraparound 22 in. (56 cm) USB-C host cable. Connect this host cable to a USB-C or Thunderbolt 3/4™ port.

Unified Collaboration Platform Compatibility

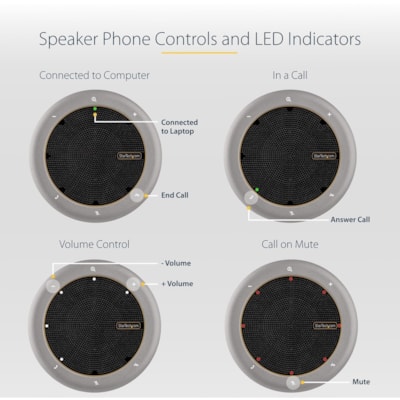

The Speakerphone Dock is optimized for use with Unified Communications (UC) platforms, such as Microsoft Teams, Zoom, Google Meet, etc. The dock features buttons that intuitively control functions within the UC platform:

  • Call Button -Tap to receive and accept an incoming call.
  • Hang up Button -Tap to disconnect from the current call or to reject an incoming call.
  • +/- Volume Buttons - Tap to adjust the system volume.
  • Mute Button - Tap to disable the built-in microphone.

The dock is optimized for Microsoft Teams and fully compatible with other UC/softphone applications including Zoom, Skype, and Google Meet.

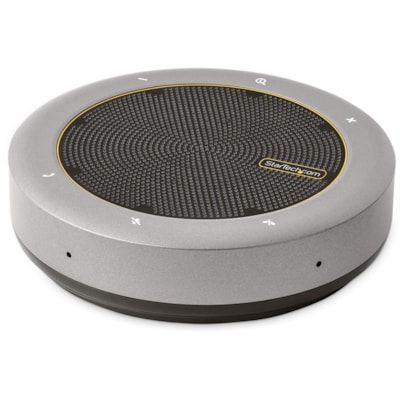

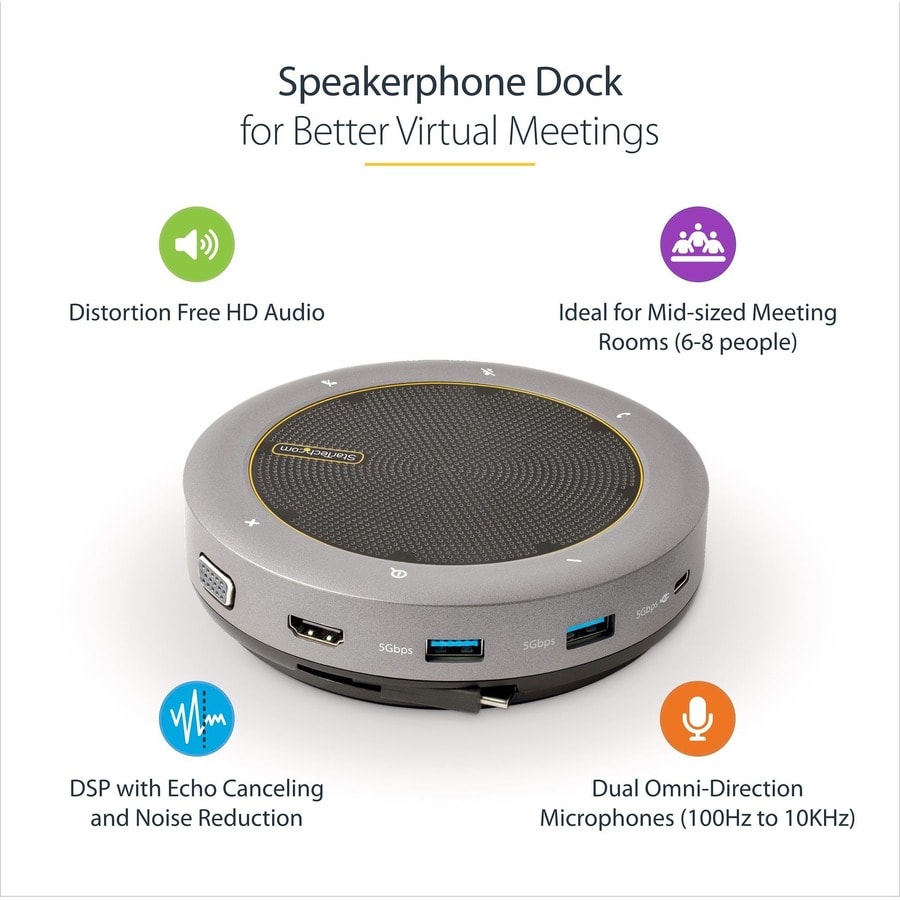

Conference Speaker and Omnidirectional Microphones

Capture voices from up to 7.5ft (2.3m) away, using the dual-omnidirectional microphones (100Hz to 10kHz) with echo cancellation and noise reduction. The microphones are ideal for capturing audio in mid-size meeting rooms (6-8 people) or from any location in a home office room. The speakers deliver 89dB (100Hz - 20kHz) distortion-free high-definition audio.

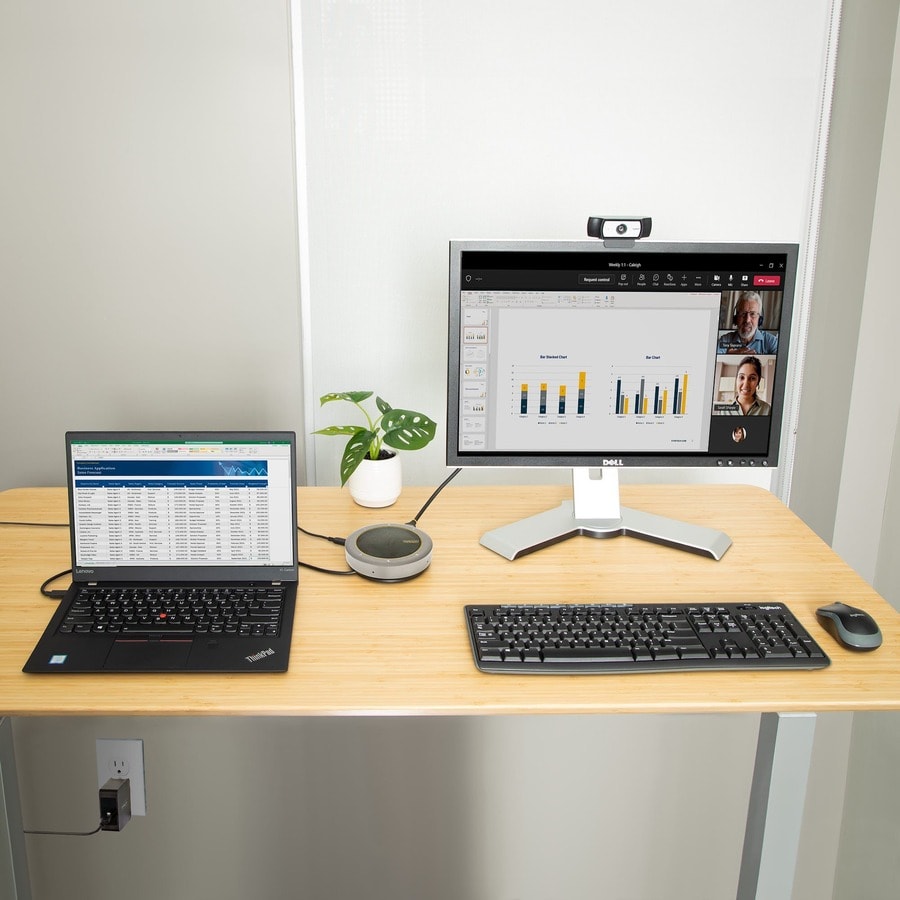

Easy Deployment

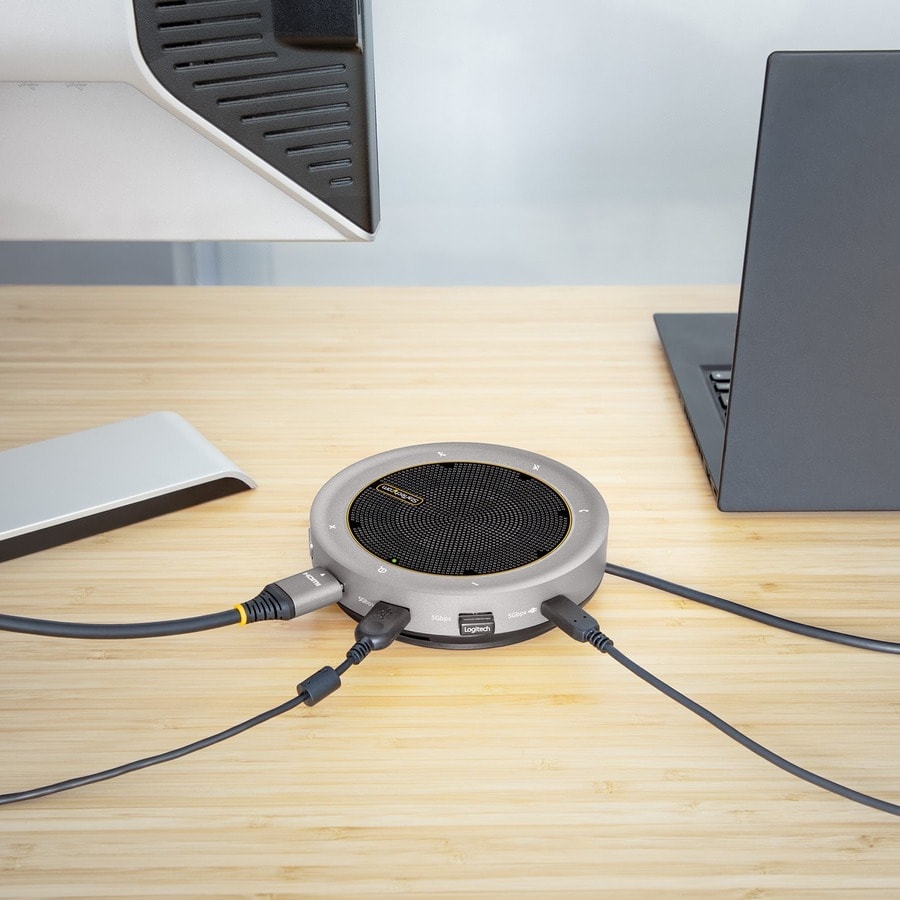

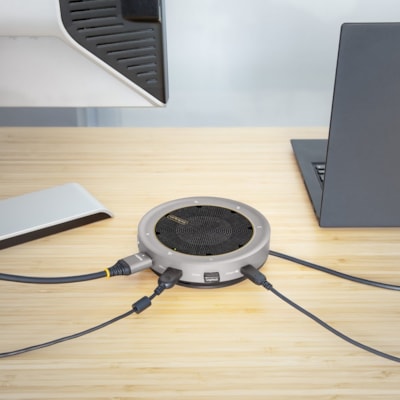

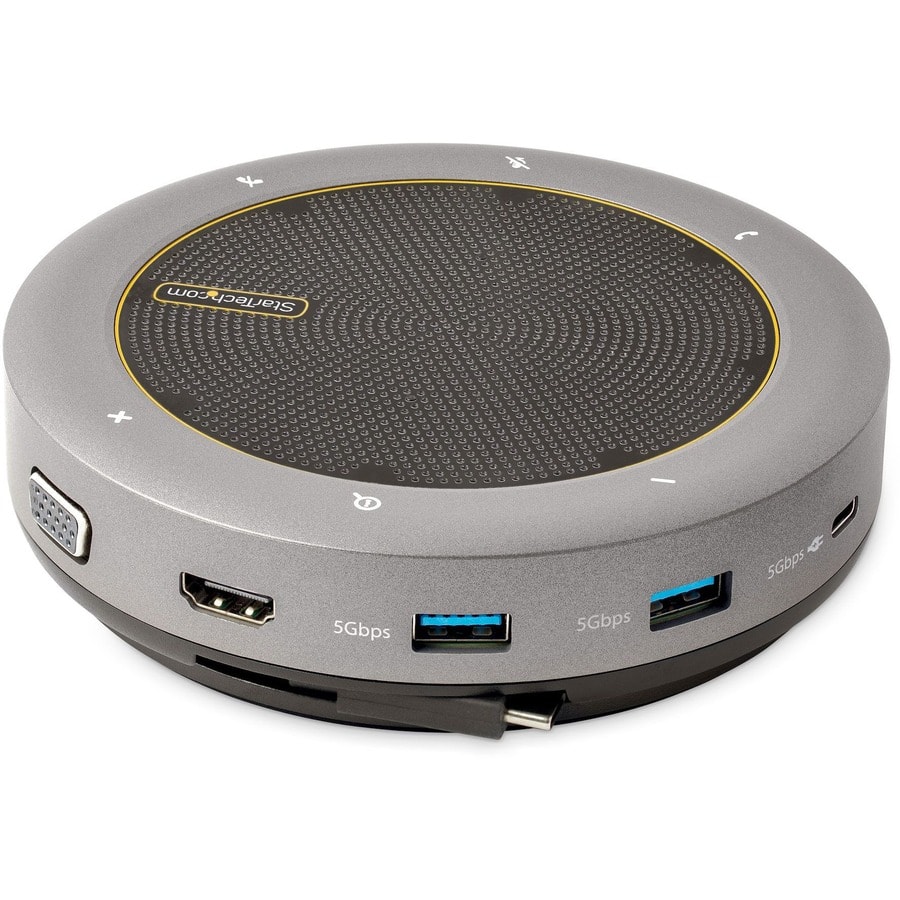

The speaker dock features docking station connectivity options in a quick-to-deploy format. Connect an HDMI or VGA enabled display device for single-video output. The HDMI video output supports resolutions up to 4K 60Hz. The VGA video output supports resolutions up to 1080p 60Hz.

More from the Manufacturer

More from the Manufacturer

DETAILS

  • Connectivity Technology : Wired
  • Meeting Persons Capacity : 8
  • Features : Echo Cancellation,Noise Reduction
  • Polar Pattern : Omni-directional
  • USB : Yes
  • USB Type-C : Yes
  • USB Type-C (Power Delivery) : 100 W
  • HDMI : Yes
  • Color Family : Gray
  • Product Color : Space Gray
  • Form Factor : Desktop

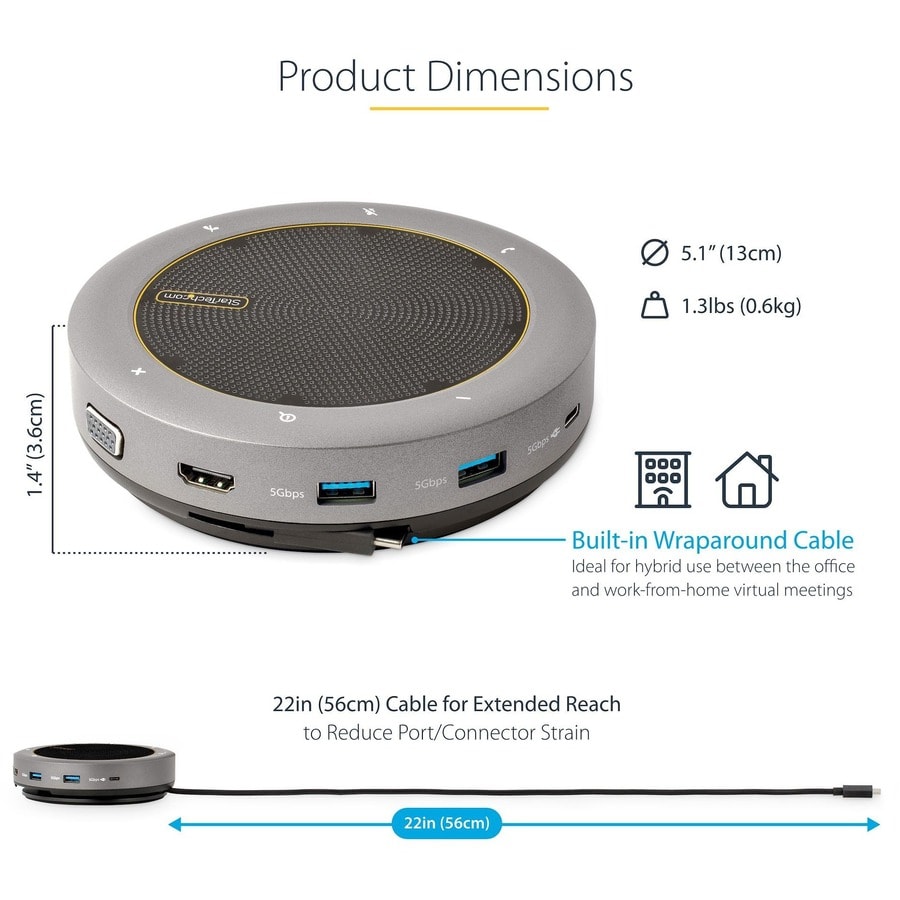

  • Height : 1.40" (35.56 mm)
  • Width : 5.10" (129.54 mm)
  • Length : 5.10" (129.54 mm)
  • Weight (Approximate) : 13.76 oz (390 g)
  • Package Contents :
    • Speakerphone
    • 1 x Quick-Start Guide
  • Operating System Supported : Windows 8.1,Windows 8,Windows 7,Windows 11,Windows 10,Chrome OS,macOS Catalina,macOS Monterey,macOS Big Sur
  • Unified Communications Platform : Microsoft Teams,Zoom,Skype,Google Meet
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year

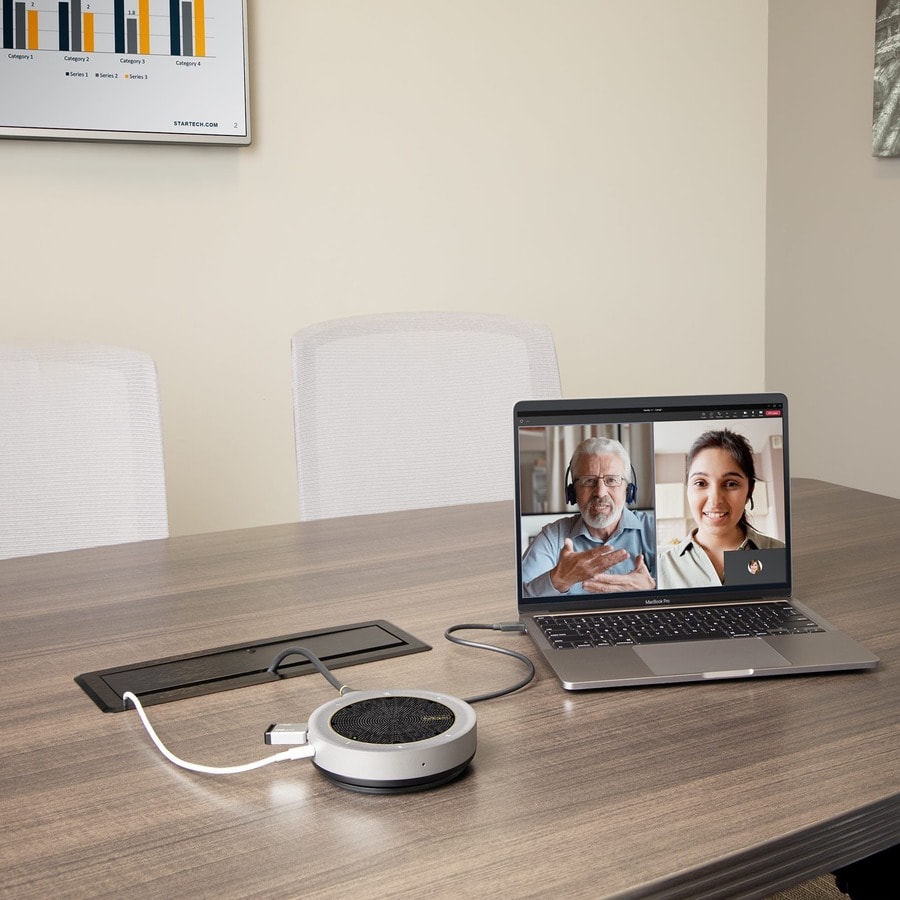

  • RECREATE A CONFERENCE ROOM EXPERIENCE: Ideal for hybrid travel use between the office, shared workspaces, huddle and boardrooms & work-from-home (WFH) virtual meetings; Converts any desk into a tele-conference space
  • OPTIMIZED FOR MS TEAMS: Optimized for Microsoft Teams and fully compatible with other UC/softphone applications like Zoom, Skype & Google Meet; Call control buttons work with UC platform software (+/- volume, answer/hang up, mute)

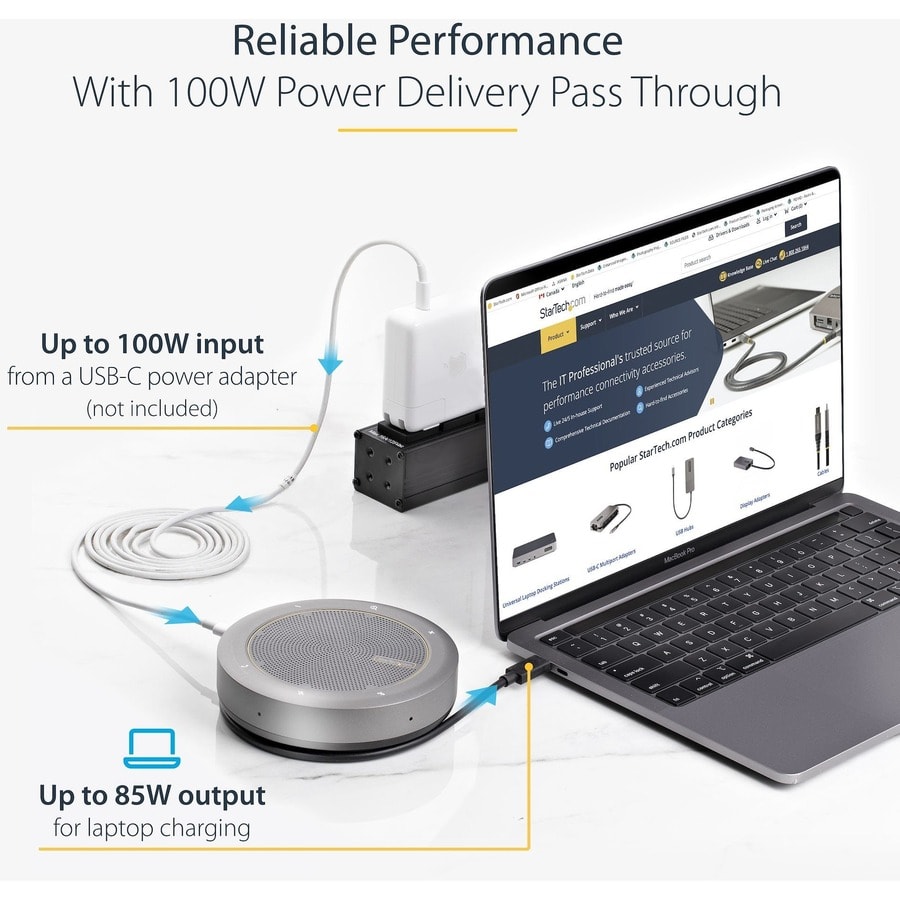

  • FLEXIBLE SETUP: USB bus powered or USB Power Delivery (100W) with external USB-C power adapter (15W for dock); 22in (56cm) wraparound cable for extended reach to reduce connector strain on 2-in-1 devices (Surface Pro 7 & up) or laptops on riser stands
  • COMPATIBILITY: Thunderbolt 4 & 3, USB Type C; HP/Lenovo/Dell/MacBook/Chromebook; Supports Windows, macOS, iOS (iPhone 15 [Plus/Pro/Max] and up), Chrome OS, HDMI 4K 60Hz output (DP 1.4 Alt Mode); Intel 11th / 12th Gen Processors, Apple M1 / M2 / Pro / Max

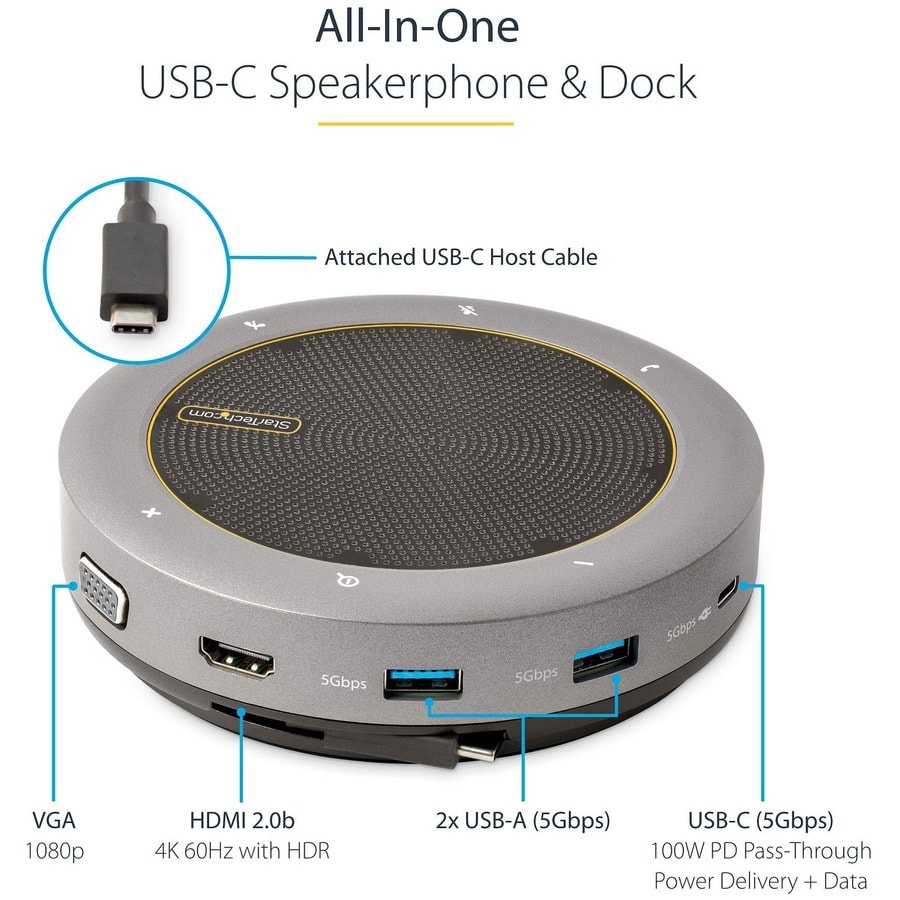

  • ALL-IN-ONE USB-C SPEAKERPHONE: USB-C speaker, microphone & multiport adapter, HDMI 4K 60Hz HDR (DP 1.4 alt mode)/4K 30Hz (DP 1.2 alt mode) or VGA, 2x USB-A 3.2 Gen 1 hub (5Gbps), Shared USB-C 5Gbps port or 100W PD pass-through (85W laptop charging)

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number DKTBRSPMPD
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name Speakerphone
Packaged Quantity 1
Product Type Speakerphone
Connectivity Technology Wired
Cable Length 21.96" (557.78 mm)
Meeting Persons Capacity 8
Application/Usage Meeting Room
Application/Usage Office Room
Application/Usage Home Office Room
Application/Usage Conference Room
Application/Usage Board Room
Application/Usage Workstation
Features Echo Cancellation
Features Noise Reduction
Polar Pattern Omni-directional
Microphone Frequency Response 100Hz - 10kHz
Microphone Pickup Range 90" (2286 mm)
Peak Audio Output 89 dB
Sound Pressure Level 89 dB
Speaker Frequency Response 100Hz to 20kHz
USB Yes
USB Standard USB 3.2
USB Type-C Yes
Number of USB Type-C Ports 1
USB Type-C (Power Delivery) 100 W
HDMI Yes
Number of HDMI Ports 1
HDMI Version HDMI 2.0
Video Ports 1 x VGA (15 pin, High Density D-Sub)
Host Interface USB-C
Status Indicators Incoming
Status Indicators Hang Up Call
Status Indicators Mute
Controls Volume Up
Controls Volume Down
Controls Reject Call
Controls Call
Power Consumption 15 W
Color Family Gray
Product Color Space Gray
Product Material Plastic
Form Factor Desktop
Height 1.40" (35.56 mm)
Width 5.10" (129.54 mm)
Length 5.10" (129.54 mm)
Weight (Approximate) 13.76 oz (390 g)
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Minimum Storage Temperature -4°F (-20°C)
Maximum Storage Temperature 149°F (65°C)
Package Contents
  • Speakerphone
  • 1 x Quick-Start Guide
Compatibility
  • Chromebook

  • Notebooks of:

  • HP
  • Lenovo
  • Dell
  • MacBook
  • Apple Smartphones:

  • iPhone 15 Plus
  • iPhone 15 Pro
  • iPhone 15 Max
  • Operating System Supported macOS Big Sur
    Operating System Supported macOS Monterey
    Operating System Supported Chrome OS
    Operating System Supported Windows 10
    Operating System Supported Windows 11
    Operating System Supported Windows 7
    Operating System Supported Windows 8
    Operating System Supported Windows 8.1
    Operating System Supported macOS Catalina
    Unified Communications Platform Google Meet
    Unified Communications Platform Skype
    Unified Communications Platform Zoom
    Unified Communications Platform Microsoft Teams
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 3 Year
