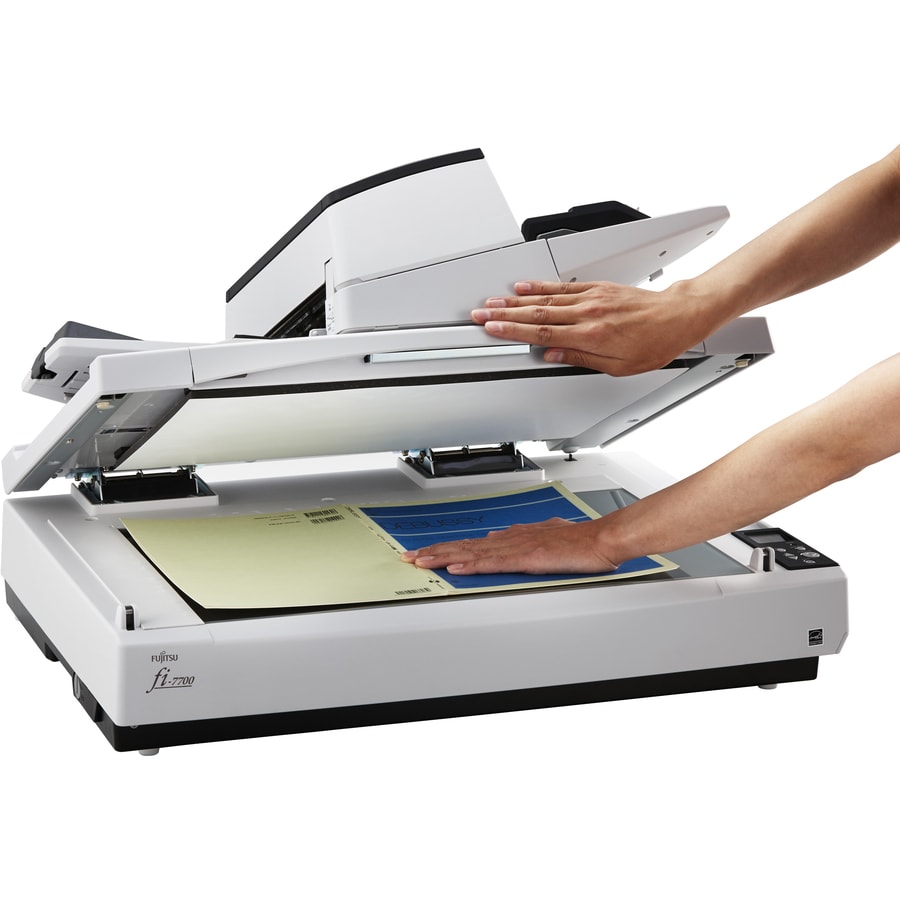

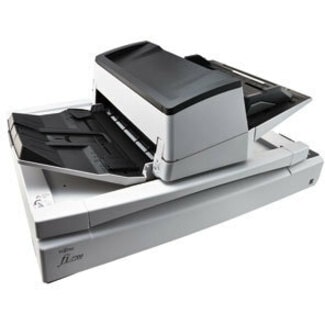

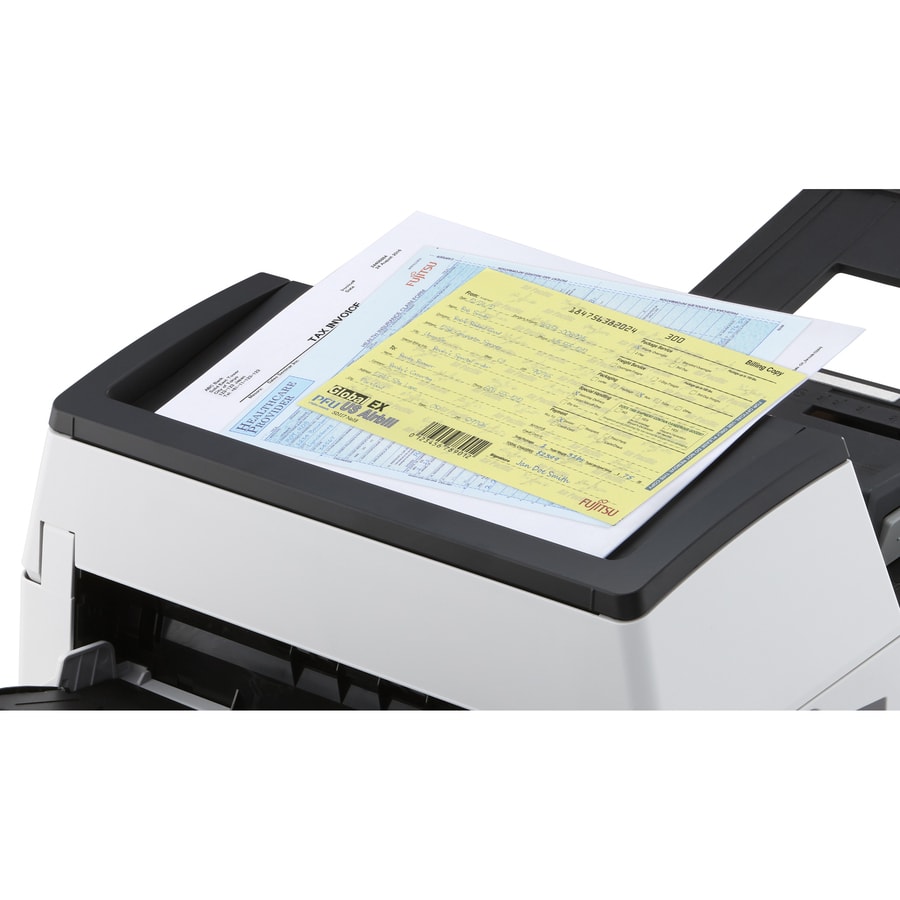

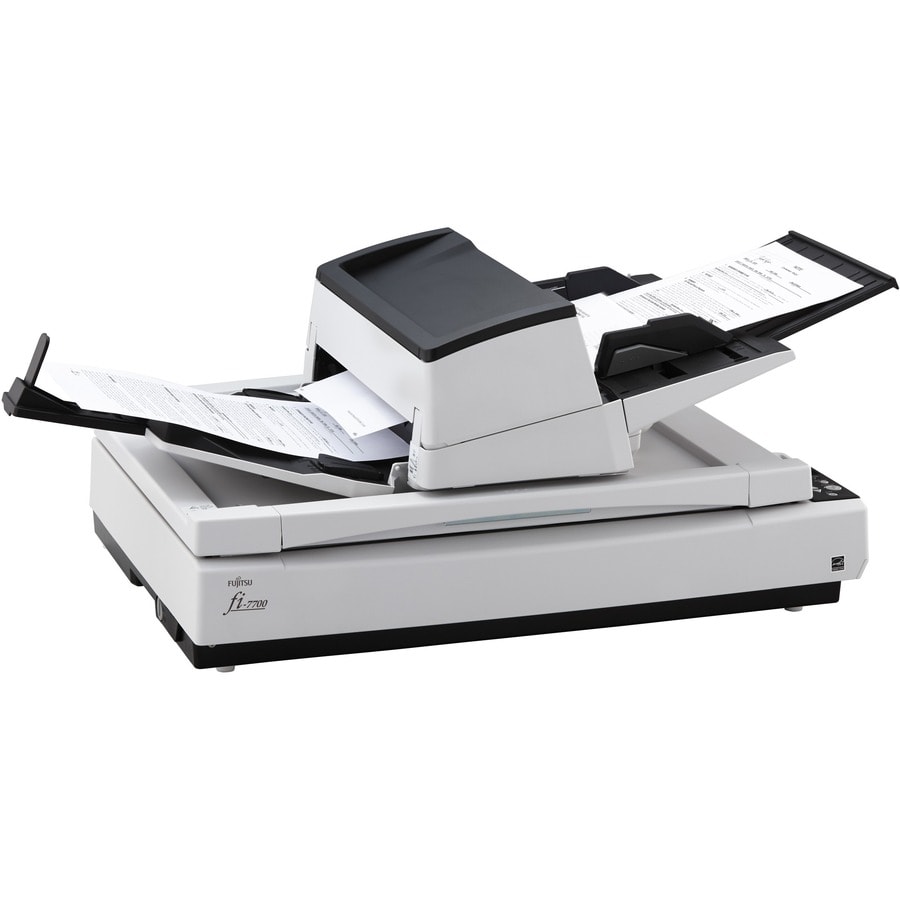

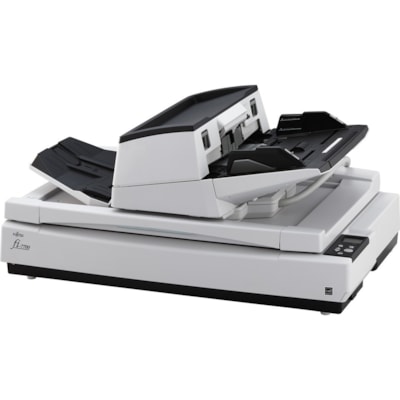

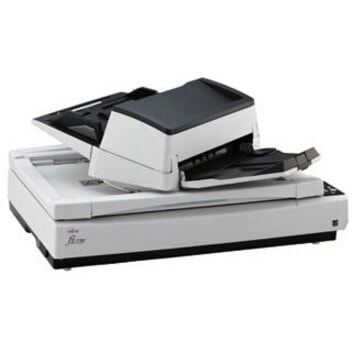

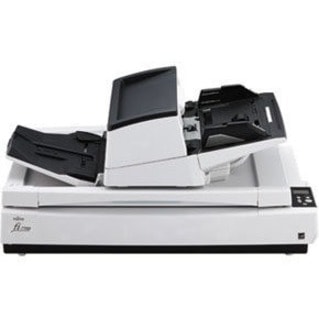

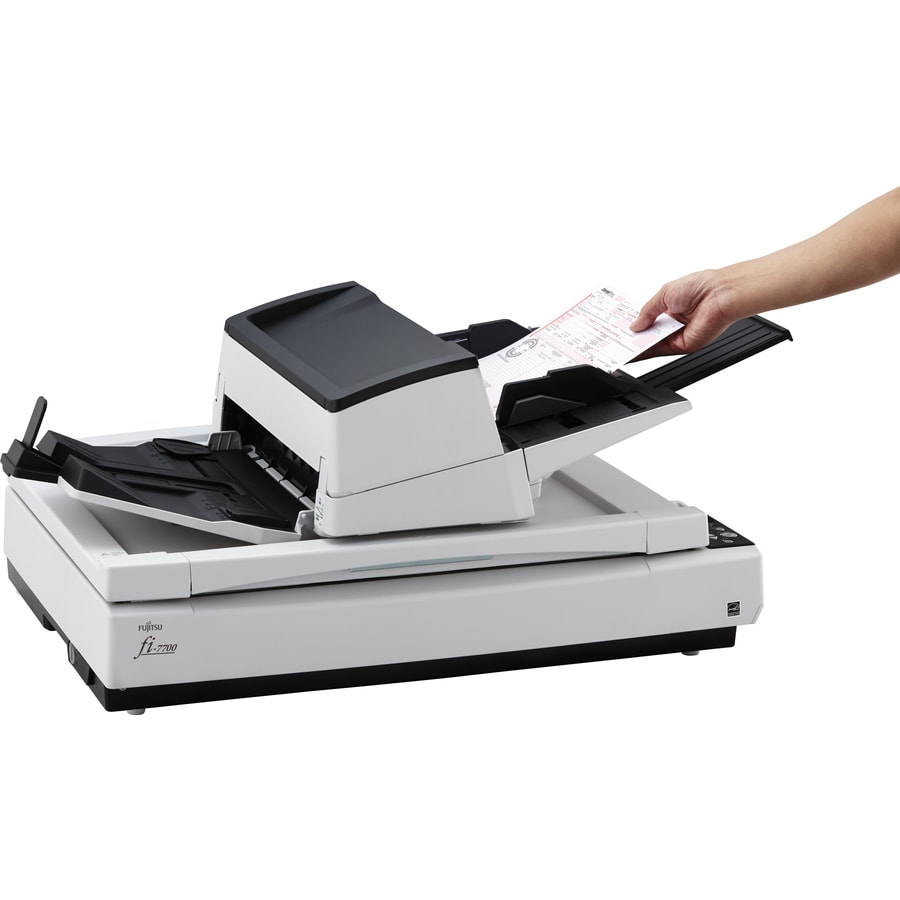

Ricoh fi-7700 Sheetfed/Flatbed Scanner - 600 dpi Optical - 24-bit Color - 8-bit Grayscale - 100 ppm (Mono) - 100 ppm (Color) - Duplex Scanning - USB

PA03740-B005
Also known as IM1069FA

Ricoh fi-7700 Sheetfed/Flatbed Scanner - 600 dpi Optical - 24-bit Color - 8-bit Grayscale - 100 ppm (Mono) - 100 ppm (Color) - Duplex Scanning - USB PPERP

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Heavy-duty & flexible production scanner for professional use

The fi-7700 allows you to scan A4 landscape documents at 100 ppm/200 ipm (200/300 dpi). The scanner is suitable for continuous scanning because it allows you to load up to 300 sheets at a time which improves efficiency when scanning a large volume of documents. In addition, various types of documents, such as thin paper, plastic cards, books, magazines, envelopes, and long page documents can be scanned on this scanner.

  • Fast scanning - up to 100 ppm in color or monochrome, landscape
  • Paper chute capacity up to 300 sheets
  • Capable of handling various thicknesses and sizes
  • Paper Protect function which protects against paper jams by detecting anomalies in sound (iSOP: Intelligent Sonic Paper Protection) and document length
  • Flexible design and LCD panel for easy operation
  • Independent Side Guides for easily aligning mixed size documents
  • Comes with PaperStream IP, PaperStream Capture and PaperStream ClickScan. PaperStream ClickScan software delivers scanning simplicity and works alongside of any workflow to meet your imaging needs. Place paper in the scanner, push the scan button, and send to email, print, or folder-simple as one, two, three

DETAILS

  • Large Format : No
  • Optical Resolution (dpi) : 600
  • Scan Color : Color
  • Color Depth : 24-bit
  • Grayscale Depth : 8-bit
  • Maximum Mono Scan Speed (ppm) : 100
  • Maximum Color Scan Speed (ppm) : 100
  • Maximum Mono Scan Speed (ipm) : 200
  • Maximum Color Scan Speed (ipm) : 200
  • Maximum Mono Scan Speed (sec) : 0.6
  • Maximum Color Scan Speed (sec) : 0.6
  • Media Size : A4 - 8.30" (210.82 mm) x 11.70" (297.18 mm),2" (50.80 mm) x 2.72" (69.09 mm),12" (304.80 mm) x 17" (431.80 mm),12" (304.80 mm) x 18.33 ft (5588 mm),A8 - 2" (50.80 mm) x 2.90" (73.66 mm),Plastic Card,12" (304.80 mm) x 18" (457.20 mm)
  • ADF Capacity : 300 Sheets
  • Duplex Scanning : Yes
  • Scanning Modes : Duplex
  • USB : Yes
  • Height : 13.60" (345.44 mm)
  • Width : 27.80" (706.12 mm)
  • Depth : 19.70" (500.38 mm)
  • Weight (Approximate) : 77.20 lb (35017.33 g)
  • Package Contents :
    • Image Scanner fi-7700
    • ADF Paper Chute
    • AC Cable
    • AC Adapter
    • USB Cable
    • Setup DVD-ROM
    • Software & Drivers CD
  • Energy Star : Yes
  • Country of Origin : Singapore
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 1 Year

SPECIFICATIONS

Manufacturer Fujitsu
Manufacturer Part Number PA03740-B005
Manufacturer Website Address http://www.fujitsu.com
Brand Name Ricoh
Product Series fi
Product Model fi-7700
Product Name Image Scanner fi-7700
Product Type Sheetfed/Flatbed Scanner
Large Format No
Optical Resolution (dpi) 600
Scan Color Color
Color Depth 24-bit
Grayscale Depth 8-bit
Maximum Mono Scan Speed (ppm) 100
Maximum Color Scan Speed (ppm) 100
Maximum Mono Scan Speed (ipm) 200
Maximum Color Scan Speed (ipm) 200
Maximum Mono Scan Speed (sec) 0.6
Maximum Color Scan Speed (sec) 0.6
Media Size 12" (304.80 mm) x 18.33 ft (5588 mm)
Media Size 2" (50.80 mm) x 2.72" (69.09 mm)
Media Size 12" (304.80 mm) x 18" (457.20 mm)
Media Size Plastic Card
Media Size 12" (304.80 mm) x 17" (431.80 mm)
Media Size A4 - 8.30" (210.82 mm) x 11.70" (297.18 mm)
Media Size A8 - 2" (50.80 mm) x 2.90" (73.66 mm)
Scanning Modes Duplex
ADF Capacity 300 Sheets
Duplex Scanning Yes
USB Yes
Height 13.60" (345.44 mm)
Width 27.80" (706.12 mm)
Depth 19.70" (500.38 mm)
Weight (Approximate) 77.20 lb (35017.33 g)
Package Contents
  • Image Scanner fi-7700
  • ADF Paper Chute
  • AC Cable
  • AC Adapter
  • USB Cable
  • Setup DVD-ROM
  • Software & Drivers CD
Energy Star Yes
Country of Origin Singapore
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 1 Year
