DETAILS
- Purification Technology : True HEPA
- Maximum Coverage Area : 1800 Sq. ft.
- Maximum Air Flow : 6796 L/min
- Particle Removal Efficiency : 100%
- Features : Auto Mode,Quiet Operation,Antimicrobial,Auto Shutoff,EnviroSmart Sensor,VOC (Volatile Organic Compounds) Sensor,Light Sensor
- Input Voltage : 120 V AC
- Power Consumption : 96 W
- Form Factor : Wall Mountable
- Color Family : Dual Color
- Product Color : White,Silver
- Height : 0.77" (19.60 mm)
- Width : 0.38" (9.70 mm)
- Weight (Approximate) : 9.07 kg
- Package Contents :
- Array AW1 Air Purifier
- Drywall Anchors
- 2 x Pre-Filter
- Application/Usage : Remove Virus,Remove Allergens,Remove Germs
- Limited Warranty : 5 Year
- 3-stage filtration is 99.95% effective in capturing particles as small as 0.1 microns including viruses, allergens, and germs in spaces up to 1,800 sqft
- EnviroSmart+™ Technology monitors contaminants, occupancy, and noise levels to proactively respond to changes
- IAQ sensors detect contaminants (PM10, PM2.5), occupancy, temperature, pressure, humidity (RH), carbon dioxide (CO2), and TVOCs

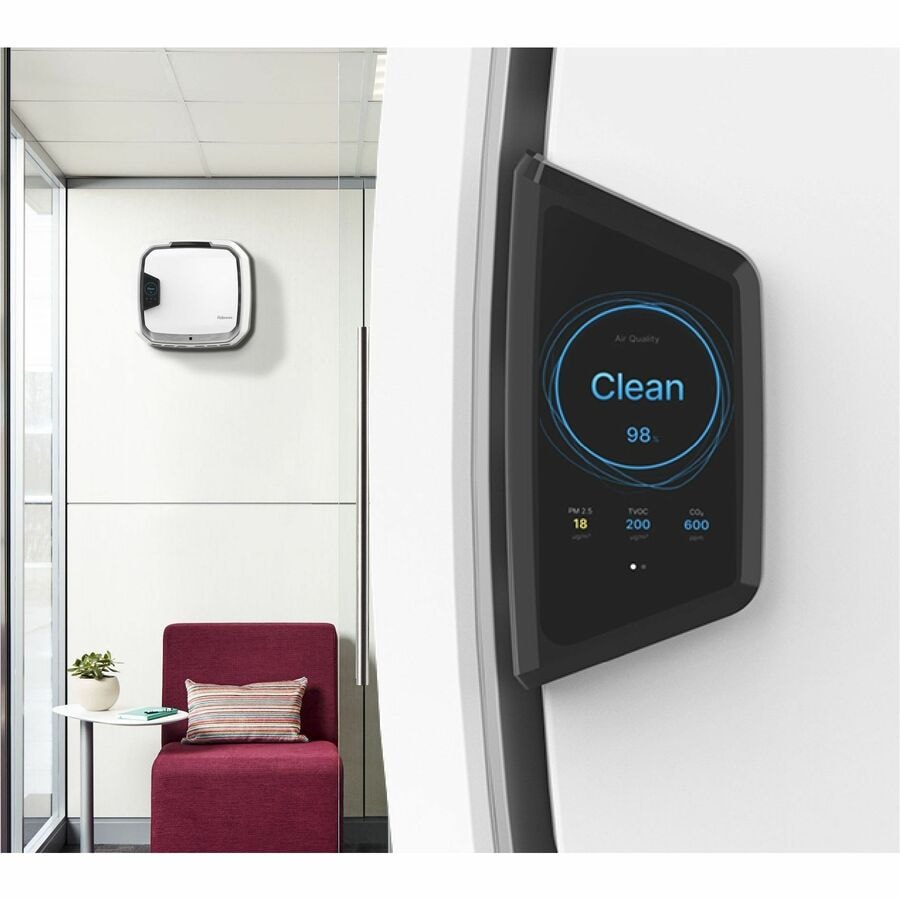

- Integrated Lookout display provides real-time air quality status

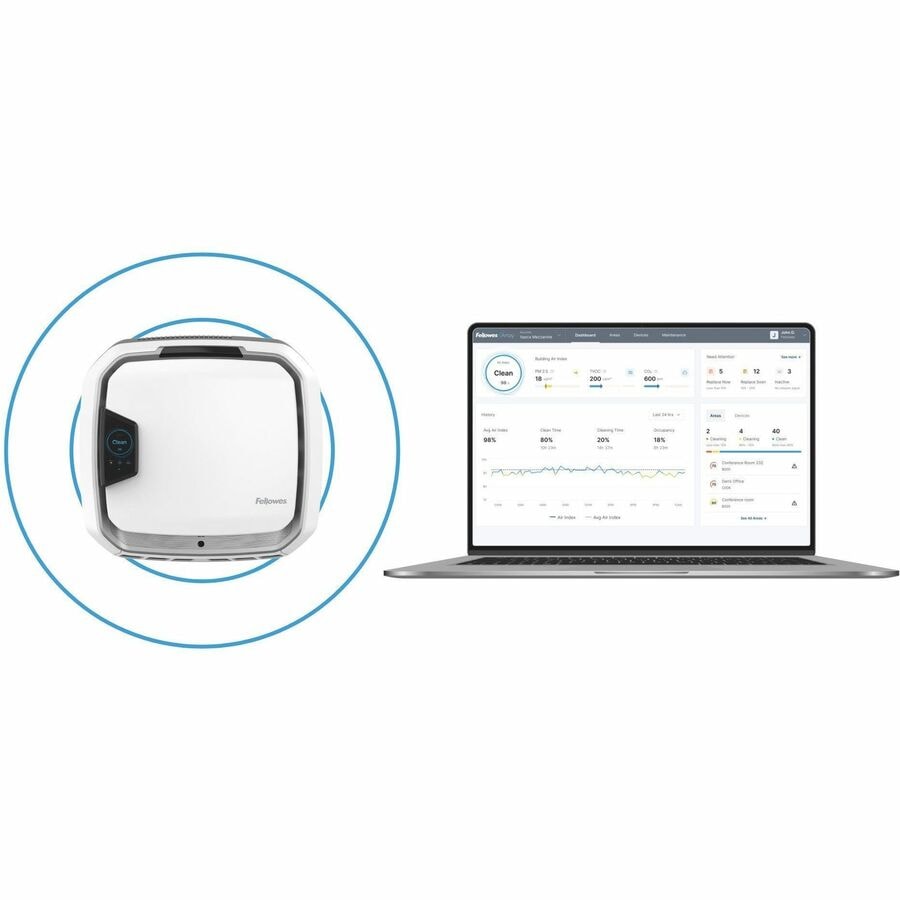

- Access to the Array Viewpoint cloud-based dashboard is included at no charge. See Viewpoint Terms and Conditions for details. All units connect through building-wide, secure LTE

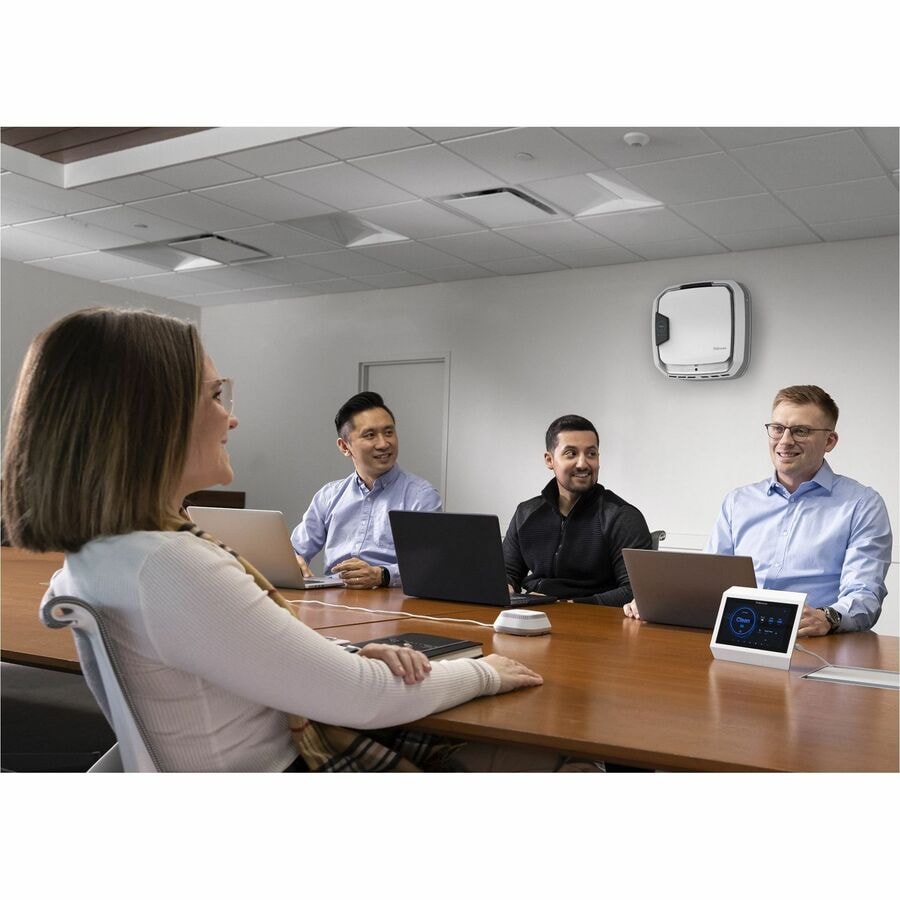

- Wall-mount design integrates in your space creating whole-room circulation
- Designed for long term use, backed with 5-year warranty
SPECIFICATIONS
| Manufacturer | Fellowes, Inc. |
| Manufacturer Part Number | 5884801 |
| Manufacturer Website Address | http://www.fellowes.com |
| Brand Name | Fellowes |
| Product Line | Array |
| Product Model | AW1 |
| Product Name | Array AW1 Air Purifier |
| Product Type | Air Purifier |
| Purification Technology | True HEPA |
| Maximum Coverage Area | 1800 Sq. ft. |
| Maximum Air Flow | 6796 L/min |
| Particle Removal Efficiency | 100% |
| Particle Size | 0.100 µm |
| Number of Fan Speeds | 5 |
| Filter Type | Pre Filter |
| Filter Type | Activated Carbon Filter |
| Features | Light Sensor |
| Features | VOC (Volatile Organic Compounds) Sensor |
| Features | EnviroSmart Sensor |
| Features | Auto Shutoff |
| Features | Antimicrobial |
| Features | Auto Mode |
| Features | Quiet Operation |
| Minimum Noise Level | 39 dB |
| Maximum Noise Level | 64 dB |
| Sensor Type | Laser Particle Sensor PM1.0 |
| Sensor Type | Laser Particle Sensor PM2.5 |
| Sensor Type | Temperature Sensor |
| Sensor Type | Occupancy Sensor |
| Sensor Type | CO2 Sensor |
| Status Indicators | Filter Change Indicator |
| Power Source | AC Supply |
| Input Voltage | 120 V AC |
| Input Current | 900 mA |
| Power Consumption | 96 W |
| Color Family | Dual Color |
| Product Color | Silver |
| Product Color | White |
| Form Factor | Wall Mountable |
| Height | 0.77" (19.60 mm) |
| Width | 0.38" (9.70 mm) |
| Length | 0.82" (20.90 mm) |
| Weight (Approximate) | 9.07 kg |
| Package Contents |
|
| Application/Usage | Remove Germs |
| Application/Usage | Remove Virus |
| Application/Usage | Remove Allergens |
| Certifications & Standards |
|
| Limited Warranty | 5 Year |
