MARKETING INFORMATION

What This Product Does

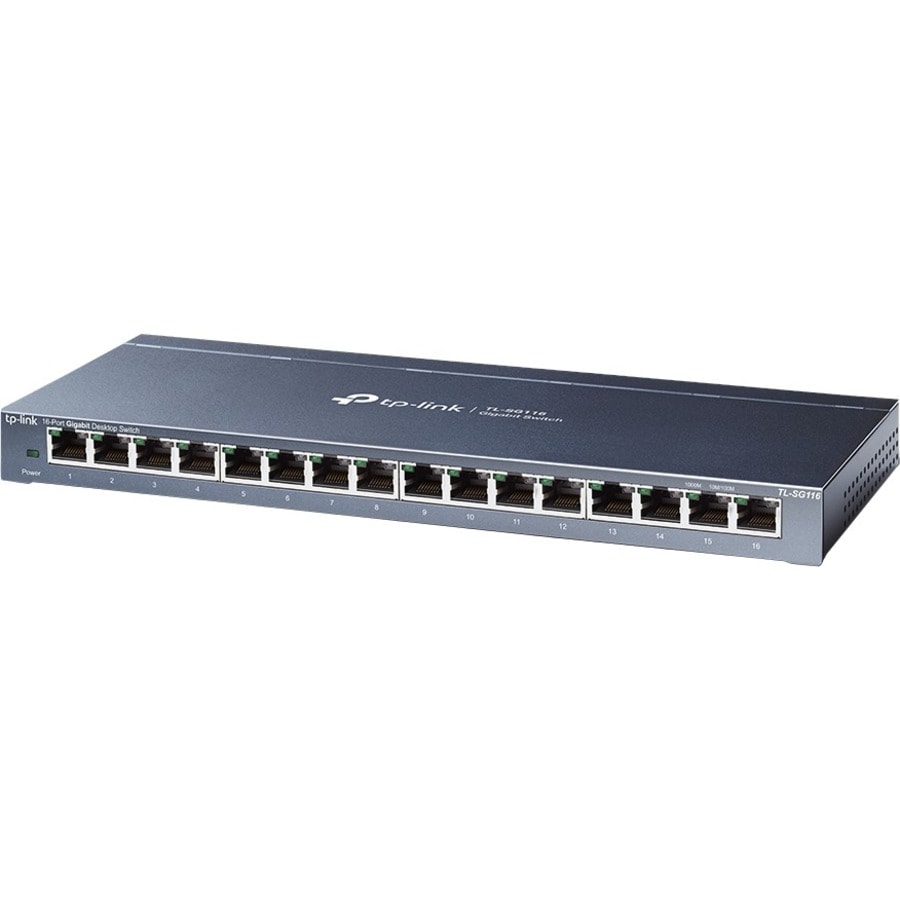

The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

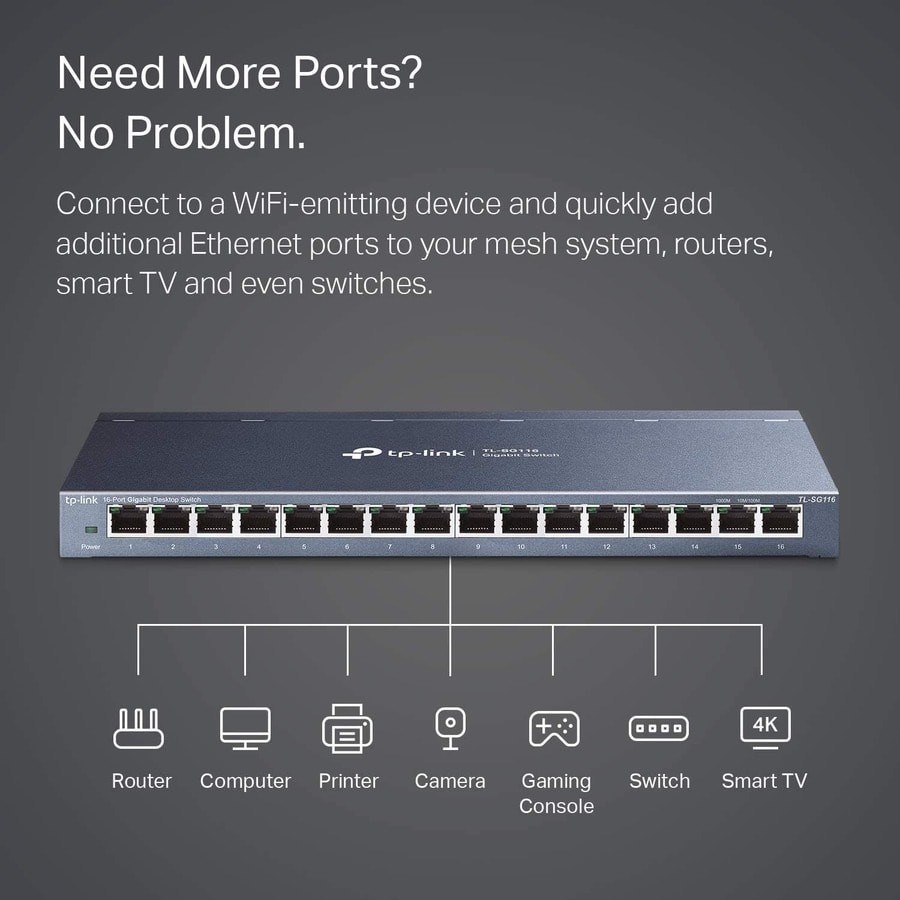

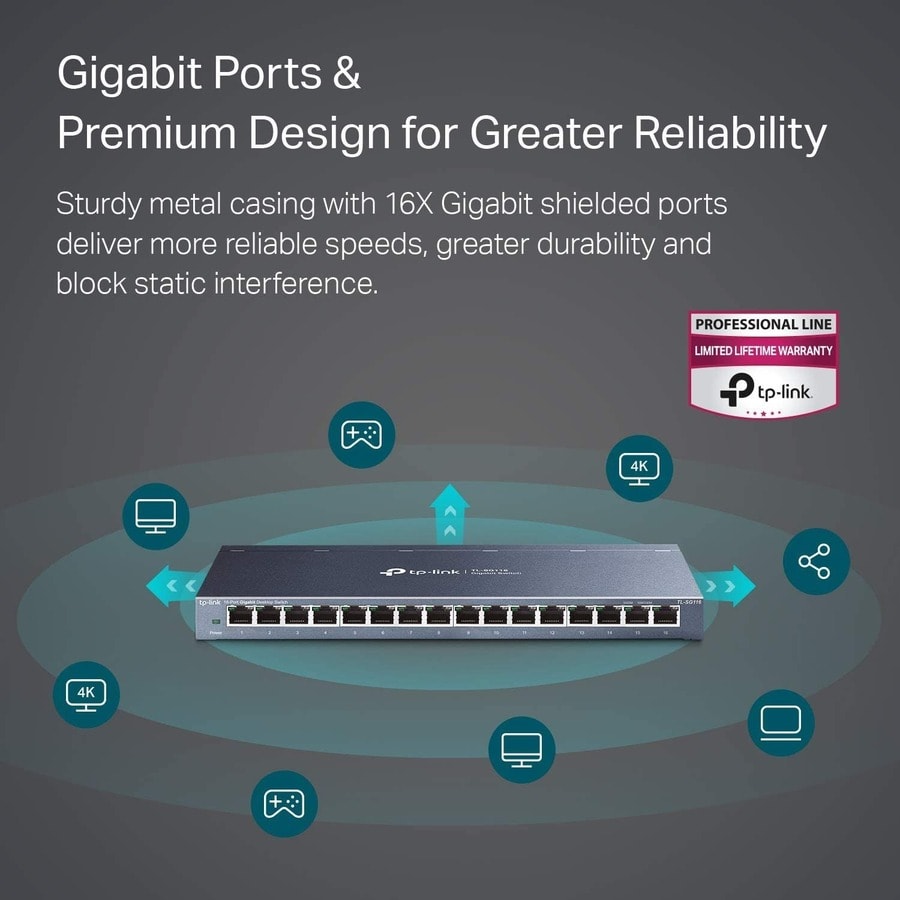

Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

More from the Manufacturer

DETAILS

• Total Number of Network Ports : 16
• Uplink Port : No
• Modular : No
• Stack Port : No
• Port/Expansion Slot Details : 16 x Gigabit Ethernet Network
• Media Type Supported : Twisted Pair
• Ethernet Technology : Gigabit Ethernet
• Network Technology : 10/100/1000Base-T
• Layer Supported : 2
• Networking Standards : IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1p

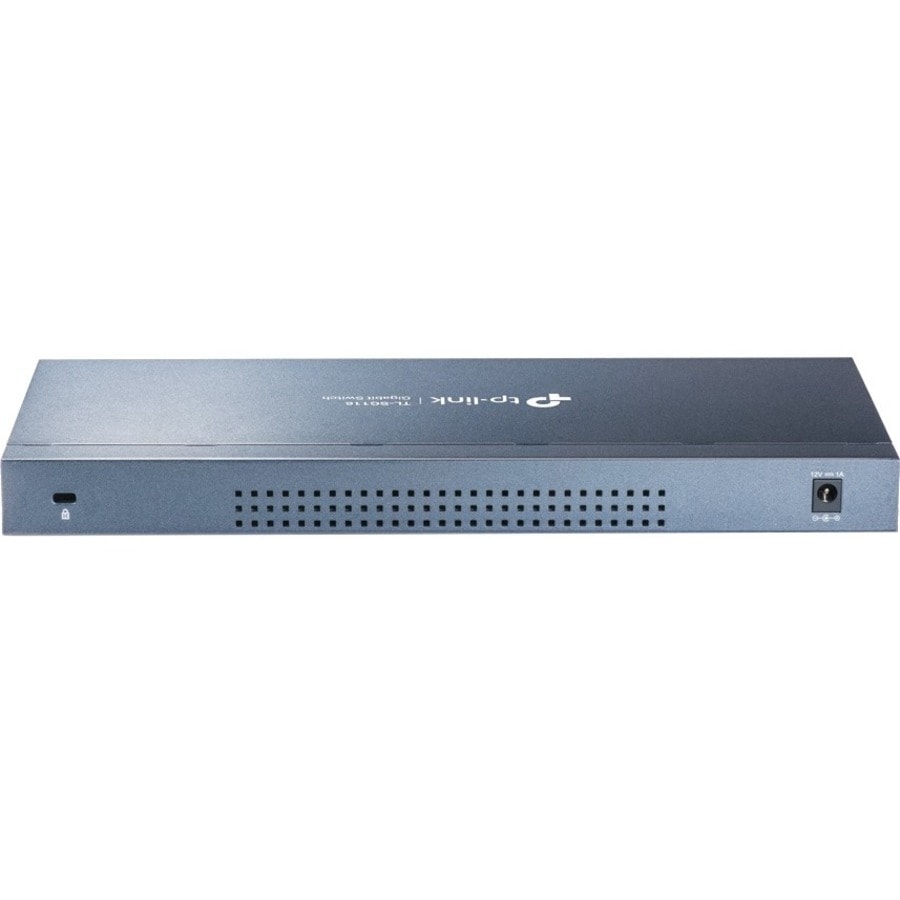

• Power Source : Power Adapter
• Redundant Power Supply Supported : No
• Power Consumption : 10 W
• Product Material : Steel
• Form Factor : Desktop,Wall Mountable
• Height : 1" (25.40 mm)
• Width : 11.30" (287.02 mm)
• Depth : 4.40" (111.76 mm)
• Package Contents :
  • 16-Port Gigabit Desktop Switch
  • Power Adapter
  • Installation Guide
  • Rubber Feet
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Country of Origin : China
• Limited Warranty : 2 Year

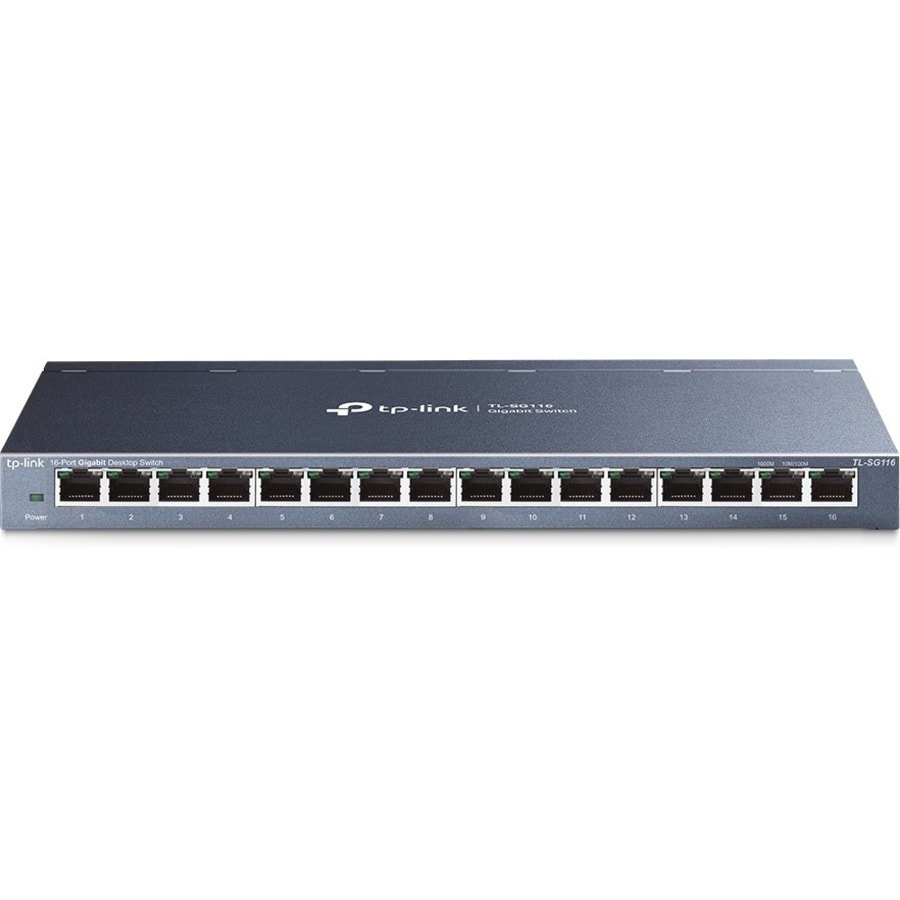

• One Switch Made to Expand Network: 16× 10/100/1000Mbps RJ45 Ports supporting Auto Negotiation and Auto MDI/MDIX.
• Gigabit that Saves Energy: Latest innovative energy-efficient technology greatly expands your network capacity with much less power consumption and helps save money.
• Reliable and Quiet: IEEE 802.3X flow control provides reliable data transfer and Fanless design ensures quiet operation.
• Plug and Play: Easy setup with no software installation or configuration needed.
• Advanced Software Features: Prioritize your traffic and guarantee high quality of video or voice data transmission with Port-based 802.1p/DSCP QoS and IGMP Snooping.
