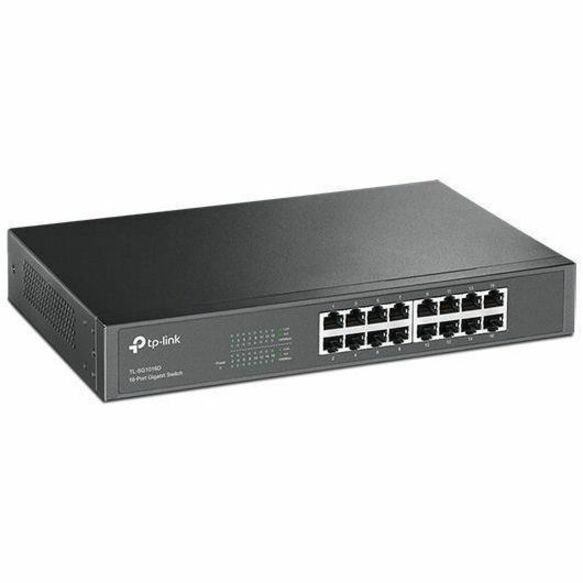

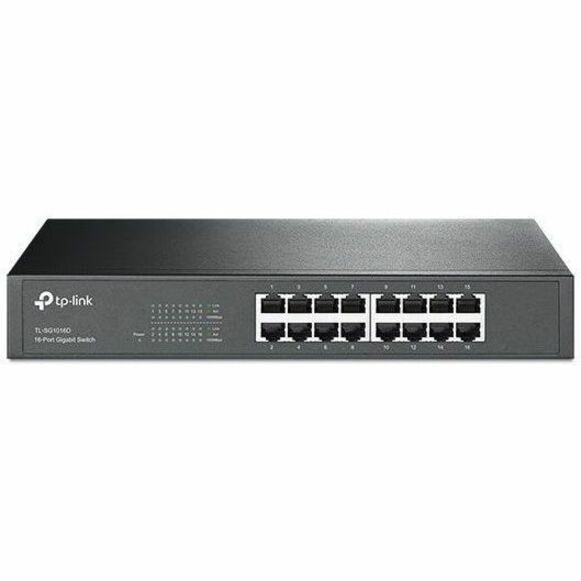

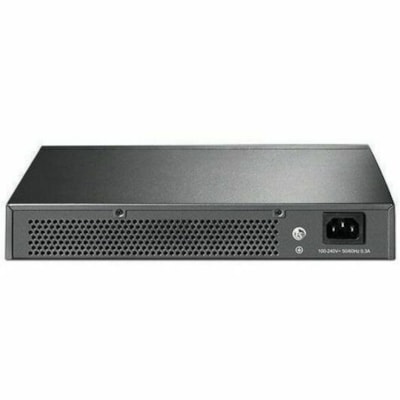

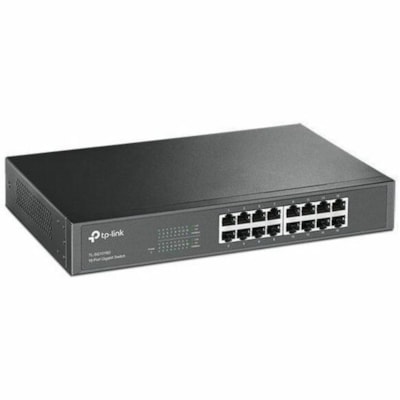

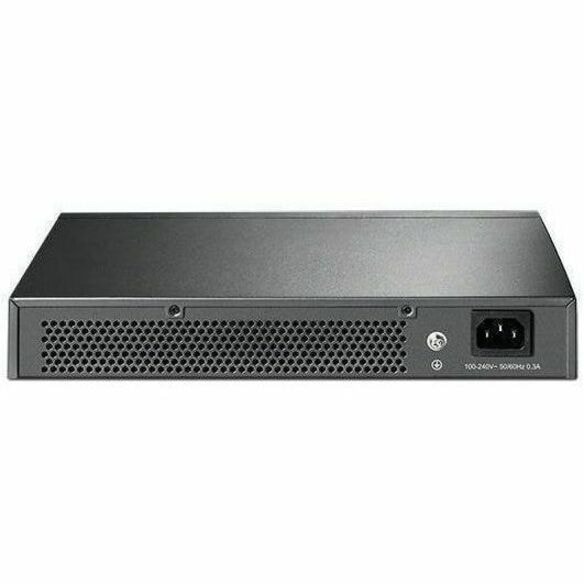

TP-Link 16-Port Gigabit Desktop/Rackmount Switch - 16 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 9.95 W Power Consumption - Twisted Pair - Rack-mountable, Desktop

TL-SG1016D
Also known as DHTLSG1016DCA,IM26947Y

New! Log in or create an account to see price and availability


MARKETING INFORMATION

What This Product Does

The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Traffic Separation

Isolation Mode easily divides traffic for specific ports with one click to avoid snooping, tampering and isolation broadcast storm for higher security.

Loop Prevention

Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.

DETAILS

  • Features : Plug and Play,Fanless,Loop Protection,Energy Efficient
  • Total Number of Network Ports : 16
  • Network (RJ-45) : Yes
  • Port/Expansion Slot Details : 16 x Gigabit Ethernet Network
  • Media Type Supported : Twisted Pair
  • Ethernet Technology : Gigabit Ethernet
  • Network Technology : 10/100/1000Base-T
  • Layer Supported : 2
  • Networking Standards : IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x
  • Manageable : No
  • Input Voltage : 120 V AC,230 V AC
  • Power Source : Power Supply
  • Power Consumption : 9.95 W
  • Form Factor : Rack-mountable,Desktop
  • Height : 1.17" (29.72 mm)
  • Width : 11.60" (294.64 mm)
  • Depth : 7.10" (180.34 mm)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • 16 10/100/1000Mbps ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
  • Plug & play design

SPECIFICATIONS

Manufacturer TP-LINK Technologies Co., Ltd
Manufacturer Part Number TL-SG1016D
Manufacturer Website Address http://www.tp-link.com
Brand Name TP-Link
Product Model TL-SG1016D
Product Name 16-Port Gigabit Desktop/Rackmount Switch
Product Type Ethernet Switch
Total Number of Network Ports 16
Features Loop Protection
Features Energy Efficient
Features Fanless
Features Plug and Play
Number of Network (RJ-45) Ports 16
Network (RJ-45) Yes
Port/Expansion Slot Details 16 x Gigabit Ethernet Network
Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
Layer Supported 2
Networking Standards IEEE 802.3i
Networking Standards IEEE 802.3x
Networking Standards IEEE 802.3ab
Networking Standards IEEE 802.3u
Manageable No
Input Voltage 120 V AC
Input Voltage 230 V AC
Frequency 60 Hz
Frequency 50 Hz
Power Source Power Supply
Power Consumption 9.95 W
Form Factor Desktop
Form Factor Rack-mountable
Height 1.17" (29.72 mm)
Width 11.60" (294.64 mm)
Depth 7.10" (180.34 mm)
Package Contents
  • 16-Port Gigabit Desktop/Rackmount Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kits
  • Rubber Feet
Application/Usage Network
Application/Usage Business
Certifications & Standards

FCC

Environmental Compliance Restriction of Hazardous Substances (RoHS)
