MARKETING INFORMATION

What This Product Does

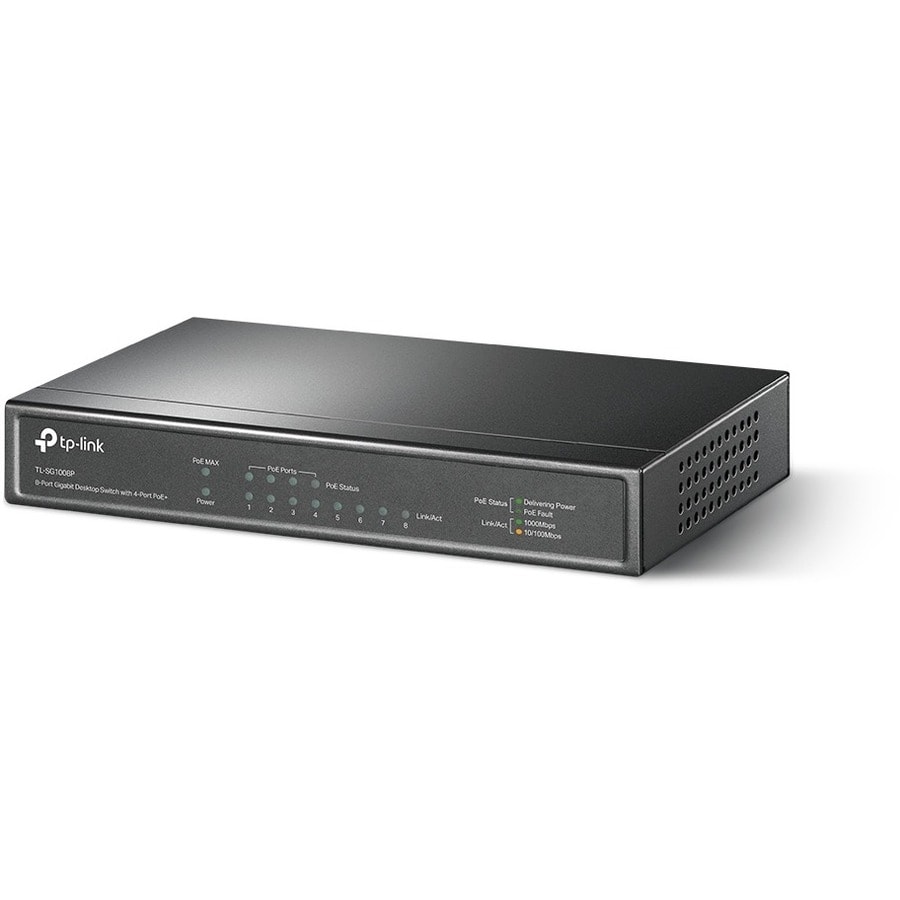

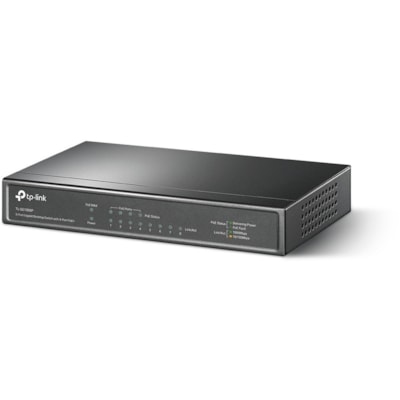

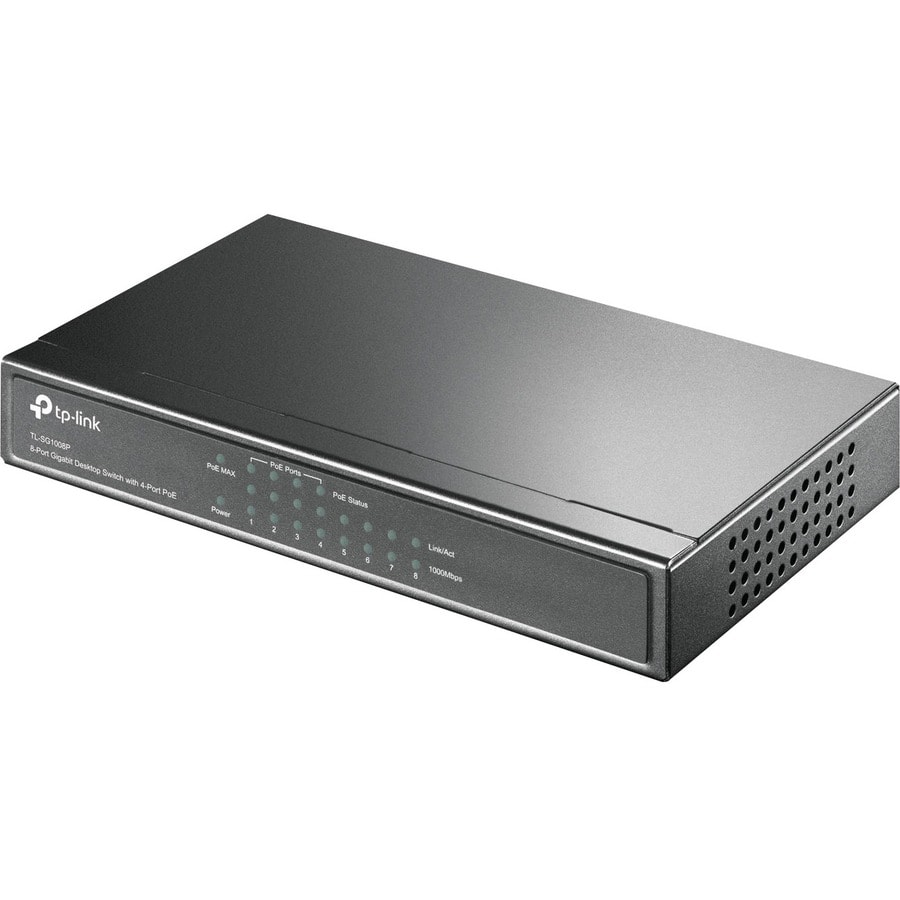

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

How This Product Works

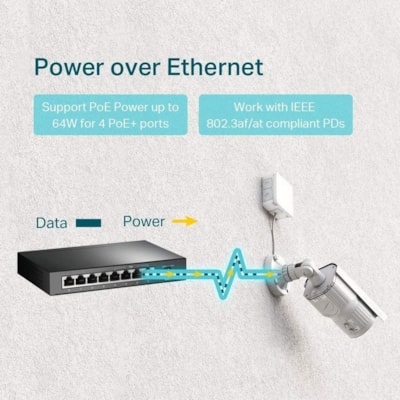

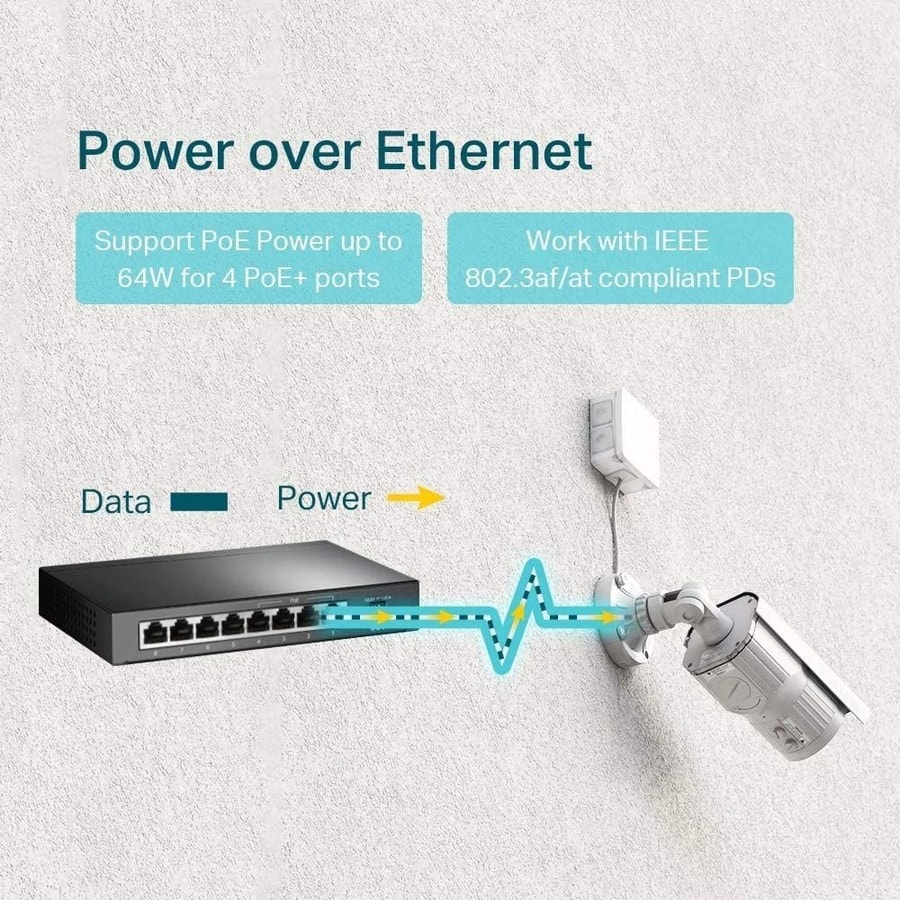

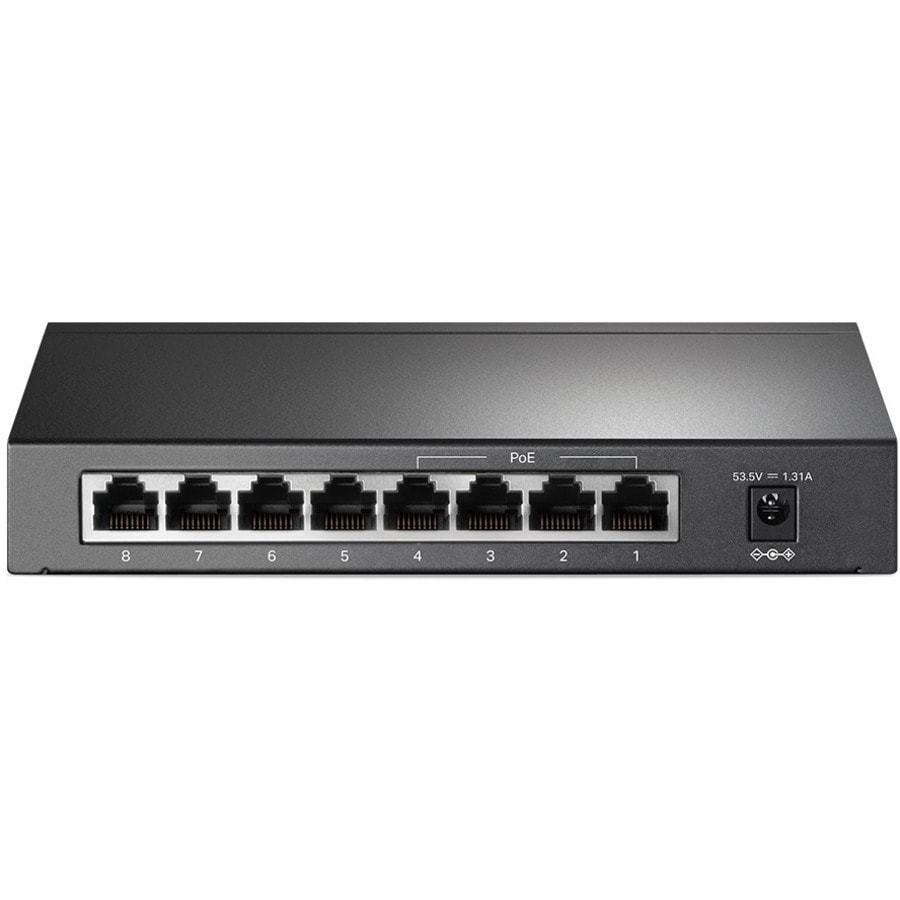

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

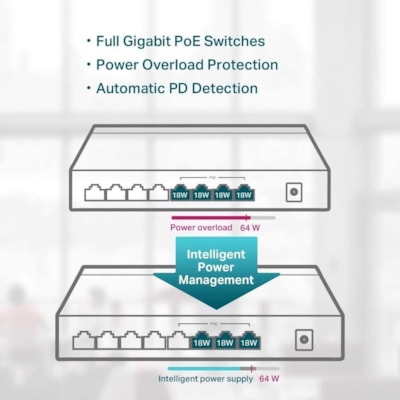

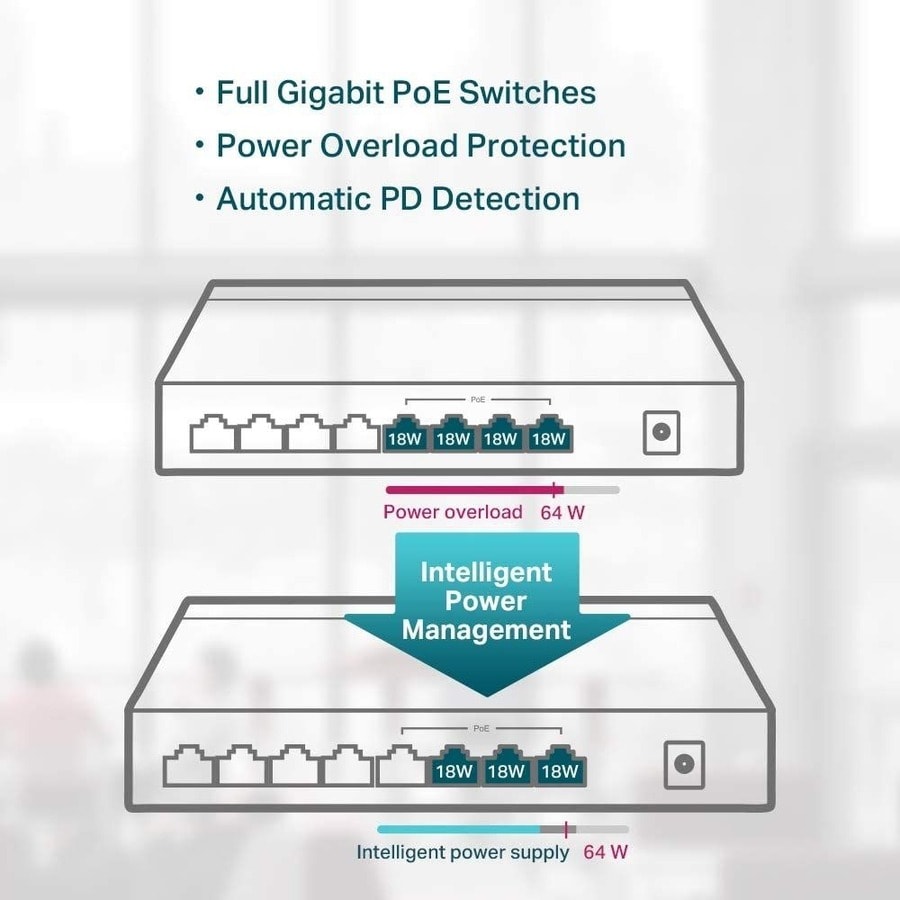

Overload Arrangement

TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

DETAILS

• Total Number of Network Ports : 8
• Network (RJ-45) : Yes
• Uplink Port : No
• Modular : No
• Stack Port : No
• Port/Expansion Slot Details : 4 x Gigabit Ethernet PoE+,4 x Gigabit Ethernet Network
• Media Type Supported : Twisted Pair
• Ethernet Technology : Gigabit Ethernet
• Network Technology : 10/100/1000Base-T
• Layer Supported : 2
• Networking Standards : IEEE 802.3af,IEEE 802.3at,IEEE 802.3x,IEEE 802.1p
• PoE (RJ-45) Port : Yes
• PoE Budget : 64 W
• Power Source : Power Adapter
• Redundant Power Supply Supported : No
• Power Consumption : 5.40 W
• Product Color : Black
• Product Material : Metal
• Form Factor : Desktop
• Height : 1.10" (27.94 mm)
• Width : 6.70" (170.18 mm)
• Depth : 3.90" (99.06 mm)
• Package Contents :
  • TL-SG1008P Ethernet Switch
  • Power Adapter
  • User Guide
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 3 Year

• Flexible Full Gigabit 8-Port PoE Configuration: 4x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 64W, together w/ 4x Gigabit Non-PoE Port for high-speed connections.

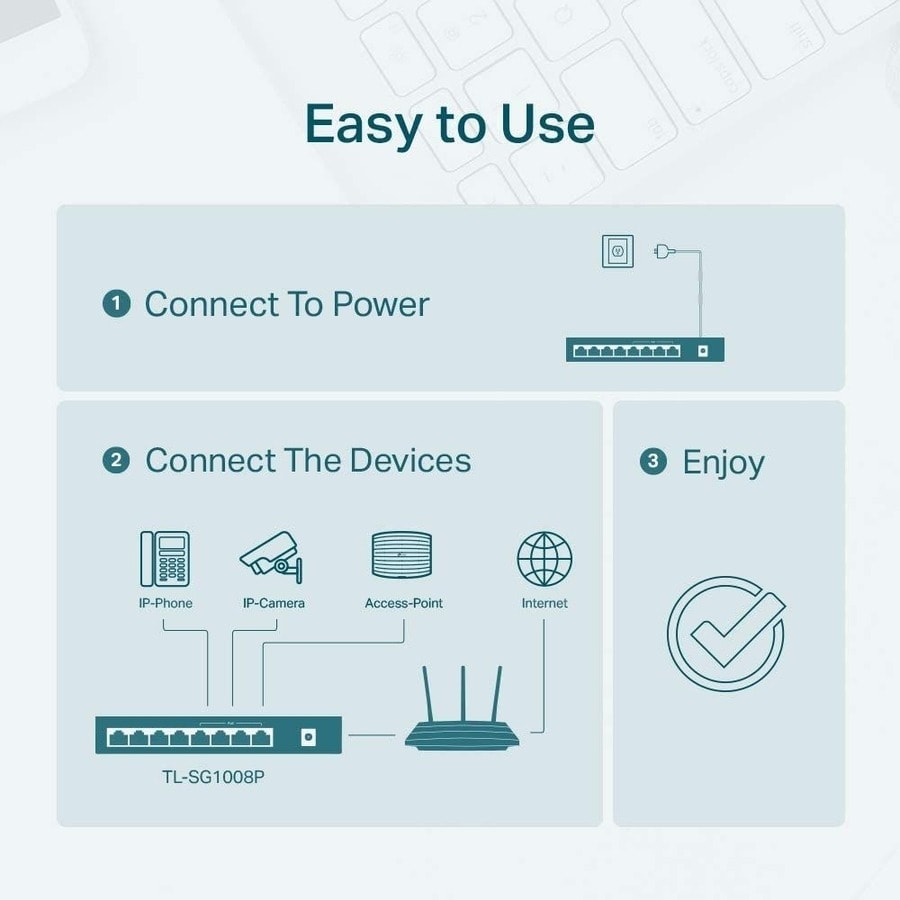

• Plug and Play: Easy setup with no software installation or configuration needed.
• Sturdy Metal Case: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
• Reliable and Quiet: IEEE 802.3X flow control provides reliable data transfer and Fanless design ensures quiet operation.
