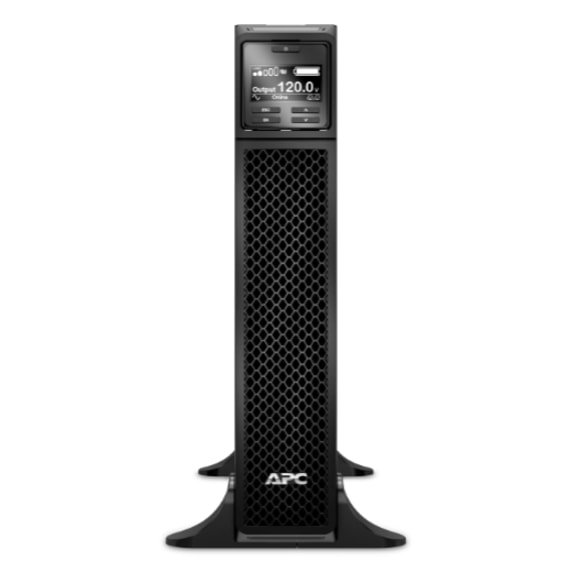

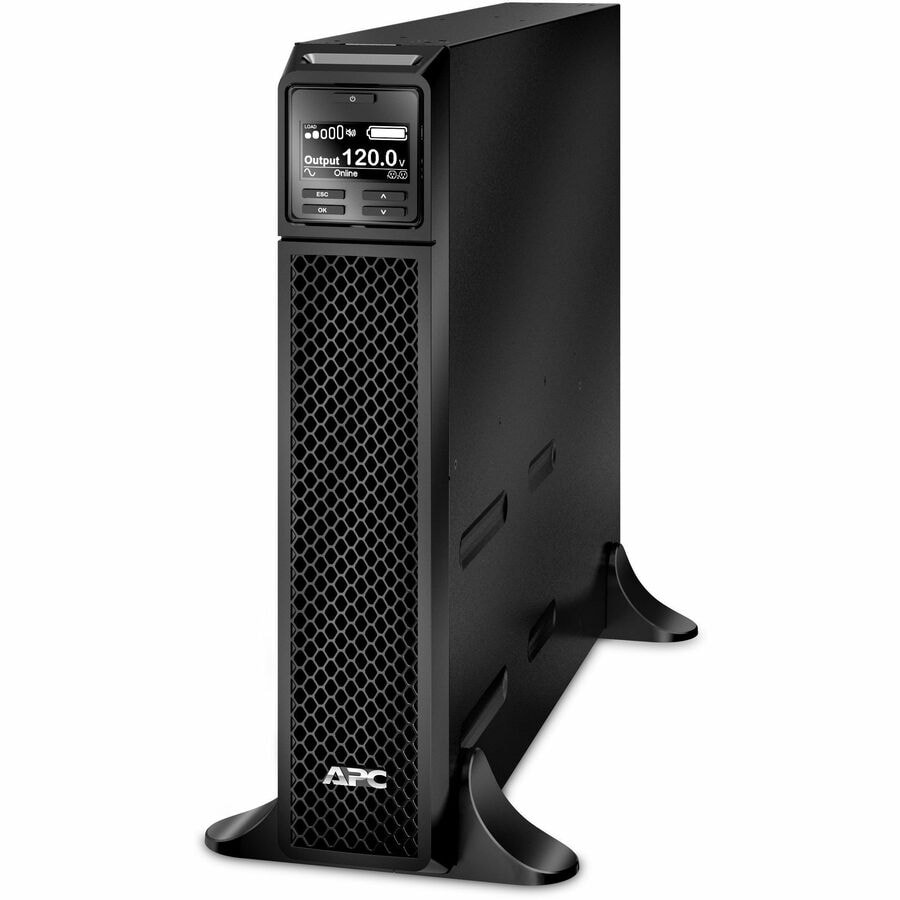

APC by Schneider Electric Smart-UPS SRT 1500VA 120V - Rack-mountable - 3 Hour Recharge - 5 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - 6 x NEMA 5-15R Receptacle(s) - 6 x Battery/Surge Outlet
SRT1500XLA
Also known as DHSRT1500XLACA,IM6512DT,SY5960659
MARKETING INFORMATION
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.DETAILS
- Plug/Connector Type : NEMA 5-15P
- Receptacle Type : NEMA 5-15P

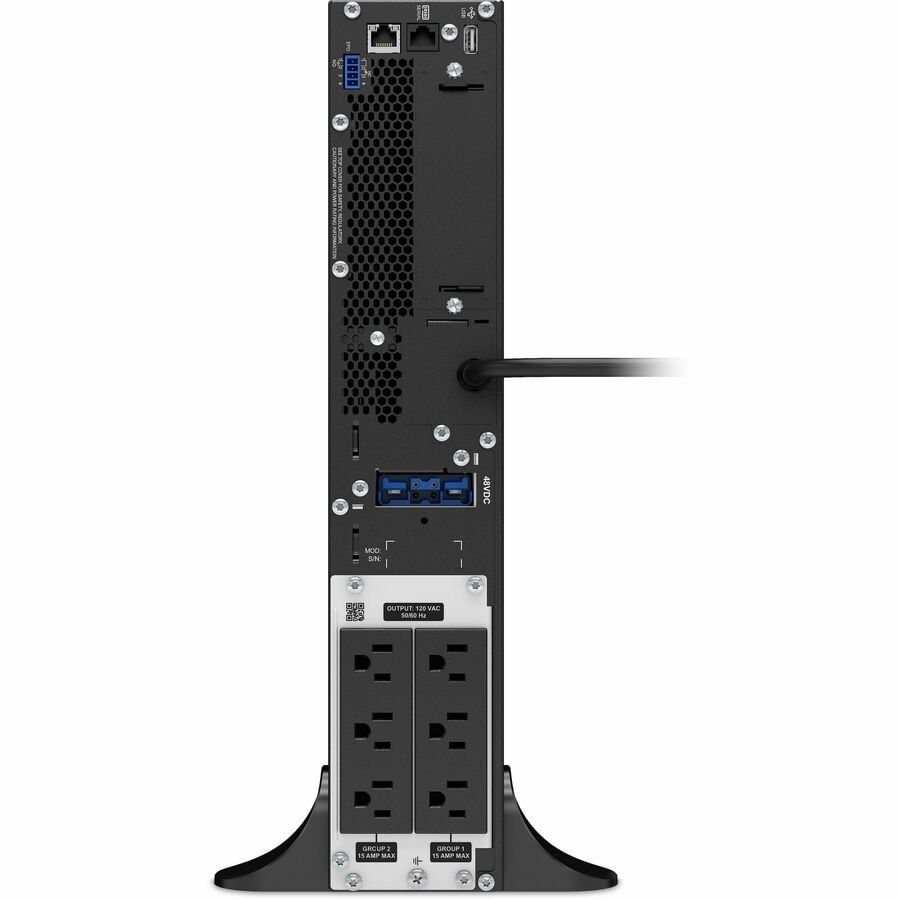

- Receptacle Detail : 6 x NEMA 5-15R
- Number of Battery & Surge Outlets : 6
- Cord Length : 6 ft (1.83 m)
- Load Capacity (VA) : 1.50 kVA
- Load Capacity (Watt) : 1.35 kW
- Input Voltage : 120 V
- Output Voltage : 120 V AC
- Waveform Type : Sine Wave
- Surge Energy Rating : 432 J
- Network (RJ-45) : Yes
- Battery Chemistry : Lead Acid
- Backup/Run Time (Full Load) : 5 Minute
- Hot Swappable : Yes
- Typical Battery Recharge Time : 3 Hour
- Product Color : Black
- Height : 17.01" (432 mm)
- Width : 3.35" (85 mm)
- Depth : 20" (508 mm)
- Form Factor : Rack-mountable
- Weight (Approximate) : 48.50 lb (21999.23 g)
- Software Included : Powerchute Serial Edition
- Energy Star : Yes
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 3 Year
- Additional Warranty Information : 3 years repair or replace (excluding battery) and 2 years for battery
- Prevent critical data loss by staying powered during a blackout with up to 1.35 kW load capacity
- Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
- 1.50 kVA load capacity provides sufficient backup during power failures
SPECIFICATIONS
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT1500XLA |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS SRT 1500VA 120V |
| Packaged Quantity | 1 Each |
| Product Type | Double Conversion Online UPS |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 6 ft (1.83 m) |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 432 J |
| Network (RJ-45) | Yes |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Color Family | Black |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 3.35" (85 mm) |
| Depth | 20" (508 mm) |
| Form Factor | Rack-mountable |
| Mounting Preference | No Preference |
| Mounting Location | Vertical |
| Weight (Approximate) | 48.50 lb (21999.23 g) |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | ENERGY STAR V2.0 (USA) |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT1500XLA_ROHS_DECLARATION&p_FileName=SRT1500XLAKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940533&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940533&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
