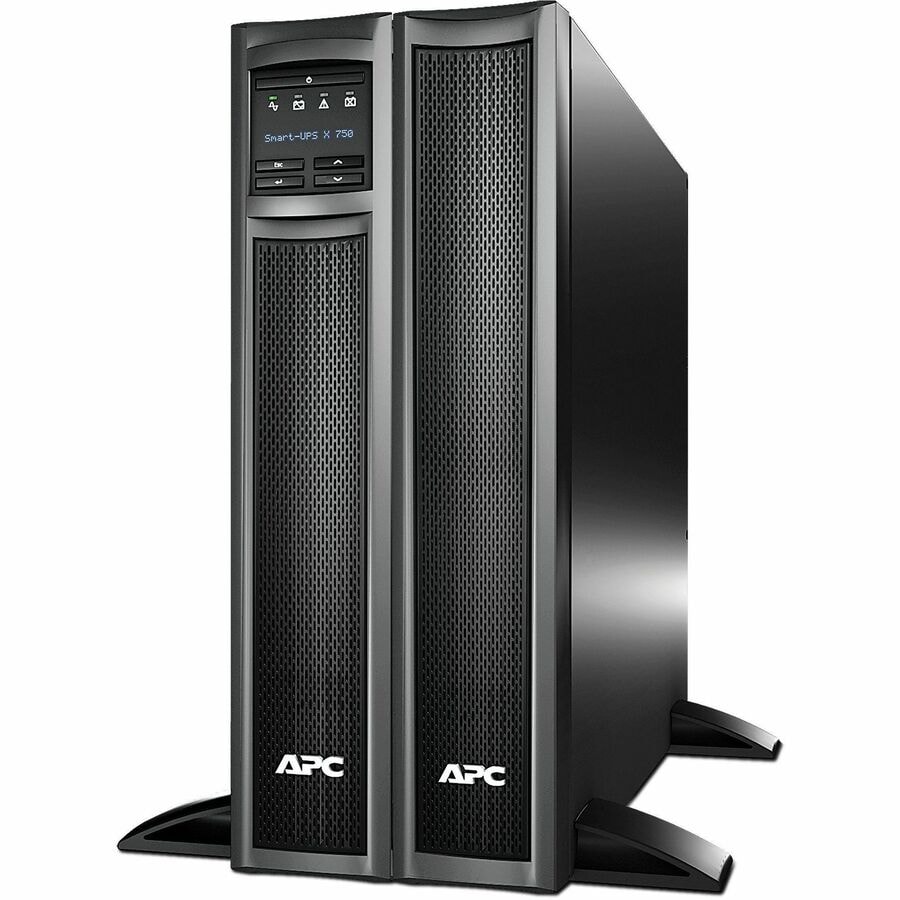

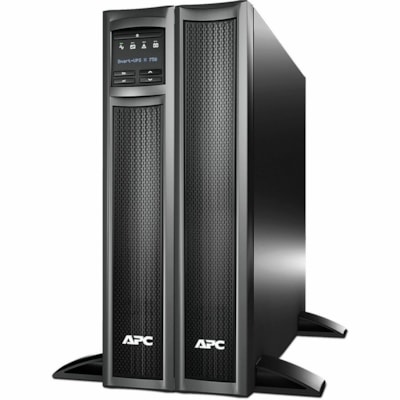

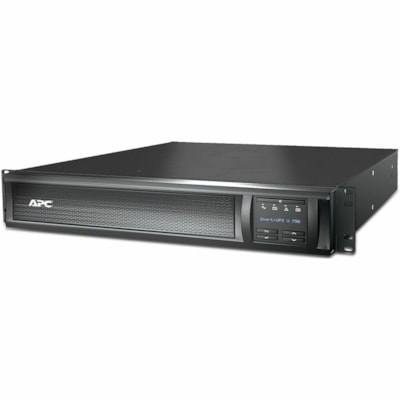

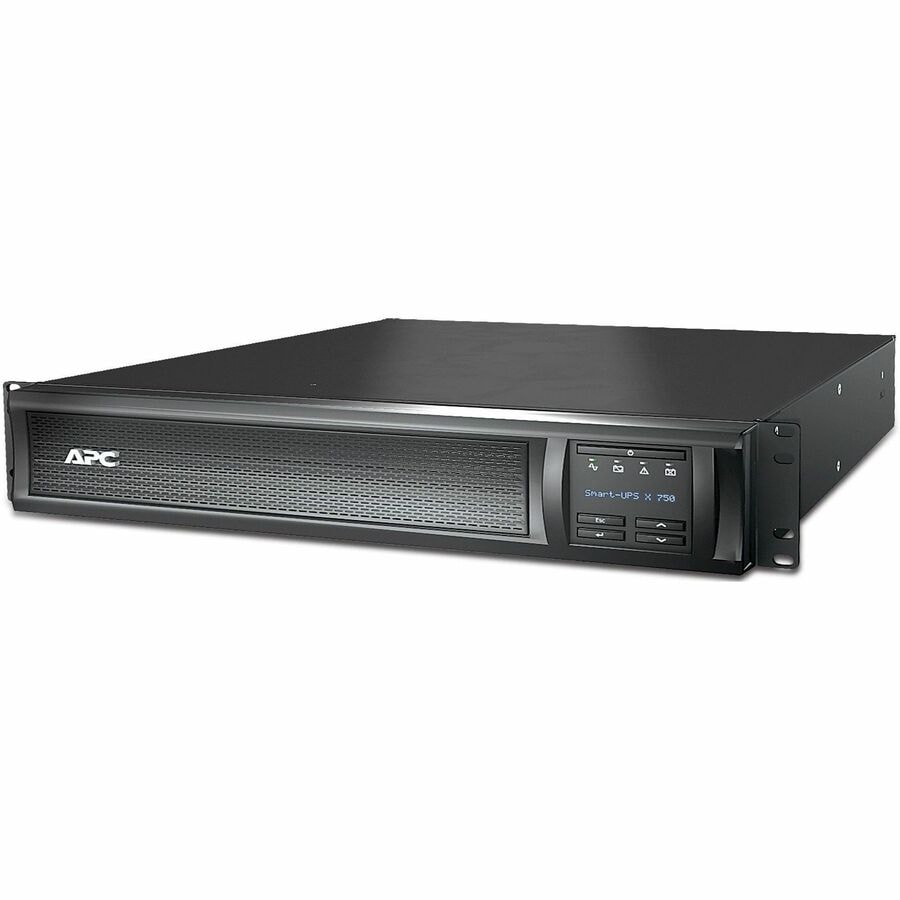

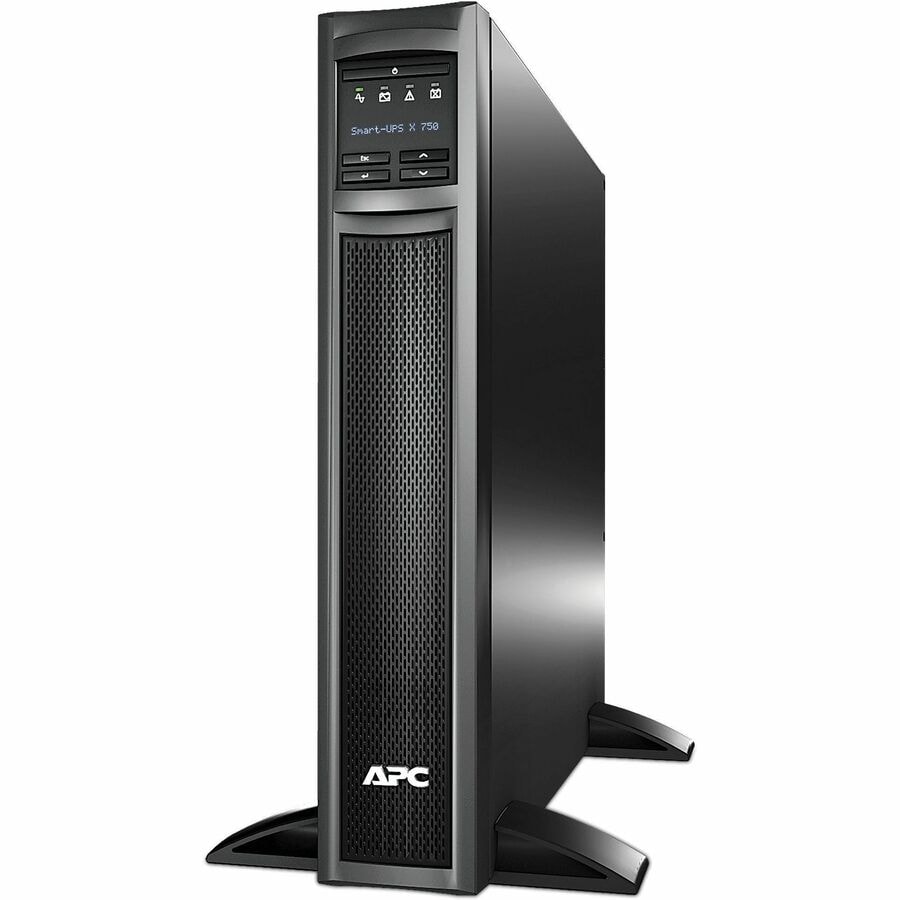

APC by Schneider Electric Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect - 2U Rack-mountable - 3 Hour Recharge - 12 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 8 x NEMA 5-15R Receptacle(s) - 8 x Battery/Surge Outlet
SMX750CNC
Also known as DHSMX750CNCCA,SY6703222,IM202A4F
MARKETING INFORMATION
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 1 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.DETAILS
- Plug/Connector Type : NEMA 5-15P
- Receptacle Type : NEMA 5-15P

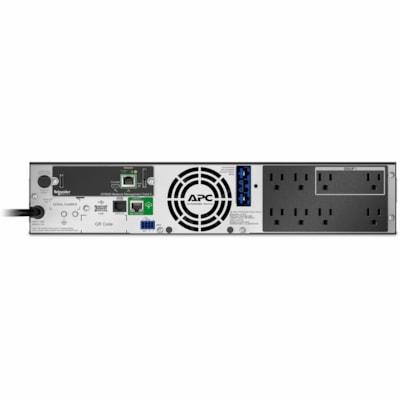

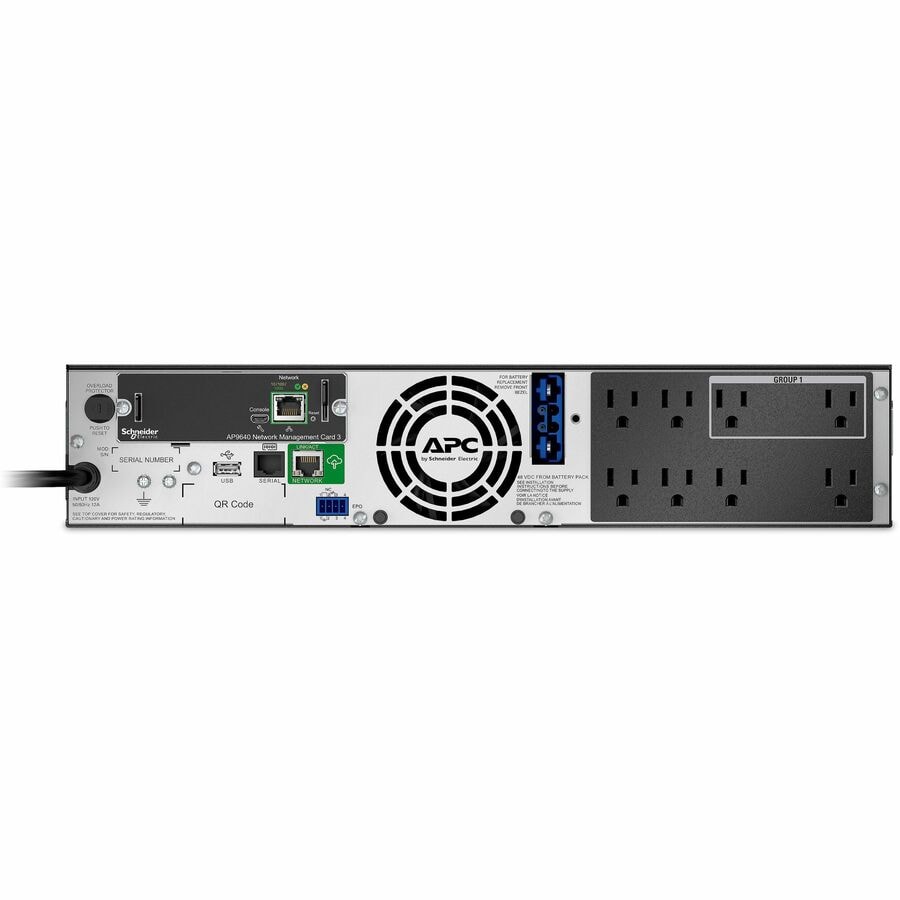

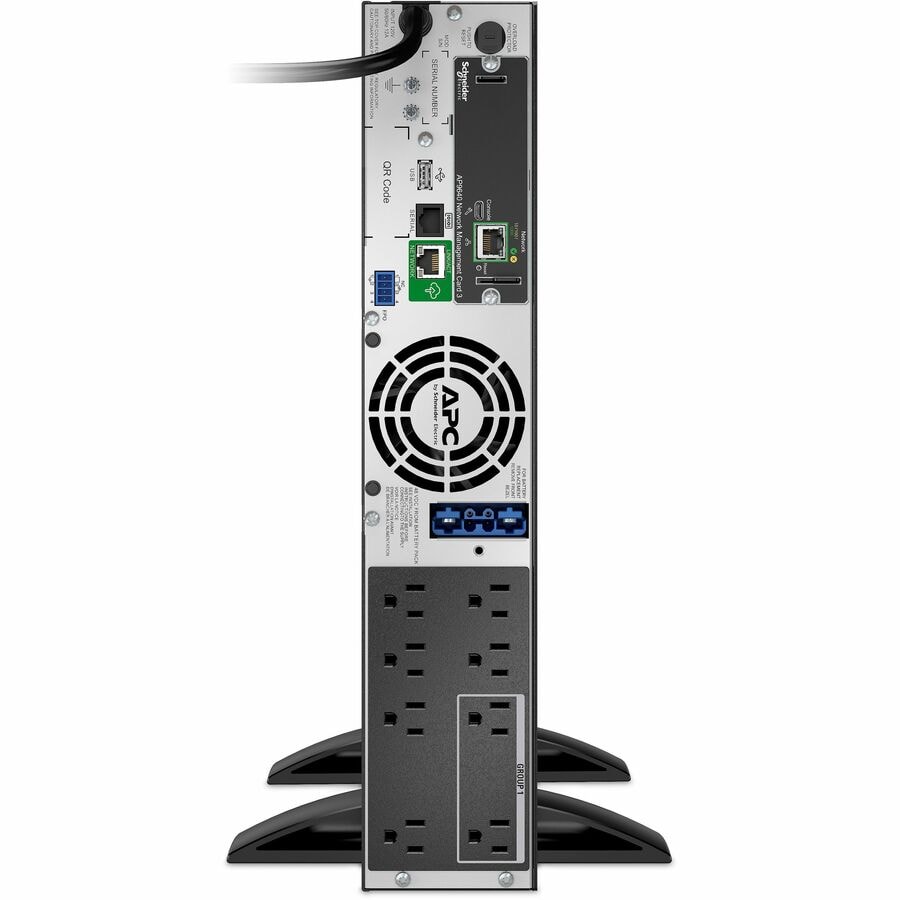

- Receptacle Detail : 8 x NEMA 5-15R
- Number of Battery & Surge Outlets : 8
- Overload Protection : Yes
- Cord Length : 8 ft (2.44 m)
- Application/Usage : Server,POS Terminal,Router,Switch,Network Hub,Network Device,IT Equipment,Electronic Equipment,Communication System,Security System,Business,IT Infrastructure
- Load Capacity (VA) : 750 VA
- Load Capacity (Watt) : 675 W
- Input Voltage : 120 V
- Input Voltage Range : 82 V AC - 144 V AC
- Output Voltage : 120 V AC
- Input Frequency : 63 Hz
- Waveform Type : Sine Wave
- Surge Energy Rating : 645 J
- Network Management : SmartConnect
- Alarm : On Battery,Low Battery,Overload,Error (Continuous Tone)
- Serial Port : Yes
- Network (RJ-45) : Yes
- EPO Port : Yes
- USB (HID Compliant) Port : Yes
- Number of Batteries : 5
- Battery Chemistry : Lead Acid
- Backup/Run Time (Full Load) : 12 Minute
- Backup/Run Time (Half Load) : 25.60 Minute
- Hot Swappable : Yes
- Typical Battery Recharge Time : 3 Hour
- Replaceable Battery : Yes
- Product Color : Black
- Height : 17.01" (432 mm)
- Width : 3.50" (89 mm)
- Depth : 19.29" (490 mm)
- Rack Height : 2U
- Form Factor : Rack-mountable
- Weight (Approximate) : 48.61 lb (22049.13 g)
- Software Included : Powerchute Business Edition
- Energy Star : Yes
- Country of Origin : Philippines
- Environmentally Friendly : Yes
- Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 3 Year
- Additional Warranty Information : 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect
- Experience higher efficiency with lower energy cost
- 675 W load capacity - backup power for your valuable electronics
- Keep your sensitive devices powered with a backup of up to 12 minute at full load
- Prevent critical data loss by staying powered during a blackout with up to 675 W load capacity
- Up to 12 minute runtime on full load to preserve critical data from power shortage interruptions
- 750 VA load capacity - work without any interruption during power outages
SPECIFICATIONS
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX750CNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | X |
| Product Name | Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Overload Protection | Yes |
| Cord Length | 8 ft (2.44 m) |
| Application/Usage | Router |
| Application/Usage | POS Terminal |
| Application/Usage | Server |
| Application/Usage | Switch |
| Application/Usage | Network Hub |
| Application/Usage | IT Infrastructure |
| Application/Usage | Business |
| Application/Usage | Security System |
| Application/Usage | Communication System |
| Application/Usage | Network Device |
| Application/Usage | IT Equipment |
| Application/Usage | Electronic Equipment |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 675 W |
| Input Voltage | 120 V |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 645 J |
| Network Management | SmartConnect |
| Alarm | Overload |
| Alarm | On Battery |
| Alarm | Error (Continuous Tone) |
| Alarm | Low Battery |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Number of Batteries | 5 |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 12 Minute |
| Backup/Run Time (Half Load) | 25.60 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Color Family | Black |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 3.50" (89 mm) |
| Depth | 19.29" (490 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Mounting Preference | Lower |
| Weight (Approximate) | 48.61 lb (22049.13 g) |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | cUL Listed|ENERGY STAR V2.0 (USA) |
| Software Included | Powerchute Business Edition |
| Energy Star | Yes |
| Product Take Back Program | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX750CNC_ROHS_DECLARATION&p_FileName=SMX750CNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552168888&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552168888&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
