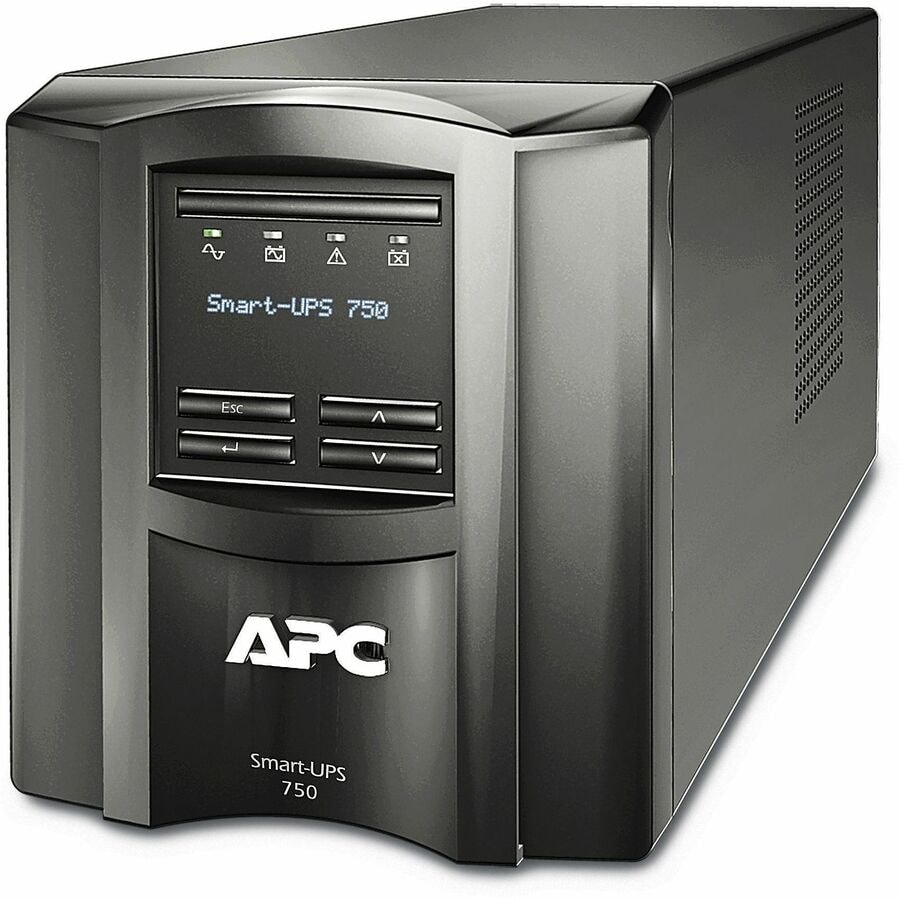

APC by Schneider Electric Smart-UPS 750VA LCD 120V with SmartConnect - Tower - 3 Hour Recharge - 5 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - 6 x NEMA 5-15R Receptacle(s) - 6 x Battery/Surge Outlet - SmartConnect
SMT750C
Also known as DHSMT750CCA,IM7903DU,SY5981118
MARKETING INFORMATION
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.DETAILS
- Plug/Connector Type : NEMA 5-15P
- Receptacle Type : NEMA 5-15P

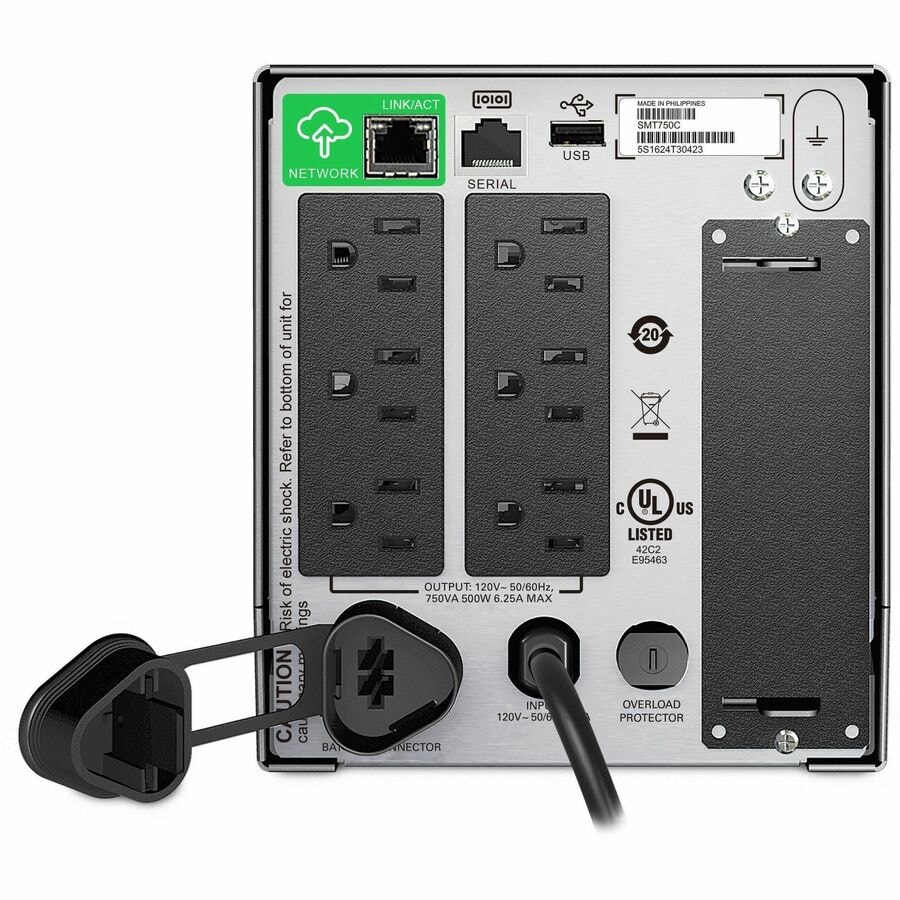

- Receptacle Detail : 6 x NEMA 5-15R
- Number of Battery & Surge Outlets : 6
- Cord Length : 6 ft (1.83 m)
- Transfer Time : 10 ms
- Load Capacity (VA) : 750 VA
- Load Capacity (Watt) : 500 W
- Input Voltage : 120 V
- Input Voltage Range : 75 V AC - 154 V AC
- Output Voltage : 120 V AC
- Waveform Type : Sine Wave
- Surge Energy Rating : 540 J
- Network Management : SmartConnect
- Battery Chemistry : Lead Acid
- Backup/Run Time (Full Load) : 5 Minute
- Hot Swappable : Yes
- Typical Battery Recharge Time : 3 Hour
- Product Color : Black
- Height : 6.34" (161 mm)
- Width : 5.43" (138 mm)
- Depth : 14.53" (369 mm)
- Form Factor : Tower
- Weight (Approximate) : 27.56 lb (12501.01 g)
- Package Contents :
- Smart-UPS 750VA LCD 120V with SmartConnect
- USB cable
- Energy Star : Yes
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 3 Year
- Additional Warranty Information : 3 years repair or replace (excluding battery) and 2 years for battery
- Experience higher efficiency with lower energy cost
- 500 W load capacity - backup power for your valuable electronics
- Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
- 750 VA load capacity - work without any interruption during power outages
SPECIFICATIONS
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT750C |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 750VA LCD 120V with SmartConnect |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 10 ms |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 500 W |
| Input Voltage | 120 V |
| Input Voltage Range | 75 V AC - 154 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Network Management | SmartConnect |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Color Family | Black |
| Product Color | Black |
| Height | 6.34" (161 mm) |
| Width | 5.43" (138 mm) |
| Depth | 14.53" (369 mm) |
| Form Factor | Tower |
| Mounting Preference | No Preference |
| Mounting Location | Front |
| Weight (Approximate) | 27.56 lb (12501.01 g) |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | cULus|ENERGY STAR V2.0 (USA) |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT750C_ROHS_DECLARATION&p_FileName=SMT750CKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=454159715&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=454159715&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| California Proposition 65 Warning | "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov" |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
