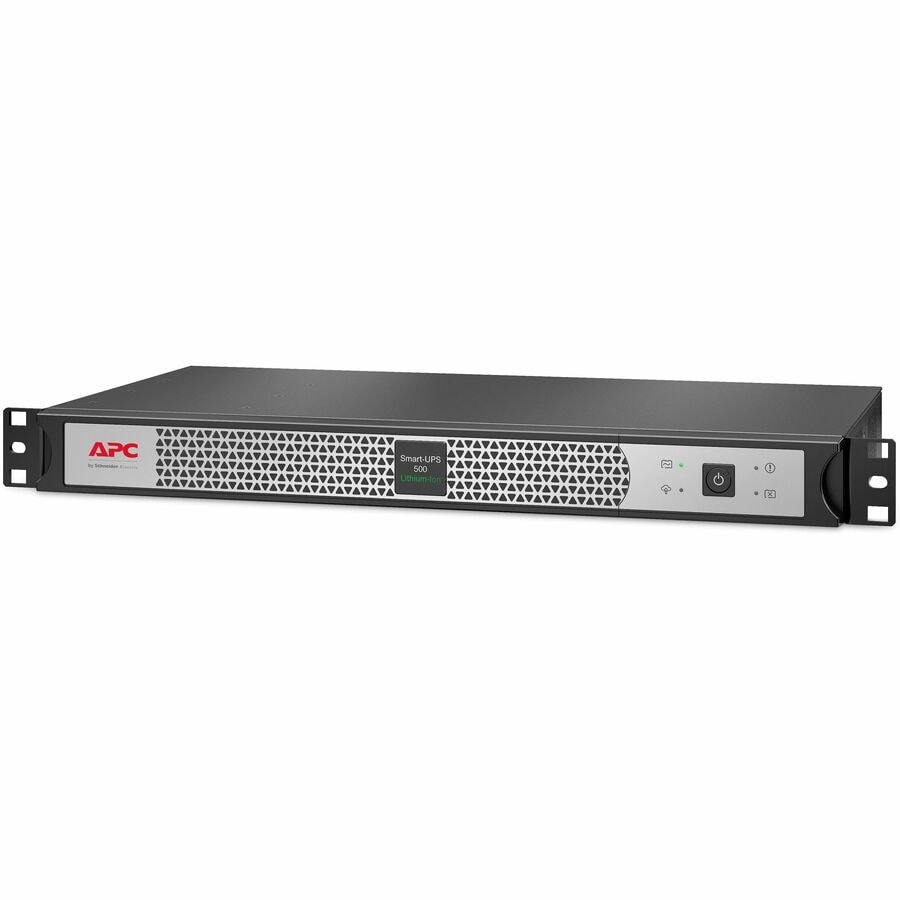

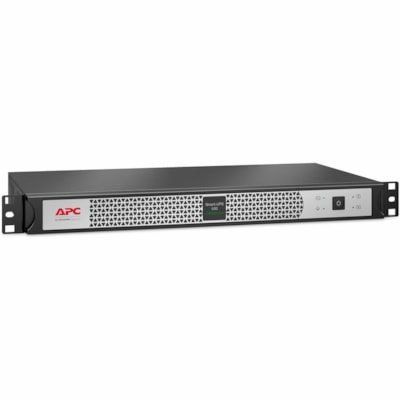

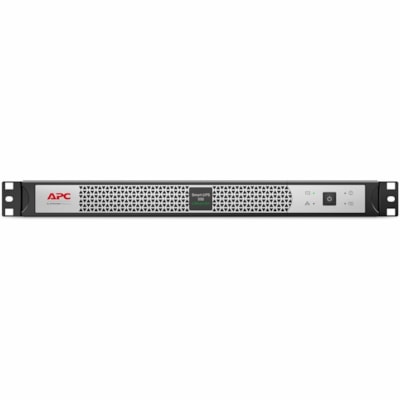

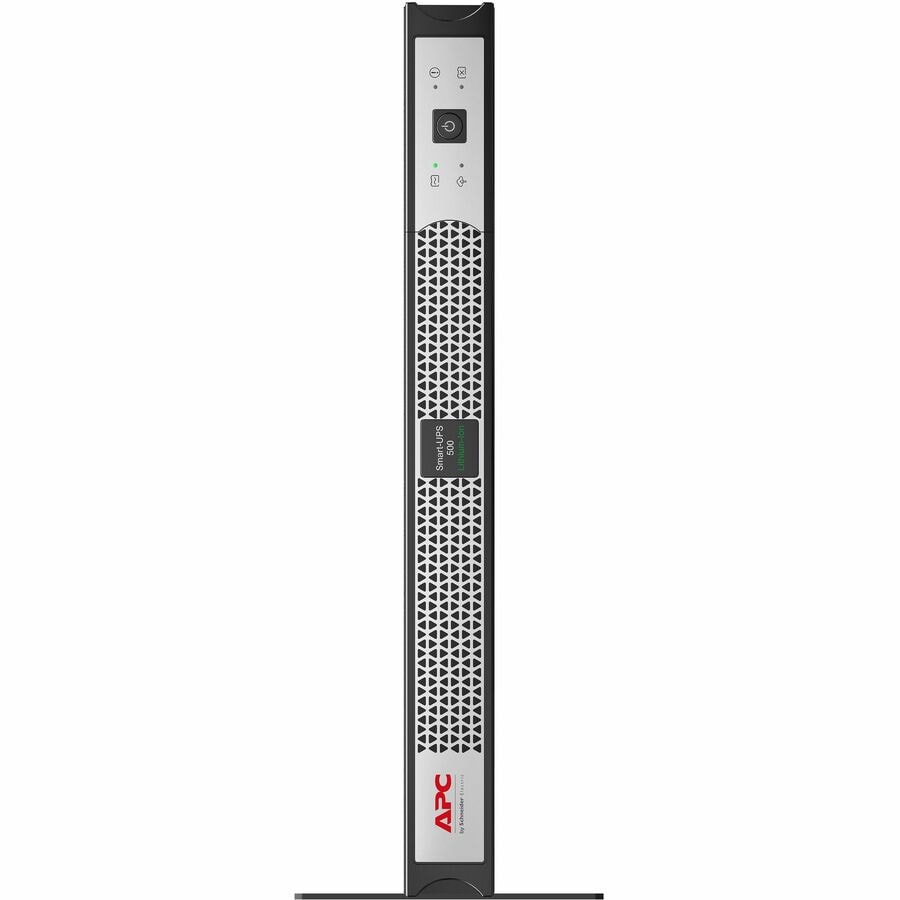

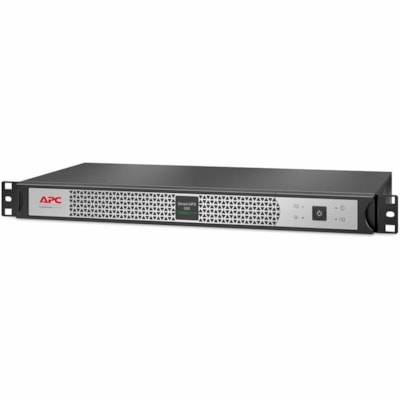

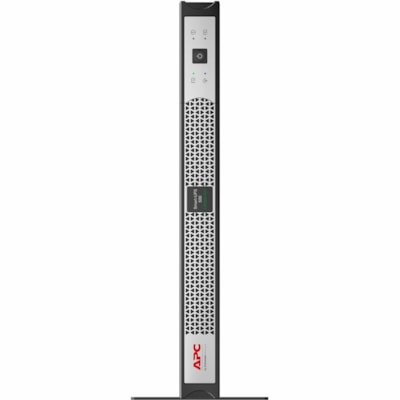

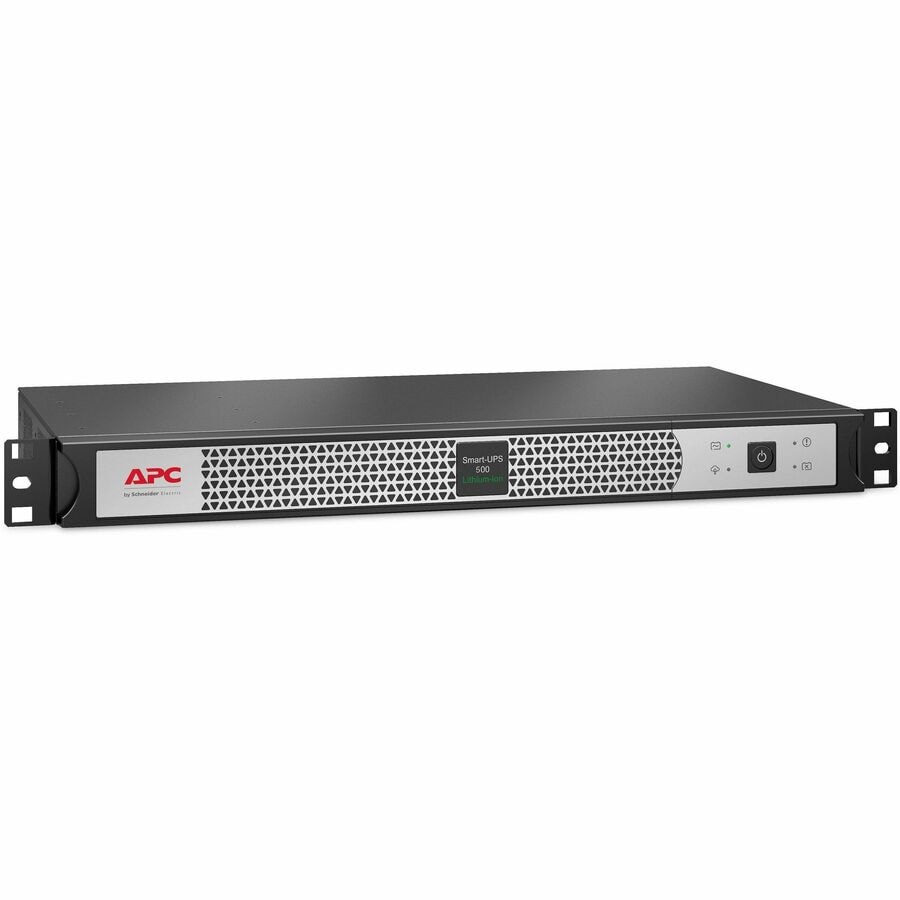

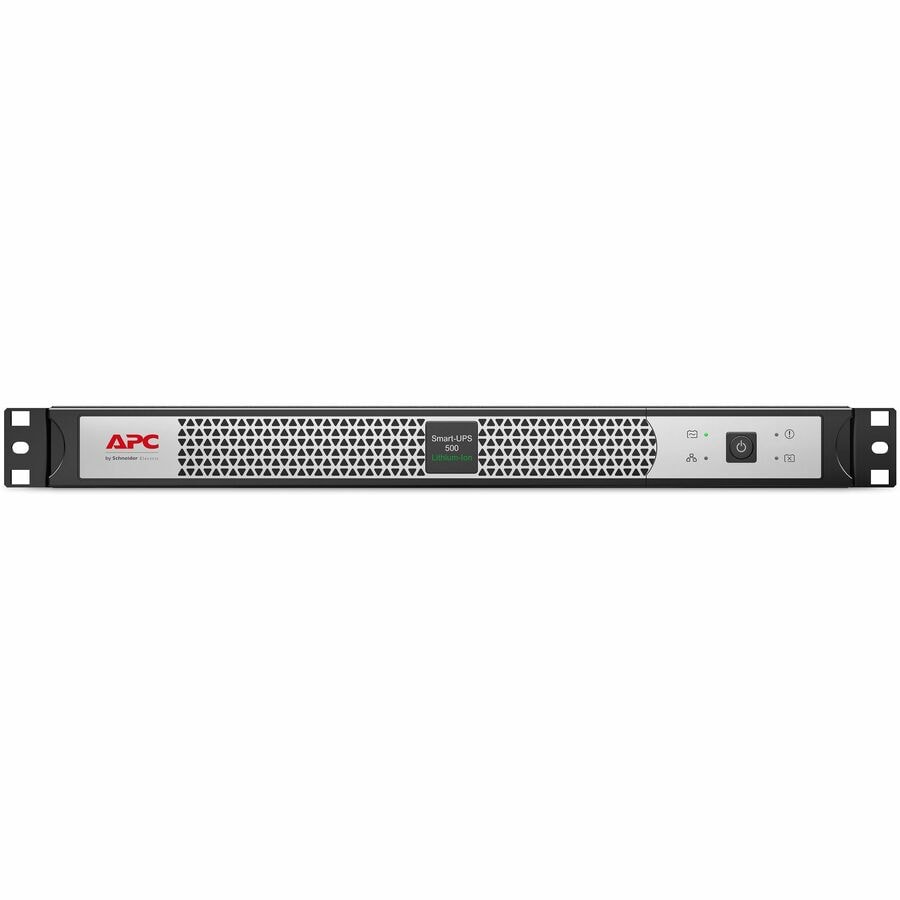

APC by Schneider Electric Smart-UPS 500VA Rack/Floor Mountable UPS - 1U Rack-mountable - AVR - 3 Hour Recharge - 2.70 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 4 x NEMA 5-15R Receptacle(s) - 4 x Battery/Surge Outlet - SmartConnect
SCL500RM1UC
Also known as DHSCL500RM1UCCA,IM8176ZW,SY6385476
MARKETING INFORMATION
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.DETAILS
- AVR : Yes
- Plug/Connector Type : NEMA 5-15P
- Receptacle Type : NEMA 5-15P

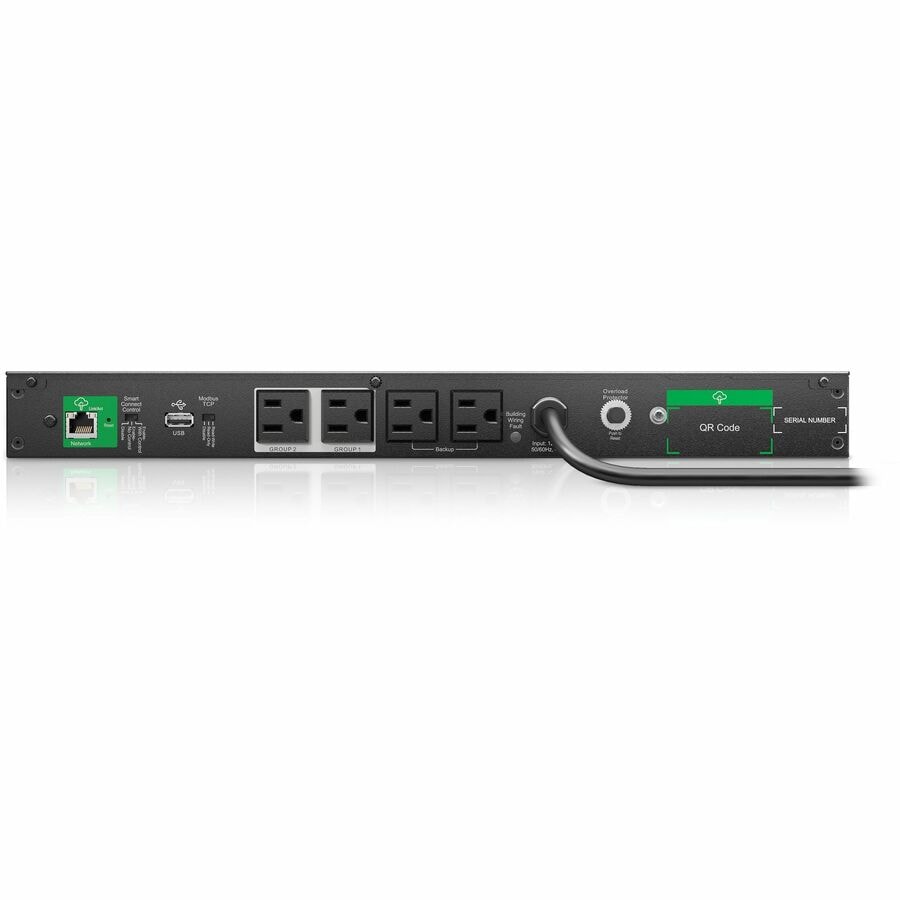

- Receptacle Detail : 4 x NEMA 5-15R
- Number of Battery & Surge Outlets : 4
- Dataline Protection : RJ-45
- Cord Length : 6 ft (1.83 m)
- Transfer Time : 10 ms
- Application/Usage : Network,Server,POS Terminal,Router,Switch,Network Hub,Equipment,Business,Storage,Security System,Communication System,Voice/Data Network
- Load Capacity (VA) : 500 VA
- Load Capacity (Watt) : 400 W
- Input Voltage : 120 V
- Input Voltage Range : 92 V AC - 139 V AC
- Output Voltage : 120 V AC
- Input Frequency : 63 Hz
- Output Frequency : 60 Hz
- Waveform Type : Sine Wave
- Surge Energy Rating : 680 J
- Network Management : SmartConnect
- Alarm : On Battery,Low Battery,Configurable Delay
- Status Indicators : LED Display
- Serial Port : Yes
- Network (RJ-45) : Yes
- EPO Port : Yes
- USB (HID Compliant) Port : Yes
- Battery Characteristics : Valve-regulated
- Battery Chemistry : Lithium Ion (Li-Ion)
- Backup/Run Time (Full Load) : 2.70 Minute
- Backup/Run Time (Half Load) : 6.30 Minute
- Hot Swappable : Yes
- Typical Battery Recharge Time : 3 Hour
- Replaceable Battery : Yes
- Maximum Operating Elevation : 6561 ft (1999792.80 mm)
- Maximum Storage Elevation : 49212 ft (14999817.60 mm)
- Storage Temperature : 5°F (-15°C) - 113°F (45°C)
- Operating Humidity : 10% - 90%
- Storage Relative Humidity : 10% - 90%
- Maximum Operating Temperature : 104°F (40°C)
- Sound Emission (A-Weighted) : 45 dB(A)
- Product Color : Black,Silver
- Height : 1.73" (44 mm)
- Width : 17.01" (432 mm)
- Depth : 9.13" (232 mm)
- Rack Height : 1U
- Form Factor : Rack-mountable
- Weight (Approximate) : 9.22 lb (4182.12 g)
- Package Contents :
- Smart-UPS 500VA Rack/Floor Mountable UPS
- CD with software
- Documentation CD
- Installation guide
- Rack mounting support rails
- USB cable
- Software Included : Powerchute Serial Edition
- Energy Star : Yes
- Country of Origin : Philippines
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 5 Year
- Additional Warranty Information : 5 year repair or replace
- Experience higher efficiency with lower energy cost
- Prevent critical data loss by staying powered during a blackout with up to 400 W load capacity
- Up to 2.70 minute runtime on full load to preserve critical data from power shortage interruptions
- 500 VA load capacity provides sufficient backup during power failures
SPECIFICATIONS
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SCL500RM1UC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 500VA Rack/Floor Mountable UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 4 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Dataline Protection | RJ-45 |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 10 ms |
| Application/Usage | Voice/Data Network |
| Application/Usage | Communication System |
| Application/Usage | Security System |
| Application/Usage | Storage |
| Application/Usage | Business |
| Application/Usage | Equipment |
| Application/Usage | Network Hub |
| Application/Usage | Switch |
| Application/Usage | Router |
| Application/Usage | POS Terminal |
| Application/Usage | Server |
| Application/Usage | Network |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 400 W |
| Input Voltage | 120 V |
| Input Voltage Range | 92 V AC - 139 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Network Management | SmartConnect |
| Alarm | Configurable Delay |
| Alarm | Low Battery |
| Alarm | On Battery |
| Status Indicators | LED Display |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Backup/Run Time (Half Load) | 6.30 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 6561 ft (1999792.80 mm) |
| Maximum Storage Elevation | 49212 ft (14999817.60 mm) |
| Operating Humidity | 10% - 90% |
| Storage Relative Humidity | 10% - 90% |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Color Family | Dual Color |
| Product Color | Black |
| Product Color | Silver |
| Height | 1.73" (44 mm) |
| Width | 17.01" (432 mm) |
| Depth | 9.13" (232 mm) |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Mounting Preference | No Preference |
| Weight (Approximate) | 9.22 lb (4182.12 g) |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | cULus|NOM |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RM1UC_ROHS_DECLARATION&p_FileName=SCL500RM1UCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500677&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500677&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN |
| REACH free of SVHC | No |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 year repair or replace |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
