MARKETING INFORMATION

Boost Your Wi-Fi to hard-to-reach Areas

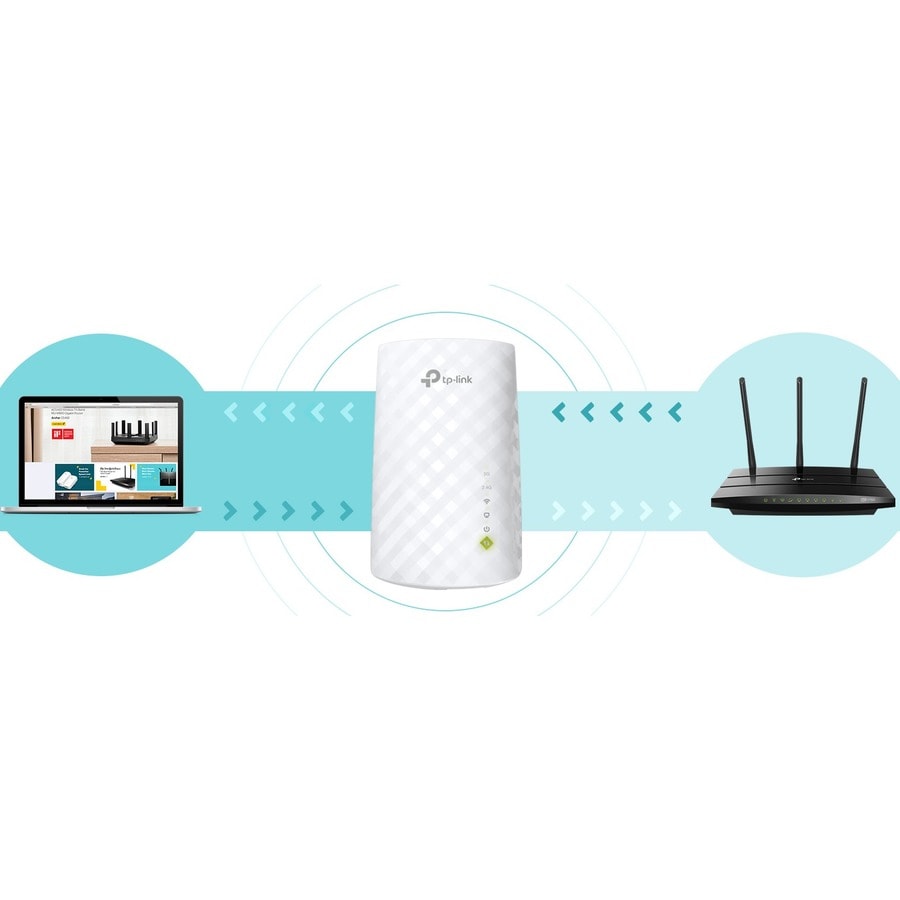

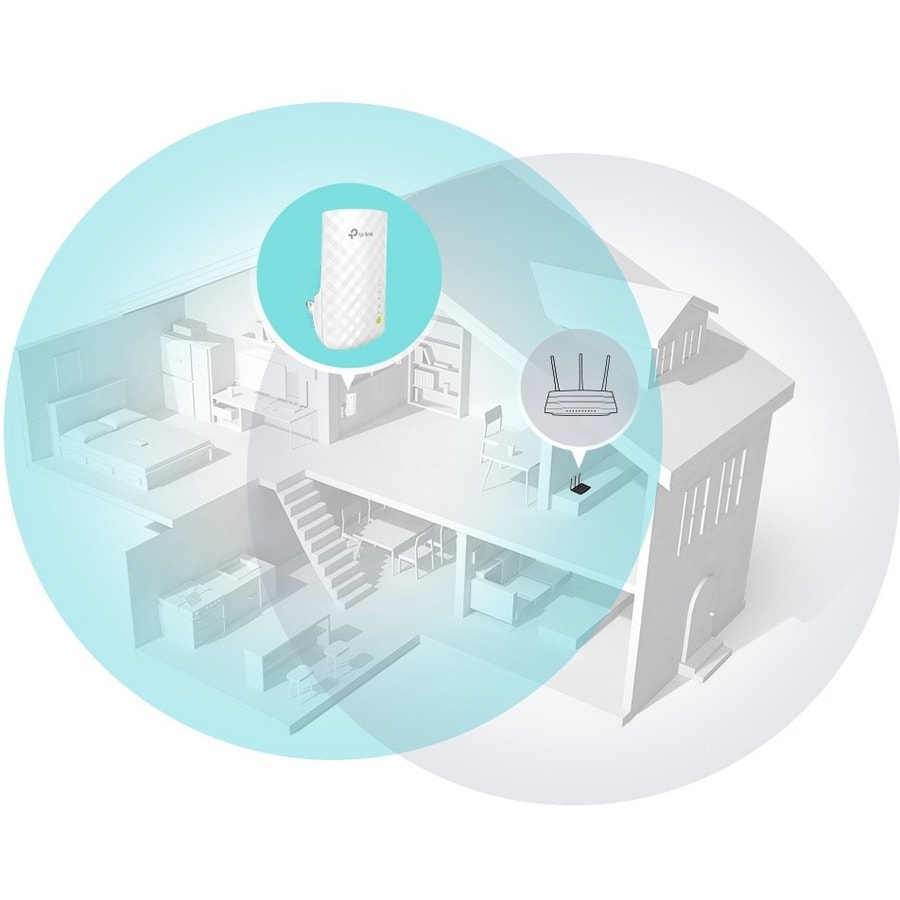

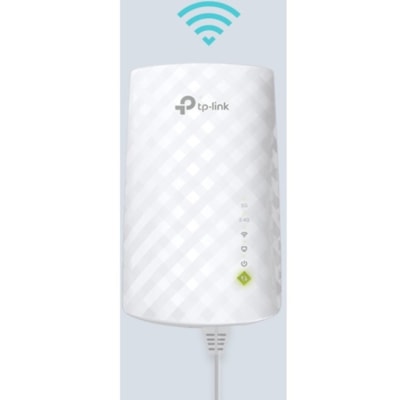

Place the RE220 between your wireless router and wireless devices, expanding Wi-Fi coverage while eliminating Wi-Fi dead zones. The dual-band Wi-Fi up to 750 Mbps can not only extend to 32,00 sq. ft. (300m²) with the router, but also make good use of your high ISP speed , ideal for HD video streaming, online gaming and other bandwidth-intensive tasks.

Stable Dual Band Connection for More Devices

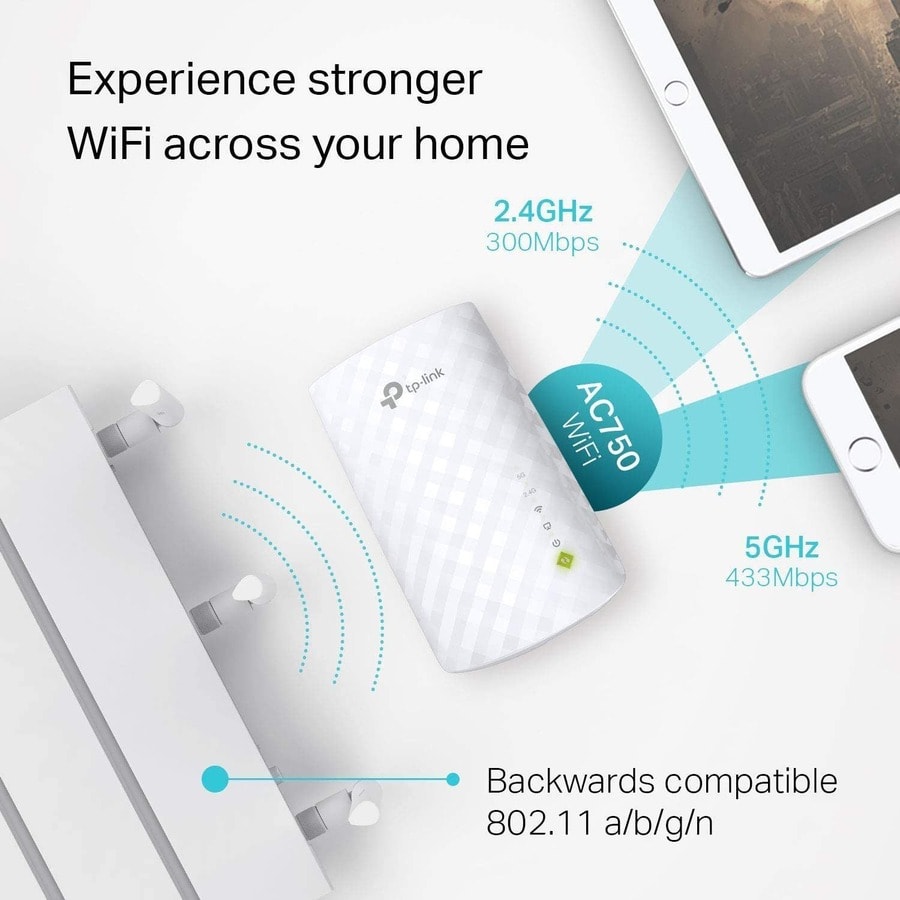

The RE220's Wireless AC technology creates faster and stronger Wi-Fi connections across your home and extends dual band Wi-Fi up to 750 Mbps. Dual 2.4 GHz and 5 GHz bands provide Wi-Fi connections to up to 32 devices, allowing you to enjoy stable and drop-free experience on all your devices.

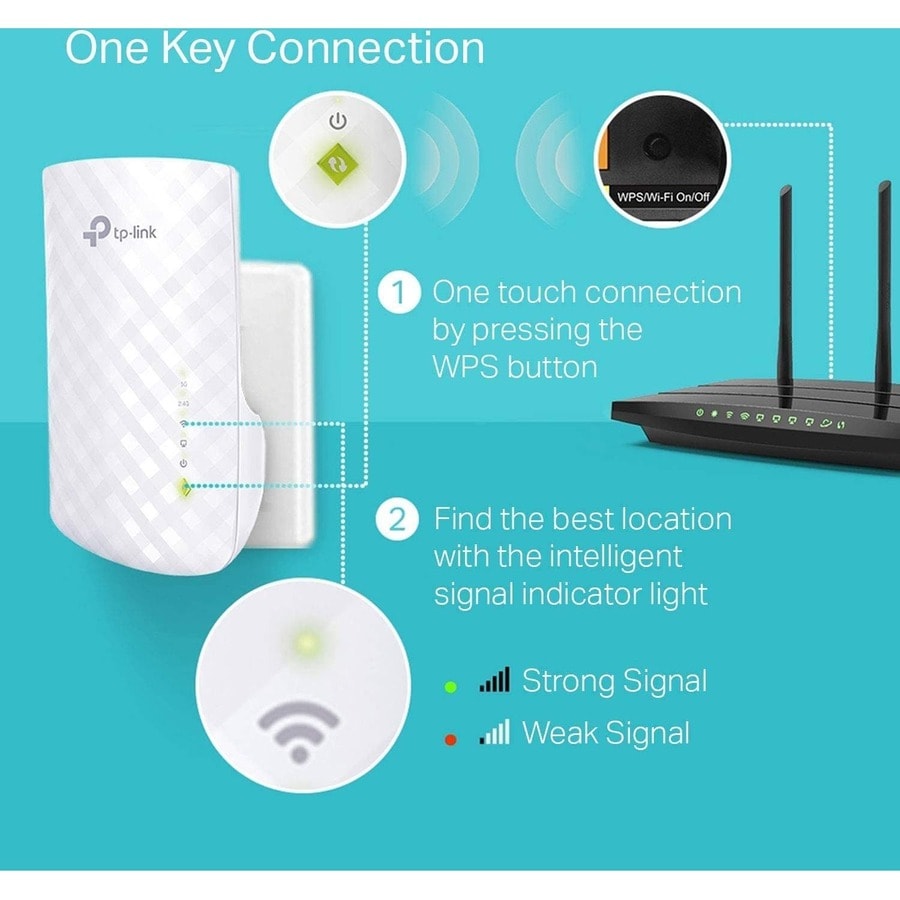

Simple Two-Step Setup

Step 1: Press the WPS button on the router and RE220 to easily connect the extender to the network. Or connect the
extender via Tether app or Web UI if your router doesn't support WPS.

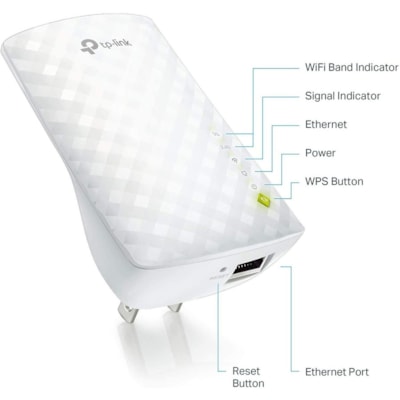

Step 2: Relocate the extender to a better location for optimal Wi-Fi coverage with the help of the smart signal indicator light.

An Access Point as well as a Wireless Adapter

The Ethernet port of RE220 can easily turn your wired Internet connection into a wireless access point. And it can also function as a wireless adapter to connect wired devices.

High Speed Mode for Maximized Performance

High Speed Mode uses one dedicated Wi-Fi band as backhaul and another dedicated Wi-Fi band as an access point to maximize the bandwidth on extender Wi-Fi.

Universal Compatibility

The RE220 is compatible with any of your existing Wi-Fi router or access point, making it easy to expand and strengthen your Wi-Fi network.

Smart Management by Tether App

Set up and manage your Wi-Fi through the TP-Link Tether app on you smartphone (Android, iOS).

DETAILS

• Wireless LAN Standard : IEEE 802.11ac
• Network Band : Dual Band
• Frequency Band : 2.40 GHz,5 GHz
• Total Number of Antennas : 3
• Number of Internal Antennas : 3
• Wireless Transmission Speed : 750 Mbit/s
• Data Encryption : Yes
• Encryption Standard : 64-bit WEP,128-bit WEP,152-bit WEP,WPA-PSK,WPA2-PSK
• Ethernet Technology : Fast Ethernet
• Number of Network (RJ-45) Ports : 1
• Power Consumption : 6.50 W

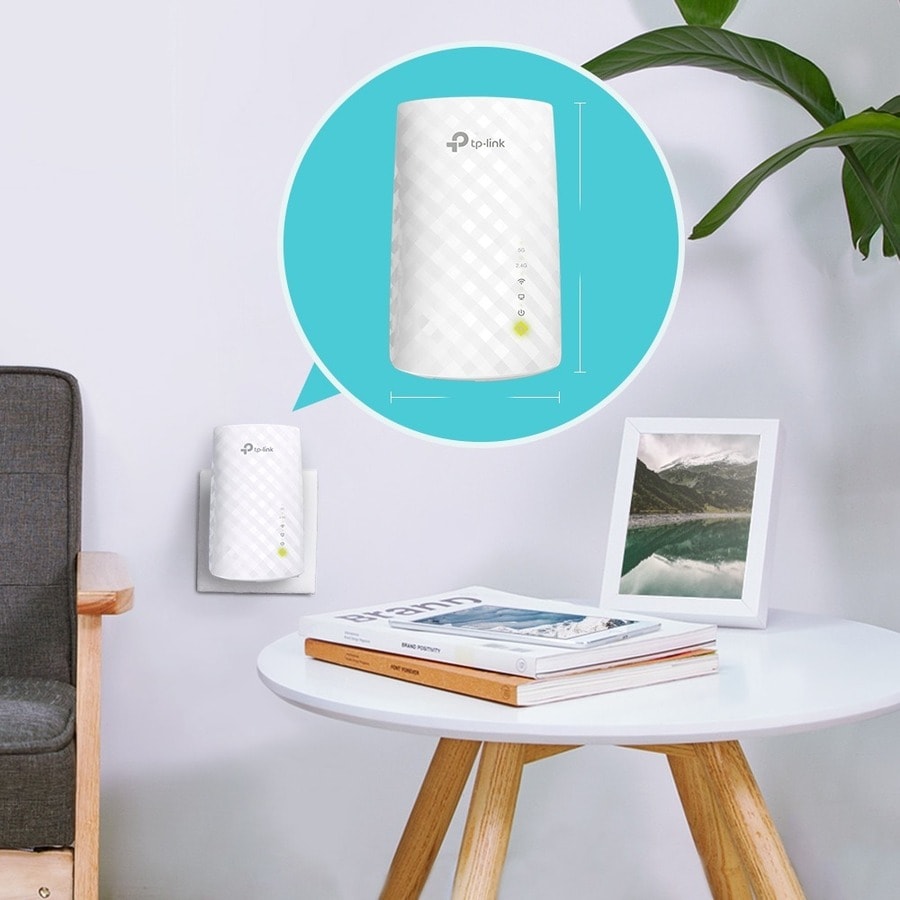

• Form Factor : Wall Mountable
• Antenna Form Factor : Internal
• Height : 2.96" (75.20 mm)
• Width : 4.33" (110 mm)
• Depth : 2.59" (65.80 mm)
• Package Contents :
  • AC750 Wi-Fi Range Extender
  • Quick Installation Guide
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Country of Origin : China
• Limited Warranty : 2 Year

• Extend Wi-Fi Coverage - Boost Internet Wi-Fi coverage up to 1200 square feet and connects up to 20 devices - Compatible with Wi-Fi Router, Gateway, Access Point (2.4GHz - 300Mbps ; 5GHz - 433Mbps).
• Eliminate Wi-Fi Dead Zones - Enjoy Lag-Free Connection to any type of devices, including wired devices via Fast Ethernet port. System Requirements - Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux.
• Stay Connected - Expand Wi-Fi Coverage for your Smart Phones, Smart TV, Fire Stick, Google Chromecast, Web Browsing, Alexa Echo, Ring and more.
• Easy Set Up - 2 Simple taps and you are ready to connect, smart indicator light helps to install in best optimal location.

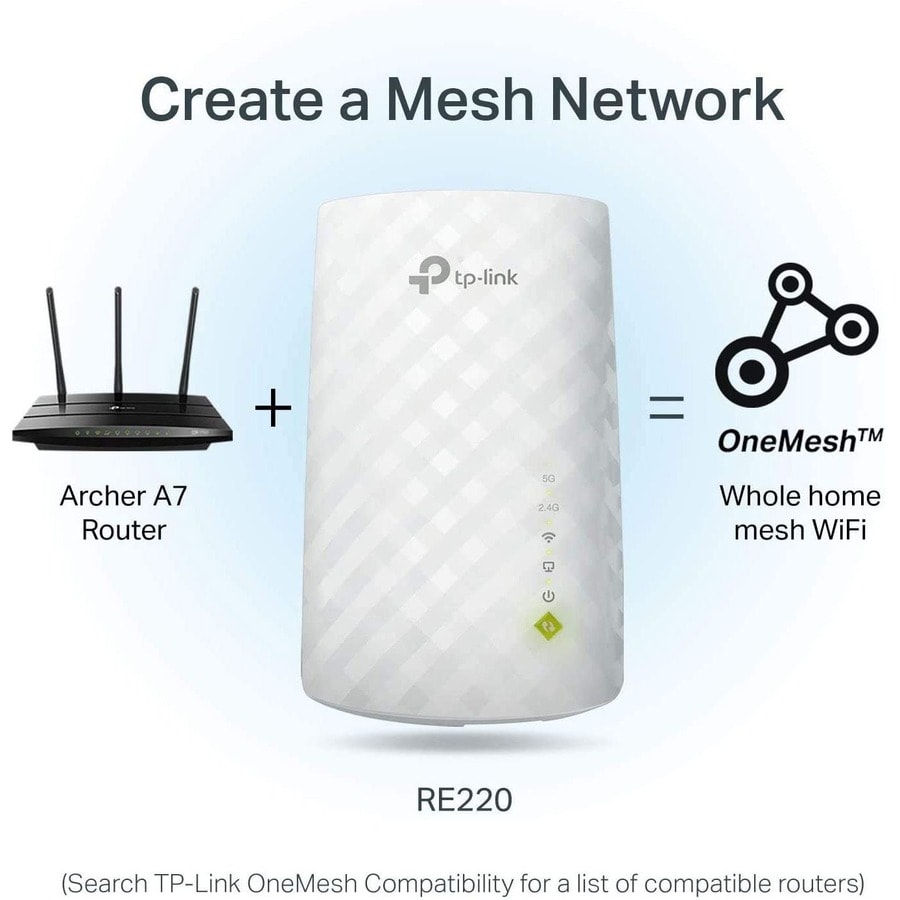

• OneMesh Technology - Enables the creation of a OneMesh network for seamless roaming when paired with the Archer A7 Router (more devices to be updated in the future).
• The Ethernet port of RE220 can easily turn your wired Internet connection into a wireless access point. It can also function as a wireless adapter to connect wired devices, like Blu-ray player, game console or smart TV.
• All Wi-Fi extenders are designed to increas+B23e or improve Wi-Fi coverage, not to directly increase speed. In some cases improving signal reliability can affect overall throughput.
