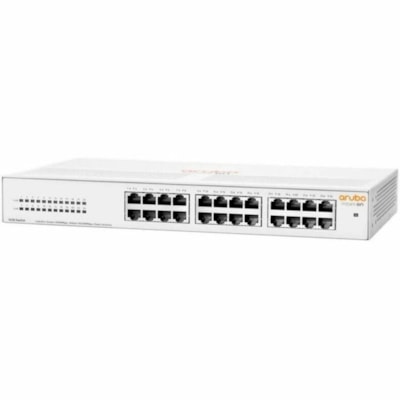

HPE Instant On 1430 24G Switch - 24 Ports - Gigabit Ethernet - 100Base-TX, 10/100/1000Base-T - 2 Layer Supported - 11.70 W Power Consumption - Twisted Pair, Optical Fiber - Table Top, Under Table, Wall Mountable, Rack-mountable - Lifetime Limited Warranty
R8R49A#ABA
Also known as DHR8R49ACA
MARKETING INFORMATION
Aruba Instant On 1430 Switch SeriesTechnology brings new revenue opportunities, more effective communication, and improved productivity to businesses of all sizes. Yet it also poses daily challenges of configuration and maintenance, especially for small businesses who lack IT support. Small offices and home offices need reliable network connectivity that's fast, configuration-free, and affordable for even the most budgetstrapped businesses.
The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities - at an affordable price point - to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.
The Aruba Instant On 1430 Switch Series includes seven switches in PoE and non-PoE configurations: one (1) 5-port, two (2) 8- port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models. With the PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices. All switches are fan-less, making them ideal for acoustically sensitive areas, and unmanaged requiring no configuration (not managed by Aruba Instant On management).
DETAILS
- Features : Fanless
- Total Number of Network Ports : 24
- Network (RJ-45) : Yes
- Uplink Port : Yes
- Port/Expansion Slot Details : 24 x Gigabit Ethernet Network
- Media Type Supported : Twisted Pair,Optical Fiber
- Ethernet Technology : Gigabit Ethernet
- Network Technology : 100Base-TX,10/100/1000Base-T
- Layer Supported : 2
- Networking Standards : IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.1x,IEEE 802.1p,IEEE 802.3i,IEEE 802.3z,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x
- Manageable : No
- Input Voltage : 120 V AC,230 V AC
- Power Source : Power Supply
- Power Consumption : 11.70 W
- Product Color : White
- Form Factor : Table Top,Under Table,Wall Mountable,Rack-mountable
- Height : 1.73" (44 mm)
- Width : 13.39" (340 mm)
- Depth : 8.86" (225 mm)
- Weight (Approximate) : 4.20 lb (1905.09 g)
- Package Contents :
- Instant On 1430 24G Switch
- 2-post Rack Kit
- Brackets
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : Lifetime
- Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-, and 26-port models
- Up to 124W of PoE to power APs, IP Phones, and other IoT devices
- No configuration or management needed
- Plug-and-play with fully automated functions and zero ongoing maintenance
- Quality of Service (QoS) and flow control for improved network efficiency
- Fan-less with Energy Efficient Ethernet for low power consumption
- Class B certified for home office networks (5 and 8 port models)
SPECIFICATIONS
Manufacturer | Hewlett Packard Enterprise |
Manufacturer Part Number | R8R49AABA |
Manufacturer Website Address | http://www.hpe.com |
Brand Name | HPE |
Product Line | Instant On |
Product Series | 1430 |
Product Name | Instant On 1430 24G Switch |
Product Type | Ethernet Switch |
Total Number of Network Ports | 24 |
Uplink Port | Yes |
Features | Fanless |
Network (RJ-45) | Yes |
Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
Media Type Supported | Optical Fiber |
Media Type Supported | Twisted Pair |
Ethernet Technology | Gigabit Ethernet |
Network Technology | 100Base-TX |
Network Technology | 10/100/1000Base-T |
Layer Supported | 2 |
Networking Standards | IEEE 802.1x |
Networking Standards | IEEE 802.3x |
Networking Standards | IEEE 802.3az |
Networking Standards | IEEE 802.3at |
Networking Standards | IEEE 802.3z |
Networking Standards | IEEE 802.3i |
Networking Standards | IEEE 802.1p |
Networking Standards | IEEE 802.3af |
Networking Standards | IEEE 802.3ab |
Networking Standards | IEEE 802.3u |
Networking Standards | IEEE 802.3 |
Manageable | No |
Input Voltage | 230 V AC |
Input Voltage | 120 V AC |
Frequency | 50 Hz |
Frequency | 60 Hz |
Power Source | Power Supply |
Power Consumption | 11.70 W |
Color Family | White |
Product Color | White |
Form Factor | Under Table |
Form Factor | Rack-mountable |
Form Factor | Table Top |
Form Factor | Wall Mountable |
Height | 1.73" (44 mm) |
Width | 13.39" (340 mm) |
Depth | 8.86" (225 mm) |
Weight (Approximate) | 4.20 lb (1905.09 g) |
Package Contents |
|
Application/Usage | VoIP Phone |
Application/Usage | IP Phone |
Application/Usage | Network |
Application/Usage | Small Office |
Application/Usage | Wireless Access Point |
Application/Usage | Enterprise |
Application/Usage | Business |
Application/Usage | Surveillance |
Application/Usage | Home Office |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Limited Warranty | Lifetime |
