MARKETING INFORMATION

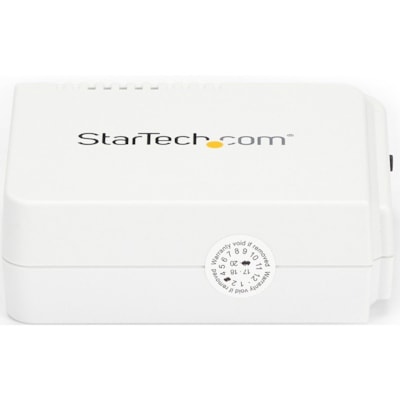

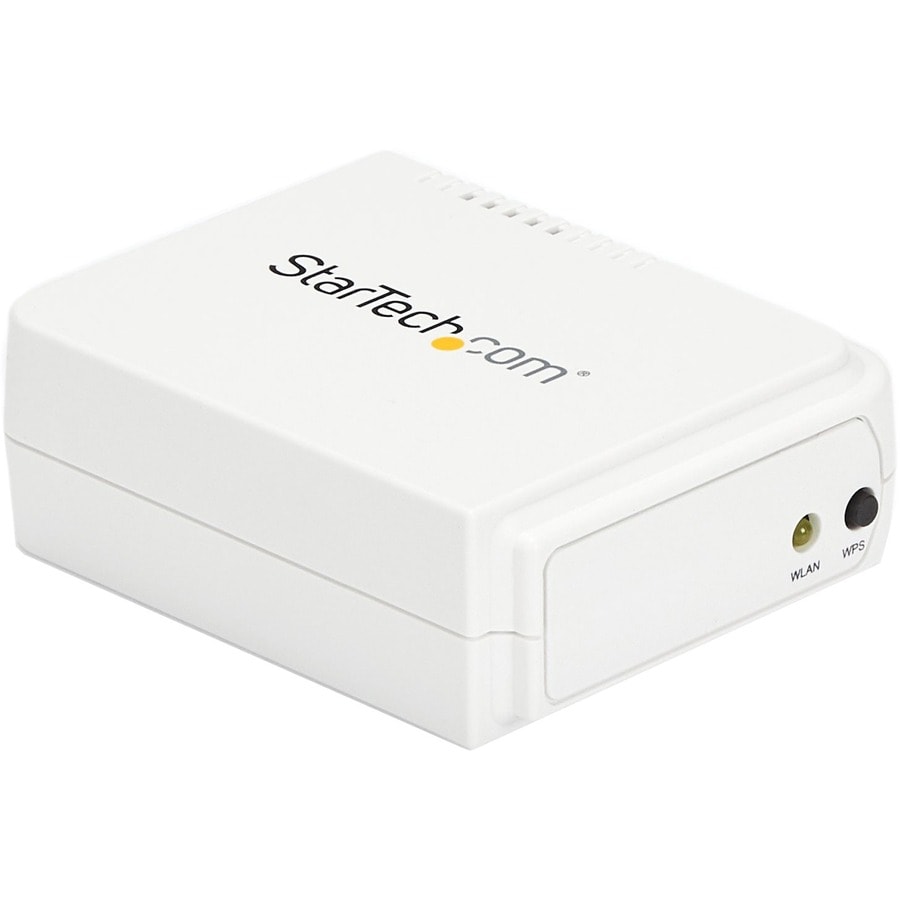

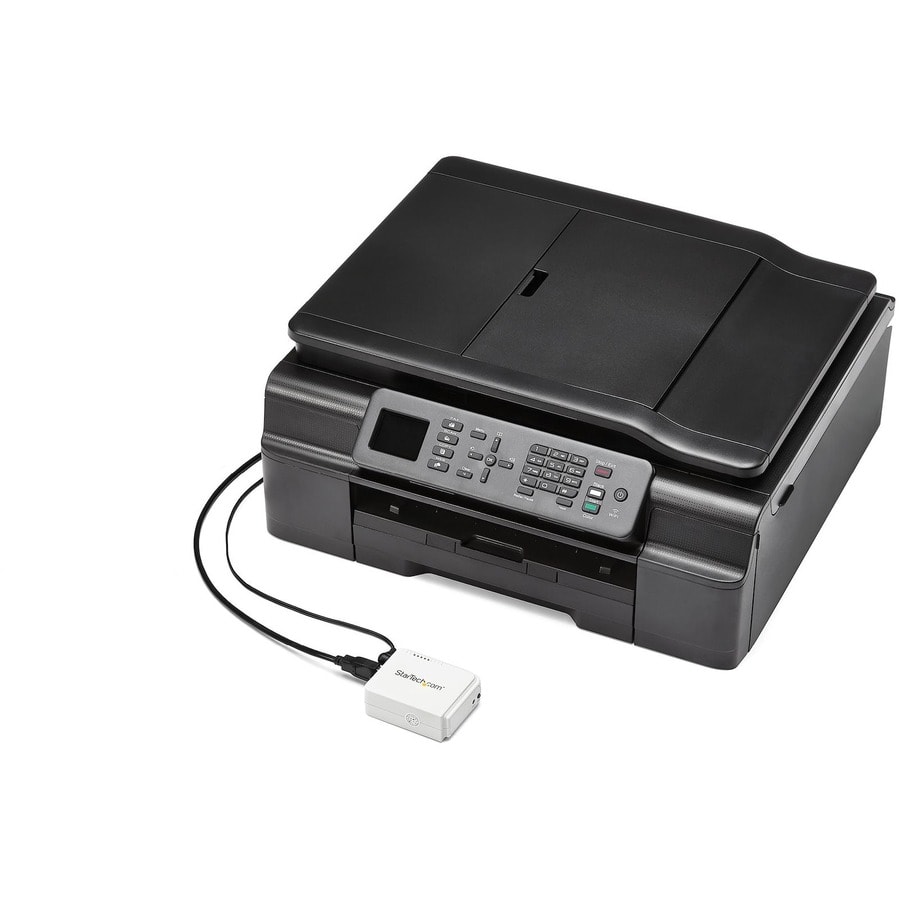

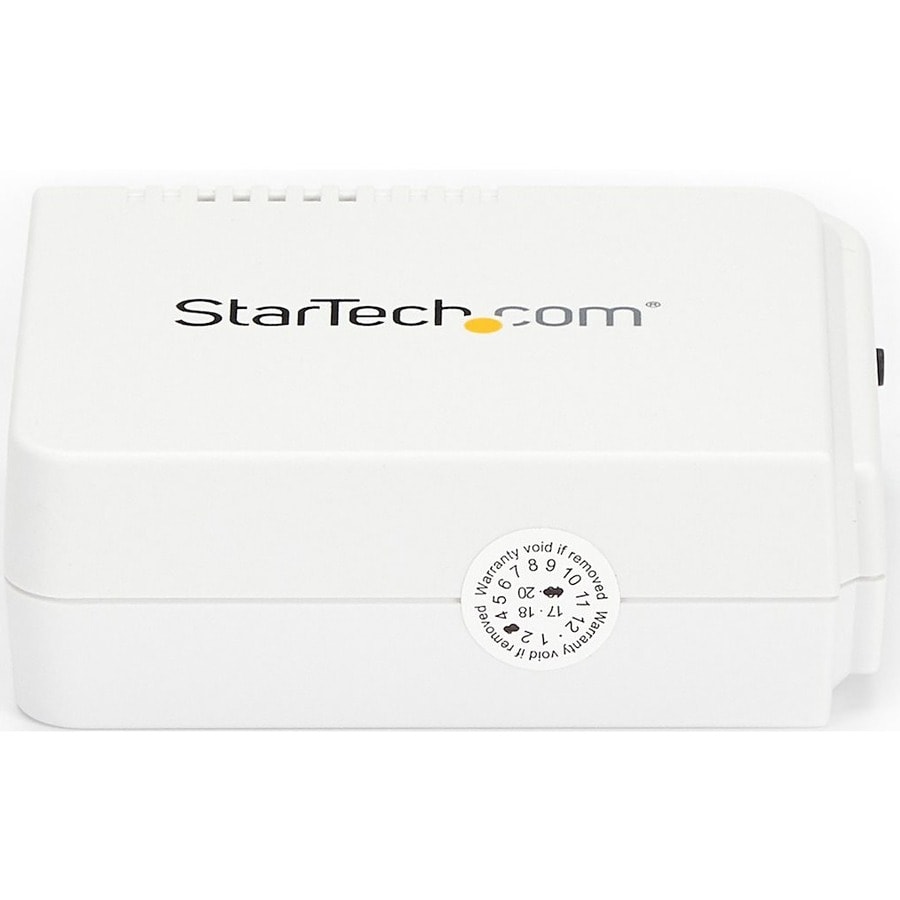

The PM1115UW Wireless-N Print Server lets you share a standard USB printer with multiple users simultaneously over a WiFi network, or a wired LAN connection.

This compact wireless print server supports 802.11b/g/n wireless standards for functionality with almost any wireless network, plus, serving as a primary or backup interface the print server also offers an RJ45 port for 10/100 Mbps wired connections. Providing wireless network printing access enables you to place your printer in any location with network access and avoids the added cost of purchasing individual printers for each workstation or area.

This wireless USB print server can have you up and running in minutes, using either a web-based interface or a Windows® based installation wizard, and also features a WiFi Protected Setup (WPS) button for quick and easy connection to your wireless network. Compatibility with USB 2.0 standards and a wide variety of USB printers and operating systems makes this network print server perfect for installation into mixed environments, with Simple Network Management Protocol (SNMP) support for remote monitoring.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

DETAILS

• Wireless Technology : Wi-Fi
• Wireless LAN Standard : IEEE 802.11n
• ISM Band : Yes
• UNII Band : No
• ISM Maximum Frequency : 2.40 GHz
• Number of Antennas : 1
• Wireless Transmission Speed : 150 Mbit/s
• USB : Yes
• Serial Port : No
• Parallel Port : No
• Network (RJ-45) : Yes
• Number of Network (RJ-45) Ports : 1
• Media Type Supported : Twisted Pair
• Protocols : TCP/IP,NetBEUI,AppleTalk,SNMP,SMB,IPX
• Ethernet Technology : Fast Ethernet
• Network Technology : 10/100Base-TX
• Input Voltage : 5 V DC
• Color Family : White
• Product Color : White
• Form Factor : External
• Height : 1" (25.40 mm)
• Width : 2.30" (58.42 mm)
• Depth : 2.80" (71.12 mm)
• Weight (Approximate) : 1.80 oz (51.03 g)

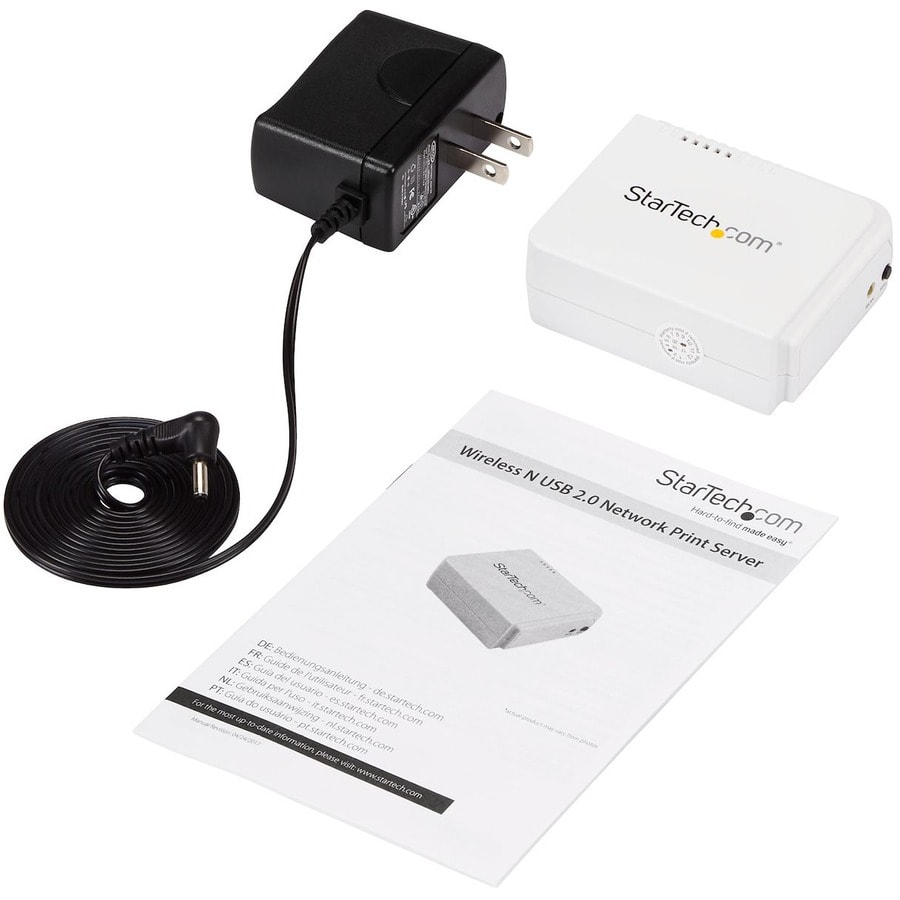

• Package Contents :
  • Wireless Print Server
  • 1 x Power Adapter
  • 1 x Software CD
  • 1 x Quick Install Guide
• Environmentally Friendly : Yes
• Country of Origin : Taiwan
• TAA Compliant : Yes
• Limited Warranty : 2 Year

• Compliant with 802.11b/g/n wireless networks, with data rates up to 150 Mbps
• USB 2.0 support

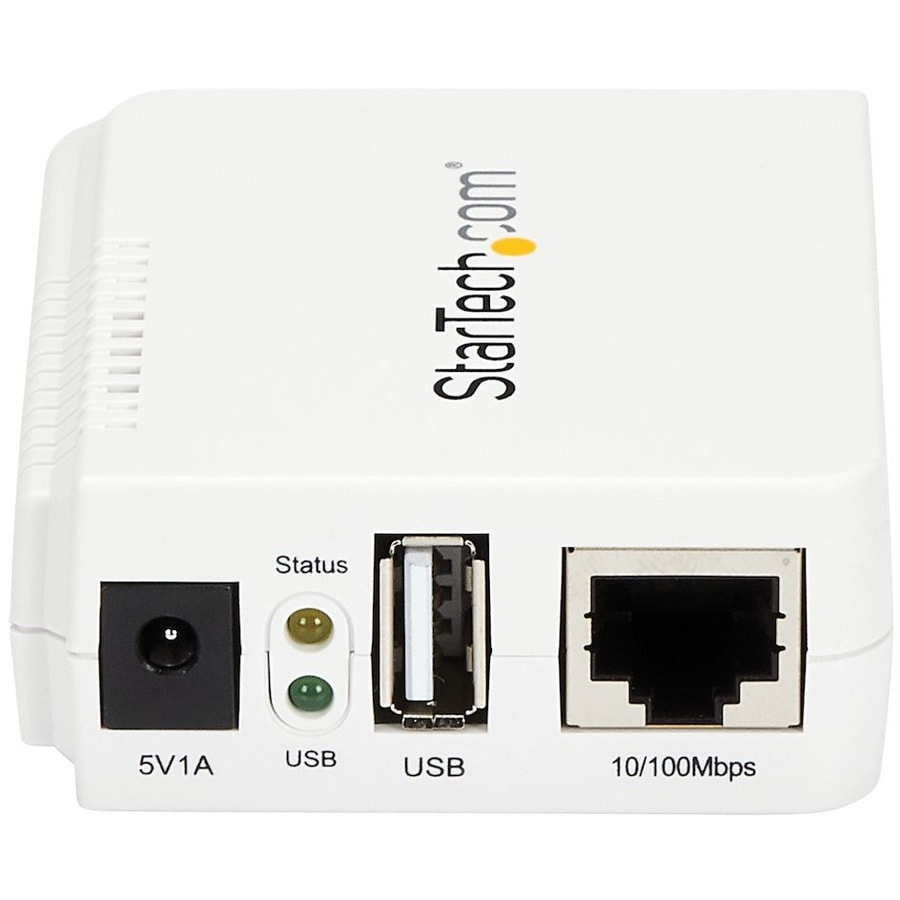

• Optional 10/100 Mbps RJ-45 LAN Port
• Compact, lightweight design with an internal antenna
• Supports SNMP for remote printer management - works with most SNMP based applications
• Easy-to-use web interface or Windows-based configuration and setup
• Built-in multi-function button for resetting the device, loading factory defaults or printing a self-test page

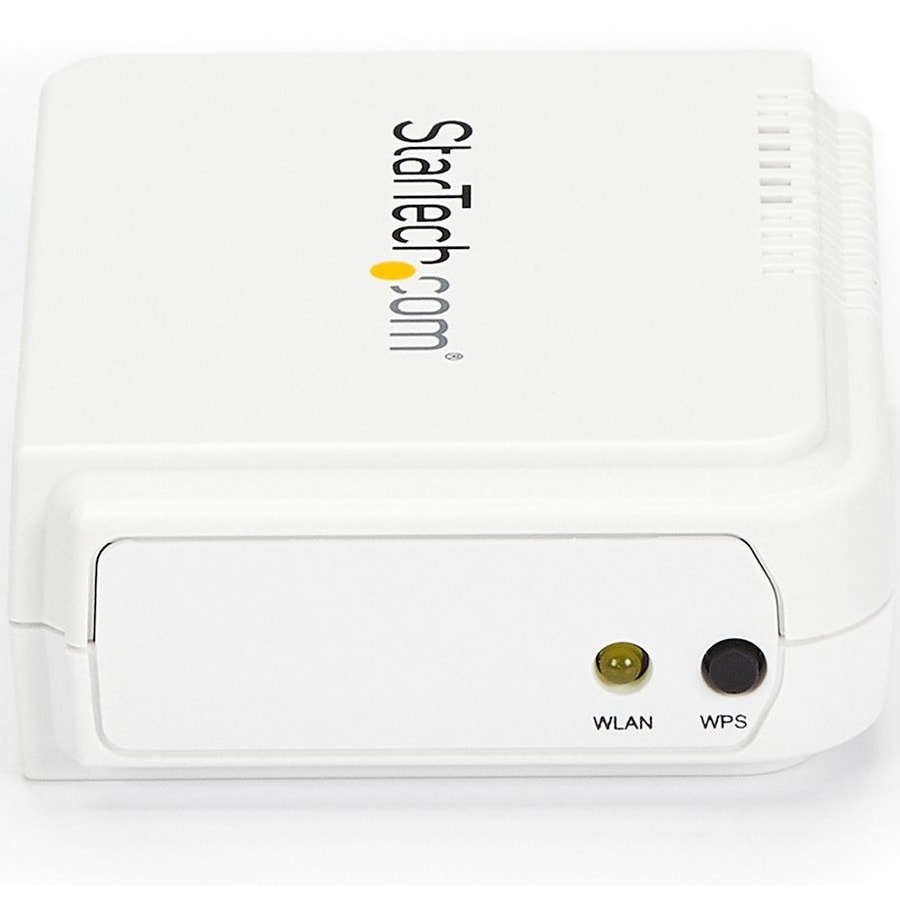

• Built-in WPS (WiFi Protected Setup) button for simple connection to a wireless network
• Supports DHCP Server/Client protocols, and UPnP
