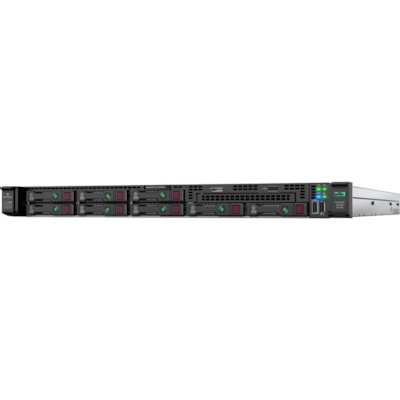

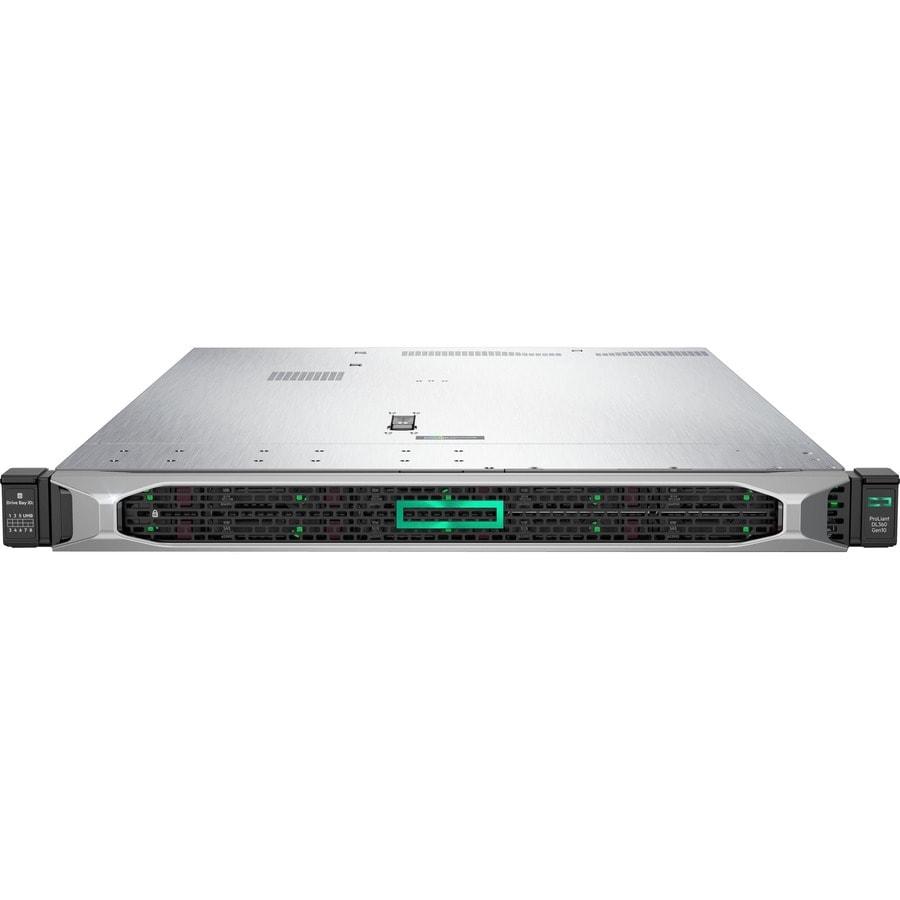

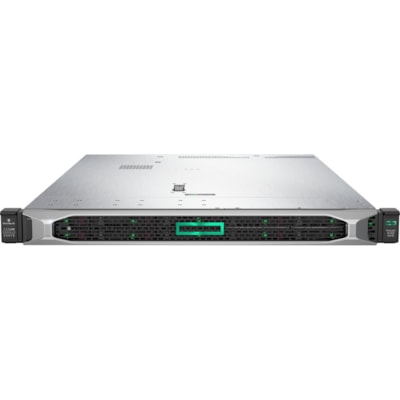

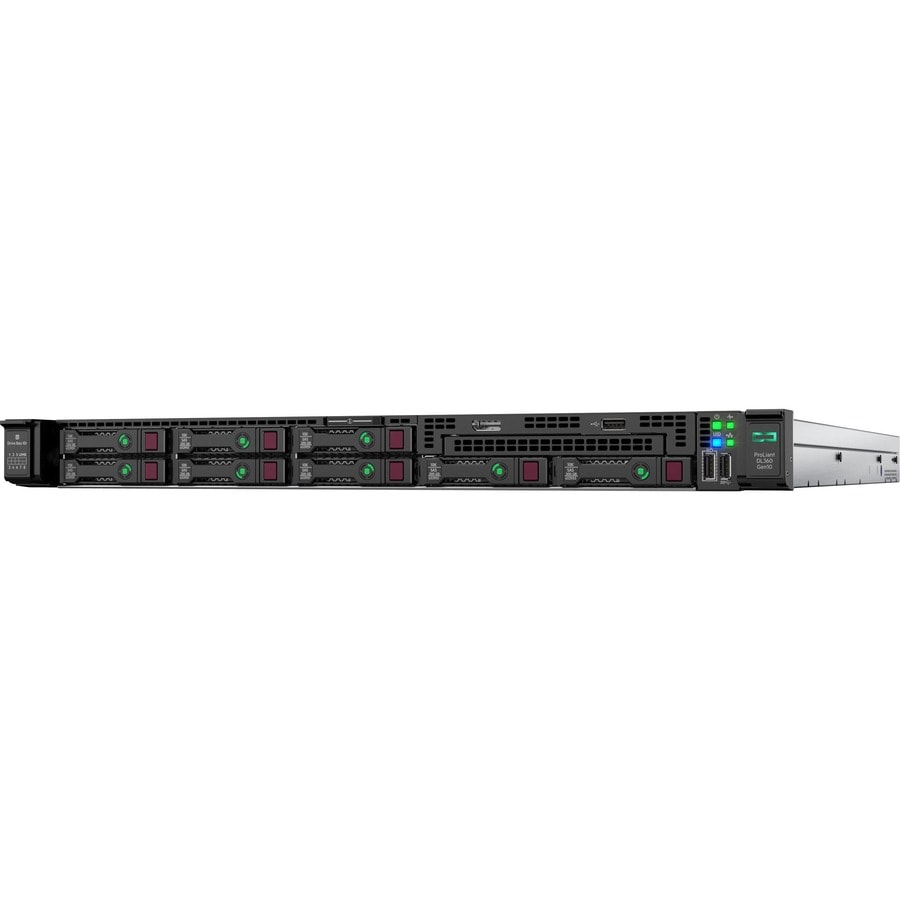

HPE ProLiant DL360 G10 1U Rack Server - 1 Xeon Gold 5218 2.30 GHz - 32 GB RAM - Serial ATA/600, 12Gb/s SAS Controller - 2 Processor Support - DDR4 SDRAM - Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 800 W - Intel Optane Memory Ready

P19777-B21
Also known as DHP19777B21CA

HPE ProLiant DL360 G10 1U Rack Server - 1 Xeon Gold 5218 2.30 GHz - 32 GB RAM - Serial ATA/600, 12Gb/s SAS Controller - 2 Processor Support - DDR4 SDRAM - Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 800 W - Intel Optane Memory Ready F Svr

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise.

The HPE ProLiant DL360 Gen10 Server supports the Intel® Xeon® Scalable Processor Family with up to 28 cores, plus 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB max. With the added performance that HPE Persistent Memory and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE OneView and HPE iLO 5.

DETAILS

  • Number of Processors Supported : 2
  • Number of Processors Installed : 1
  • Processor Type : Xeon Gold
  • Processor Generation : 2nd Gen
  • Processor Model : 5218
  • Processor Core : Hexadeca-core (16 Core)
  • Processor Speed : 2.30 GHz
  • Standard Memory : 32 GB
  • Memory Technology : DDR4 SDRAM
  • Total Number of Memory Slots : 24
  • Number of Occupied Memory Slots : 1
  • Intel Optane Memory Ready : Yes
  • Total Hard Drive Capacity : No
  • Optical Drive Type : No
  • Controller Type : Serial ATA/600,12Gb/s SAS
  • RAID Supported : Yes
  • Number of Total Expansion Bays : 8
  • Number of Internal 2.5" Bays : 8
  • Hot Swappable Bays : Yes
  • Graphics Memory Capacity : 16 MB
  • Ethernet Technology : Gigabit Ethernet
  • Operating System : No
  • Input Voltage : 120 V AC,230 V AC
  • Number of Power Supplies Supported : 2
  • Number of Power Supplies Installed : 1
  • Plug/Connector Type : C13
  • Maximum Power Supply Wattage : 800 W
  • Package Contents :
    • ProLiant DL360 G10 Server
    • 6-foot IEC C-13/C-14 Jumper Cord
    • Rail Kit SFF Easy Install w/o CMA
  • Energy Star : Yes
  • Environmentally Friendly : Yes
  • Energy Efficiency Certification : ENERGY STAR 2.1
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Form Factor : Rack
  • Rack Height : 1U
  • Height : 1.69" (42.90 mm)
  • Width : 17.11" (434.60 mm)
  • Depth : 27.83" (707 mm)
  • Weight (Approximate) : 35.87 lb (16270 g)
  • Limited Warranty : 3 Year
  • 32 GB powerful memory for any computational task
  • RAID provides data reliability, fault tolerance and improves overall performance
  • Gigabit Ethernet port for ultra-fast network speeds
  • 1 x 800 W power supply unit (PSU) included

SPECIFICATIONS

Manufacturer Hewlett Packard Enterprise
Manufacturer Part Number P19777-B21
Manufacturer Website Address http://www.hpe.com
Brand Name HPE
Product Line ProLiant
Product Series DL360 G10
Product Name ProLiant DL360 G10 Server
Product Type Server
Number of Processors Supported 2
Number of Processors Installed 1
Processor Type Xeon Gold
Processor Generation 2nd Gen
Processor Model 5218
Processor Core Hexadeca-core (16 Core)
Processor Speed 2.30 GHz
Standard Memory 32 GB
Memory Technology DDR4 SDRAM
Total Number of Memory Slots 24
Number of Occupied Memory Slots 1
Intel Optane Memory Ready Yes
Total Hard Drive Capacity No
Optical Drive Type No
Controller Type Serial ATA/600
Controller Type 12Gb/s SAS
RAID Supported Yes
Number of Total Expansion Bays 8
Number of Internal 2.5" Bays 8
Hot Swappable Bays Yes
Graphics Memory Capacity 16 MB
Ethernet Technology Gigabit Ethernet
Operating System No
Input Voltage 230 V AC
Input Voltage 120 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Plug/Connector Type C13
Maximum Power Supply Wattage 800 W
Form Factor Rack
Rack Height 1U
Height 1.69" (42.90 mm)
Width 17.11" (434.60 mm)
Depth 27.83" (707 mm)
Weight (Approximate) 35.87 lb (16270 g)
Package Contents
  • ProLiant DL360 G10 Server
  • 6-foot IEC C-13/C-14 Jumper Cord
  • Rail Kit SFF Easy Install w/o CMA
Energy Star Yes
Environmentally Friendly Yes
Energy Efficiency Certification ENERGY STAR 2.1
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty 3 Year
