MARKETING INFORMATION

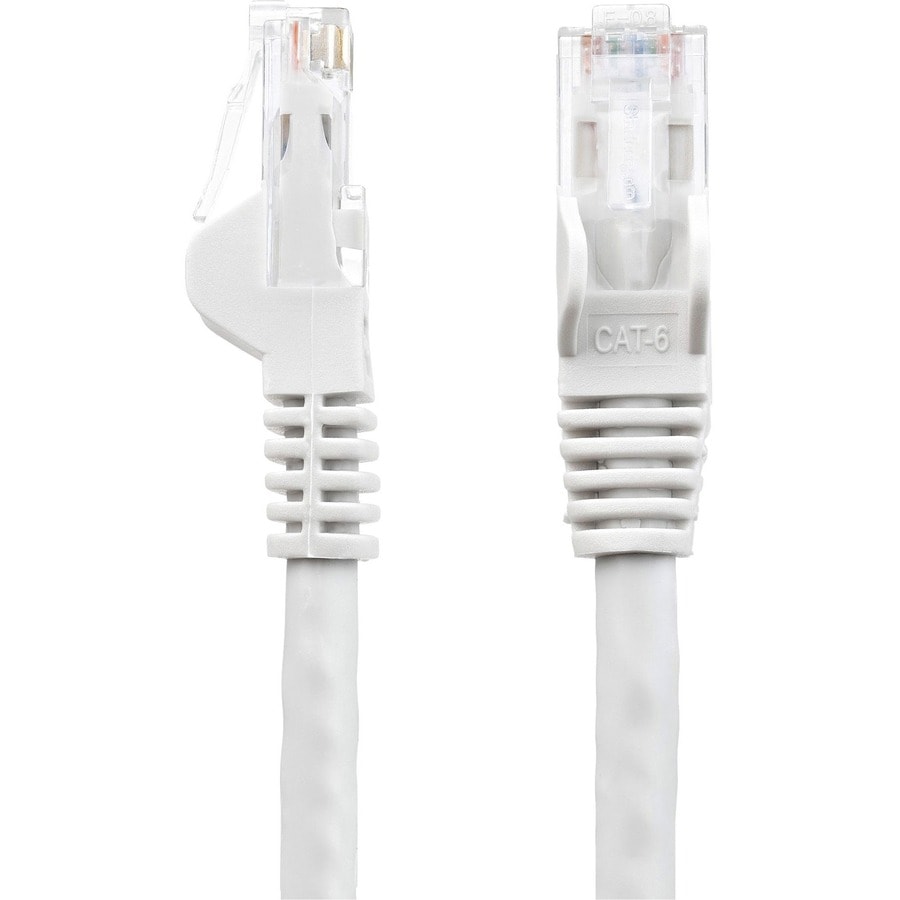

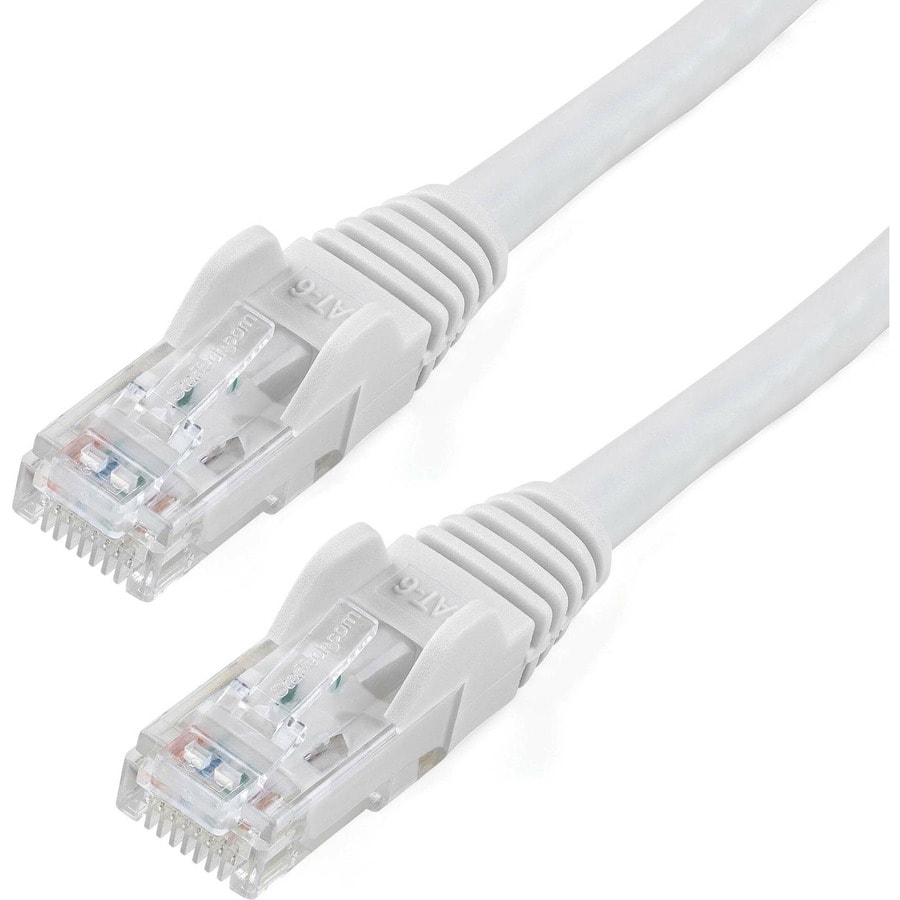

The N6PATCH15WH Cat 6 Patch Cable (15 ft) meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable white PVC jacket that enables you to color code your network cable runs as needed.

To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles - reducing the risk of cable damage, which could decrease network performance.

Constructed of only top quality materials, this Cat 6 Patch Cord delivers reliable performance and is backed by our Lifetime Warranty.

100% Copper - a better value

StarTech.com Cat6 cables are manufactured using high-quality copper conductors. While many cable manufacturers offer a "cheaper" cable based on a copper-coated aluminum core, we make no compromises on quality to ensure you receive top value and performance for your network cable investment.

24 AWG Wire

This Cat6 cable is constructed with 24 gauge copper wire, to support a broad range of Ethernet applications such as Power over Ethernet (PoE). Because we use a high quality copper wire, our cables easily sustain the power required for Power over Ethernet applications, whereas the inferior quality offered by copper-coated aluminum cables may be subject to insufficient power delivery, heat buildup, equipment damage and potentially, fire.

50-micron Gold Connectors

This Cat 6 patch cable offers high quality connectors comprised of 50-micron gold, to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

More from the Manufacturer

DETAILS

• Cable Type : Category 6
• Cable Characteristic : Patch Cable
• Cable Length : 15 ft (4.57 m)
• Connector Type on First End : RJ-45 Network - Male
• Connector Gender on First End : Male
• Connector on First End Details : 1 x RJ-45 Network - Male
• Connector Type on Second End : RJ-45 Network - Male
• Connector Gender on Second End : Male
• Connector on Second End Details : 1 x RJ-45 Network - Male
• Connector Plating : Gold
• Jacket Type : CMG
• Device Supported : Network Device,Workstation,Wall Outlet,Distribution Panel,Hub,Security Device,VoIP Device
• American Wire Gauge : 24 AWG
• Data Transfer Rate : 10 Gbit/s
• Boot Type : Snagless,Molded
• Features : Molded,Strain Relief,Damage Resistant,Corrosion Resistant,Stranded,Fray Resistant,Rust Resistant,Bend Resistant,PoE
• Color Family : White
• Product Color : White
• Jacket Material : Polyvinyl Chloride (PVC)
• Weight (Approximate) : 7.40 oz (209.79 g)
• Environmentally Friendly : Yes
• Country of Origin : China
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Limited Warranty : Lifetime

• High quality 24 AWG copper wire
• ETL Verified
• HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 160'; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6; ETL Verified
• POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
• QUALITY CONSTRUCTION: ETL & UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
• EASY INSTALLATION: 15 foot snagless patch cord for easy installation & flexible disconnection in wiring conduits; Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces
• SPECS: Length: 15ft (4.6m) | Color: White | 650 MHz Rated | Structure: 4 Pair UTP | RJ45 | Jacket: PVC | Wire Gauge: 24 AWG Copper | Wiring: ANSI/T568B | ETL Verified | Warranty: Lifetime
