MARKETING INFORMATION

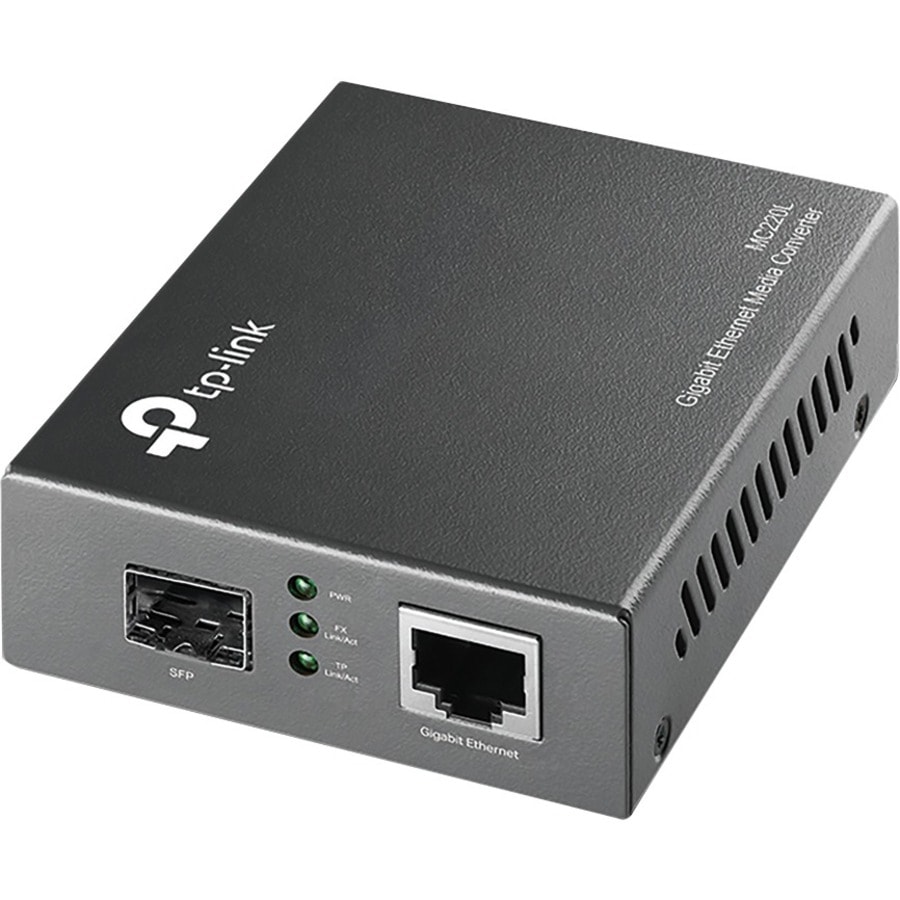

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

DETAILS

• Total Number of Ports : 1
• Network (RJ-45) : Yes
• Number of Network (RJ-45) Ports : 1
• Total Number of Expansion Slots : 1
• Expansion Slot Type : SFP
• Number of SFP Slots : 1
• Ethernet Technology : Gigabit Ethernet
• Network Technology : 1000Base-T
• Power Source : Power Adapter
• Power Consumption : 1.70 W
• Form Factor : External

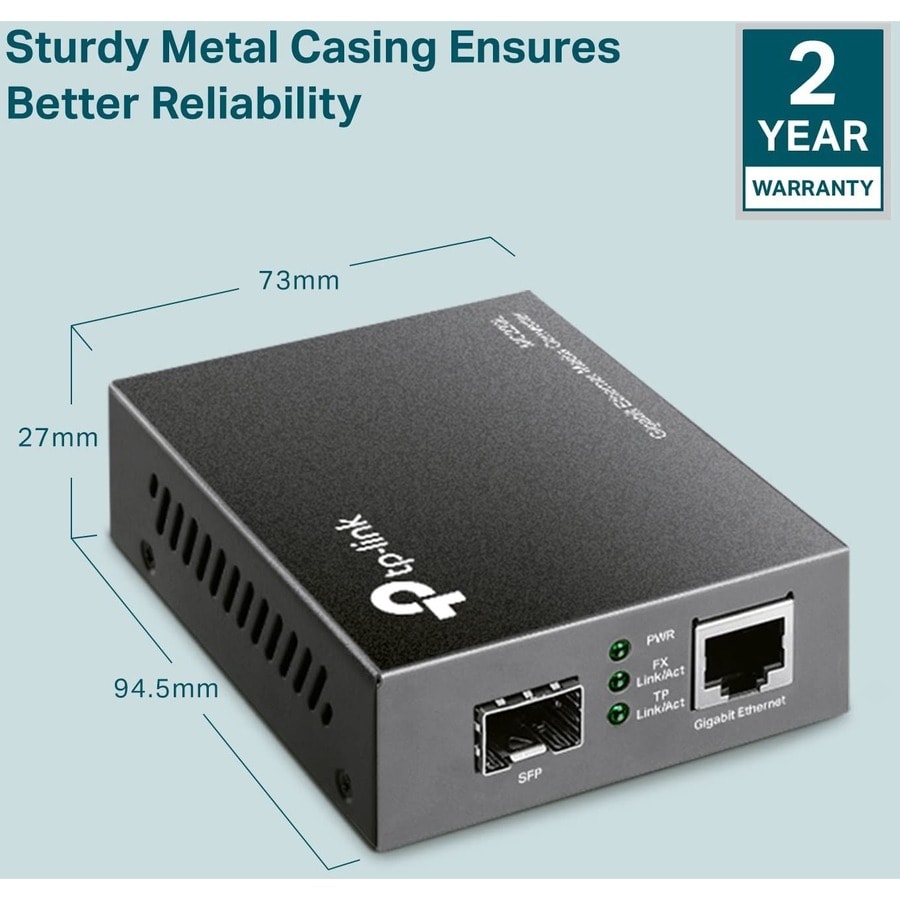

• Height : 1.10" (27.94 mm)
• Width : 3.70" (93.98 mm)
• Depth : 2.90" (73.66 mm)
• Package Contents :
  • MC220L Gigabit Ethernet Media Converter
  • Power Adapter
  • Installation Guide
• Environmentally Friendly : Yes

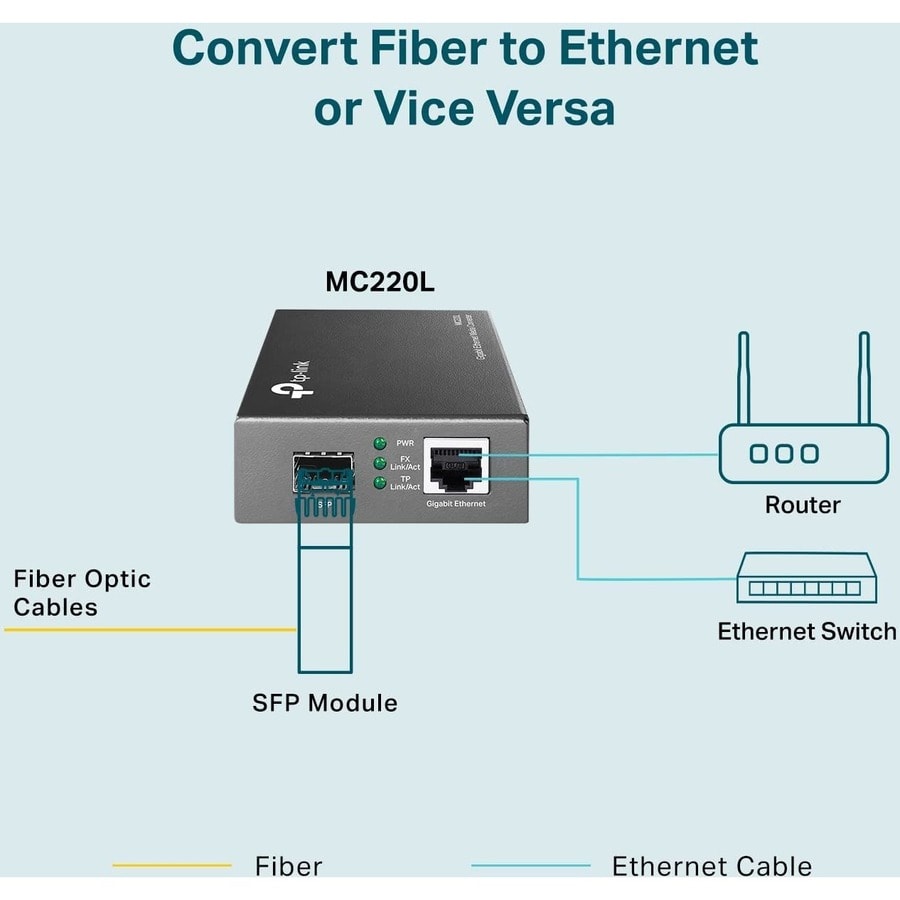

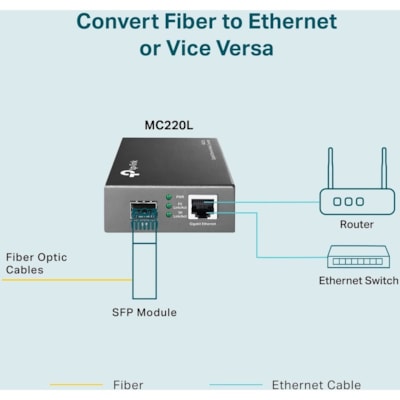

• Convert Fiber to Ethernet: Designed to convert 1000BASE-SX/LX fiber to 1000Base-T copper media or vice versa.

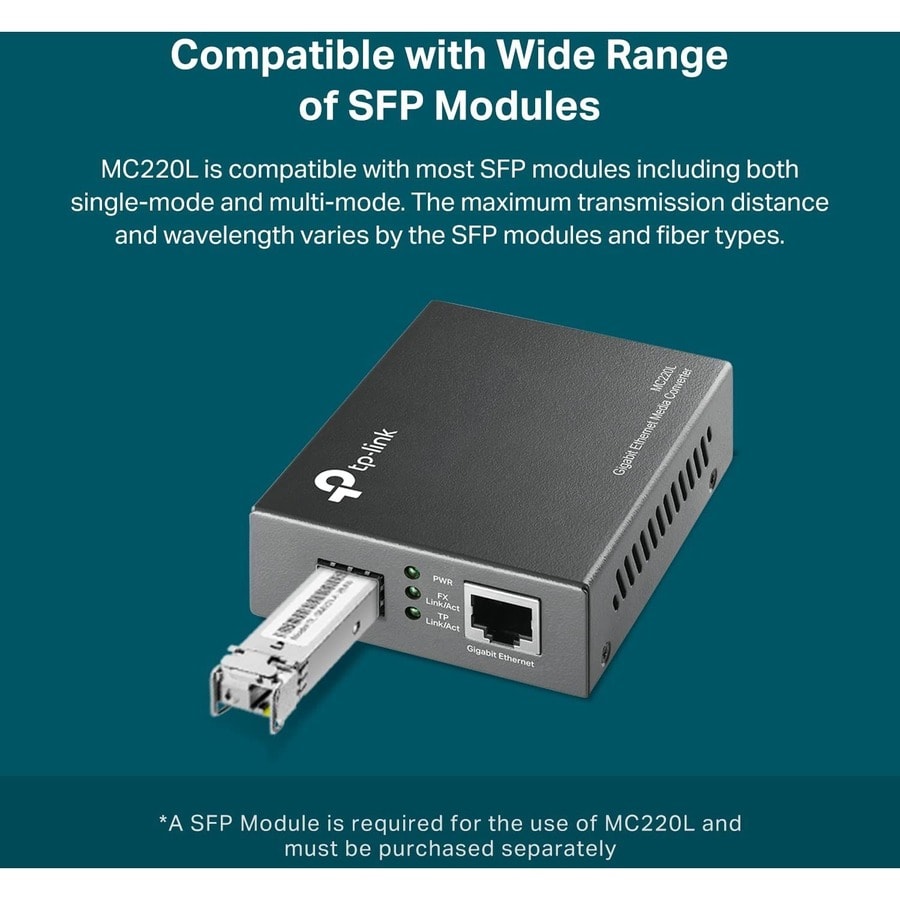

• Versatile Compatibility: Works with both single-mode and multi-mode fiber SFP modules and is fully compatible with 10/100/1000 Base-T Ethernet connections.
• Easy to Use: Plug and play with no software installation or configuration needed.

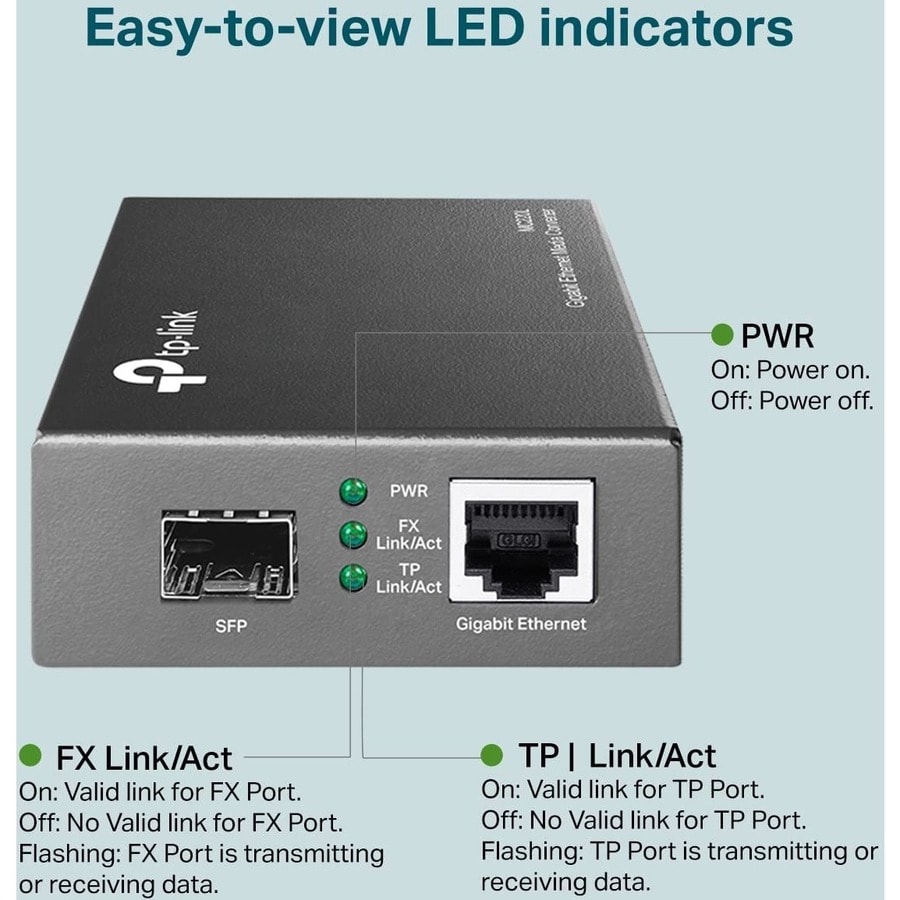

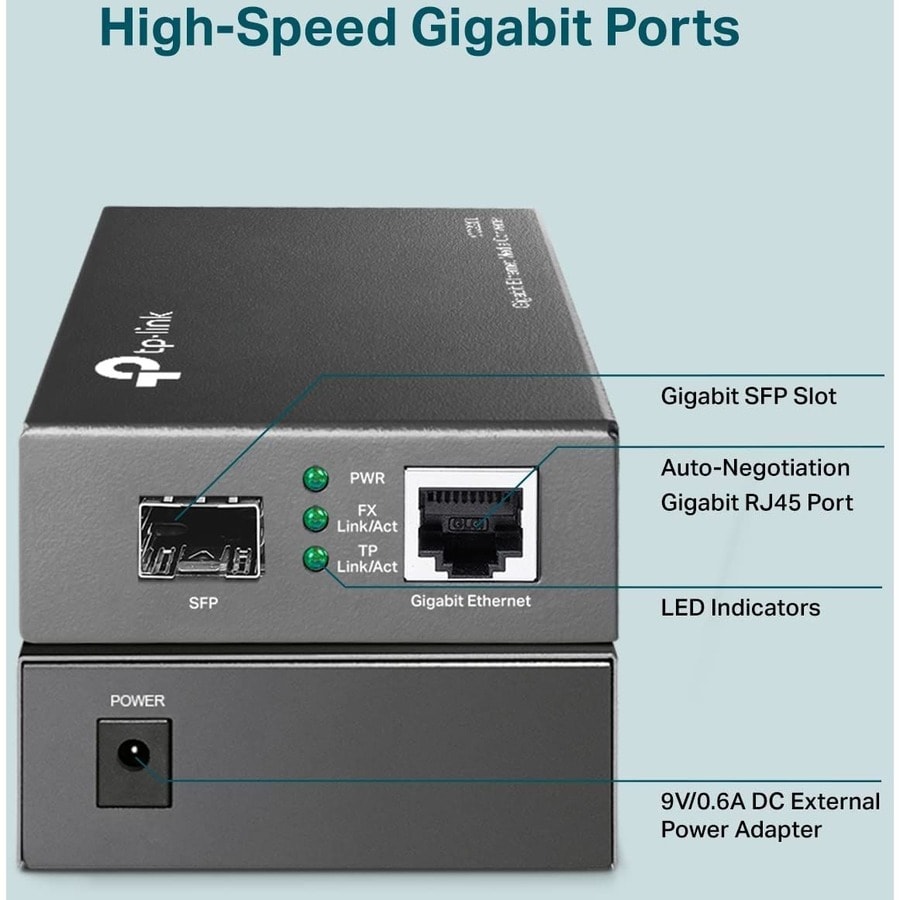

• Auto-Negotiation Gigabit Connection: Auto-negotiation RJ45 port supports Half-Duplex/Full-Duplex transfer mode and auto-MDI/MDIX.
• Long-Range Transmission: When used with different types of SFP modules, the Hot-Swappable FX Port extends fiber distance up to 12.4miles (20km) for Single-Mode transmission and 1,800 feet (550m) for Multi-Mode transmission.

SPECIFICATIONS
