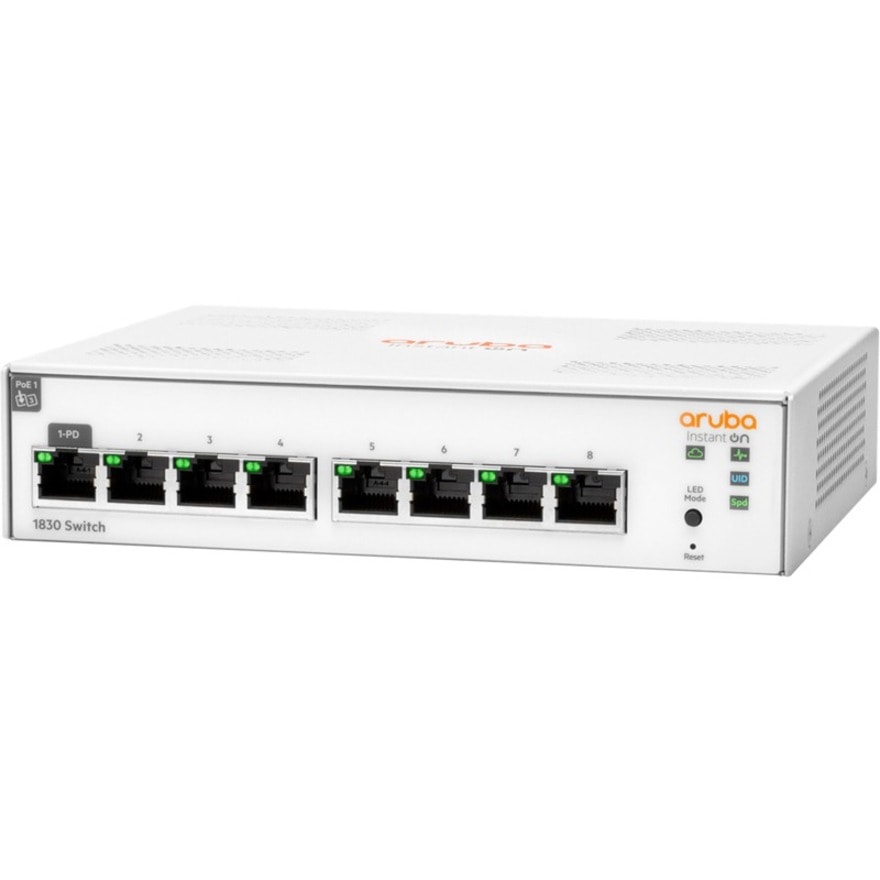

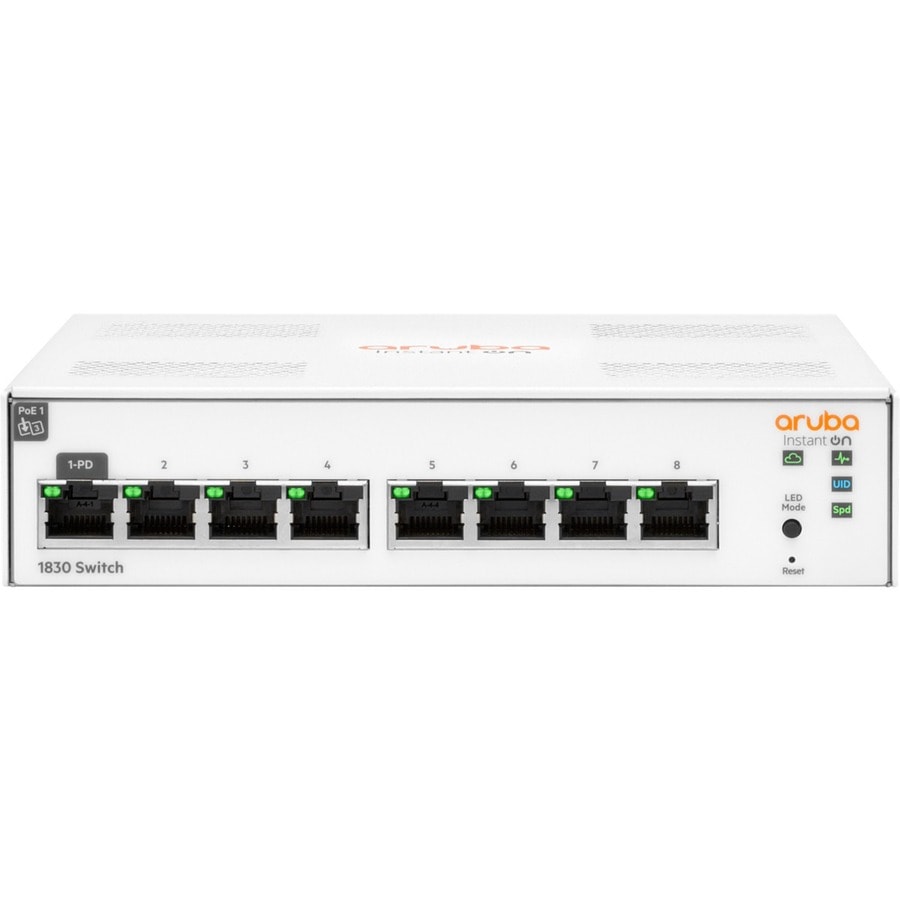

HPE Instant On 1830 8G Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 5.90 W Power Consumption - 13 W PoE Budget - Twisted Pair - PoE Ports - Table Top, Wall Mountable, Under Table, Surface Mount, Desktop - Lifetime Limited Warranty
JL810A#ABA
Also known as DHJL810ACA
MARKETING INFORMATION
Aruba Instant On 1830 Switch Series
Small businesses continue to face challenges to stay afloat as the world wrestles with this multi-year pandemic. They need day-today tasks to be simple to keep operations running smoothly, and with increasing costs making it more expensive than ever to stay in business, they need affordable solutions.
Fast, reliable, and secure network connections play a critical role in helping businesses maintain a competitive advantage. At the same time, with constrained resources and a growing number of interconnected devices, getting the most valuable networking solution for the money has become a basic need for budget-strapped small businesses.
Aruba Instant On 1830 Switch Series is an affordable, easy to deploy, smart-managed switch series for small businesses looking for a cost-effective ways to keep up with evolving network demands. These are entry-level switches offering Layer 2 switching capabilities, Gigabit connectivity along with flexible management modes - all at an affordable price point.
DETAILS
- Total Number of Network Ports : 8
- Network (RJ-45) : Yes
- Port/Expansion Slot Details : 8 x Gigabit Ethernet PoE
- Media Type Supported : Twisted Pair
- Ethernet Technology : Gigabit Ethernet
- Network Technology : 10/100/1000Base-T
- Layer Supported : 2
- Networking Standards : IEEE 802.1p,IEEE 802.3af,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z,IEEE 802.3x,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.1D,IEEE 802.1w,IEEE 802.3az,IEEE 802.1ab,IEEE 802.3ac,IEEE 802.3at
- Manageable : Yes
- PoE (RJ-45) Port : Yes
- PoE Budget : 13 W
- Power Source : Power Adapter
- Power Consumption : 5.90 W
- Form Factor : Table Top,Wall Mountable,Under Table,Surface Mount,Desktop
- Height : 1.54" (39.10 mm)
- Width : 6.81" (173 mm)
- Depth : 6.18" (157 mm)
- Weight (Approximate) : 1.70 lb (771.11 g)
- Package Contents :
- Instant On 1830 8G Switch
- External Power Adapter
- Limited Warranty : Lifetime
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
SPECIFICATIONS
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL810A#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | HPE |
| Product Line | Instant On |
| Product Series | 1830 |
| Product Name | Instant On 1830 8G Switch |
| Product Type | Ethernet Switch |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3ac |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.1p |
| Manageable | Yes |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 13 W |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Power Source | Power Adapter |
| Power Consumption | 5.90 W |
| Form Factor | Under Table |
| Form Factor | Desktop |
| Form Factor | Wall Mountable |
| Form Factor | Table Top |
| Form Factor | Surface Mount |
| Height | 1.54" (39.10 mm) |
| Width | 6.81" (173 mm) |
| Depth | 6.18" (157 mm) |
| Weight (Approximate) | 1.70 lb (771.11 g) |
| Package Contents |
|
| Limited Warranty | Lifetime |
