MARKETING INFORMATION

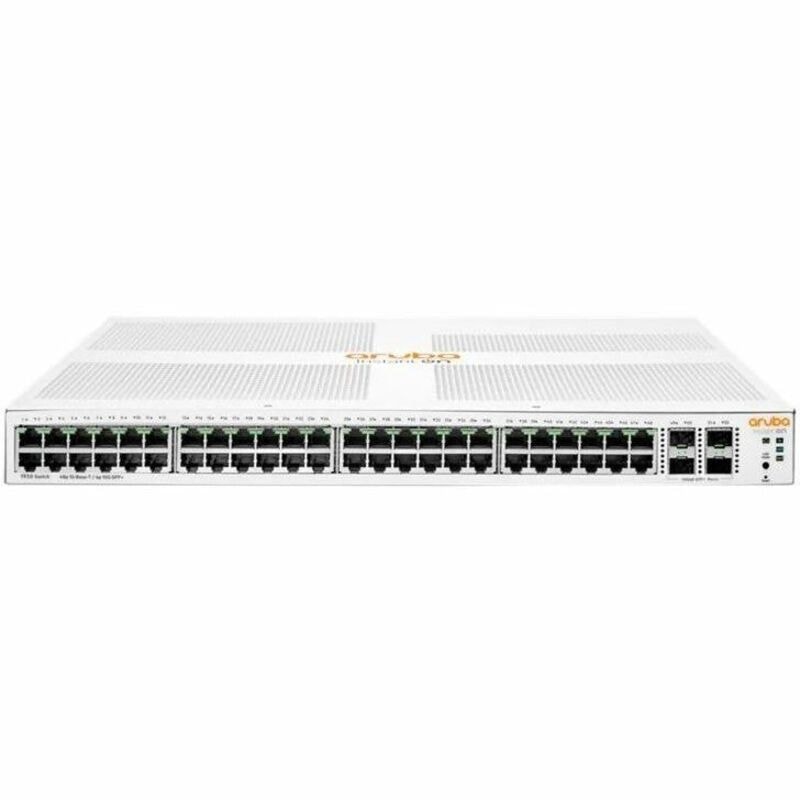

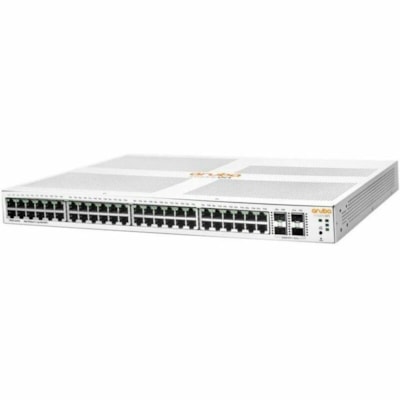

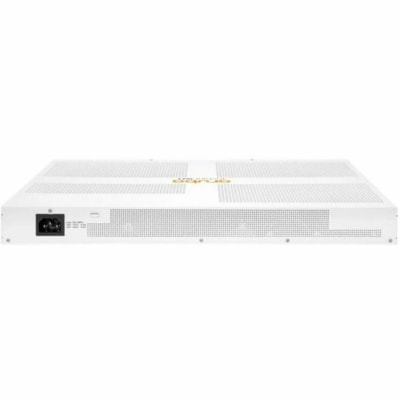

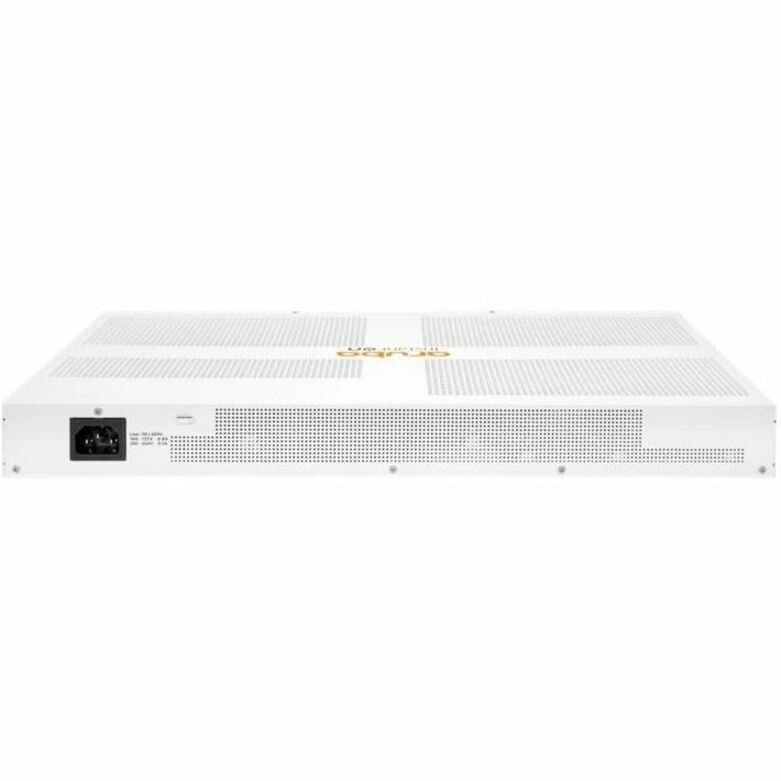

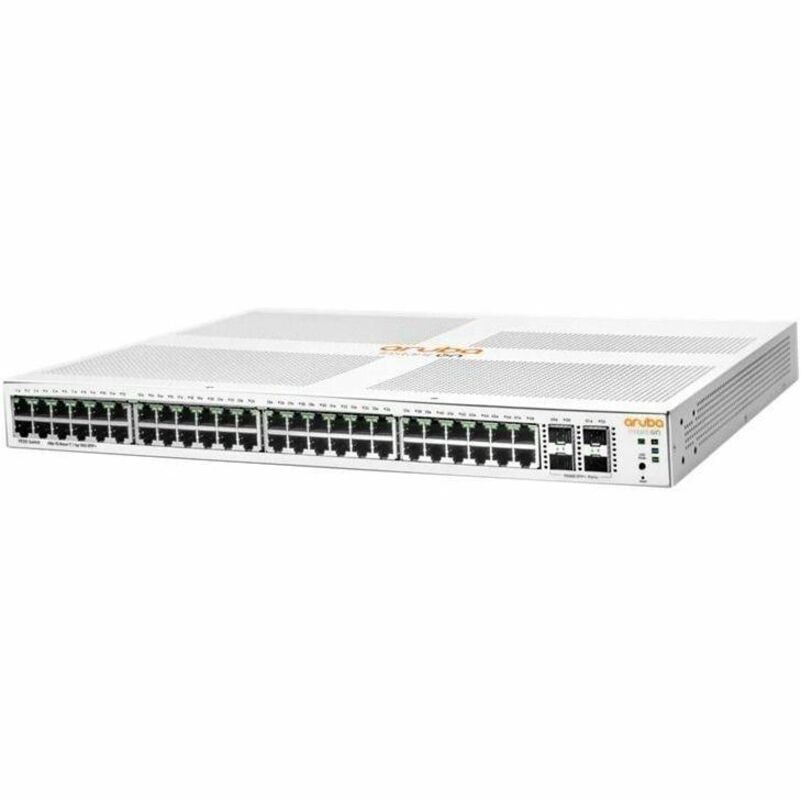

Aruba Instant On 1930 switches are advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses and SMBs looking for high performance networking that is easy-to-deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance. This model supports 52 active ports -- 48x 10/100/1000 copper Ethernet RJ45 ports and four 1-Gigabit / 10-Gigabit SFP+ style uplink slots.

Using either the Instant On mobile app or its cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. Also available is a comprehensive local web interface. Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. Advanced features include VLANs, 802.1X radius-based network login, three levels of Spanning Tree protocol, and Layer 3 static routing, among others. And all of this is included in the price of the hardware - there are no hidden subscription or licensing fees. All are backed by Aruba's Limited Lifetime Warranty.

DETAILS

• Total Number of Network Ports : 52
• Uplink Port : Yes
• Modular : Yes
• Port/Expansion Slot Details : 48 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot
• Media Type Supported : Optical Fiber,Twisted Pair
• Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
• Network Technology : 1000Base-T,10GBase-X
• Total Number of Expansion Slots : 4.0
• Expansion Slot Type : SFP+
• Shared SFP Slot : No
• Number of SFP+ Slots : 4
• Layer Supported : 3
• Manageable : Yes
• Power Consumption : 36.90 W
• Form Factor : Rack-mountable
• Height : 1.70" (43.18 mm)
• Width : 17.40" (441.96 mm)
• Depth : 11.10" (281.94 mm)
• Weight (Approximate) : 6.90 lb (3129.79 g)
• Limited Warranty : Lifetime

• High performance yet affordable Gigabit switches built for small businesses and SMBs, with simple-to-use cloud management at no added cost.
• This model: 48 x 10/100/1000 RJ45 ports plus four (4) dedicated 1G / 10G SFP+ slots for fiber uplinks or additional ports. (SFP and SFP+ transceivers separately sold)
• Shares common app and cloud-based administration with Instant On Wi-Fi Access Points, for Wi-Fi optimized networking.

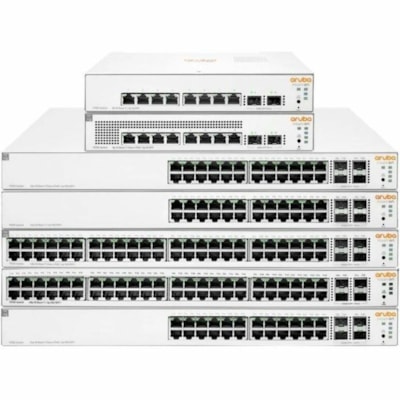

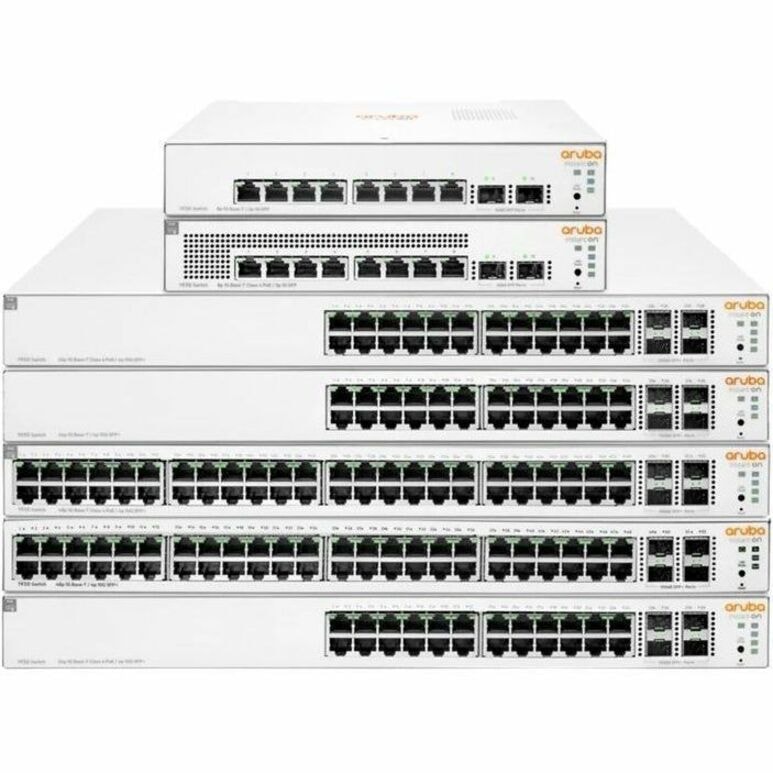

• The series offers a complete portfolio of switch model choices. Choose from seven models -- 10-port, 28-port, 52-port models without and with Class 4 PoE+ Power over Ethernet.
• Guard your network from unwanted or unauthorized access with switch features such as IEEE 802.1X and VLANs
• Use a mobile app to easily setup, monitor and manage your network
• Limited Lifetime Support provides 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.
