MARKETING INFORMATION

High-Density Connectivity with 4× Increased Capacity

OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

High Quality and Full Coverage Wi-Fi

Full Wi-Fi Coveragein High-Density Environment

Social Marketing for O2O

Wireless and Wired Connections for dense usage

High-Density Wi-F

Blazing Fast Speed with 8 Spatial Streams

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

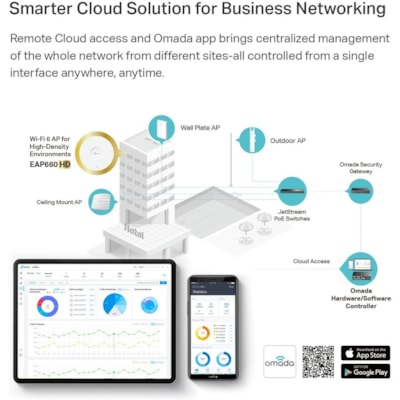

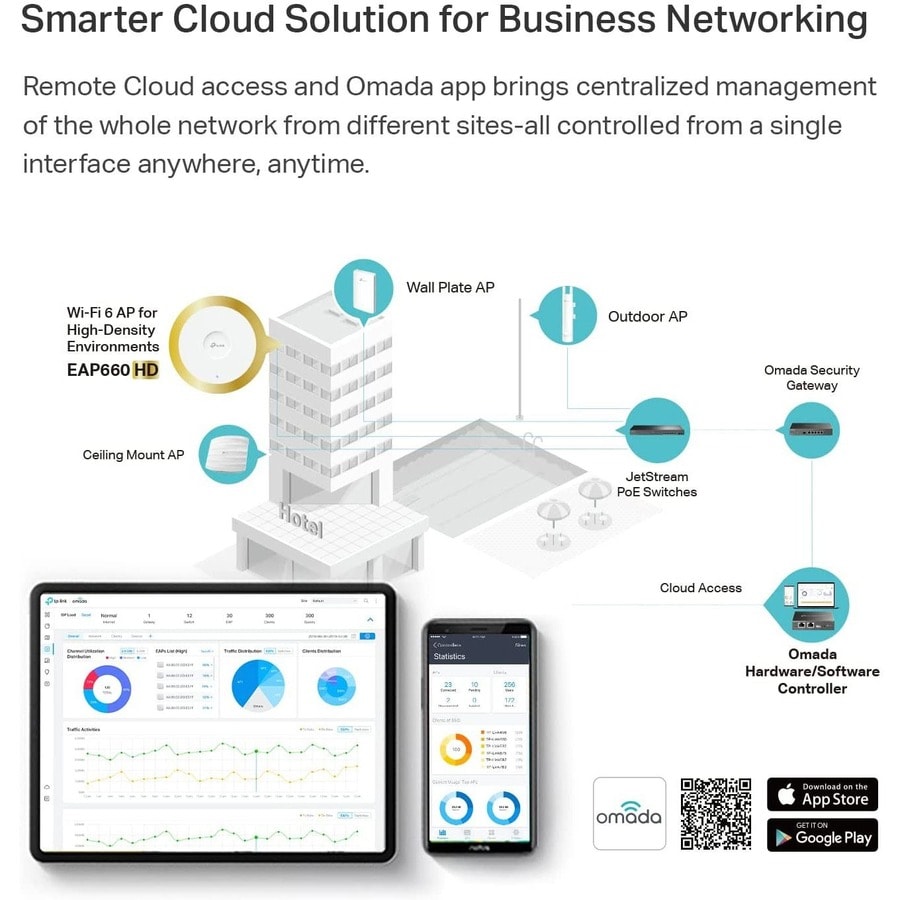

Omada SDN-Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management:

100% centralized cloud management of whole network from different sites-all controlled from a single interface anywhere, anytime.

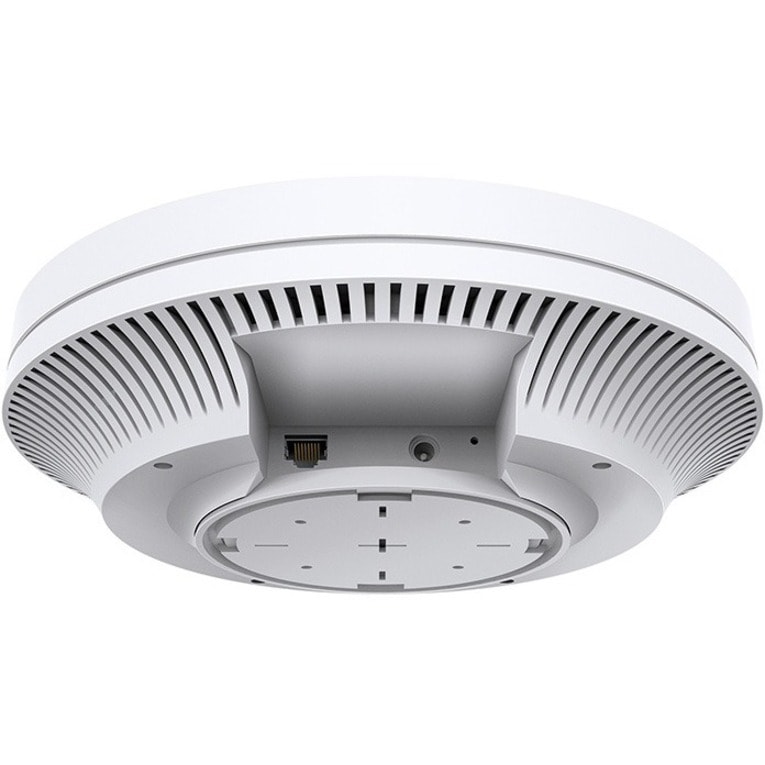

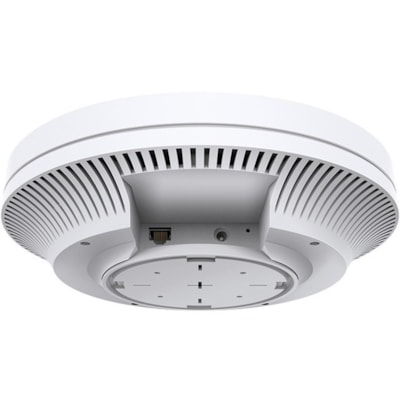

Optimized Wired Performance with 2.5 GE PoE+ Port

Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

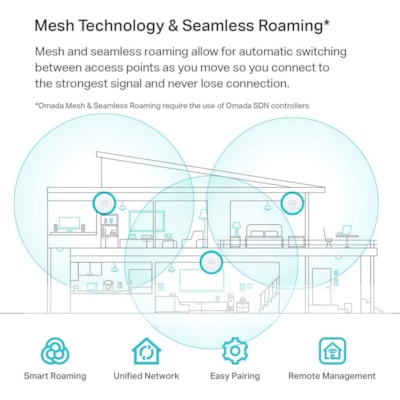

Seamless Roaming

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Boost Network Efficiency in All Aspects With Rich Advanced Features

Automatically moves dual band devices onto the wider 5GHz band for faster connections.

ensures large numbers of users have smooth network experiences in high-density business networks

Increases average network throughput in heavily congested environments

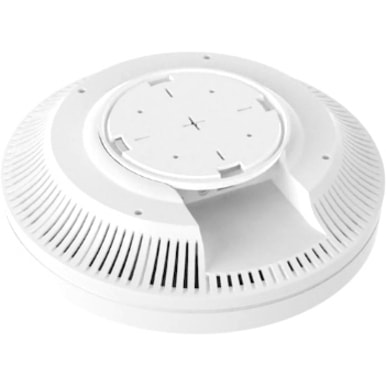

Easy to Mount with Refined Industrial Design

• push up
• simply rotate to lock

Secure Guest Network with Facebook Wi-Fi and SMS Login

Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

DETAILS

• Wireless LAN Standard : 802.11ax
• Network Band : Dual Band
• Frequency Band : 2.40 GHz,5 GHz
• Indoor/Outdoor : Indoor
• Wireless Transmission Speed : 3.52 Gbit/s
• MIMO Technology : Yes
• Beamforming Technology : Yes
• Data Encryption : Yes
• Encryption Standard : WEP,WPA-PSK,WPA2-PSK,WPA3-PSK,WPA3-Personal,WPA-ENT,WPA2-ENT,WPA3-ENT
• Ethernet Technology : 2.5 Gigabit Ethernet
• Number of Network (RJ-45) Ports : 1
• PoE PD Port : Yes
• Power Consumption : 21.50 W
• Product Color : White
• Form Factor : Ceiling Mountable,Wall Mountable
• Antenna Form Factor : Internal
• Height : 2.50" (63.50 mm)
• Width : 9.60" (243.84 mm)
• Depth : 9.60" (243.84 mm)
• Weight (Approximate) : 2.89 lb (1310.88 g)
• Package Contents :
  • AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
  • Power Adapter
  • Ceiling/Wall Mounting Kits
  • Installation Guide
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Country of Origin : China
• Limited Warranty : 5 Year

• Ultra-Fast True Wi-Fi 6 Speeds: Designed with the latest wireless Wi-Fi 6 technology featuring 1024QAM and Long OFDM Symbol, the EAP660 HD boosts dual-band Wi-Fi speeds up to 3550 Mbps. With 8 Spatial streams, multi-user throughput is incredibly increased to drive more applications.
• High-Density Connectivity: OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously.
• 2.5GE Port with PoE+ for Easy Installation: Armed with a 2.5 Gigabit Ethernet port, the EAP660 HD delivers exceptional multi-gigabit performance and boosts total internet throughput for faster, better Wi-Fi. Supports standard 802.3at PoE+ for flexible deployment and convenient installation.
• Integrated into Omada SDN: Omada's Software Defined Networking (SDN) platform integrates network devices including access points, switches & gateways with multiple control options offered - Omada Hardware controller, Omada Software Controller or Omada cloud-based controller(Contact TP-Link for Cloud-Based Controller Plan Details). Standalone mode also applies.
• Cloud Access: Remote Cloud access and Omada app brings centralized cloud management of the whole network from different sites-all controlled from a single interface anywhere, anytime.
• SDN Compatibility: For SDN usage,

  SPECIFICATIONS

  Manufacturer	TP-LINK Technologies Co., Ltd
  Manufacturer Part Number	EAP660 HD
  Manufacturer Website Address	http://www.tp-link.com
  Brand Name	TP-Link
  Product Model	EAP660 HD

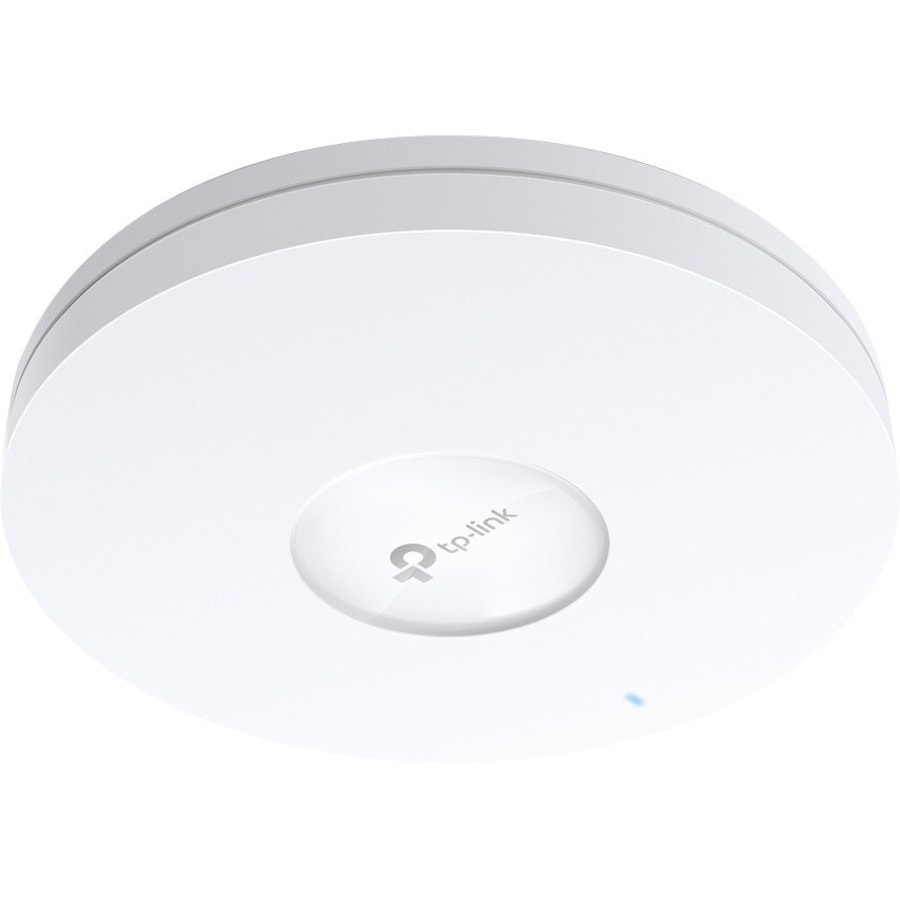

  Product Name	AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
  Product Condition	New
  Product Type	Wireless Access Point
  Wireless LAN Standard	802.11ax
  Network Band	Dual Band
  Frequency Band	5 GHz
  Frequency Band	2.40 GHz
  Indoor/Outdoor	Indoor
  Wireless Transmission Speed	3.52 Gbit/s
  MIMO Technology	Yes
  Beamforming Technology	Yes
  Data Encryption	Yes
  Encryption Standard	WPA3-Personal
  Encryption Standard	WPA-ENT
  Encryption Standard	WPA2-ENT
  Encryption Standard	WPA3-ENT
  Encryption Standard	WPA3-PSK
  Encryption Standard	WPA2-PSK
  Encryption Standard	WPA-PSK
  Encryption Standard	WEP
  Ethernet Technology	2.5 Gigabit Ethernet
  Number of Network (RJ-45) Ports	1
  PoE PD Port	Yes
  Power Consumption	21.50 W
  Color Family	White
  Product Color	White
  Form Factor	Ceiling Mountable
  Form Factor	Wall Mountable
  Antenna Form Factor	Internal
  Height	2.50" (63.50 mm)
  Width	9.60" (243.84 mm)
  Depth	9.60" (243.84 mm)
  Weight (Approximate)	2.89 lb (1310.88 g)
  Package Contents	AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point Power Adapter Ceiling/Wall Mounting Kits Installation Guide
  Additional Information	Legal Disclaimer: Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
  Country of Origin	China
  Environmentally Friendly	Yes
  Environmental Compliance	Restriction of Hazardous Substances (RoHS)
  Limited Warranty	5 Year
