StarTech.com USB C Multiport Adapter - USB Type-C 10Gbps Mini Dock 4K 60Hz HDMI/DisplayPort/1080p VGA - 75W PD Passthrough, USB Hub & GbE - 10Gbps USB-C mini dock - Single 4K 60Hz monitor w/ DisplayPort 1.4 host (DP/HDMI 2.0 HDR) or 4K 30Hz w/ DP 1.2 host, or 1080p VGA - 2x USB-A/1x USB-C/GbE - USB-

DKT31CHDVCM
Also known as DHDKT31CHDVCMCA,SY6659172

New! Log in or create an account to see price and availability


MARKETING INFORMATION

This USB-C Gen 2 10Gbps multiport adapter, with backward USB-C laptop compatibility, turns your USB-C ® or Thunderbolt™ 3 Windows laptop, MacBook Pro, iPad Pro, Surface, Chromebook, or Android tablet into a workstation, anywhere you go. The USB 3.2 Gen 2 Type-C hub adapter features a unique portable, circular design and all of the essential connections

  • HDMI, DisplayPort, VGA video options
  • 10Gbps USB-C & USB-A peripheral ports
  • Attached 24cm (10 in) USB-C® host cable
Three Video Output Options

This USB-C multiport adapter features HDMI, DisplayPort, and VGA ports providing you with three single video output options for your workstation setup or boardroom presentations including support for an ultra-wide monitor.

  • HDMI (Up to 4K 60Hz with DP 1.4 and HDMI 2.0 HDR)
  • DisplayPort (Up to 4K 60Hz with DP 1.4)
  • VGA (Up to 1080p)
Designed for Portability & Ease of Use

The USB-C travel dock features a compact circular design and an attached extended length 24cm (10 in.) host cable, accommodating a wide variety of setups. Bus-powered for most applications, there's no need to carry around a separate bulky power adapter. If extra power required, you can use your external USB-C laptop power adapter with support for up to 75W Power Delivery pass-through (15W for docking station & rest for charging).

Installation is fast and simple, with native support in most operating systems, and at only 7 ounces (198 g) and taking up less space than your smartphone, this dock easily fits in your laptop bag or briefcase with a convenient wraparound cable.

Essential Port Configuration

In addition to the video outputs, the portable USB-C dock gives you two 10Gbps USB-A ports and one 10Gbps USB-C port to connect the latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network.

More from the Manufacturer

More from the Manufacturer

DETAILS

  • Connectivity Technology : Wired
  • Device Supported : Tablet PC,Notebook
  • Host Interface : USB Type C
  • Total Number of USB Ports : 3
  • USB Type-C : Yes
  • USB Type-C Detail : USB 3.1 USB tipo C (10 pines, Gen 2, 10 Gbps), USB 3.1 USB tipo C (10 pines, Gen 2, 10 Gbps)
  • Network (RJ-45) : Yes
  • VGA : Yes
  • DisplayPort : Yes
  • HDMI : Yes
  • Thunderbolt : Yes
  • Operating System Supported : Windows 11,Windows 10,Windows 8.1,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,ChromeOS,Android,iPadOS
  • Maximum Power Supply Wattage : 75 W
  • Height : 1.30" (33.02 mm)
  • Width : 3.50" (88.90 mm)
  • Depth : 3.50" (88.90 mm)
  • Weight (Approximate) : 9.80 oz (277.83 g)
  • Package Contents :
    • USB C Multiport Adapter
    • Quick-Start Guide
  • Compatibility :
    • Microsoft Surface Pro 7
    • Google Chromebook

    Apple Products:

    • MacBook
    • iPad Pro
  • Environmentally Friendly : Yes
  • Country of Origin : China
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
  • Limited Warranty : 3 Year

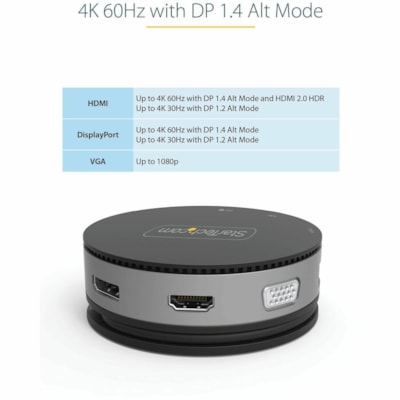

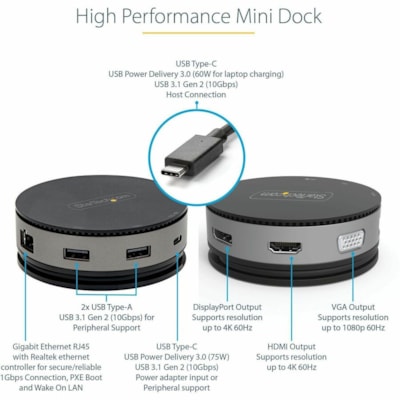

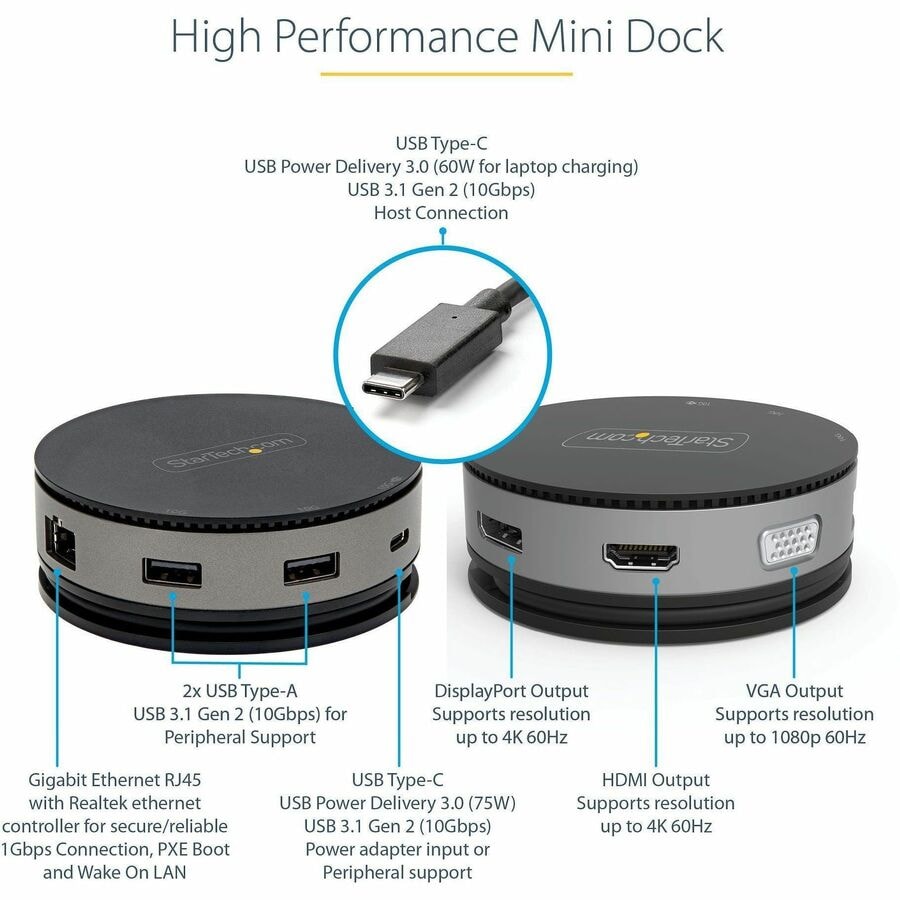

  • HIGH PERFORMANCE MINI DOCK: Compact USB-C mobile adapter (USB 3.1 Gen 2 10Gbps); connect a single display with three video output options: DisplayPort or HDMI up to 4K 60Hz with HDR (requires DP 1.4 Alt Mode Source) or up to 1080p with VGA

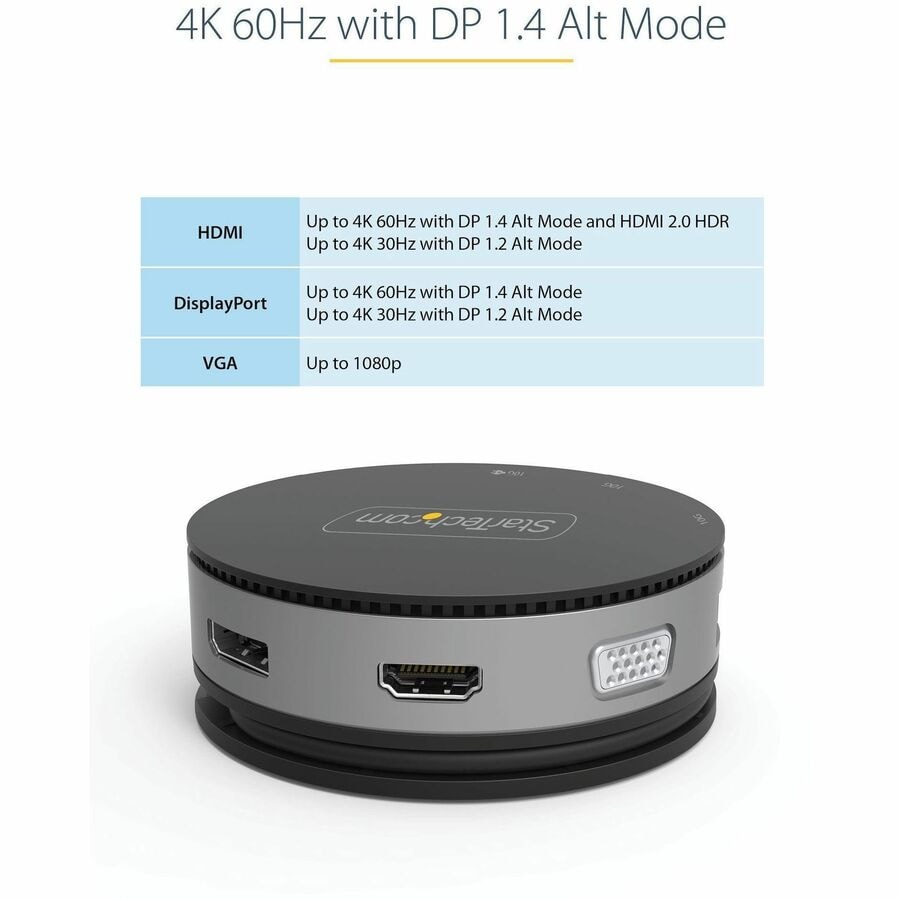

  • 4K 60HZ WITH DP 1.4 ALT-MODE: 4K 60Hz on hosts that support DP 1.4 Alt-Mode and HBR3 w/ DSC enabled laptops (min. Intel 11th Gen) or up to 4K 30Hz resolution on host devices that support DP 1.2 Alt-Mode

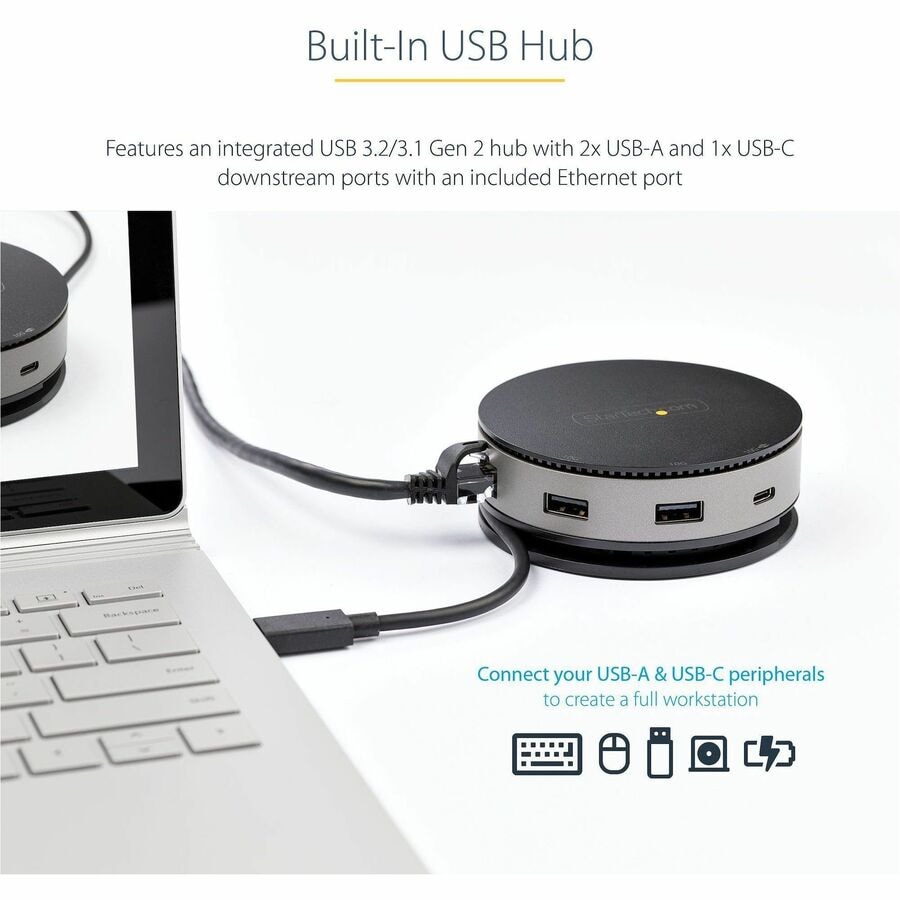

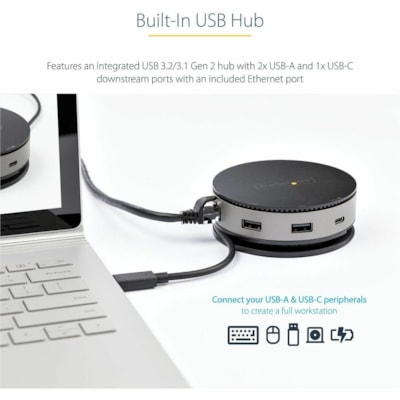

  • BUILT-IN USB HUB: This USB C multiport adapter features an integrated USB 3.2/3.1 Gen 2 hub with 2x USB-A and 1x USB-C downstream ports supporting speeds up to 10 Gbps; includes a gigabit Ethernet port

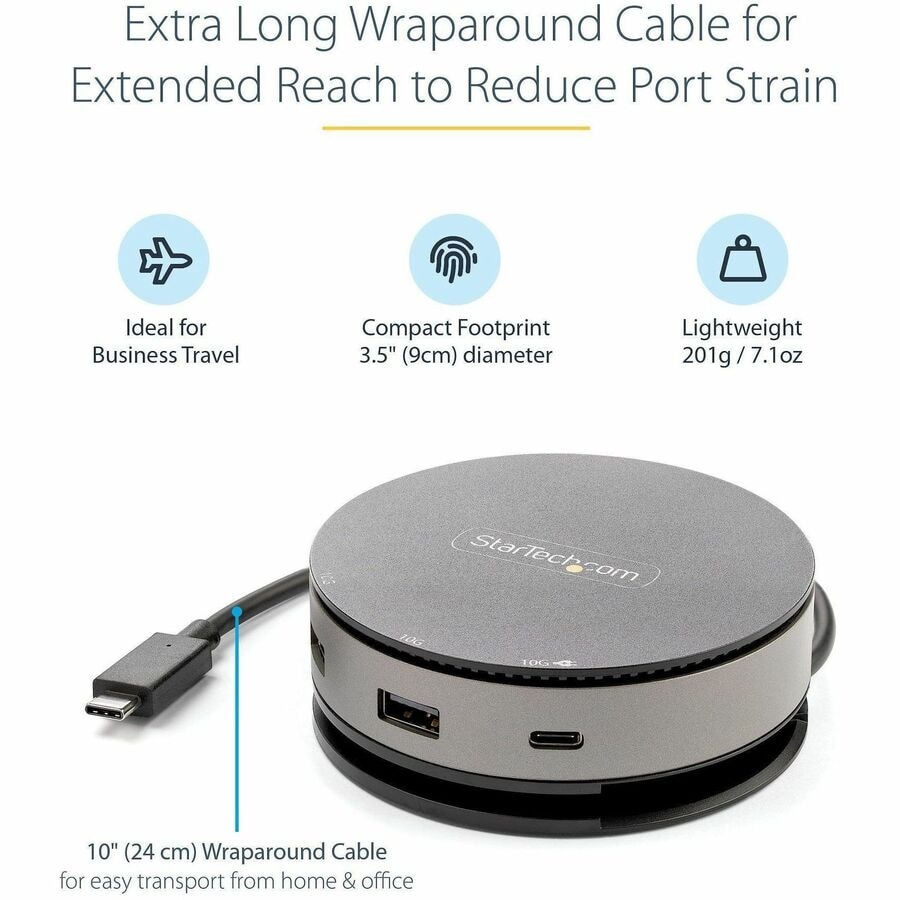

  • EXTRA LONG CABLE: 10" (24cm) attached cable for extended reach to reduce port strain on 2-in-1's like iPad Pro & Surface Pro 7; USB C multiport adapter with wraparound cable for office, travel & home

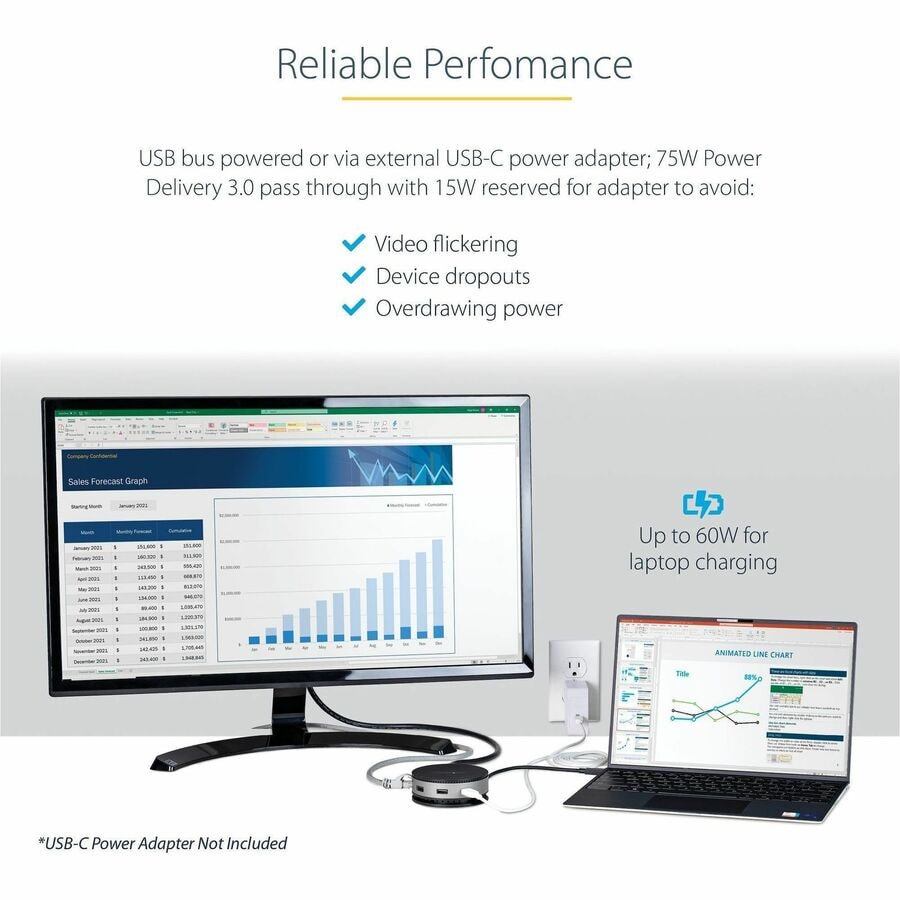

  • RELIABLE PERFORMANCE: USB bus powered or via external USB-C power adapter; 75W Power Delivery 3.0 pass through w/ 15W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs; up to 60W for laptop charging

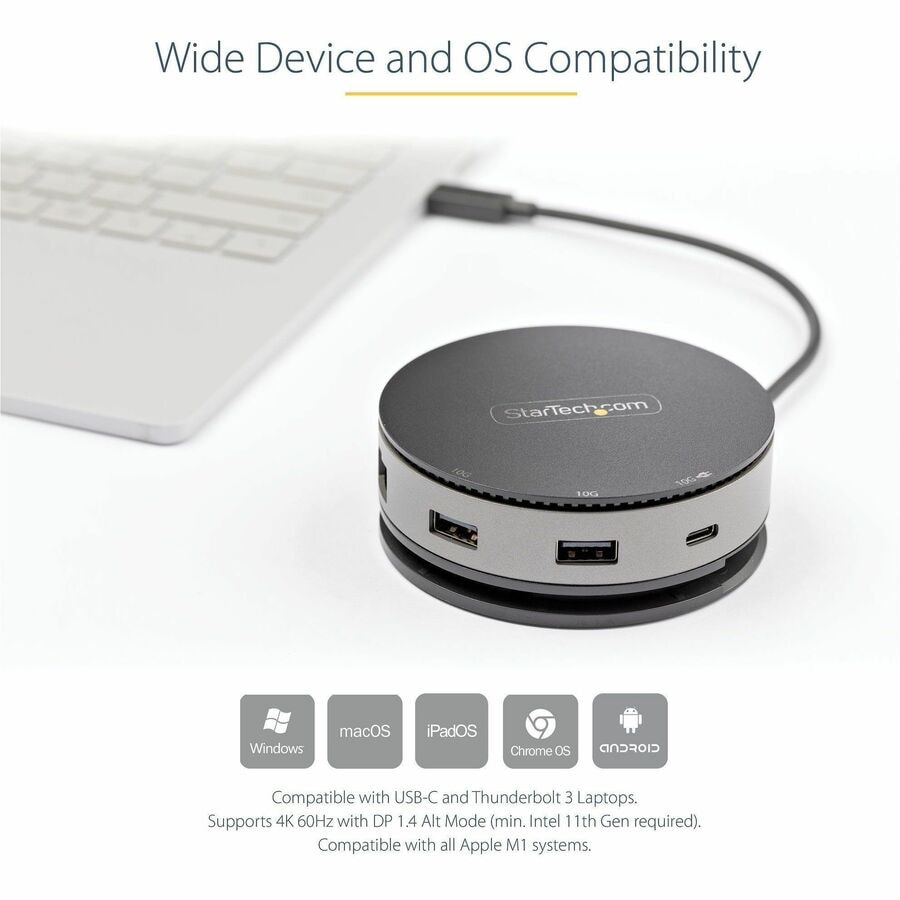

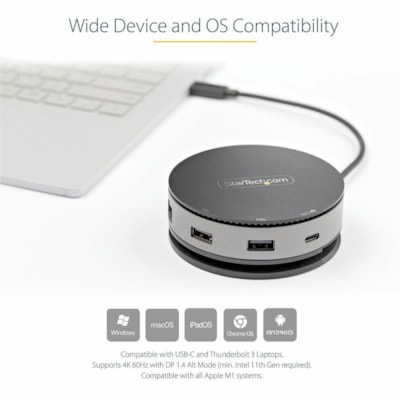

  • WIDE COMPATIBILITY: A portable dock for USB-C ultrabooks, Chromebooks, tablets & Thunderbolt 3 laptops like HP, Dell, Lenovo, MacBooks (Intel processor & M1 chip), iPad Pro; works w/ Windows, macOS, iPadOS, Chrome OS, Android
  • CONNECTIVITY TOOLS

    SPECIFICATIONS

    Manufacturer StarTech.com
    Manufacturer Part Number DKT31CHDVCM
    Manufacturer Website Address http://www.startech.com
    Brand Name StarTech.com
    Product Name USB C Multiport Adapter
    Packaged Quantity 1 Each
    Product Type Docking Station
    Connectivity Technology Wired
    Device Supported Tablet PC
    Device Supported Notebook
    Host Interface USB Type C
    Total Number of USB Ports 3
    USB Type-C Yes
    USB Type-C Detail USB 3.1 USB tipo C (10 pines, Gen 2, 10 Gbps), USB 3.1 USB tipo C (10 pines, Gen 2, 10 Gbps)
    Network (RJ-45) Yes
    VGA Yes
    DisplayPort Yes
    HDMI Yes
    Thunderbolt Yes
    Operating System Supported Mac OS X 12.0 Monterey
    Operating System Supported Mac OS X 13.0 Ventura
    Operating System Supported ChromeOS
    Operating System Supported Android
    Operating System Supported iPadOS
    Operating System Supported Mac OS X 11.0 Big Sur
    Operating System Supported Mac OS X 10.12 Sierra
    Operating System Supported Mac OS X 10.15 Catalina
    Operating System Supported Mac OS X 10.14 Mojave
    Operating System Supported Mac OS X 10.13 High Sierra
    Operating System Supported Windows 11
    Operating System Supported Windows 10
    Operating System Supported Windows 8.1
    Maximum Power Supply Wattage 75 W
    Height 1.30" (33.02 mm)
    Width 3.50" (88.90 mm)
    Depth 3.50" (88.90 mm)
    Weight (Approximate) 9.80 oz (277.83 g)
    Package Contents
    • USB C Multiport Adapter
    • Quick-Start Guide
    Compatibility
    • Microsoft Surface Pro 7
    • Google Chromebook

    Apple Products:

    • MacBook
    • iPad Pro
    Brand Compatibility Lenovo
    Brand Compatibility Microsoft
    Brand Compatibility Google
    Brand Compatibility Dell
    Brand Compatibility Apple
    Brand Compatibility HP
    Environmentally Friendly Yes
    Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Country of Origin China
    Limited Warranty 3 Year
