StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, HDMI & DisplayPort, 60W PD, 5x USB 5Gbps Hub, TAA - USB-C Dock 3 video outputs, 60W PD - 4x USB-A, 1x USB-C 5Gbps, NIC, headset, K-Slot - Triple monitor on base M-Series MacBook Pro/Air - Works w/ USB-C, USB4, Thunderb
DK30CH2DPPD
Also known as DHDK30CH2DPPDCA,IM6217DK,SY5963383
MARKETING INFORMATION
This TAA compliant 4K USB-C™ dock for Mac and Windows® laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It's the perfect accessory for your Dell™ XPS 15, Chromebook Pixel™, or another USB-C enabled PC laptop.
The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).
Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.
Enhance Productivity

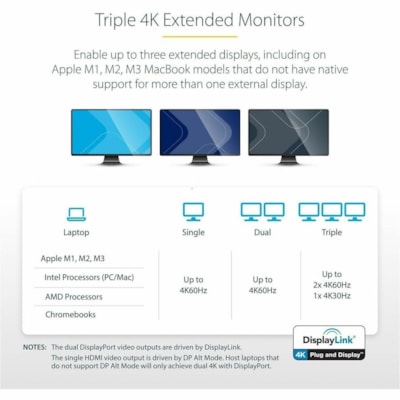

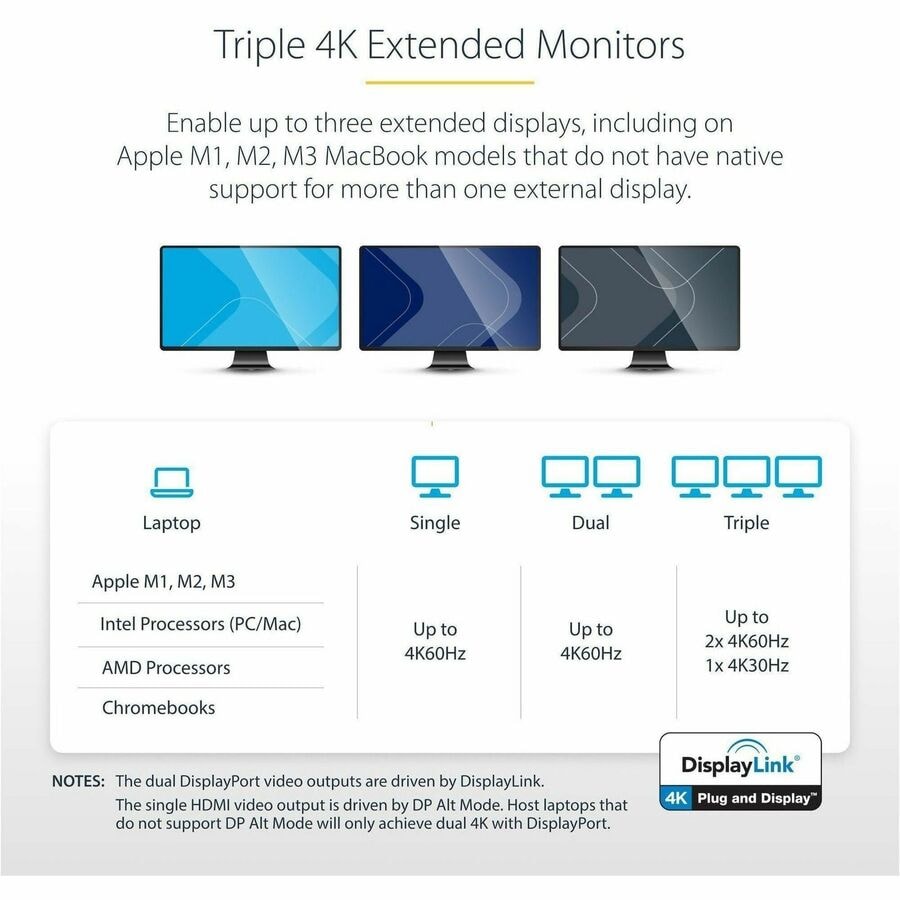

The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:
2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz
For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.

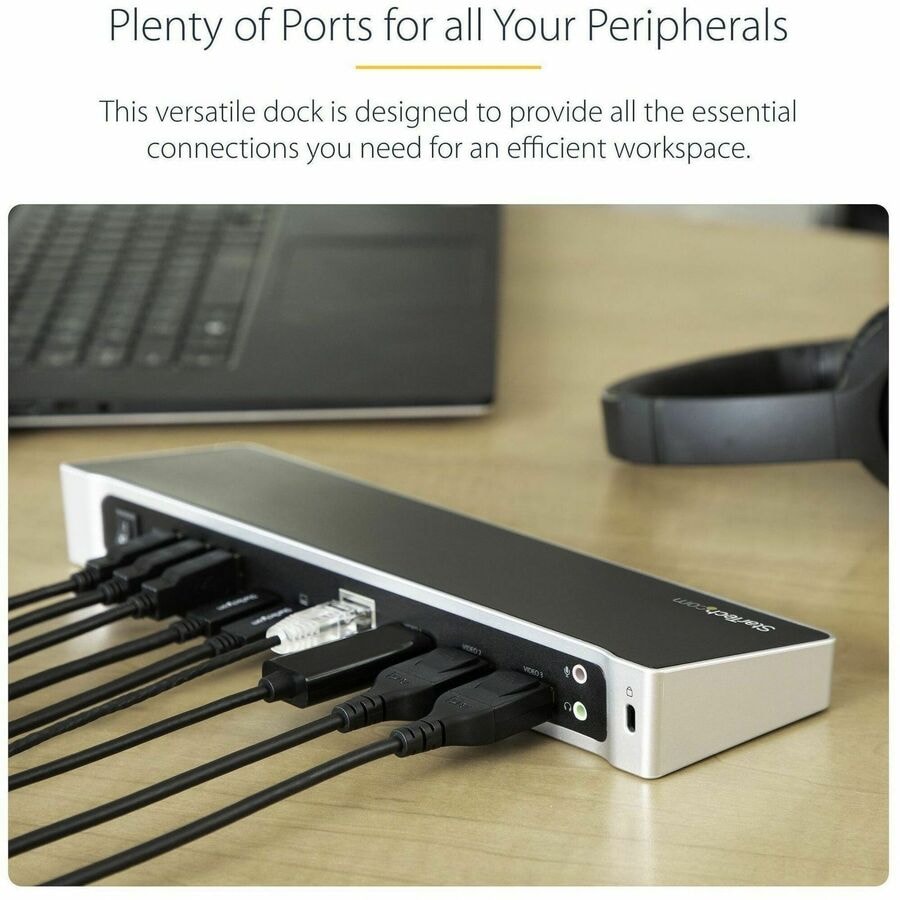

Powerful Connections

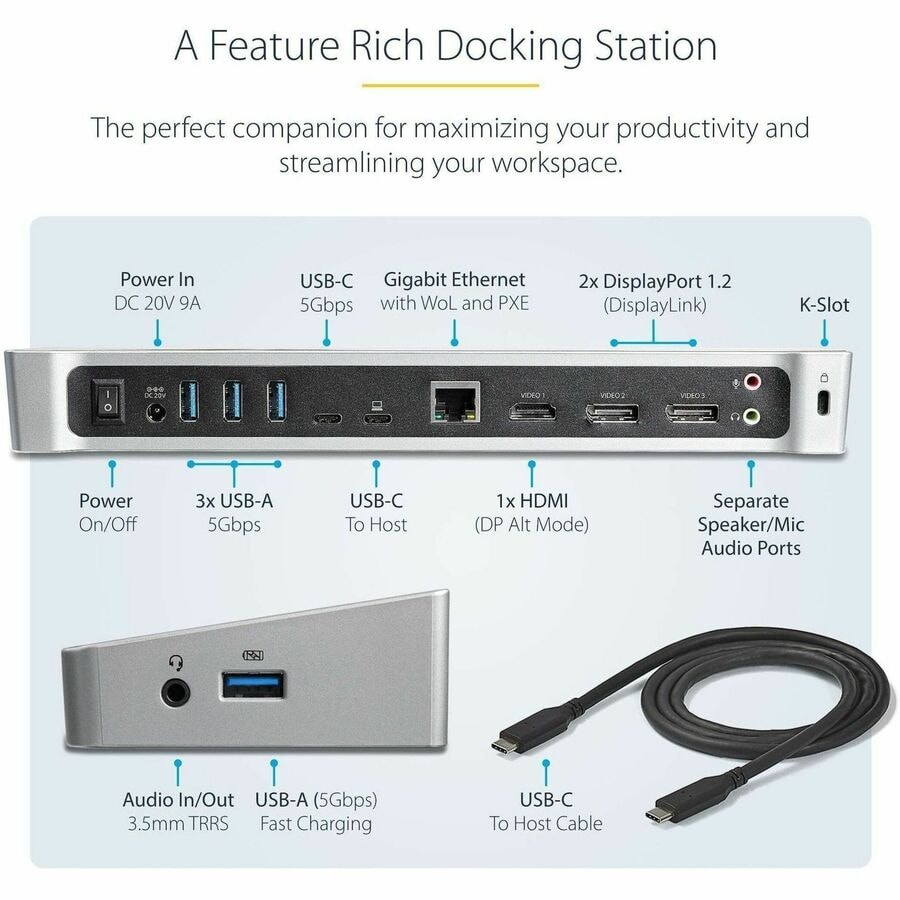

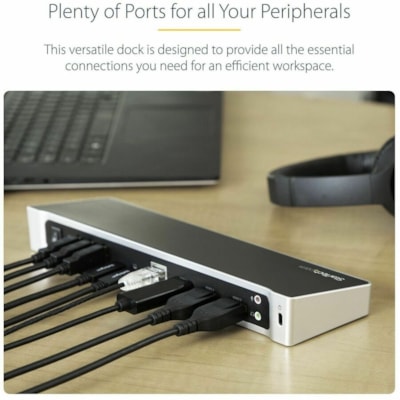

This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.
60W Power Delivery

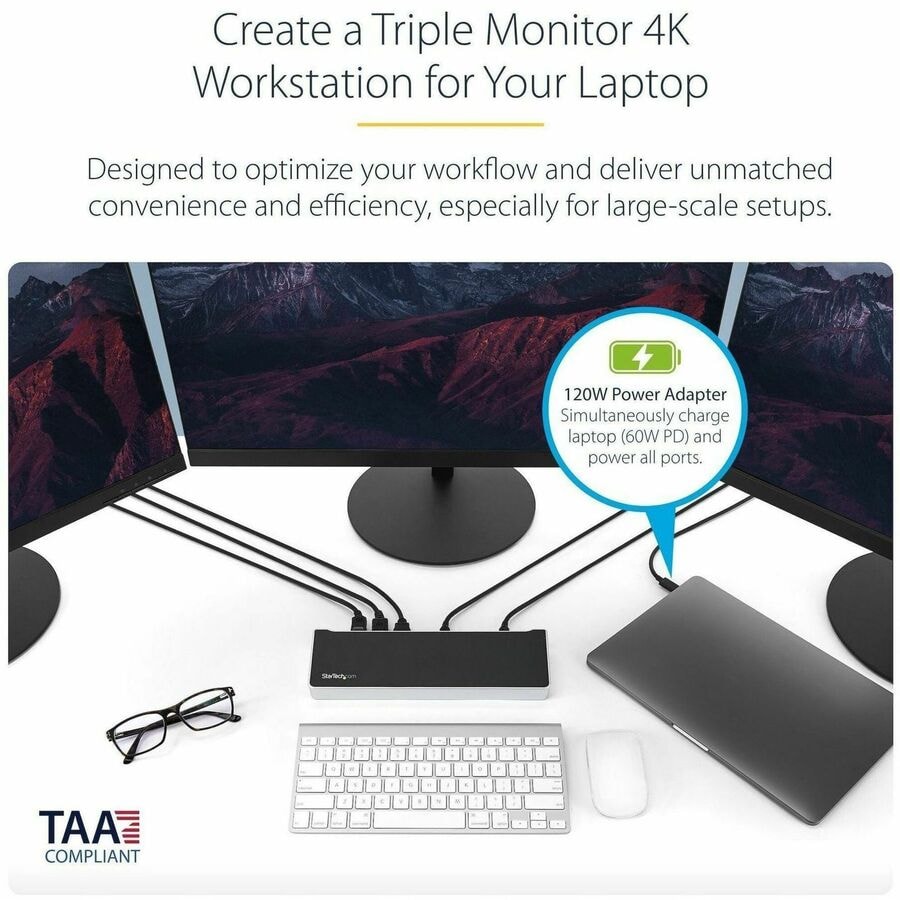

Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.
The DK30CH2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
DETAILS
- Connectivity Technology : Wired
- Device Supported : Notebook,Tablet PC
- Host Interface : USB Type C
- Audio Line Out : Yes
- Number of USB 3.0 Ports : 5
- USB Type-C : Yes
- USB Type-C Detail : 1 x USB-C
- Network (RJ-45) : Yes
- Number of DisplayPort Outputs : 2
- DisplayPort : Yes
- Microphone : Yes
- Number of HDMI Outputs : 1
- HDMI : Yes
- Thunderbolt : Yes
- Operating System Supported : Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,ChromeOS 55+,Ubuntu 18.04
- Maximum Power Supply Wattage : 60 W
- Product Color : Black,Silver
- Height : 1.30" (33.02 mm)
- Width : 3.20" (81.28 mm)
- Weight (Approximate) : 13.60 oz (385.55 g)
- Environmentally Friendly : Yes
- Country of Origin : Taiwan
- Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant : Yes
- Limited Warranty : 3 Year
- FULL-FEATURED DOCK: USB-C Dock with 3 video outputs (2x DP & 1x HDMI), 60WPower Delivery, 4x USB-A & 1x USB-C 5Gbps Hub, Gigabit Ethernet, headset + separate speaker/mic audio ports, K-Slot & 1m/3.3ft USB-C cable; Includes DisplayLink Update Utility
- TRIPLE DISPLAY ON MACBOOK AIR: Enable triple extended monitors on a MacBook Air / Pro (Apple M1/M2/M3) that does not natively support more than 1 external display; Flexible single, dual or triple video connectivity with DisplayPort or HDMI ports
- WORKS WITH ANY LAPTOP: Simplify your deployment with a USB-IF, VESA & DisplayLink compliant docking station that offers optimal performance and universal compatibility with any laptop (Windows, macOS and Ubuntu) or Chromebook (ChromeOS)
- UNIVERSAL USB-C & USB-A FUNCTIONALITY: Also connects to USB-A laptops with a USB-C to A cable adapter (USB315AC1M, sold separately); Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported
- IT-PRO ADVANTAGES: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
SPECIFICATIONS
Manufacturer | StarTech.com |
Manufacturer Part Number | DK30CH2DPPD |
Manufacturer Website Address | http://www.startech.com |
Brand Name | StarTech.com |
Product Name | Triple Monitor 4K USB-C Dock with 5x USB 3.0 Port |
Packaged Quantity | 1 Each |
Product Type | Docking Station |
Connectivity Technology | Wired |
Device Supported | Tablet PC |
Device Supported | Notebook |
Host Interface | USB Type C |
Audio Line Out | Yes |
Number of USB 3.0 Ports | 5 |
USB Type-C | Yes |
USB Type-C Detail | 1 x USB-C |
Network (RJ-45) | Yes |
Number of DisplayPort Outputs | 2 |
DisplayPort | Yes |
Headphone | Yes |
Microphone | Yes |
Number of HDMI Outputs | 1 |
HDMI | Yes |
Thunderbolt | Yes |
Operating System Supported | Windows 10 |
Operating System Supported | ChromeOS 55+ |
Operating System Supported | Mac OS X 10.12 Sierra |
Operating System Supported | Ubuntu 18.04 |
Operating System Supported | Windows 8 |
Operating System Supported | Windows 7 |
Operating System Supported | Windows 11 |
Operating System Supported | Mac OS X 10.14 Mojave |
Operating System Supported | Windows 8.1 |
Maximum Power Supply Wattage | 60 W |
Color Family | Dual Color |
Product Color | Silver |
Product Color | Black |
Height | 1.30" (33.02 mm) |
Width | 3.20" (81.28 mm) |
Length | 10.60" (269.24 mm) |
Weight (Approximate) | 13.60 oz (385.55 g) |

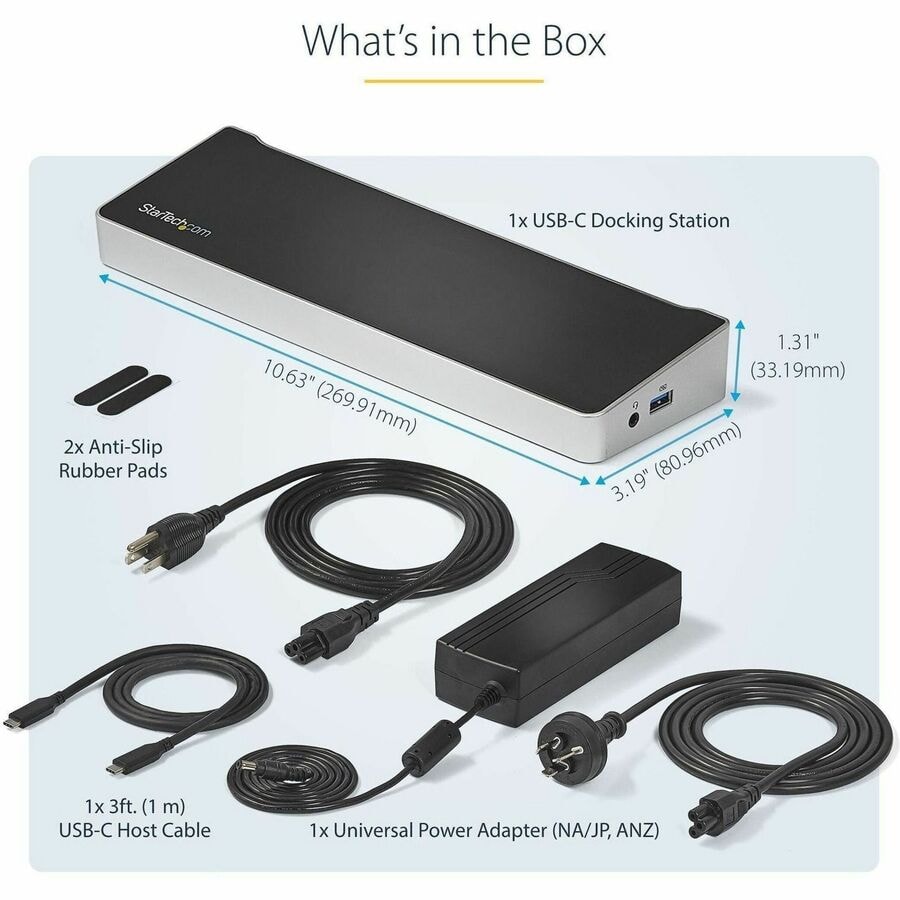

Package Contents |
|
Additional Information | OS Compatibility:
|
Compatibility | Tablet PC/Notebooks:
|
Brand Compatibility | Asus |
Brand Compatibility | HP |
Brand Compatibility | Dell |
Brand Compatibility | Apple |
Brand Compatibility | Samsung |
Brand Compatibility | Lenovo |
Brand Compatibility | |
Environmentally Friendly | Yes |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Country of Origin | Taiwan |
TAA Compliant | Yes |
Limited Warranty | 3 Year |
