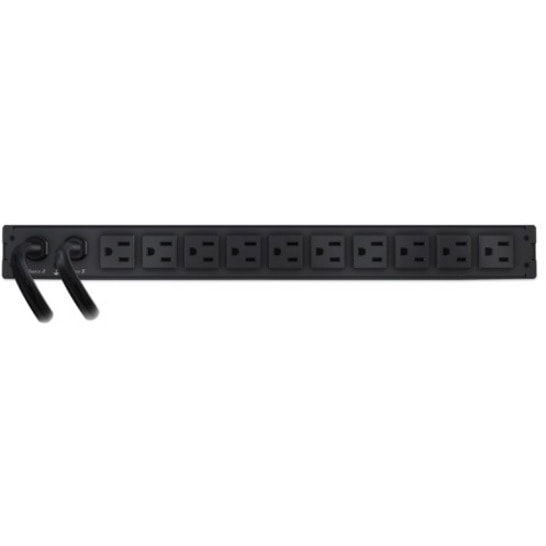

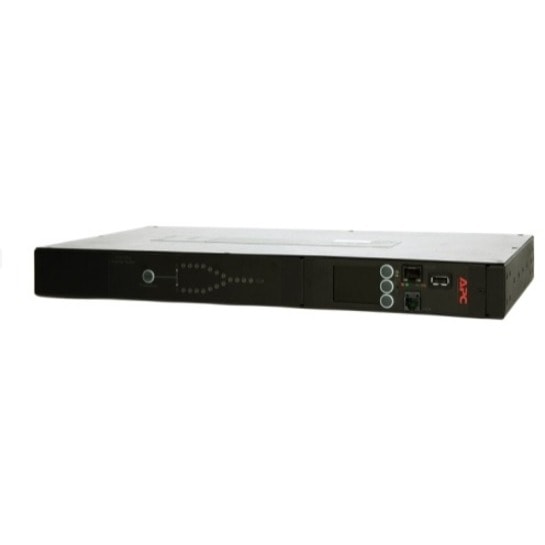

APC by Schneider Electric Rack ATS, 100/120V, 15A, 5-15 in, (10) 5-15R Out - 10 x NEMA 5-15R - 1.44 kW - 120 V AC - 15 A

AP4450
Also known as DHAP4450CA

New! Log in or create an account to see price and availability


MARKETING INFORMATION

APC Rack Automatic Transfer Switches (rack ATS) provide reliable, redundant rack mount power to single-corded equipment. The rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. The Rack ATS has built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.

More from the Manufacturer

DETAILS

  • Plug/Connector Type : NEMA 5-15P
  • Receptacles : 10 x NEMA 5-15R
  • Protection Type : Over Current
  • Load Capacity (VA) : 1.44 kW
  • Input Voltage : 120 V AC
  • Output Voltage : 100 V AC,120 V AC
  • Current : 15 A
  • Color Family : Black
  • Product Color : Black
  • Form Factor : Rack-mountable
  • Rack Height : 1U
  • Height : 1.72" (43.69 mm)
  • Width : 17" (431.80 mm)
  • Depth : 9.30" (236.22 mm)
  • Weight (Approximate) : 9.70 lb (4399.85 g)
  • Package Contents :
  • Rack ATS, 100/120V, 15A, 5-15 in, (10) 5-15R Out
  • Mounting hardware
  • Rack mounting brackets
  • Serial configuration cable
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 2 Year

SPECIFICATIONS

Manufacturer Schneider Electric SA
Manufacturer Part Number AP4450
Manufacturer Website Address http://www.schneider-electric.com
Brand Name APC by Schneider Electric
Product Name Rack ATS, 100/120V, 15A, 5-15 in, (10) 5-15R Out
Packaged Quantity 1 Each
Product Type Automatic Transfer Switch
Plug/Connector Type NEMA 5-15P
Receptacles 10 x NEMA 5-15R
Protection Type Over Current
Load Capacity (VA) 1.44 kW
Input Voltage 120 V AC
Output Voltage 120 V AC
Output Voltage 100 V AC
Current 15 A
Color Family Black
Product Color Black
Form Factor Rack-mountable
Rack Height 1U
Height 1.72" (43.69 mm)
Width 17" (431.80 mm)
Depth 9.30" (236.22 mm)
Weight (Approximate) 9.70 lb (4399.85 g)
Package Contents
  • Rack ATS, 100/120V, 15A, 5-15 in, (10) 5-15R Out
  • Mounting hardware
  • Rack mounting brackets
  • Serial configuration cable
  • Certifications & Standards
    • FCC Part 15 Class A
    • ICES-003
    • PSE
    • TUV-C
    • TUV-NURTL
    • VCCI Class A
  • TÜV
  • Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 2 Year
