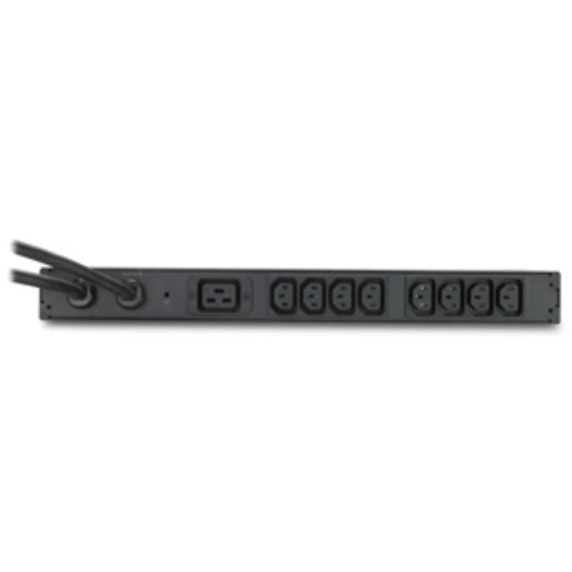

Schneider Electric ATS 9-Outlet Automatic Transfer Switch - 8 x IEC 60320 C13, 1 x IEC 60320 C19 - 230 V AC - 20 A
AP4430
Also known as DHAP4430CA,IM3343DV
MARKETING INFORMATION
Rack-mount Transfer SwitchesProvides redundant rack mount power to single-corded equipment.
APC Rack Automatic Transfer Switches (rack ATS) provide reliable, redundant rack mount power to single-corded equipment. The rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. The Rack ATS has built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.
DETAILS
- Plug/Connector Type : NEMA L6-20P
- Receptacles : 8 x IEC 60320 C13,1 x IEC 60320 C19
- Input Voltage : 230 V AC
- Output Voltage : 200 V AC,208 V AC
- Current : 20 A
- Form Factor : Rack-mountable
- Rack Height : 1U
- Height : 1.73" (44 mm)
- Width : 17.01" (432 mm)
- Depth : 9.29" (236 mm)
- Weight (Approximate) : 10.65 lb (4830.76 g)
- Package Contents :
- ATS 9-Outlet Automatic Transfer Switch
- Mounting hardware
- Rack mounting brackets
- RS-232 configuration cable
- Environmentally Friendly : Yes
- Limited Warranty : 2 Year
SPECIFICATIONS
Manufacturer | Schneider Electric SA |
Manufacturer Part Number | AP4430 |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | Schneider Electric |
Product Series | ATS |
Product Name | ATS 9-Outlet Automatic Transfer Switch |
Product Type | Automatic Transfer Switch |
Plug/Connector Type | NEMA L6-20P |
Receptacles | 1 x IEC 60320 C19 |
Receptacles | 8 x IEC 60320 C13 |
Input Voltage | 230 V AC |
Output Voltage | 208 V AC |
Output Voltage | 200 V AC |
Current | 20 A |
Form Factor | Rack-mountable |
Rack Height | 1U |
Height | 1.73" (44 mm) |
Width | 17.01" (432 mm) |
Depth | 9.29" (236 mm) |
Weight (Approximate) | 10.65 lb (4830.76 g) |
Package Contents | |
Certifications & Standards |
|
Environmentally Friendly | Yes |
Limited Warranty | 2 Year |
