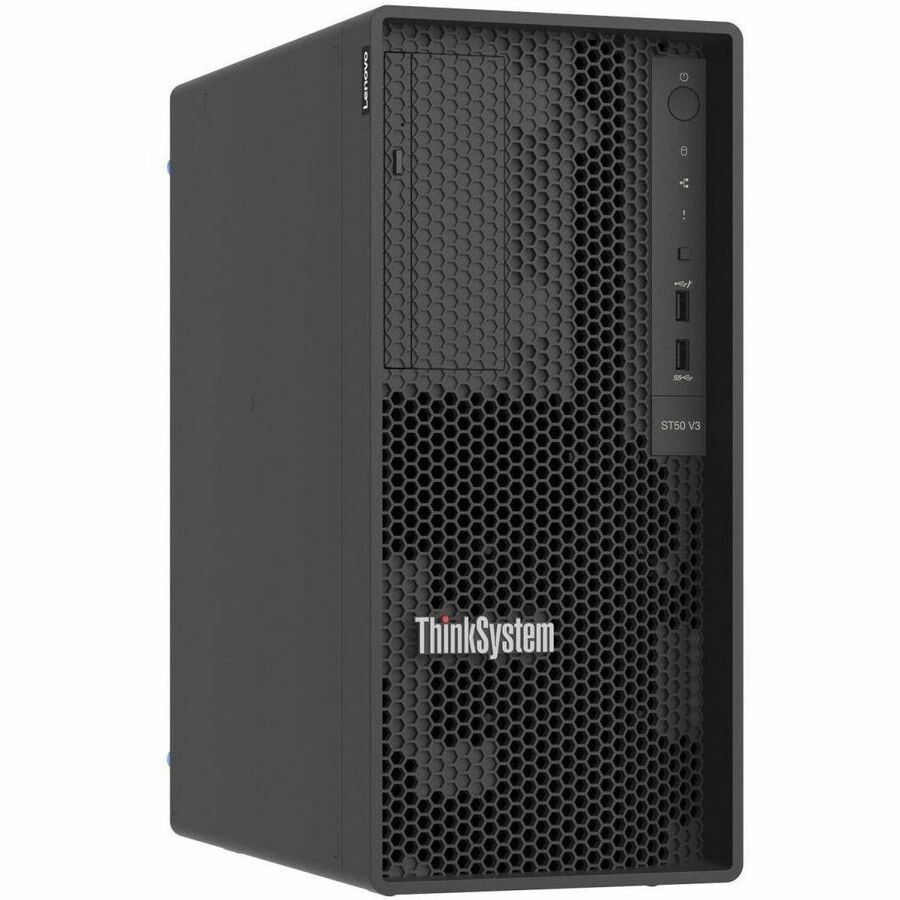

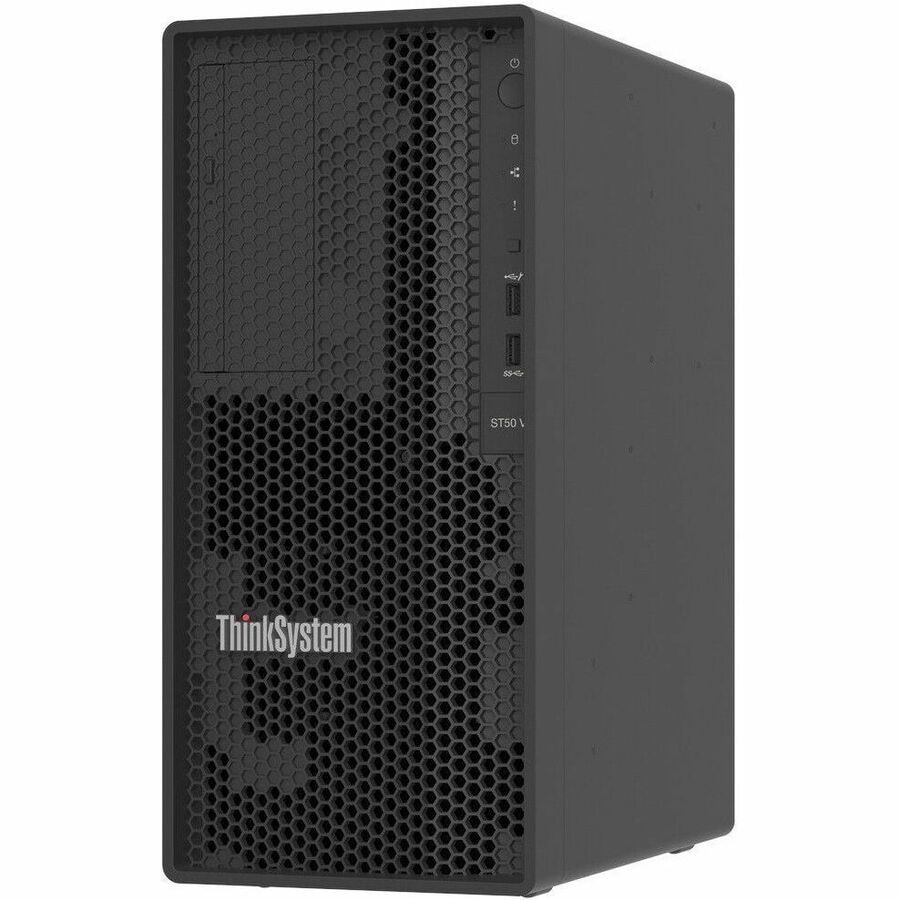

Lenovo ThinkSystem ST50 V3 7DF3A00FNA Tower Server - 1 Xeon E-2456 3.30 GHz - 16 GB RAM - Serial ATA/600 Controller - Intel C266 Chip - 1 Processor Support - 128 GB RAM Support - TruDDR5 - 0, 1, 5 RAID Levels - G200 Up to 16 MB Graphic Card - Gigabit Ethernet - 3 x LFF Bay(s) - 1 x 300 W
7DF3A00FNA
Also known as DH7DF3A00FNACA
MARKETING INFORMATION
The Lenovo ThinkSystem ST50 V3 is a value 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".
DETAILS
- Number of Processors Supported : 1
- Number of Processors Installed : 1
- Processor Type : Xeon
- Processor Model : E-2456
- Processor Core : Hexa-core (6 Core)
- Processor Speed : 3.30 GHz
- Cache : 12 MB
- Chipset Manufacturer : Intel
- Chipset Model : C266
- Standard Memory : 16 GB
- Maximum Memory Supported : 128 GB
- Memory Technology : TruDDR5
- Memory Clock Speed : 4.40 GHz
- Total Number of Memory Slots : 4
- Number of Occupied Memory Slots : 1
- Error Checking : ECC
- Signal Processing : Unregistered (Unbuffered)
- Controller Type : Serial ATA/600
- RAID Supported : Yes
- RAID Levels : 0, 1, 5
- Number of Total Expansion Bays : 4
- Number of External 5.25" Bays : 1
- Number of 3.5" Bays : 3
- Number of LFF Bays : 3
- Hot Swappable Bays : No
- Total Number of Expansion Slots : 3
- PCI Express Details : 3 PCIe slots (x4, x16, x4)
- Graphics Controller Model : G200
- Graphics Memory Capacity : 16 MB
- Ethernet Technology : Gigabit Ethernet
- Total Number of USB Ports : 6
- Number of USB 2.0 Ports : 1
- Network (RJ-45) : Yes
- Number of Network (RJ-45) Ports : 2
- VGA : Yes
- Remote Management : Yes
- Remote Management Controller : XCC2 Controller Standard
- Operating System Supported : Windows Server 2022,Red Hat Enterprise Linux 9.4,SUSE Linux Enterprise Server 15 SP5,SuSE Linux Enterprise Server 15,Ubuntu 24.04 LTS x64
- Input Voltage : 120 V AC,230 V AC
- Number of Power Supplies Supported : 1
- Number of Power Supplies Installed : 1
- Plug/Connector Type : C13
- Maximum Power Supply Wattage : 300 W
- Hot Swappable Power Supply : No
- Form Factor : Tower
- Height : 14.80" (375.92 mm)
- Width : 6.70" (170.18 mm)
- Depth : 12.40" (314.96 mm)
- Weight (Approximate) : 26.37 lb (11960 g)
- Limited Warranty : 3 Year
- Additional Warranty Information : Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.30 GHz processor
- With 16 GB memory, you can multitask between applications smoothly
- Gigabit Ethernet port for ultra-fast network speeds
- 1 x 300 W power supply unit (PSU) for your system's power requirements
SPECIFICATIONS
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7DF3A00FNA |
| Manufacturer Website Address | http://www.lenovo.com |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | ST50 V3 |
| Product Model | 7DF3A00FNA |
| Product Name | ThinkSystem ST50 V3 7DF3A00FNA Server |
| Product Type | Server |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | E-2456 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 3.30 GHz |
| Cache | 12 MB |
| Chipset Manufacturer | Intel |
| Chipset Model | C266 |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | TruDDR5 |
| Memory Clock Speed | 4.40 GHz |
| Error Checking | ECC |
| Total Number of Memory Slots | 4 |
| Number of Occupied Memory Slots | 1 |
| Signal Processing | Unregistered (Unbuffered) |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5 |
| Number of Total Expansion Bays | 4 |
| Number of External 5.25" Bays | 1 |
| Number of 3.5" Bays | 3 |
| Number of LFF Bays | 3 |
| Hot Swappable Bays | No |
| Total Number of Expansion Slots | 3 |
| PCI Express Details | 3 PCIe slots (x4, x16, x4) |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| Ethernet Technology | Gigabit Ethernet |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Remote Management | Yes |
| Remote Management Controller | XCC2 Controller Standard |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP5 |
| Operating System Supported | Red Hat Enterprise Linux 9.4 |
| Operating System Supported | SuSE Linux Enterprise Server 15 |
| Operating System Supported | Ubuntu 24.04 LTS x64 |
| Operating System Supported | Windows Server 2022 |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 300 W |
| Hot Swappable Power Supply | No |
| Power Source | Power Supply |
| Form Factor | Tower |
| Height | 14.80" (375.92 mm) |
| Width | 6.70" (170.18 mm) |
| Depth | 12.40" (314.96 mm) |
| Weight (Approximate) | 26.37 lb (11960 g) |
| Package Contents |
|
| Security Features |
|
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
