MARKETING INFORMATION

Extend intent-based networking everywhere

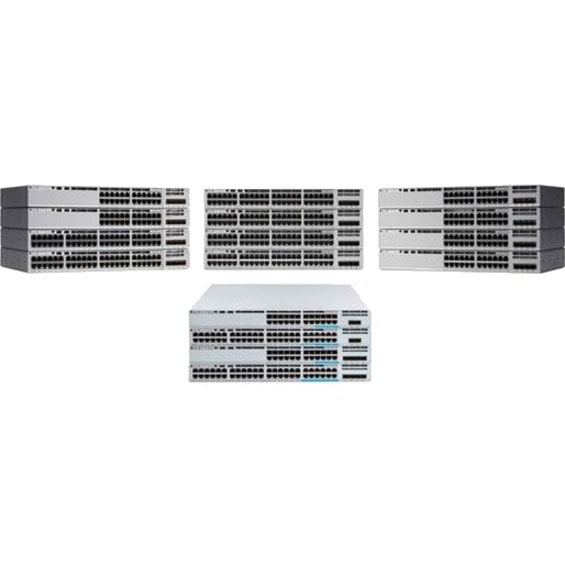

Cisco^® Catalyst^® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

DETAILS

• Total Number of Network Ports : 48
• Uplink Port : Yes
• Modular : Yes
• Stack Port : Yes
• Port/Expansion Slot Details : 48 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Uplink
• Media Type Supported : Twisted Pair,Optical Fiber
• Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
• Network Technology : 10/100/1000Base-T,10GBase-X
• Expansion Slot Type : SFP+
• Number of SFP+ Slots : 4
• Layer Supported : 3
• Manageable : Yes
• Power Source : Power Supply
• Redundant Power Supply Supported : Yes
• Form Factor : Rack-mountable
• Height : 1.73" (44 mm)
• Width : 17.52" (445 mm)
• Depth : 11.34" (288 mm)
• Weight (Approximate) : 11.02 lb (5000 g)

• Cascade to other network devices through the uplink port to expand your local area network
• Stack port provides an easy and hassle-free way to extend your office network
• Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
• Supports layer 3 switching for enhanced performance and usability
• Rack mounting enables you to organize wires & secure cables for professional installation
• Managed switch provides a reliable foundation for your network
• Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
