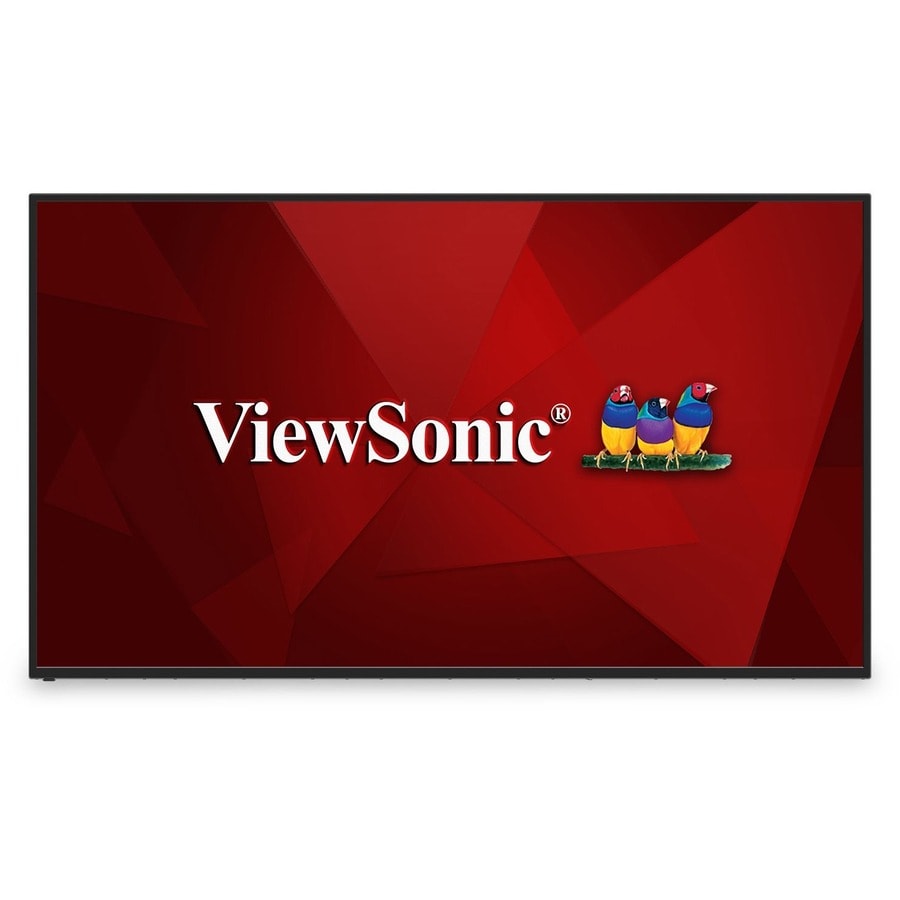

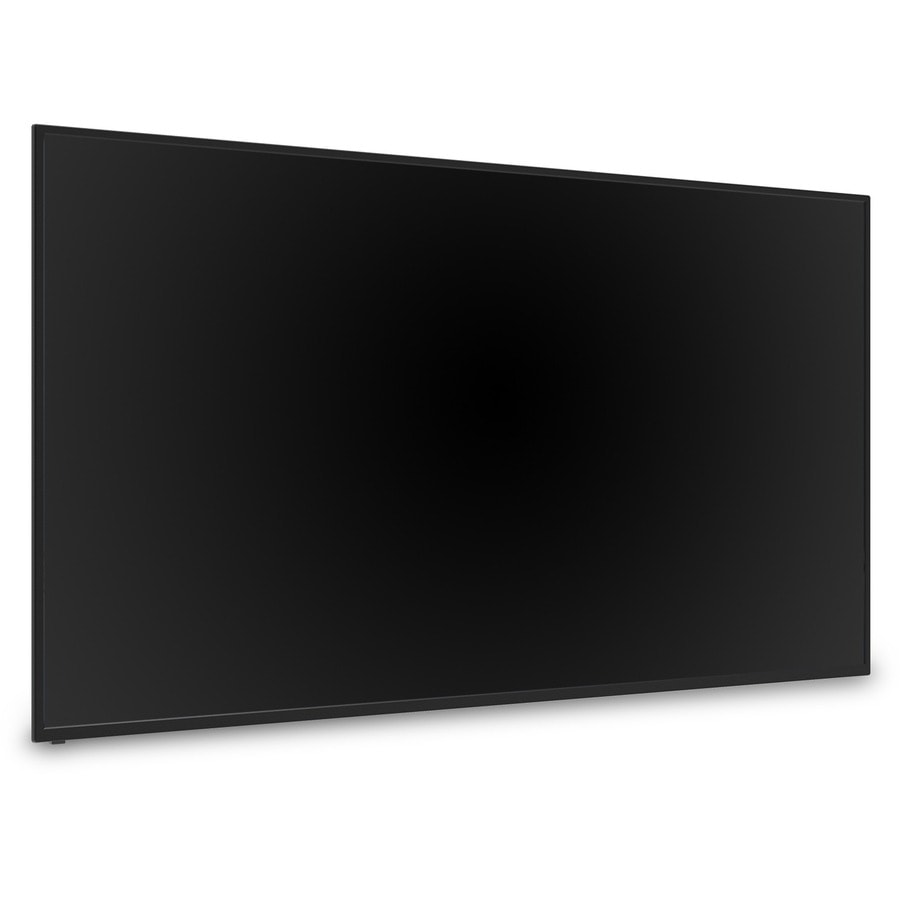

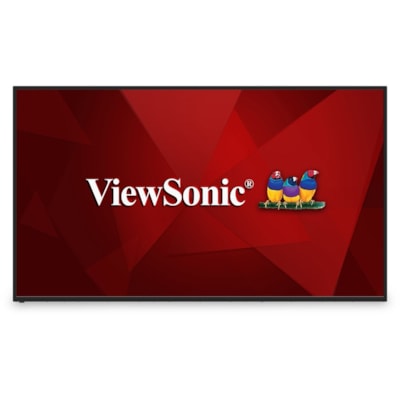

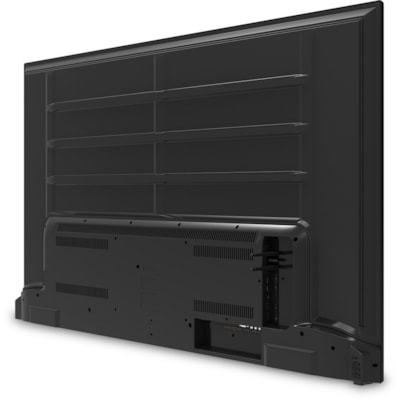

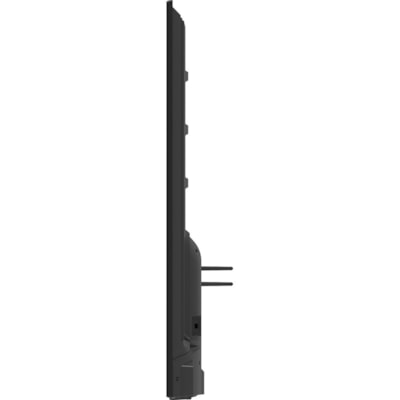

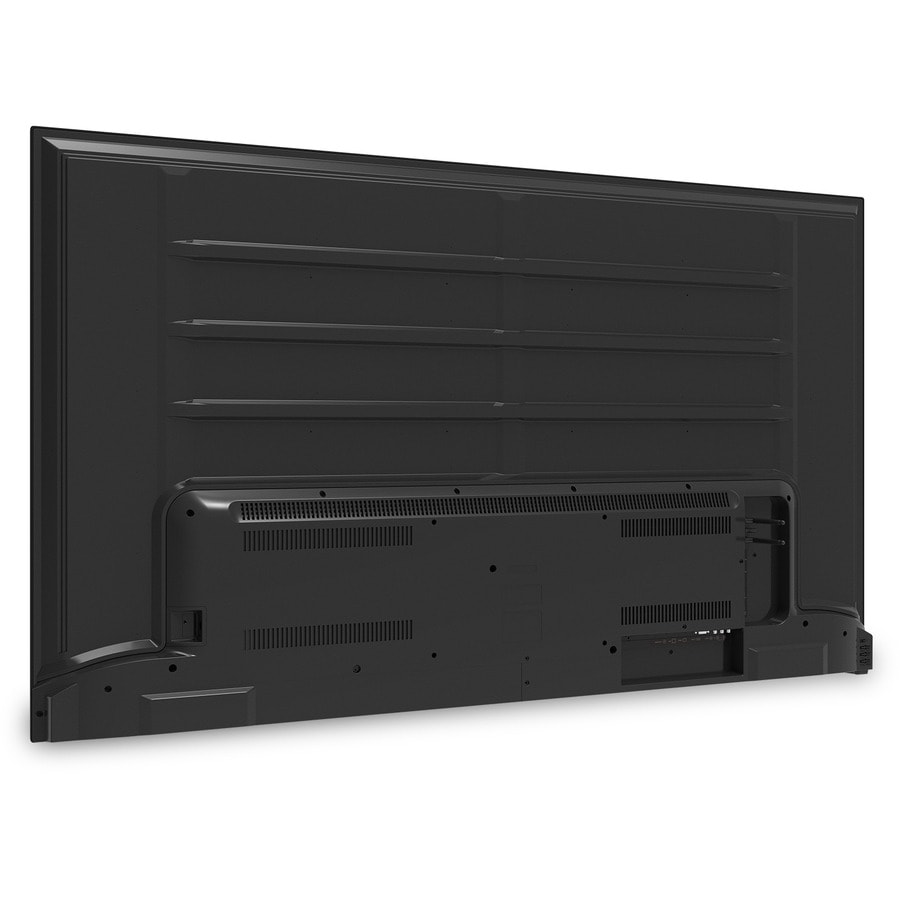

ViewSonic CDE6512 Digital Signage Display - 64.50" (1638.30 mm) LCD Cortex A53 1.50 GHz - 2 GB DDR4 SDRAM - 3840 x 2160 - Direct LED - 290 cd/m² - 2160p - HDMI - USB - Serial - Wireless LAN - Bluetooth - Ethernet - Android 9.0 Pie - Energy Star
CDE6512
Also known as SY6947579,DHCDE6512CA,IM990B1Z
MARKETING INFORMATION

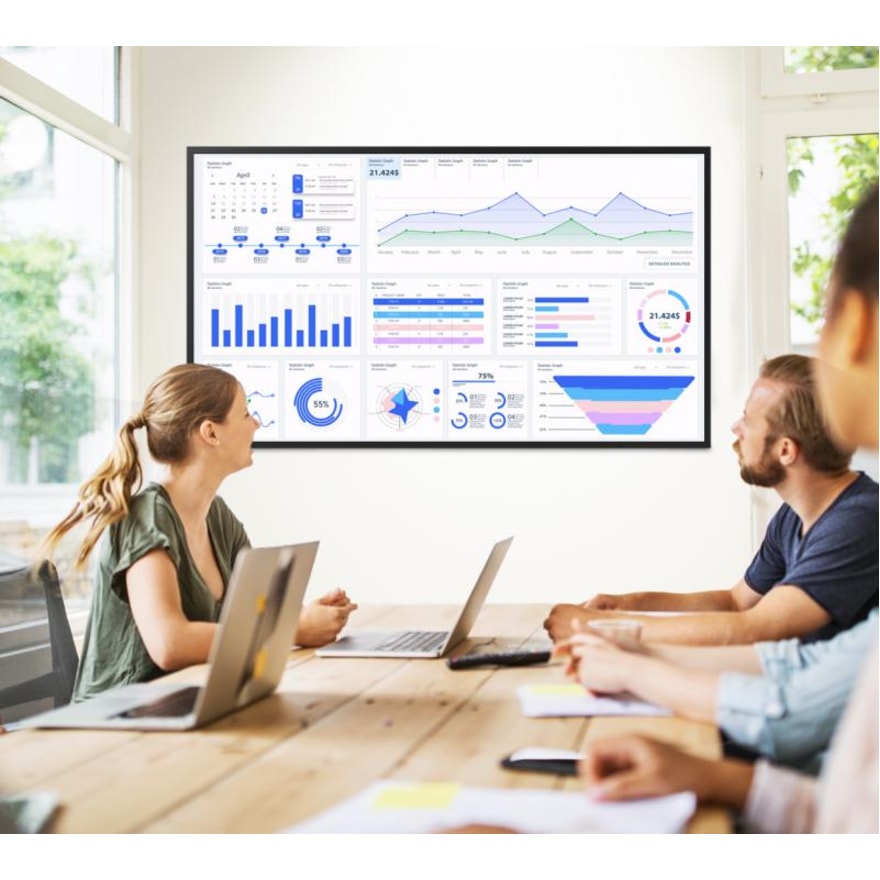

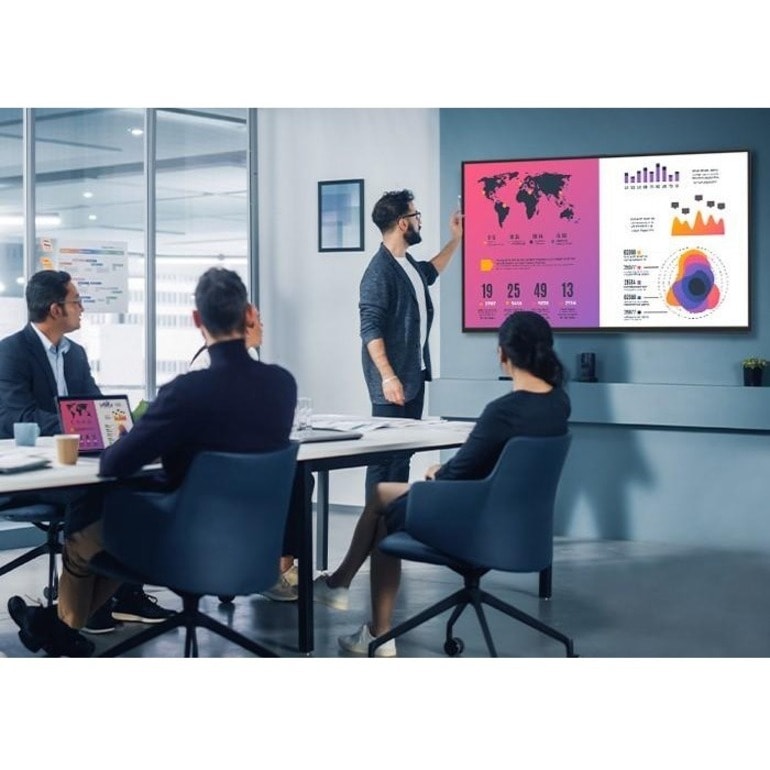

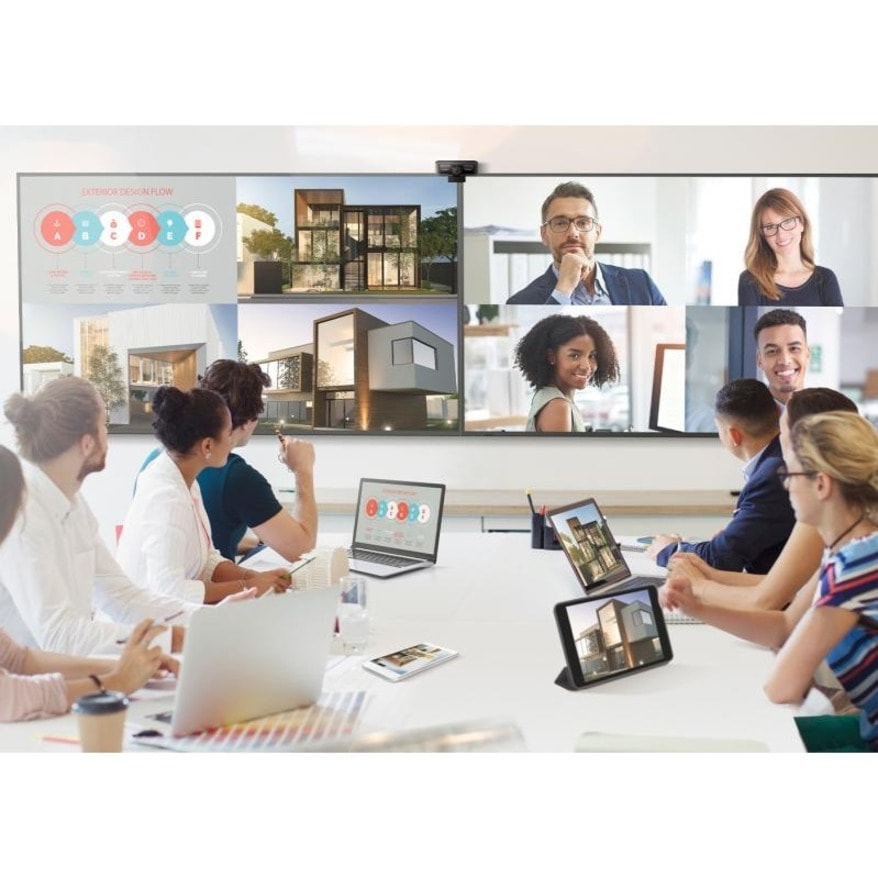

The ViewSonic® CDE6512 is a 65" 4K Ultra HD large format wireless presentation display. With features including a razor-sharp resolution of 3840 x 2160, 290-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the CDE6512 transforms meeting rooms into a dynamic communications hub. The built-in ViewBoard® Cast screen sharing software* (along with the optional ViewSonic vCastSender app), and myViewBoard Display software, enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with a 1.5GHz Quad-core embedded SoC processor, 2GB RAM, and 16GB of internal memory, the CDE6512 can play multimedia from internal storage or a USB flash drive 16 hours a day, seven days a week. And with remote configuration and content management system support, the ViewSonic® CDE6512 is also suitable for a wide array of diverse signage applications.DETAILS
- Processor Model : Cortex A53
- Processor Speed : 1.50 GHz
- Processor Core : Quad-core (4 Core)
- Standard Memory : 2 GB
- Memory Technology : DDR4 SDRAM
- Number of Screens : 1
- Viewable Screen Size : 64.50" (1638.30 mm)
- Display Screen Type : LCD
- Display Resolution : 3840 x 2160
- Backlight Technology : Direct LED
- Graphics Controller Model : G52MP2
- Scan Format : 2160p
- Dynamic Contrast Ratio : 5,000:1
- Brightness : 290 cd/m²
- Ethernet : Yes
- Wireless LAN : Yes
- Bluetooth : Yes
- USB : Yes
- HDMI : Yes
- Serial : Yes
- Number of USB 2.0 Ports : 1
- Number of HDMI Inputs : 2
- Operating System : Android 9.0 Pie
- Input Voltage : 120 V AC,230 V AC
- VESA Mount Standard : 300 x 200
- Mount Type : Wall Mountable
- Height : 33.20" (843.20 mm)
- Width : 57.54" (1461.40 mm)
- Depth : 3.17" (80.40 mm)
- Weight (Approximate) : 44.75 lb (20300 g)
- Energy Star : Yes
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 3 Year
- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- Experience luminescent visual images with LCD display
- 3840x2160 Display - Delivers a breathtaking ultra HD viewing experience with immersive pictures that are dynamic, clear, and as expansive as life
- Features 3840 x 2160 resolution and 2160p scan format for producing sharp and bright images
- Direct LED backlight technology for a consistent picture quality from corner to corner
SPECIFICATIONS
| Manufacturer | ViewSonic Corporation |
| Manufacturer Part Number | CDE6512 |
| Manufacturer Website Address | http://www.viewsonic.com |
| Brand Name | ViewSonic |
| Product Model | CDE6512 |
| Product Name | CDE6512 Digital Signage Display |
| Product Type | Digital Signage Display |
| Processor Model | Cortex A53 |
| Processor Speed | 1.50 GHz |
| Processor Core | Quad-core (4 Core) |
| Standard Memory | 2 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Screens | 1 |
| Viewable Screen Size | 64.50" (1638.30 mm) |
| Display Screen Type | LCD |
| Display Resolution | 3840 x 2160 |
| Backlight Technology | Direct LED |
| Graphics Controller Model | G52MP2 |
| Scan Format | 2160p |
| Dynamic Contrast Ratio | 5,000:1 |
| Brightness | 290 cd/m² |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| USB | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of HDMI Inputs | 2 |
| Operating System | Android 9.0 Pie |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| VESA Mount Standard | 300 x 200 |
| Mount Type | Wall Mountable |
| Height | 33.20" (843.20 mm) |
| Width | 57.54" (1461.40 mm) |
| Depth | 3.17" (80.40 mm) |
| Weight (Approximate) | 44.75 lb (20300 g) |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
