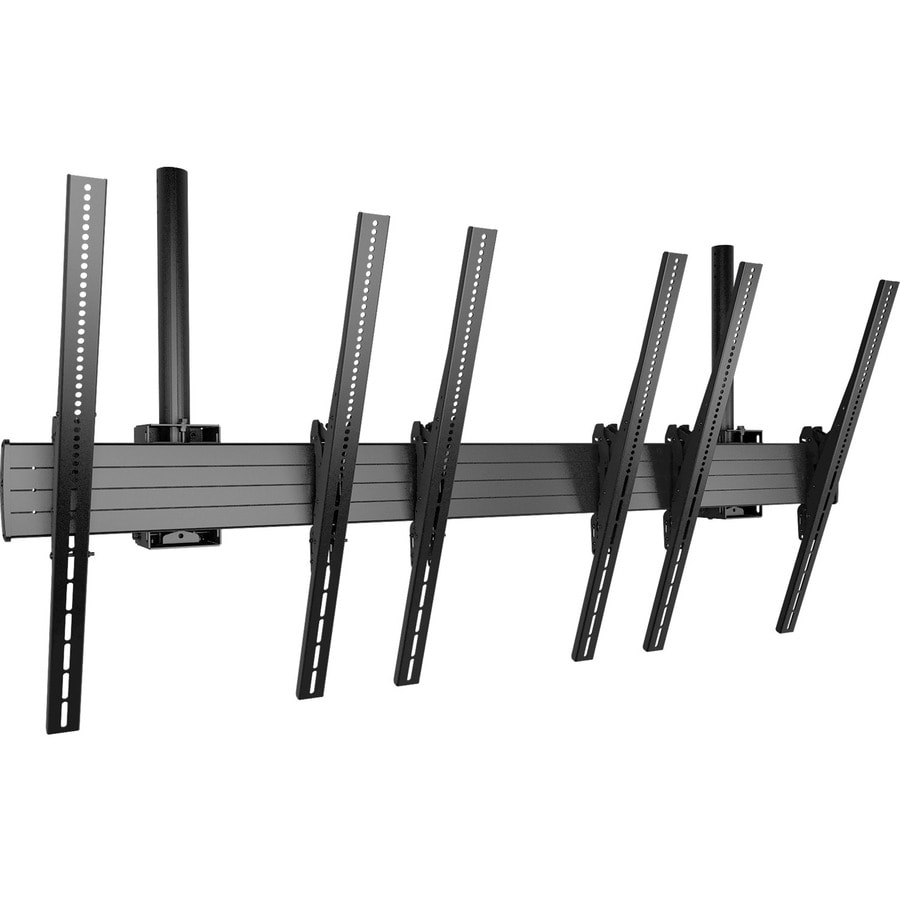

Chief FUSION LCM3X1UP Ceiling Mount for Digital Signage Display - Black - Height Adjustable - 40" to 55" Screen Support - 375 lb (170097.14 g) Load Capacity - 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 300, 400 x 400, 500 x 300, 600 x 200, 600 x 300, 600 x 400, 700 x 400, ... - VESA Mount Com

LCM3X1UP
Also known as SY5686412

Chief FUSION LCM3X1UP Ceiling Mount for Digital Signage Display - Black - Height Adjustable - 40" to 55" Screen Support - 375 lb (170097.14 g) Load Capacity - 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 300, 400 x 400, 500 x 300, 600 x 200, 600 x 300, 600 x 400, 700 x 400, ... - VESA Mount Com ling Mounted 3 X 1 Portrait Me nu Board

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Chief's FUSION ceiling mounted solutions make it possible to construct menu board in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations.

  • Screen array configuration: screens wide x screens high.
  • Confirm screen compatibility with MountFinder™

DETAILS

  • Device Supported : Digital Signage Display
  • Maximum Load Capacity : 375 lb (170097.14 g)
  • Minimum Screen Size Supported : 40"
  • Maximum Screen Size Supported : 55"
  • Height Adjustable : Yes
  • Features : Tilt,Locking System
  • Product Color : Black
  • VESA Mount Compatible : Yes
  • Mounting Pattern : 200 x 100,200 x 200,300 x 200,300 x 300,400 x 300,400 x 400,500 x 300,600 x 200,600 x 300,600 x 400,700 x 400,800 x 400
  • Height : 32.50" (825.50 mm)
  • Width : 68" (1727.20 mm)
  • Depth : 7.30" (185.42 mm)
  • Country of Origin : United States
  • Limited Warranty : 10 Year
  • Can withstand a maximum weight of 375 lb (170097.14 g)
  • Supports the screen size of 55"

SPECIFICATIONS

Manufacturer Legrand Group
Manufacturer Part Number LCM3X1UP
Manufacturer Website Address http://www.legrand.com
Brand Name Chief
Product Line FUSION
Product Series LCM
Product Model LCM3X1UP
Product Name FUSION Large Ceiling Mounted 3 x 1 Portrait Menu Board
Product Type Ceiling Mount
Device Supported Digital Signage Display
Maximum Load Capacity 375 lb (170097.14 g)
Minimum Screen Size Supported 40"
Maximum Screen Size Supported 55"
Features Tilt
Features Locking System
Height Adjustable Yes
Product Color Black
VESA Mount Compatible Yes
Mounting Pattern 800 x 400
Mounting Pattern 700 x 400
Mounting Pattern 600 x 400
Mounting Pattern 600 x 300
Mounting Pattern 600 x 200
Mounting Pattern 500 x 300
Mounting Pattern 400 x 400
Mounting Pattern 300 x 300
Mounting Pattern 300 x 200
Mounting Pattern 200 x 200
Mounting Pattern 200 x 100
Mounting Pattern 400 x 300
Height 32.50" (825.50 mm)
Width 68" (1727.20 mm)
Depth 7.30" (185.42 mm)
Additional Information
  • Tool-free screen engagement

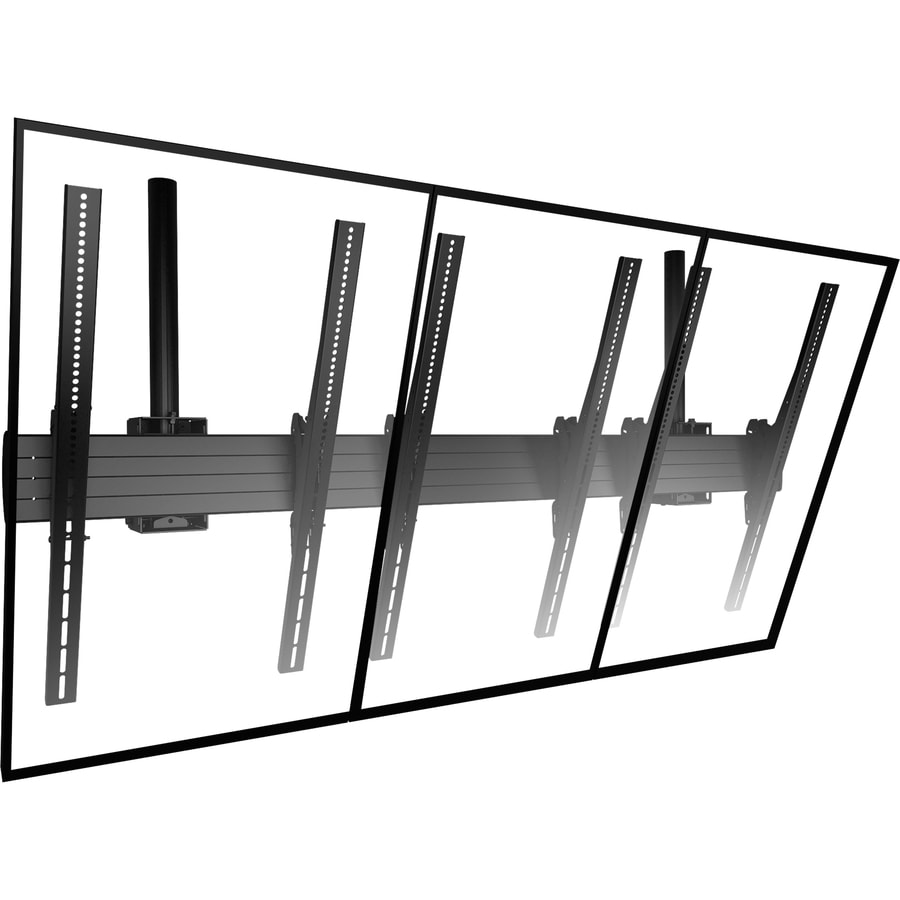

  • Screen Array Configuration: 3 x 1
  • Single horizontal extrusion keeps screens aligned
  • Adjustments: 2" Micro adjustment at structural intersection points
  • Mounting Pattern Compatibility (Universal Versions): Any width x 100 - 800 mm
Compatibility
  • 1.5" NPT Pipe
  • Flat Panel TV/Monitor
Chief CPA Pin Connection Ceiling Plates:
  • CPA330
  • CPA365
  • CPA395
  • CPA115
Chief Pin Connection Columns:
  • CPA018
  • CPA024
  • CPA036
  • CPA048
  • CPA060
  • CPA096
  • CPA072P
  • CPA048P
  • CPA072
  • CPA120
Certifications & Standards UL
Country of Origin United States
Limited Warranty 10 Year
